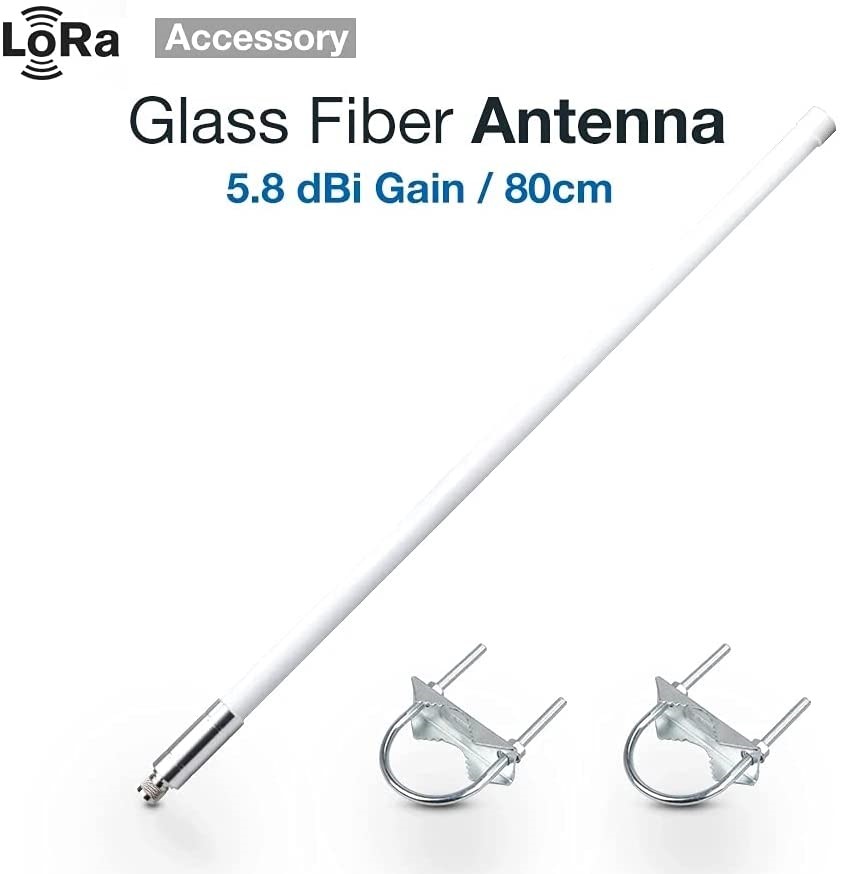

High Quality Fiberglass Antenna used for Helium & other IoT Projects
Electrical Specifications |
|
Frequency range(MHz) |
863-870MHz |
Bandwidth(MHz) |
70 |
Gain(dBi) |
5.8 |
Half-power beam width(°) |
H:360 V:20 |
VSWR |
≤1.5 |
Input Impedance(Ω) |
50 |
Polarization |
Vertical |
Maximum input power(W) |
50 |
Lightning protection |
DC Ground |
Input connector type |
N Male |
Mechanical Specifications |
|
Length (cm) |
80 cm |
Antenna weight(kg) |
0.65 |
Operating temperature(°c) |
-40~60 |
Rated Wind Velocity(m/s) |
60 |
Radome color |
White |
Mounting way |
Pole-holding |
Mounting hardware(mm) |
¢40-¢60 |
