High Quality Fiberglass Antenna used for Helium & other IoT Projects
Frequency Range
|
824-960MHz
|
Bandwidth
|
154MHz
|
Gain
|
15dBi
|
Polarization
|
Vertical
|
Vertical Half-power Beam width
|
6°
|
Horizontal Half-power Beam width
|
360°
|
VSWR
|
≤1.5
|
Input Impedance
|
50Ω
|
Maximum input power
|
100W
|
Lightning protection
|
DC Ground
|
Input connector type
|
N Female
|

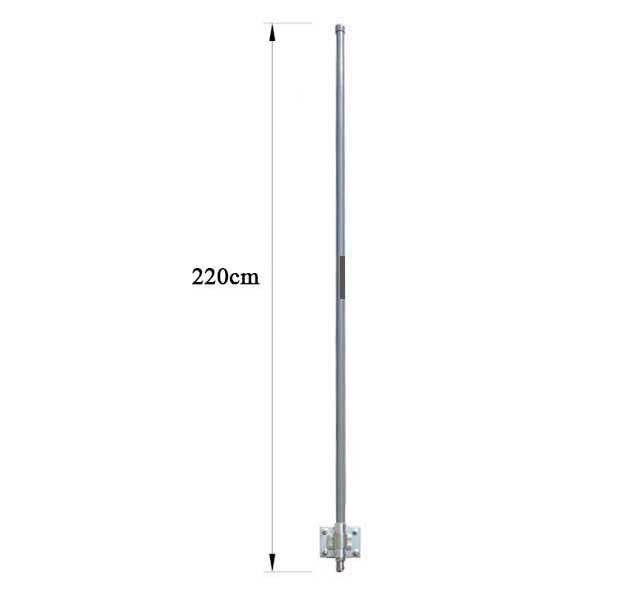

Dimensions
|
Φ20*2200mm (can be divided into 2 parts)
|
Antenna weight
|
1.8kg
|
Radome material
|
Fiberglass
|
Radome color
|
Gray
|
Operating temperature
|
-40℃~60℃
|
Rated Wind Velocit
|
100m/s
|
Mounting way
|
Pole-holding
|
Mounting hardware
|
¢35mm~¢50mm
|
