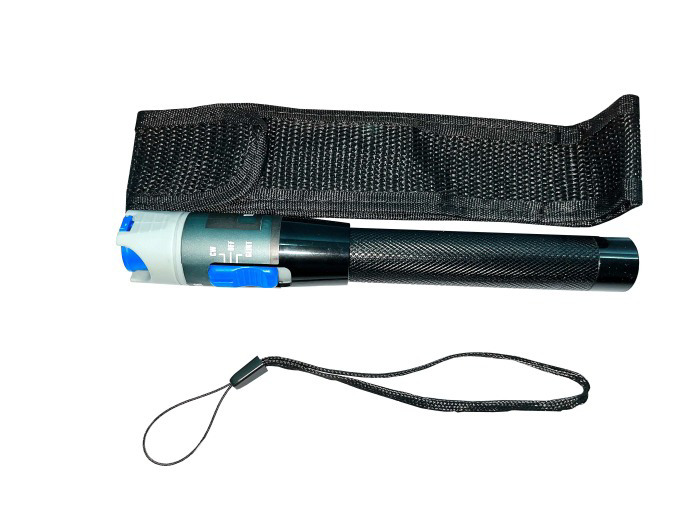

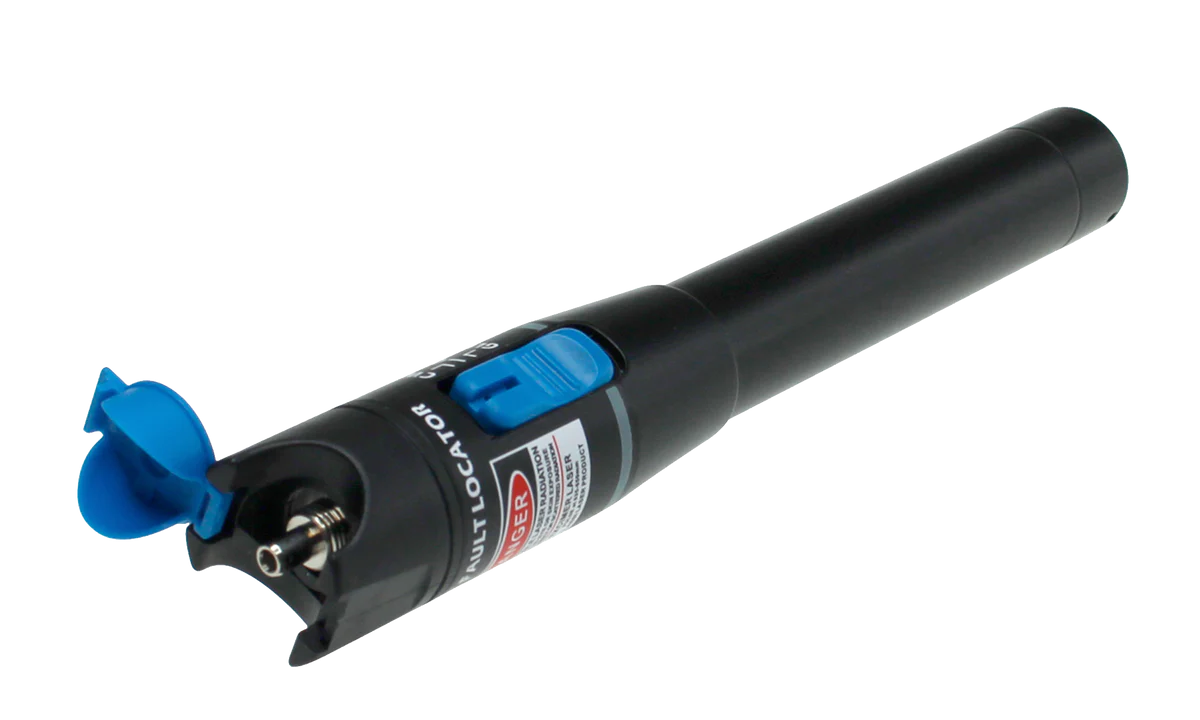

Fiber Optic Visual Fault Locator
The VFL is specially designed for field personnel who need an efficient and economical tool for fibre tracing fibre routing and continuity checking in an optical network during and after installation.
It includes: Finding the breakpoint poor connections bending or cracking in fibre optic cables. Finding the faults of OTDR.
2.5mm universal connector for test different ST SC FC interferes; Operates either in CW or Pulsed; Constant output power; Crash-proof and dust-proof design for head
case ground design prevents ESD damage; Burning testing to ensure the reliability.; Portable and rugged easy to use; Lower Battery warning
Long battery life (up to 50 hours); Wavelength: 650 nm (red); Application of optical fibre: SM/ MM; Connector: 2.5 mm universal connector for 1.25 mm connectors FC (Male)-LC
Locate the fibre failure such as fracture and bend
Failure inspection in OTDR blind zone
Mechanical transition point optimization
Application:
Telecom CATV project
PDS construction and maintenance
Optical component manufacture and research
Other fibre project
Technical Parameter:
Wavelength: 650+/- 10 - Fibre mode: Universal
Electrical source: Two 1.5V Batteries （not include）
Working time of batteries: More than 15 hours
Operating Temperature: -10- +60 ℃
Storage Temperature: -20- +70 ℃
Material of shell: Aluminium
Weight: About 160g (w/o batteries)
