Fiber Optic Power Meter - 800-1600nm

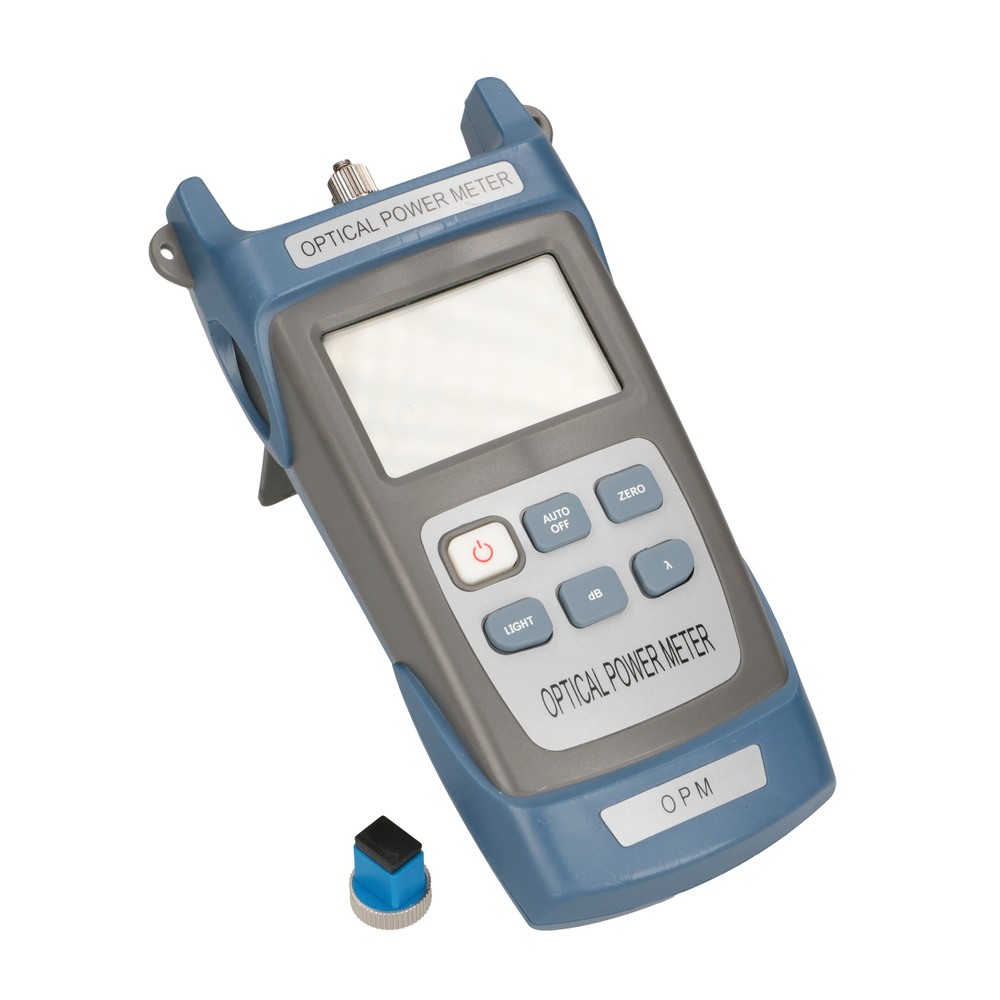

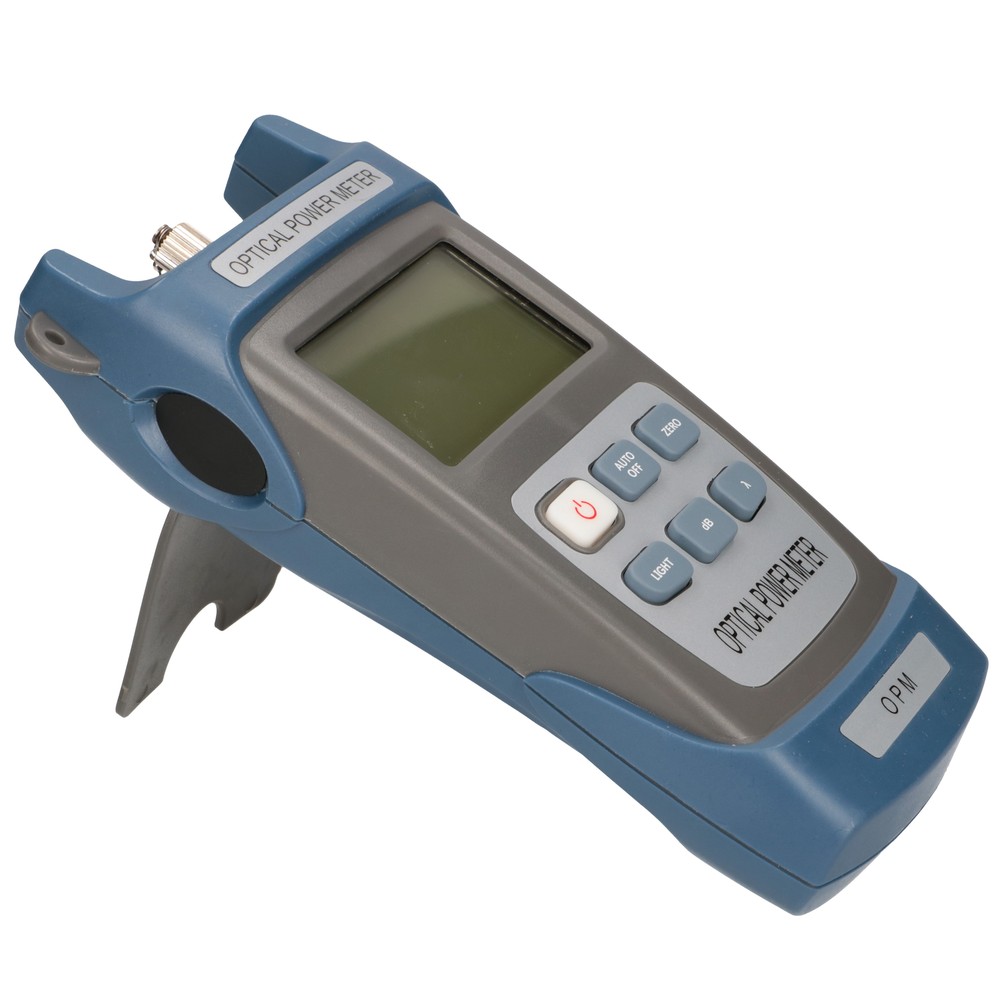

The optical power meter WT-3053 is the latest test device for absolute power measurement and relative loss measurement of optical fibre. It is characterized by a modern design, large LCD display, optional automatic switch-off function, wide power measurement range, high measurement precision, automatic calibration function and universal adapters. It is an ideal test device for self-testing of optical power and fiber optic attenuation. WT-3053 is an indispensable equipment for every installer.
Features:
- Measurement of high resolution at wavelengths 850/980/1300/1310/1490/1550 nm
- InGaAs detector
- Possibility to measure relative or absolute power level
- Large LCD display
- Automatic shutdown function

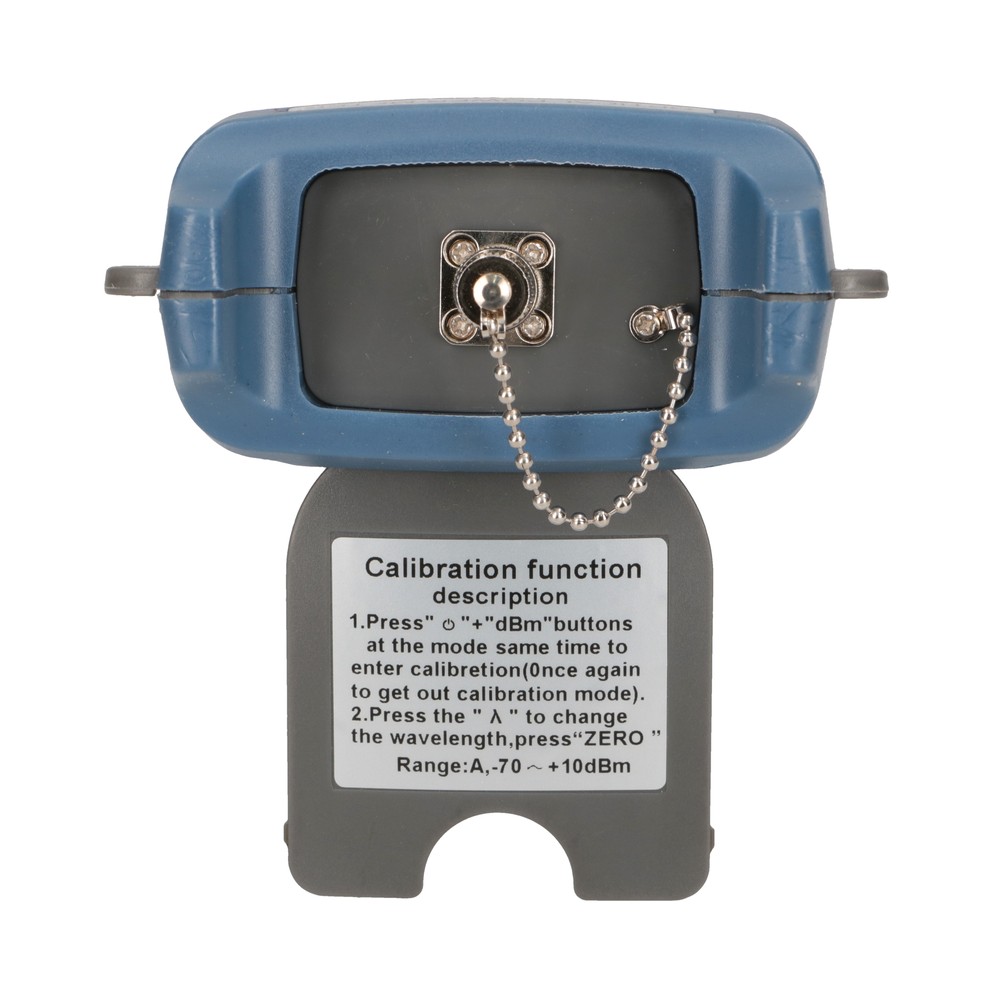

- Automatic calibration function
Specification
| Basic technical parameters | |
| Wavelength range | 800~1600 nm (850 nm, 980 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm) |
| Detector | InGaAs |
| Measuring range | -70 dBm~+3 dBm |
| Uncertainty | ± 0.15 dB |
| Relative power measurement | Linear 0.1% or non-linear 0.01 dBm |
| Operating temperature | -10°C~60°C |
| Storage temperature | -25°C~70°C |
| Battery life | 130 h |
| Power supply | Alkaline batteries (3 AA 1.5 V batteries) |
| Weight | 225 g |
| Dimensions | 148 mm × 74 mm × 28 mm |
