Save 35%

Ferguson Ariva 175 Combo

Write a review
List price: €99.00
€64.23
(€79.00 inc VAT) You save: €34.77 (35%)
175Combo
In stock
+ −

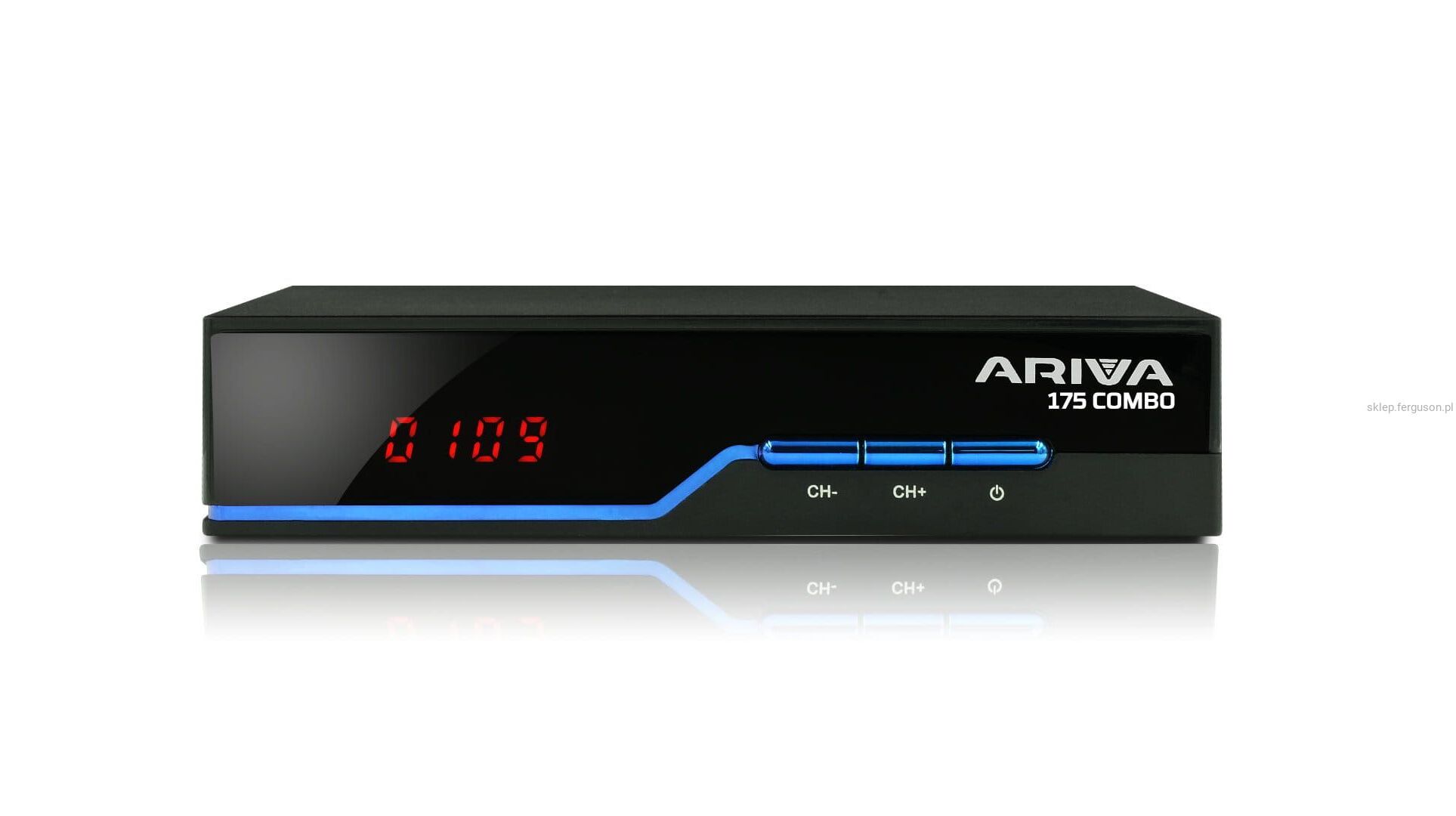

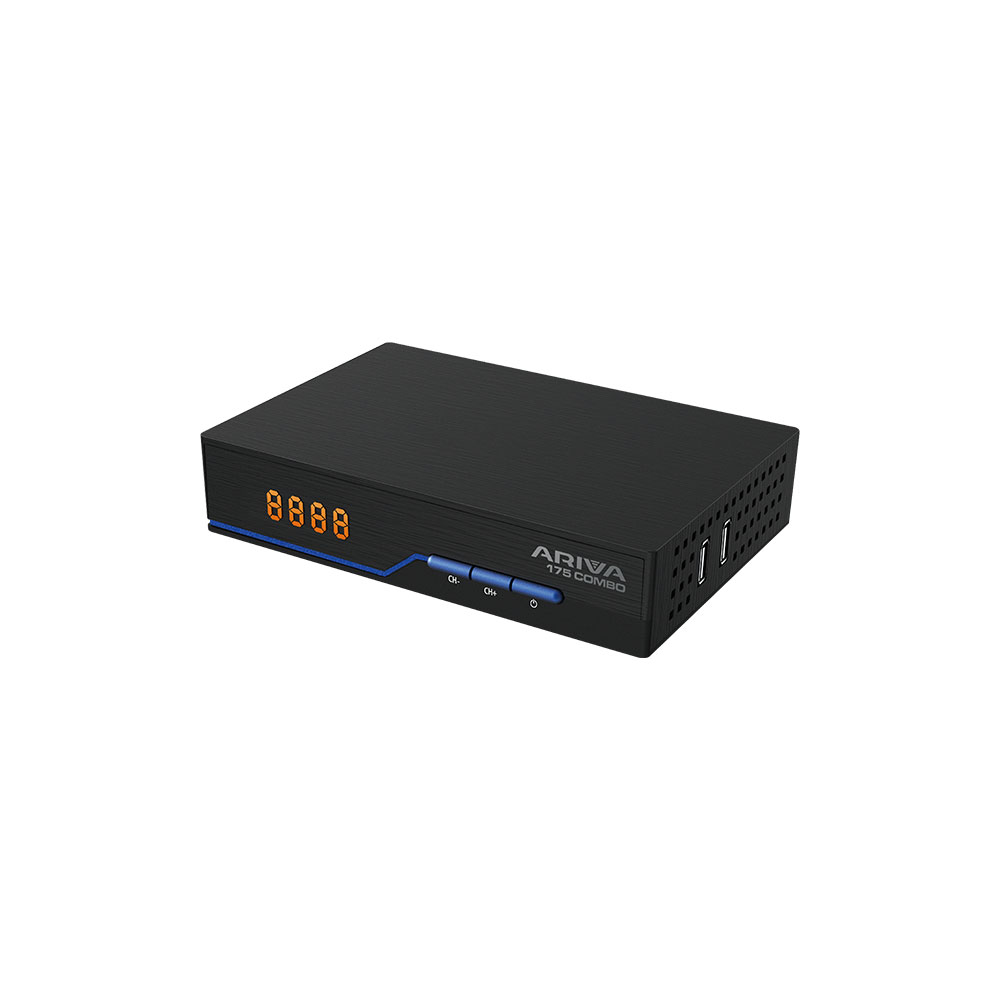

Ferguson Ariva 175 Combo

Combo satellite, terrestrial and cable TV receiver

  • Reception of high definition Full HD channels
  • PAL signal upscaling to 720p or 1080p resolution
  • Support for teletext and subtitles
  • DiSEqC 1.0, 1.1, Unicable and DiSEqC 1.2, USALS support
  • Support MPEG-2, MPEG-4, MPEG-4 AVC/H.264, HEVC/H.265 10bit
  • Dolby Digital Plus (E-AC-3) support
  • Compatible with DVB-S/S2, DVB-C/DVB-T/T2 systems
  • Smart Card Interface for pay TV
  • CA socket

Ferguson Ariva 175 Combo is a universal receiver that offers access to both satellite TV in the DVB-S2 standard and digital terrestrial television broadcasted in the DVB-T standard. The decoder is also compatible with the DVB-T2 standard encoded with the H.265/HEVC 10bit codec – a new generation of television broadcasting, offering better quality and coverage of programs broadcast in the DVB-T2 standard. Ferguson Ariva 175 Combo also supports the Dolby Digital Plus (E-AC-3) standard, necessary for the proper operation of DVB-T2 in many countries. The device, which has been equipped with two heads, allows you to simultaneously watch one and record the content of the other viewed channel. The high functional values ​​of Ariva 175 Combo go hand in hand with low energy consumption (power consumption in standby mode does not exceed 0.5W).

Ferguson Ariva 175 Combo is a real multimedia center for your home. A wide range of supported containers and codecs will ensure trouble free playback of most multimedia files.

Technical Specifications

Main functions

  • Decoder type: Combo DVB-T2+S2+C+CA+Radio
  • Main chip: MM2230-MC
  • Processor frequency: 576MHz
  • Flash memory: 8MB
  • SDRAM memory: 1GB

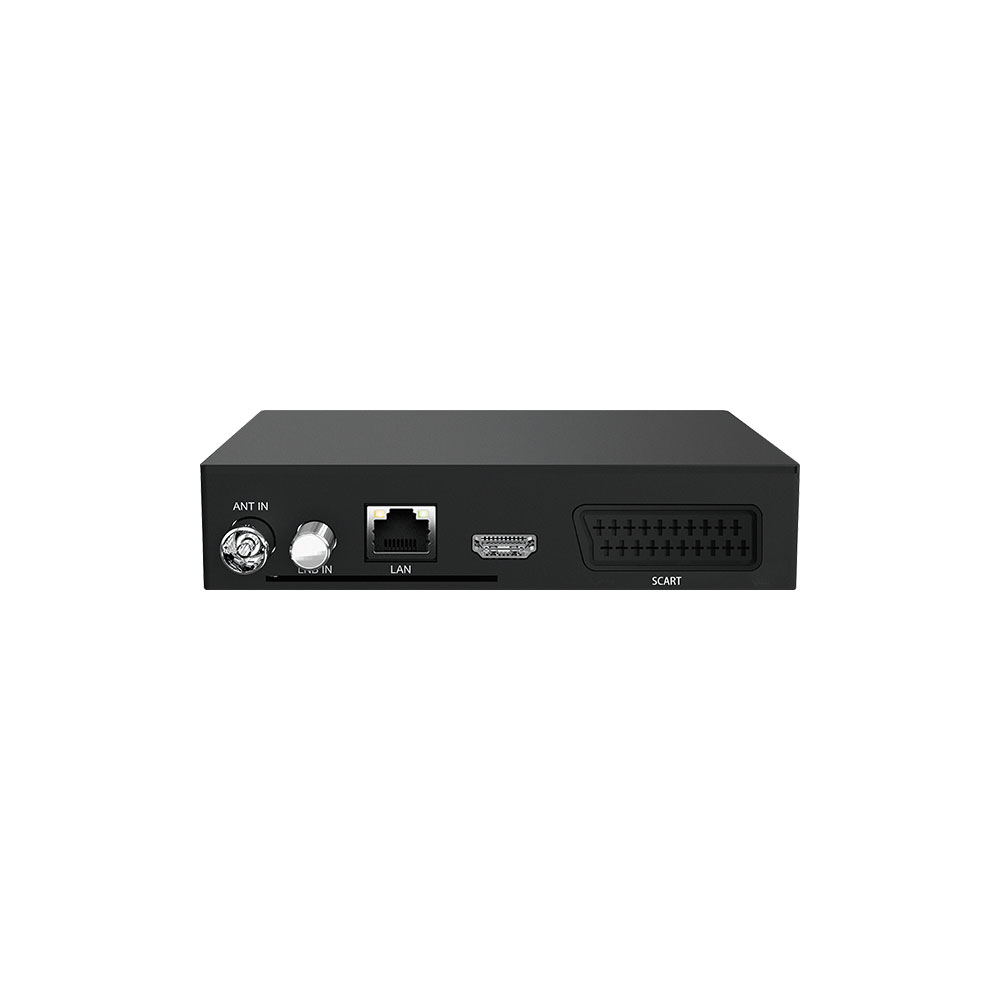

  • Interface: LNB IN, ANT IN, LAN, HDMI, SCART, DC IN, 2xUSB, S/PDIF
  • Additional Features: YouTube, YouPorn
  • Module: CONAX

DVB-S2 tuner

  • Tuner type: TS6011
  • Demodulator S2: Built into the main chip
  • Frequency range: VHF: 174 ~ 230MHz, UHF: 470 ~ 862MHz
  • Input impedance: 75Ω
  • LNB power and polarization: 13V/18V, Vertical/Horizontal
  • Input level range: -65 ~ -25dBm
  • Looped: No

DVB-T2 tuner

  • Tuner type: TC6800
  • T2 demodulator: COFDM (QPSK/QAM16/QAM64/256QAM), Supports all five QAM modes (16/32/64/128QAM/256QAM)
  • Frequency range: 47-862MHz
  • Input impedance: 75Ohms unbalanced
  • Antenna power supply: 5V
  • Looped: No

Video decoding

  • Video decoding: H.265 10bit/HEVC, MPEG-2 SD/HD (MP@HL), MPEG-4 H.264/AVS SD/HD, JPEG, BMP, PNG, Motion JPEG, AVI, VOB, MOV, MKV
  • Aspect Ratio: 4:3, 16:9, Auto
  • Video resolution: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Audio decoding

  • Audio decoding: Multi-standard audio decoding: MPEG-1/2 Layer I/II/III, Dolby AC3/AC3​​+, Multi-channel downmix to 2-channel for all formats
  • Sound mode: stereo/left/right
  • Sampling rate: 32KHz, 44.1KHz, 48KHz

Audio/Video output

  • HDMI: 1.4a with CEC support
  • Video bandwidth: 10.2Gpbs
  • Video impedance: 30mΩ max
  • Video voltage level: 5V
  • Audio frequency range: 20Hz-20KHz
  • Audio impedance: 30mΩ max
  • Audio voltage level: 5V

Software features

  • MPEG: H.265/HEVC/H.264/MPEG-4/AVS High Definition Digital TV
  • CA Type: Multicast
  • SCPC/MCPC: Yes
  • PAL/NTSC: Yes
  • Number of channels: 5000
  • Favorites: 16
  • Interface language: English/French/Russian/Portuguese/Latvian/German/Italian/Spanish/Polish/Croatian/Slovak/Czech
  • EPG: 7 days
  • PIG
  • Interface color: Blue 16bit
  • Network: Yes, wired and Wi-Fi dongle (MTK7601, RTL8188, MTK5370 chipsets supported)
  • DiSEqC: DiSEqC 1.0/1.1/1.2/1.3 (USALS)
  • Channel Edit: Yes
  • Parental Control: Yes
  • Easy-to-use menu: Yes
  • Software update: Via USB port
  • Timers: Yes (max 20)
  • Subtitle Support: Yes
  • Teletext support: Yes
  • Save channel list: Yes
  • Channel List Sort: Yes
  • MutiPicture: No
  • USB media support: Yes (FAT16/FAT32/NTFS)
  • Viewing folders: Yes
  • HDMI interface: Yes
  • Games: No
  • Recording: Yes

Power, physical characteristics, certification

  • Power supply: 12V/1.2A
  • Maximum power consumption: 5W
  • Working temperature: 0 ~ 45°C
  • Storage temperature: 0 ~ 45°C
  • Humidity: 0 to 80%
  • Power consumption in sleep mode: ≤0.5W
  • Dimensions: 141 * 95 * 30mm
  • RoHS: Yes
  • Certificates: CE, ROHS

Accessories

  • Remote control: Bluetooth
  • HDMI cable: 1
  • AC adapter: 5V, 1.5A
