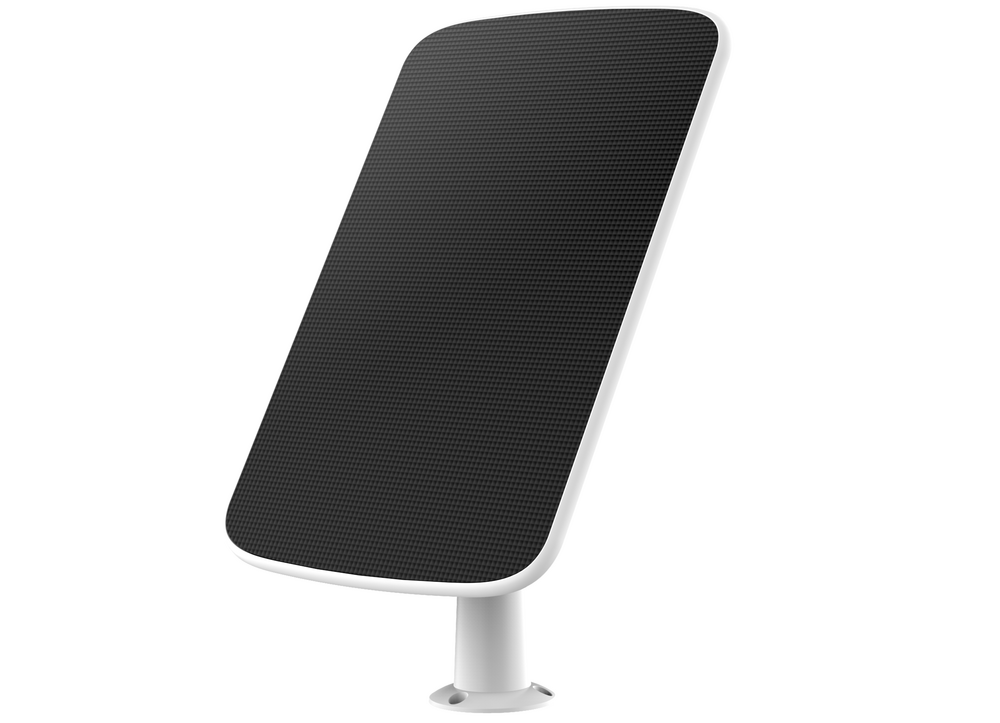

EZVIZ Solar Charging Panel-F 4.2W USB-C
Designed for EZVIZ Battery-Operated Cameras
Suitable for Ezviz models:
Other models with USB-C Connection
| Specifications | |
|---|---|
| Model | CS-CMT-Solar Panel-F |
|
Performance Parameter* *Data from EZVIZ Lab’s test results under standard testing conditions (STC): 1000W/m2, AM1.5,25℃, (38000-40000 LUX) |
|
| Power Voltage | 6.36V±5% |
| Max. Power Current | 660mA±5% |
| Max. Power | 4.2W |
| Solar Cell Efficiency | 21.6% |
| Operation Temperature | -20~60 (-4~140),Humidity 90% or less (non-condensing) |
| IP Grade | IP65 |
| Mechanical Data | |
| Solar Cell Type | Monocrystalline solar cells |
| Product Dimensions | 216.25 × 149.58 × 2.4 mm (8.51 × 5.89 × 0.09 inch) |
| Packaging Dimensions | 230 × 161 × 78 mm (9.06 × 6.34 × 3.07 inch) |
| Weight | With package: 611 g (21.5 oz) Panel body without bracket: 334 g (11.78 oz) |
| In the box | |
| In the box | - EZVIZ Solar Panel-F |
| - Adjustable Mounting Bracket | |
| - Screw Kit | |
| - Drill Template | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / FCC / UKCA / WEEE / REACH / RoHS |
