EZVIZ Solar Charging Panel-E 6.18W USB-C

List price: 42.00
29.95
(36.84 inc VAT) You save: €12.05 (29%)
Ezviz-Panel-E
In stock
+

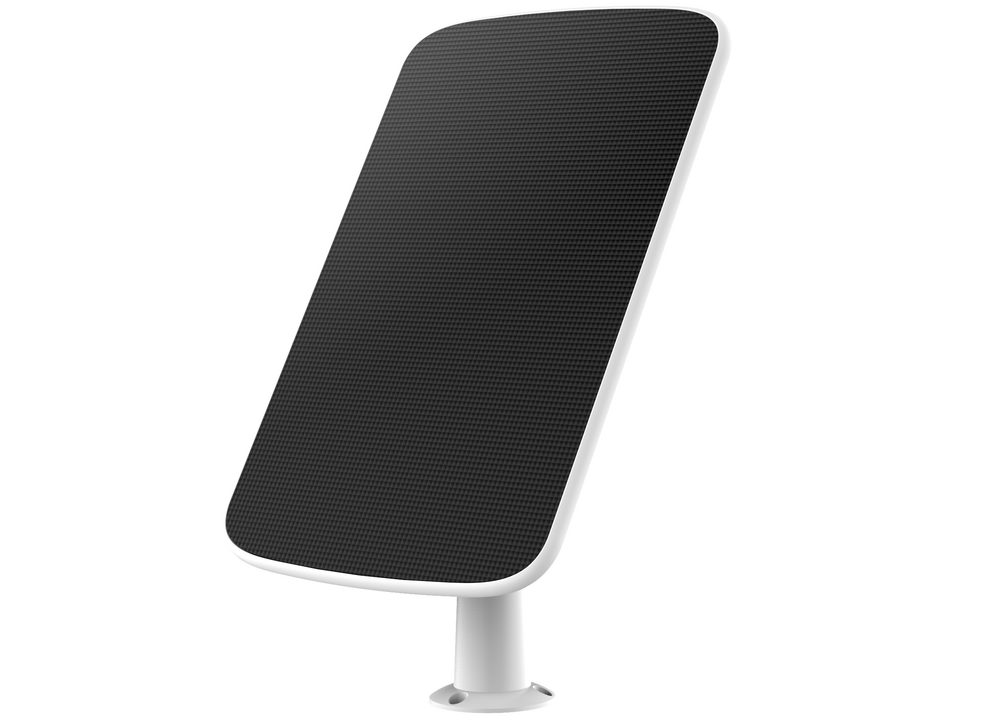

EZVIZ Solar Charging Panel-E 6.18W USB-C

Designed for EZVIZ Battery-Operated Cameras

Suitable for Ezviz models:

EB8 4G
Other models with USB-C Connection

Specifications
Model CS-CMT-Solar Panel-E

Performance Parameter*

*Data from EZVIZ Lab’s test results under standard testing conditions (STC): 1000W/m2, AM1.5,25℃, (38000-40000 LUX)

Power Voltage 6V ± 5%
Max. Power current 1030 mA ± 5%
Max. Power 6.18 W
Transformation efficiency 21.6%
Operation Temperature -20°C - 60°C (-4°F - 140°F); Humidity 90% or less (non-condensing)
IP Grade IP65
Mechanical Data
Manufacturing Process Monocrystalline solar cells, PET laminated wood
Product Dimensions 283.7 × 185.7 × 2.4 mm (11.17 × 7.31 × 0.09 inch)
Packaging Dimensions 300 × 202.5 × 78 mm (11.81 × 7.97 × 3.07 inch)
Net Weight 484g (17.07 oz)
With Package 854g (30.12 oz)
In the box
In the box - EZVIZ Solar Panel-E
- Adjustable Mounting Bracket
- Screw Kit
- Drill Template
- Quick Start Guide
Certifications
Certifications CE / FCC / UKCA / WEEE / REACH / RoHS


Datasheet (solar_panel-E__datasheet.pdf, 1,497 Kb) [Download]
