Ezviz Smart Lock & Keypad Kit

List price: 199.00
159.00
(195.57 inc VAT) You save: €40.00 (20%)
CS-DL01S/DL01CP
In stock
+

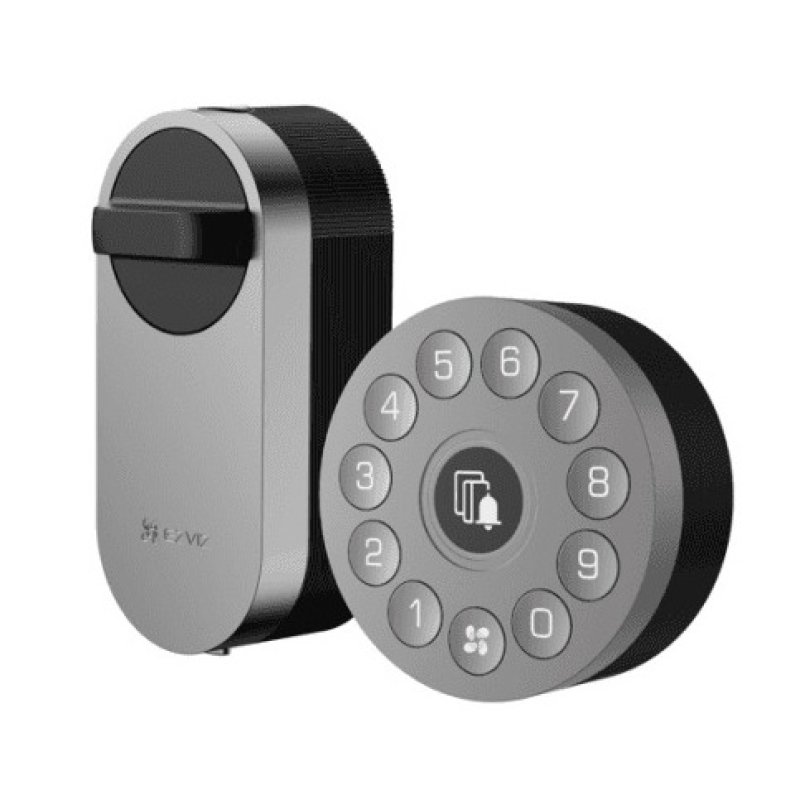

DL01S + DL01CP
DIY Smart Lock

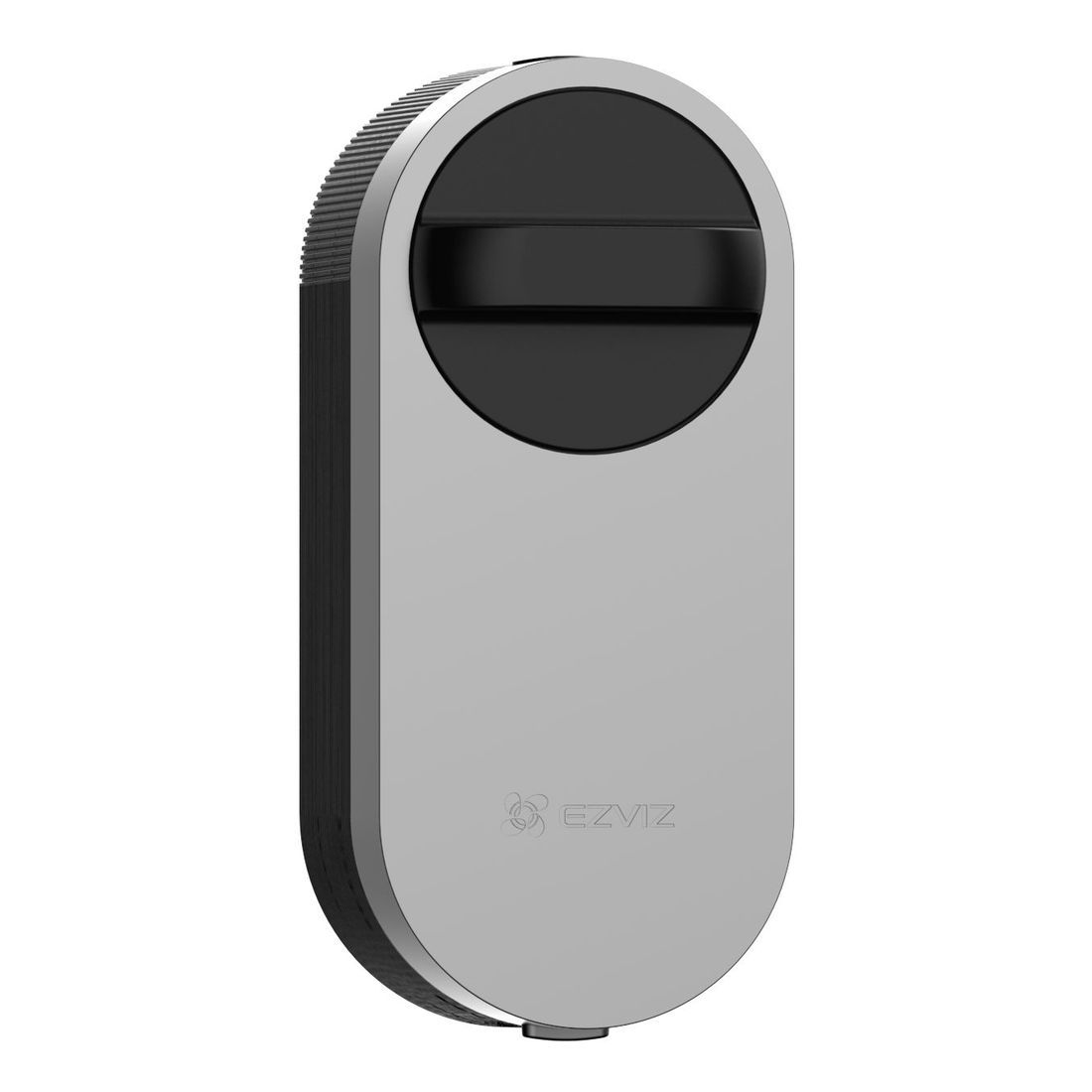

DL01S
Specifications
Specifications
Model
Parameters
Material

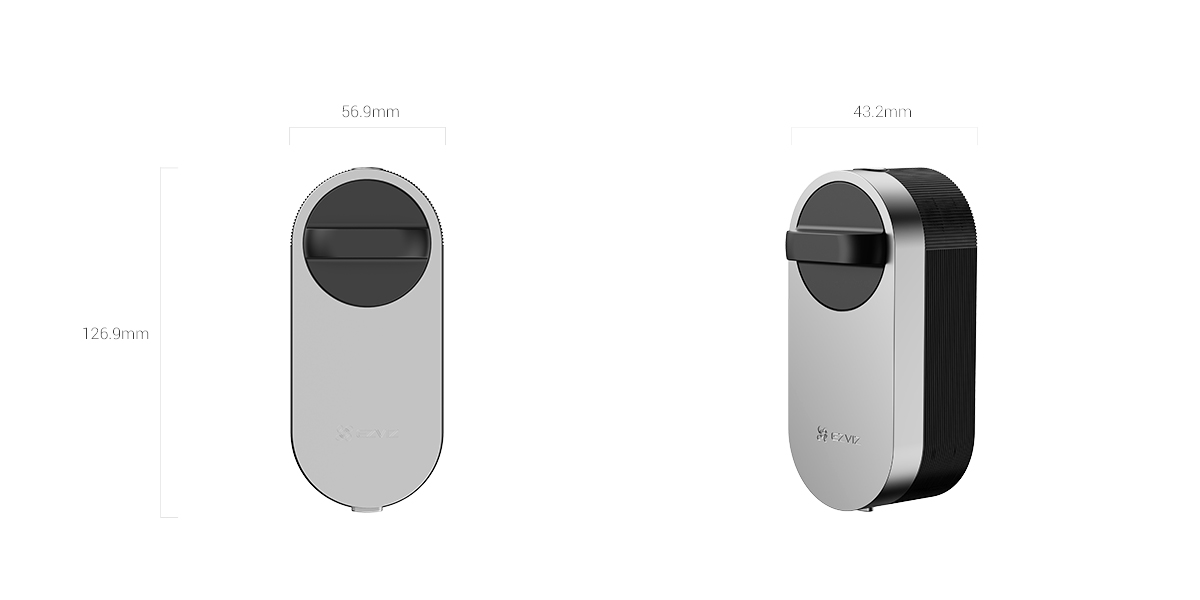

Dimensions
Communication
Battery Type
Operation Conditions
Function
Automatic locking
User rights management
Mobile Push Notification
Privacy Mode
Low Battery Alert
In the box
In the box
Certifications

Certifications

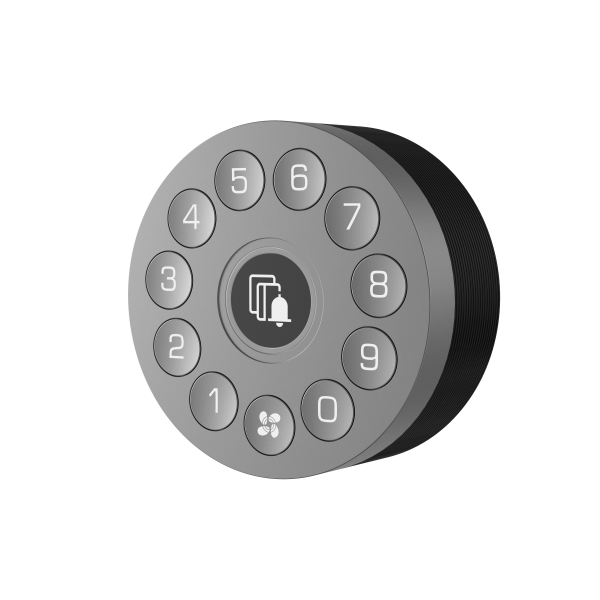

DL01CP
Add-on Multi-functional Keypad for EZVIZ Smart Lock DL01S
DL01CP
Specifications
Specifications
Model CS-DL01CP
Parameters
Material Plastic casing
Dimensions Φ 71 × 30 mm (2.80 × 1.18 inch)
Battery Type 2 AA Alkaline Batteries
Operation Conditions -25°C to 55°C (-13°F to 131°F), humidity 10% to 95% (non-condensing)
IP Ratings IP56
Function
Password Unlocking Supports (Up to 50 sets of password with 6-10 digits each)
Anti-Peeping Technology Supports
Electronic Doorbell Supports
Low Battery Alarm Supports
Anti-Tamper Alarm Supports
Auto Lockdown Against Wrong-Try Attempts Supports (The default lockdown time is 3 minutes if someone tries to unlock with wrong password in 5 consecutive times within 5 minutes)
Temporary Password Supports (Requires using with the Home Gateway A3, which is sold separately)
Lock Activity Log Supports (Requires using with the Home Gateway A3, which is sold separately)
In the box
In the box - DL01CP Keypad ×1
- Mounting Plate ×2
- AA Battery ×2
- CPU Proximity Card ×2
- Screw Kit ×1
- Double-sided Tape ×1
- Quick Start Guide ×1
- Installation Guide ×1
- Regulatory Information ×1
Certifications
Certifications CE / UKCA / RoSH / WEEE / REACH

Datasheet (DL01S_Datasheet.pdf, 6,662 Kb) [Download]
