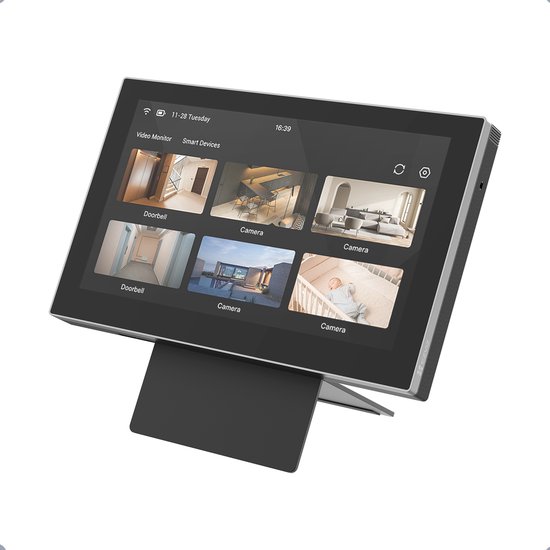

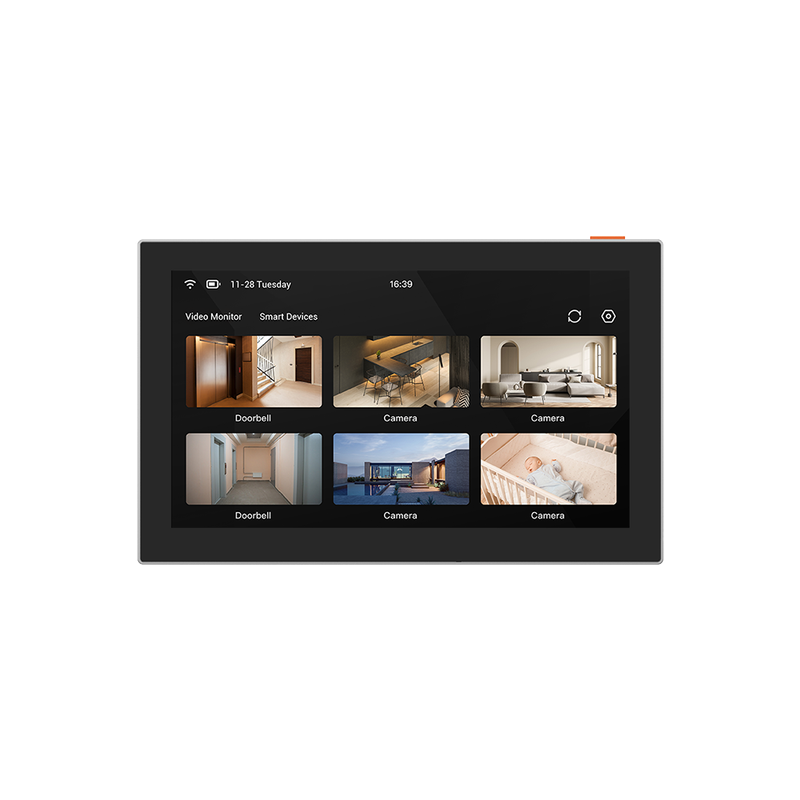

EZVIZ SD7 7" Media Touchscreen for Ezviz Devices

List price: 144.00
121.14
(149.00 inc VAT) You save: €22.86 (16%)
EZVIZ-SD7
In stock
+
Specifications
Model CS-SD7-R100-1WTC
Screen
Screen size 6.97 inch
Resolution 1024 × 600

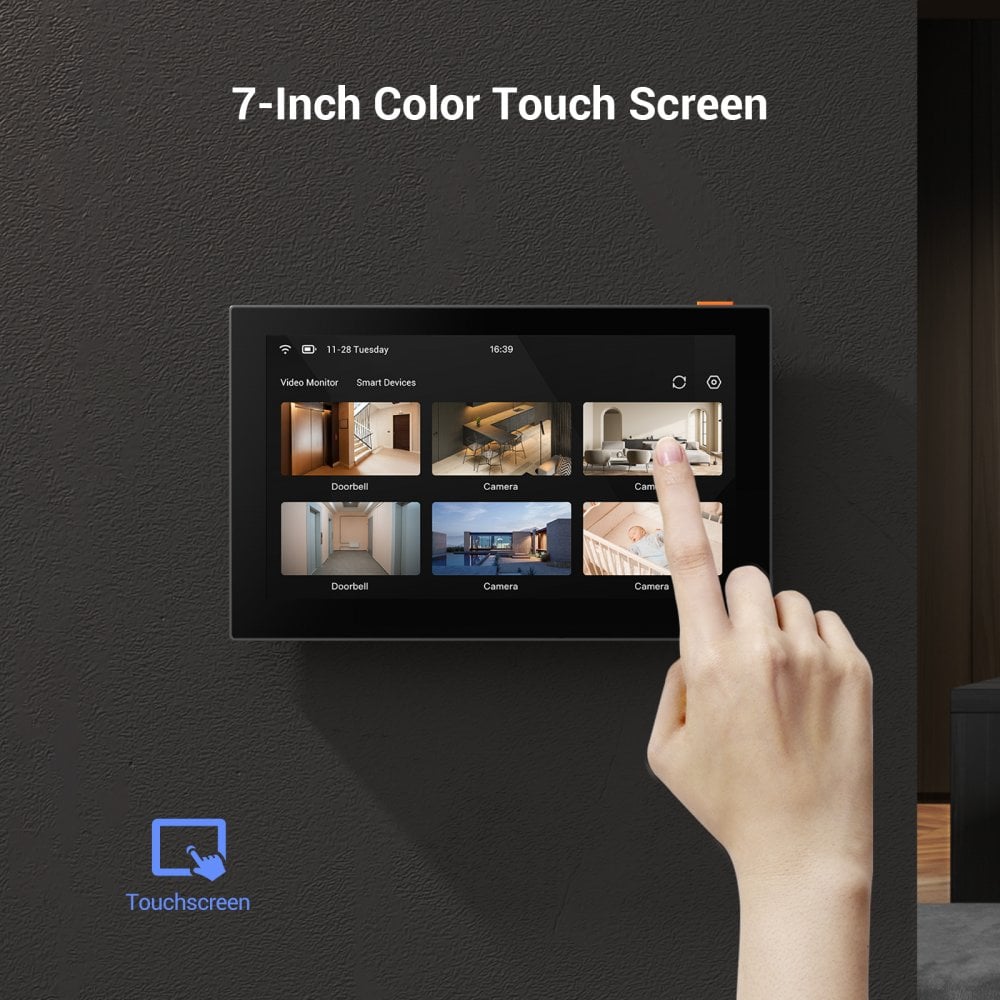

Touch Screen Supports
Screen Type IPS Full Screen
Battery
Battery Capacity 4600 mAh
Interface
Audio Input Built-in high-sensitivity microphone
Audio Output Built-in high-power speaker
Button One-switch button
Connectivity

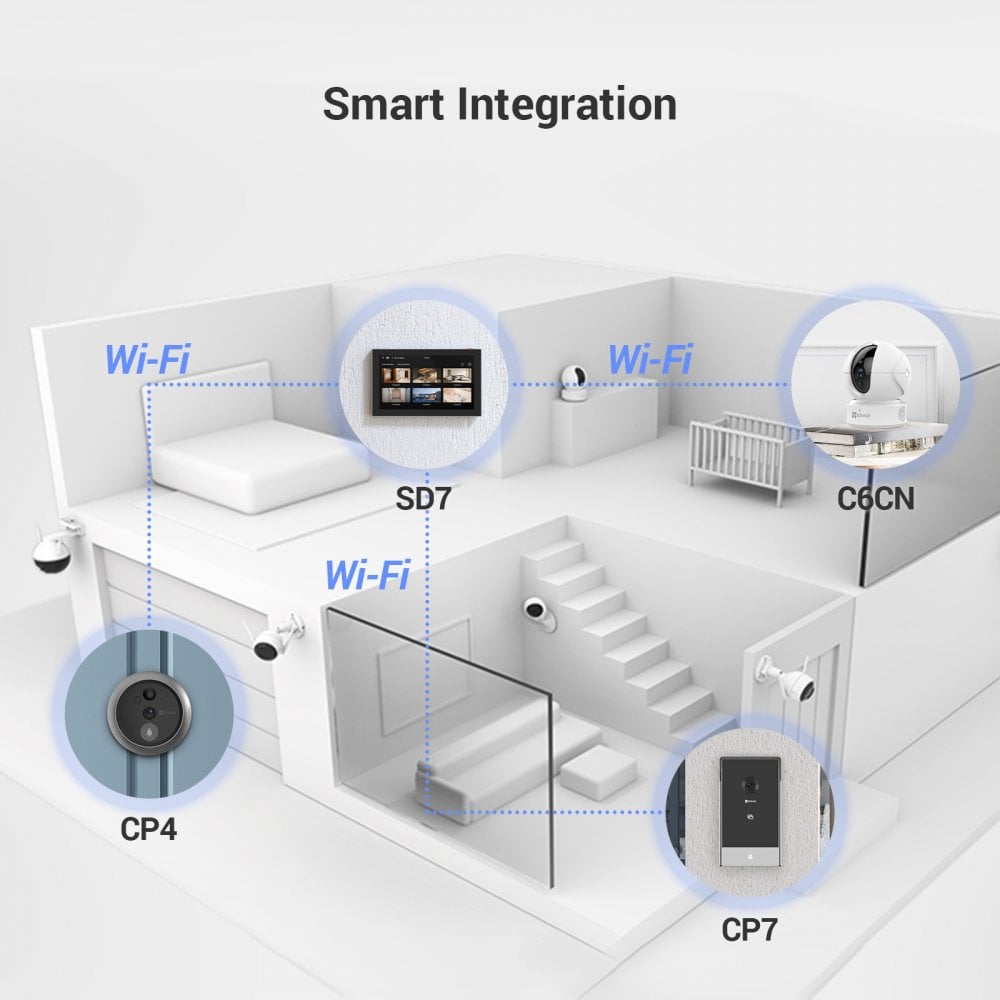

Maximum Access Pixels Up to 30 EZVIZ Devices (Supports more devices with future OTA upgrade)
Connected Device 4K (Playback supports 5MP maximum)
Protocol EZVIZ Cloud Proprietary Protocol
General Function Live View, Video Playback, Cloud Video Encryption
Wireless Parameters
Wireless Standard IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Safety 64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK, WPS
Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
General Specification
Operating Temperature 0°C to 40°C
Operating Humidity less than 95% (No condensation)
Product Size 180.3 × 111.6 × 15.6 mm (7.10 × 4.39 × 0.61 inch)
In the box
In the box - SD7 Smart Screen
- Type-C Cable
- Wall Bracket
- Installation Sticker
- Double-sided Sticker
- Screw Kit
- Quick Start Guide
Certifications
Certifications CE / WEEE / RoHS / REACH

Datasheet (SD7_Datasheet.pdf, 14,293 Kb) [Download]
