Save 18%

EZVIZ EP3x Pro - Battery Powered WiFi Doorbell Kit with Solar Panel

List price: 148.00
121.14
(149.00 inc VAT) You save: €26.86 (18%)
EZVIZ-EP3x-Pro
In stock
+

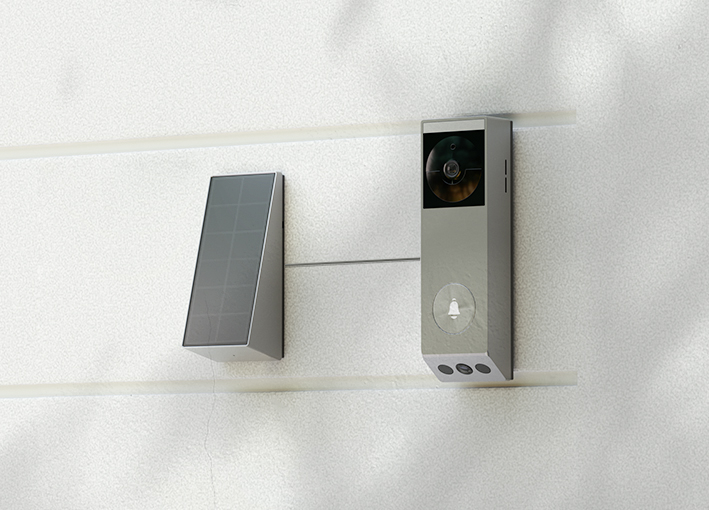

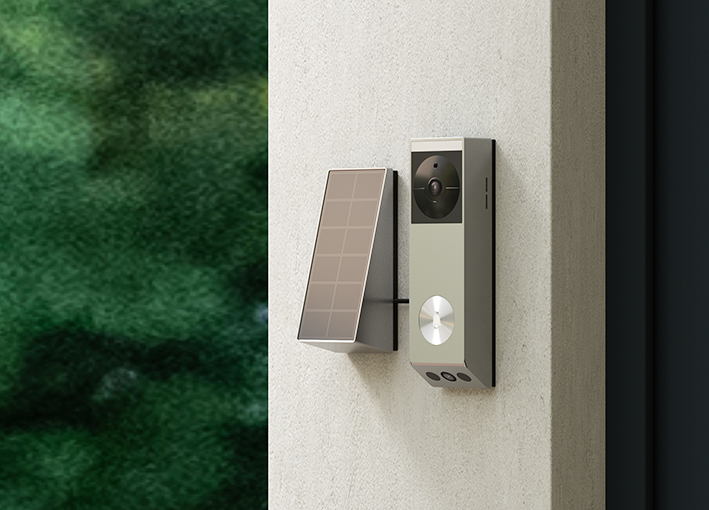

EZVIZ EP3x Pro - Battery Powered WiFi Doorbell Kit with Solar Panel

Double protection, half the trouble

Introduce EZVIZ’s first dual-lens video doorbell with unparalleled vision, complex detection features, and easy solar charging option. Combining a 2K main camera and a 1080p bottom camera, the EP3x Pro detects both moving people and delivered packages to help you watch over your front door in a smart way. It’s also a kit that you can truly set and forget — it comes with free, built-in 32GB eMMC storage capacity, and uses the included solar panel to run on green energy.

Camera Parameters
Image Sensor 1/2.8" Progressive Scan CMOS (Supports low light sensitivity)
Lens

Upper camera: 2.3mm @F/2.2 ,

 diagonal field of view 162°

Bottom camera: 2.3mm @F/2.2 ,

diagonal field of view 155°

Day & Night ICR infrared filter type ( Max: 6 meters)
Video Parameters
Max. Resolution Main camera: 2K (2048 × 1296) Bottom camera: 1080p (1920 × 1080)
DNR 2D / 3D DNR
Video Compression H.265 / H.264
Frame Rate 15fps.Fixed frame rate
PIR Sensor
Sensing Angle 120°
Sensing Distance Max. 5 m (16.4 ft)
Sensitivity Adjustable (High: 5 meter, Medium: 4 meter,and Low: up to 3 meter)
Storage
Local Storage Built-in 32GB eMMC
Cloud Storage EZVIZ CloudPlay storage
Interface
Audio Input Built-in high-sensitivity microphone
Audio Output Built-in high-power speaker
Button Doorbell button with electronic doorbell
Reset button Yes
Network Parameters
Interface Protocol EZVIZ Cloud Proprietary Protocol
Protocol EZVIZ Cloud Proprietary Protocol
Wi-Fi Parameters
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20MHz
Security 64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
Function
Intelligent Alarm AI-Powered Human Shape Detection, Package Detection
Tamper Alarm

Sound and light anti-dismantling alarm

 (Supports sending alerts via EZVIZ App)

Video Intercom Two-Way talk
General
Operation Conditions -20°C to 50°C, humidity 95% or less (non-condensing)
IP Grade IP65
Size 166 × 50 × 31mm (6.53 × 1.97 × 1.22 inch)
Battery Capacity 5200 mAh rechargeable lithium battery
Power Supply 8-24VAC, type-C: 5V(±10%), EZVIZ Solar Panel
Power Consumption 3W MAX
Solar Panel
Performance Parameter
Max. Power Voltage 8.1V
Max. Power Current 240mA
Max. Power 1.2W
Operating Temperature -20°C to 50°C
Size 126 × 56 × 44 mm (4.96 × 2.20 × 1.73 inch)
IP Grade IP65
General
Net Weight Doorbell: 276 g (9.73 oz)
Weight with Package 650 g (22.93 oz)
In the box
In the box - EP3x Pro Video Doorbell
- Mounting Bracket for Doorbell
- Inclined Mounting Bracket
- Drill Template for Doorbell
- Solar Panel
- Drill Template for Solar Panel
- Power Cable
- Pin
- Screw Kit ×3
- U-shaped Wire ×2
- Wire Connector ×2
- Regulatory Information ×2
- Quick Start Guide

Datasheet (EP3x_Pro_datasheet.pdf, 2,598 Kb) [Download]
