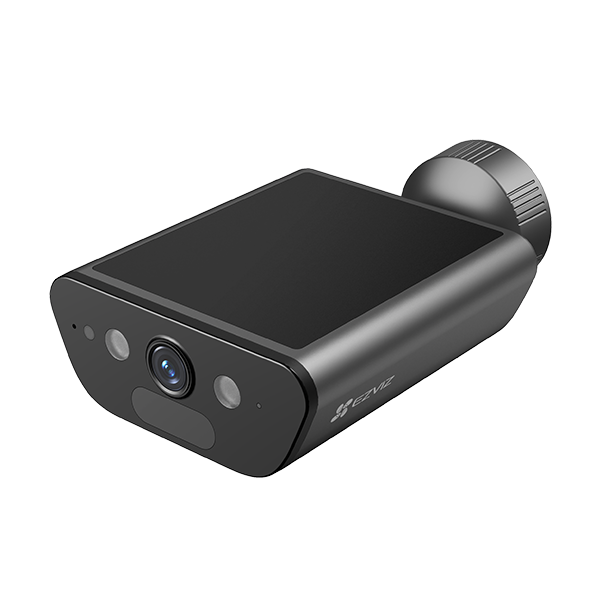

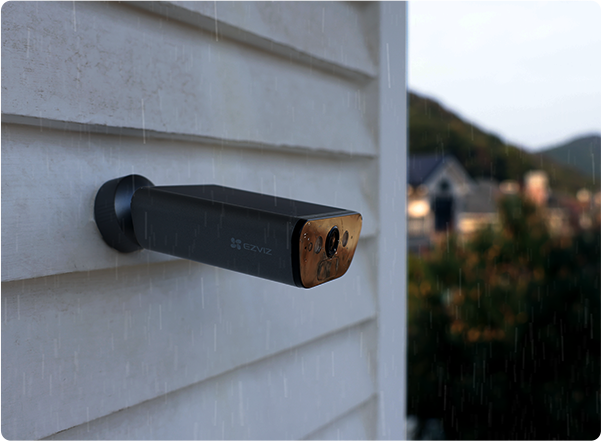

The EB5 presents itself with the highest functionality and smartness of EZVIZ, but the least concerns regarding installation and daily maintenance. It comes packed with an intuitive collection of smart detections upon human and vehicle, sends instant alerts and records important moments in 4K video. With its sleek and gray appearance, it fits well into low-key exterior house design. By consuming green solar energy instead of wired power, the family no longer has to worry about the security-related electricity bill.
| Camera |
| Image Sensor |
1/2.7” 8-Megapixel Progressive Scan CMOS Sensor |
| Minimum Illumination |
0.01 Lux @(F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed |
Self-adaptive shutter |
| Lens |
2.8mm@ F1.6; 135° (Diagonal), 113° (Horizontal), 60° (Vertical) |
| Day & Night |
IR-Cut filter with auto-switching |
| DNR |
3D DNR |
| Night Vision |
IR Distance:15m, Color Night Vision Distance:15m |
| Video & Audio |
| Max. Resolution |
3840 × 2160 |
| Frame Rate |
15fps. Self-Adaptive during network transmission |
| Video Compression |
H.265 / H.264 |
| Video Bit Rate |
Ultra HD; Quad HD; Full HD; Hi-Def Adaptive bit rate. |
| Audio Bit Rate |
Self-Adaptive |
| Max. Bitrate |
4 Mbps |
| Network |
| Bluetooth |
Supports |
| Wi-Fi Standard |

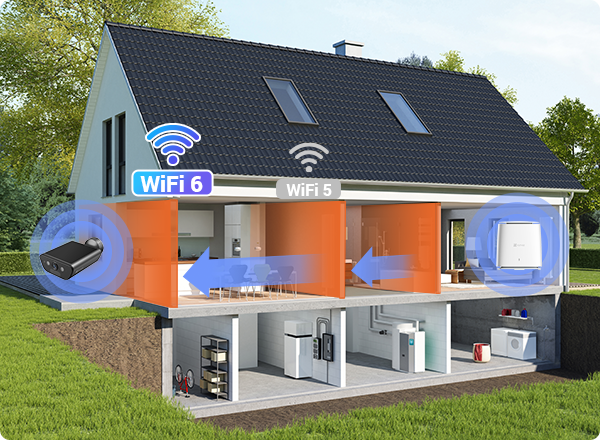

IEEE802.11b, 802.11g, 802.11n, 802.11ax |
| Frequency Range |
2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth |
Supports 20 MHz |
| Security |
WPA-PSK/WPA2-PSK, WPA3-Personal |
| Transmission Rate |
11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps |
| Wi-Fi Pairing |
AP pairing |
| Protocol |
EZVIZ Cloud proprietary protocol |
| Interface Protocol |
EZVIZ Cloud proprietary protocol |
| Minimum Network Requirement |
8Mbps |
| Function |
| Smart Alarm |
AI-Powered Human Shape Detection, AI-Powered Vehicle Detection |
| Two-way Talk |
Supports |
| General Function |
Anti-Flicker, Heart Beat, Password Protection, Watermark |
| Storage |
| Local Storage |
Supports Micro SD slot for local storage (Up to 512G) |
| Cloud Storage |
EZVIZ cloud storage |
| General |
| Operating Conditions |
-20 °C to 50 °C (-4 °F to 122 °F ), humidity 95% or less (Non-condensing) |
| IP Grade |
IP65 |
| Power Supply |
DC 5V/2A (Compatible power adapter needs to be purchased separately) |
| Battery Capacity |
10400 mAh |
| Power Consumption |
Max. 10W |
| Product Dimensions |
166 × 103 × 54 mm |
| Packaging Dimensions |
227 × 167 × 64 mm |
| Weight |
Net Weight: 466g
With Package: 822g
|
| In the box |
| In the box |
- Camera |
| - Power Cable |
| - Screw Base |
| - Drill Template |
| - EZVIZ Screw Kit |
| - Regulatory Information |
| - Quick Start Guide |
