Specifications |
|
Technical Data |
Rated Input Voltage |
230V AC |
Rated Output Voltage |
8V, 12V, 24V AC |
Rated Frequency |
50Hz |
Rated Power Output |
8V: 10VA; 12V: 20VA; 24V: 30VA |
Power Consumption |
1.15W |
Service Period |
Continuous operating |
Connection Terminals |
Pillar terminal with clamp |
Connection Capacity |
Rigid conductor 10mm² |
Installation |
On symmetrical DIN rail 35mm panel mounting |
Terminal Connection Height |
H=15.5mm |
Operating Conditions |
-5°C to 40°C (23°F to 104°F), Humidity 95% or less |
Dimensions |
35.3 x 86 x 68 mm (1.40 x 3.39 x 2.68 inch) |
Net Weight |
323 g (11.4 oz) |
In the box: |

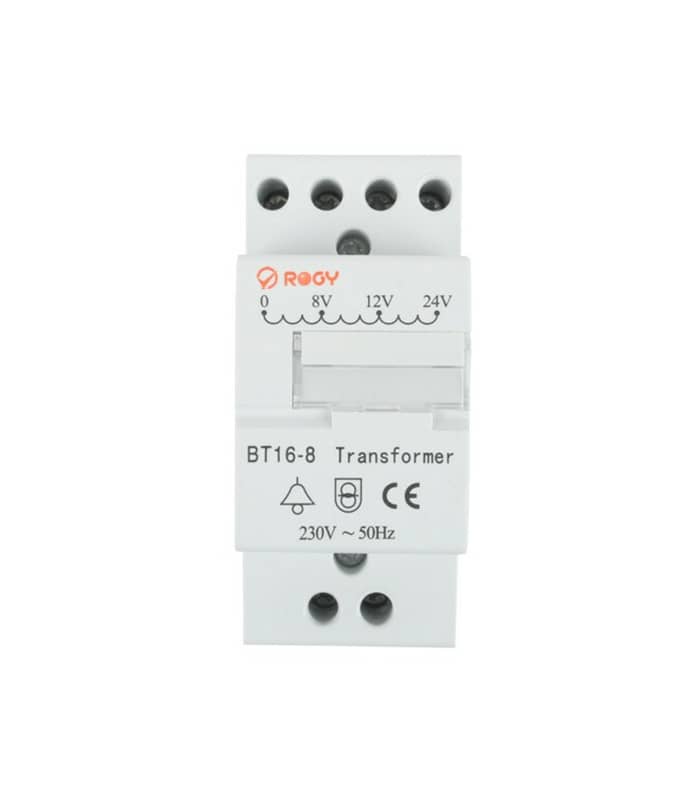

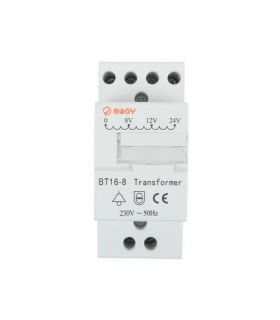

- Standard Transformer |
Certifications: |
CE / ROHS / REACH / WEEE |
