Camera | |
---|---|
Image Sensor | 1/2.7” 8-Megapixel Progressive Scan CMOS Sensor |
Minimum Illumination | 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR |
Shutter Speed | Self-adaptive shutter |
Lens | 2.8mm@ F1.6; 135° (Diagonal), 113° (Horizontal), 60° (Vertical) |
Day & Night | IR-Cut filter with auto-switching |
DNR | 3D DNR |
Night Vision | IR Distance:15m, Color Night Vision Distance:15m |
Video & Audio | |
Max. Resolution | 3840*2160/4K/8MP |
Frame Rate | 15fps. Self-Adaptive during network transmission |
Video Compression | H.265 / H.264 |
Video Bit Rate | Ultra HD; Quad HD; Full HD; Hi-Def Adaptive bit rate. |
Audio Bit Rate | Self-Adaptive |
Max. Bitrate | 4 Mbps |
Network | |
Bluetooth | Supports |
Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n, 802.11ax |
Frequency Range | 2.4 GHz ~ 2.4835 GHz |
Channel Bandwidth | Supports 20 MHz |
Security | WPA-PSK/WPA2-PSK, WPA3-Personal |
Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps |
Wi-Fi Pairing | AP pairing |
Protocol | EZVIZ cloud proprietary protocol |
Interface Protocol | EZVIZ cloud proprietary protocol |
Minimum Network Requirement | 8Mbps |
Function | |
Smart Alarm | AI-Powered Human Shape Detection, AI-Powered Vehicle Detection |
Two-way Talk | Supports |
General Function | Anti-Flicker, Heart Beat, Password Protection, Watermark |
General | |
Operating Conditions | -20 °C to 50 °C (-4 °F to 122 °F ), humidity 95% or less (Non-condensing) |

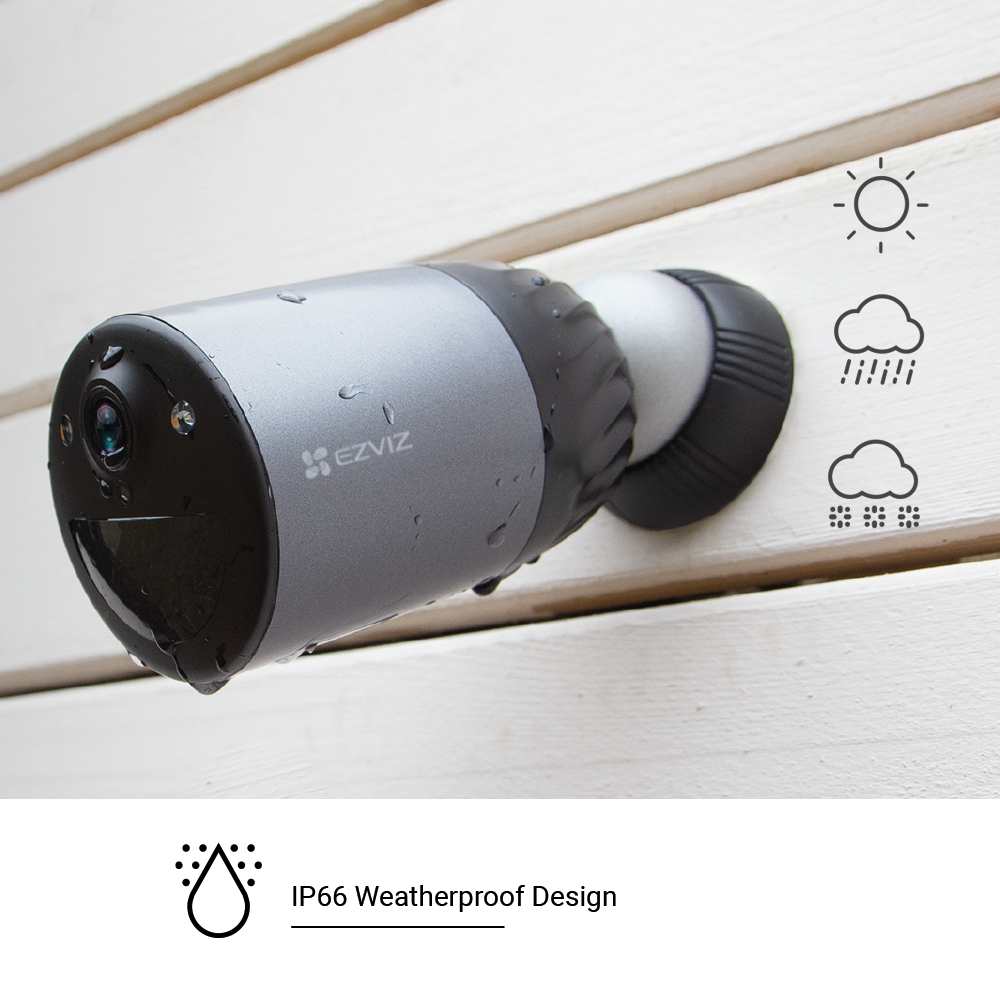

IP Grade | IP65 |
Power Supply | DC 5V/2A (Compatible power adapter needs to be purchased separately) |

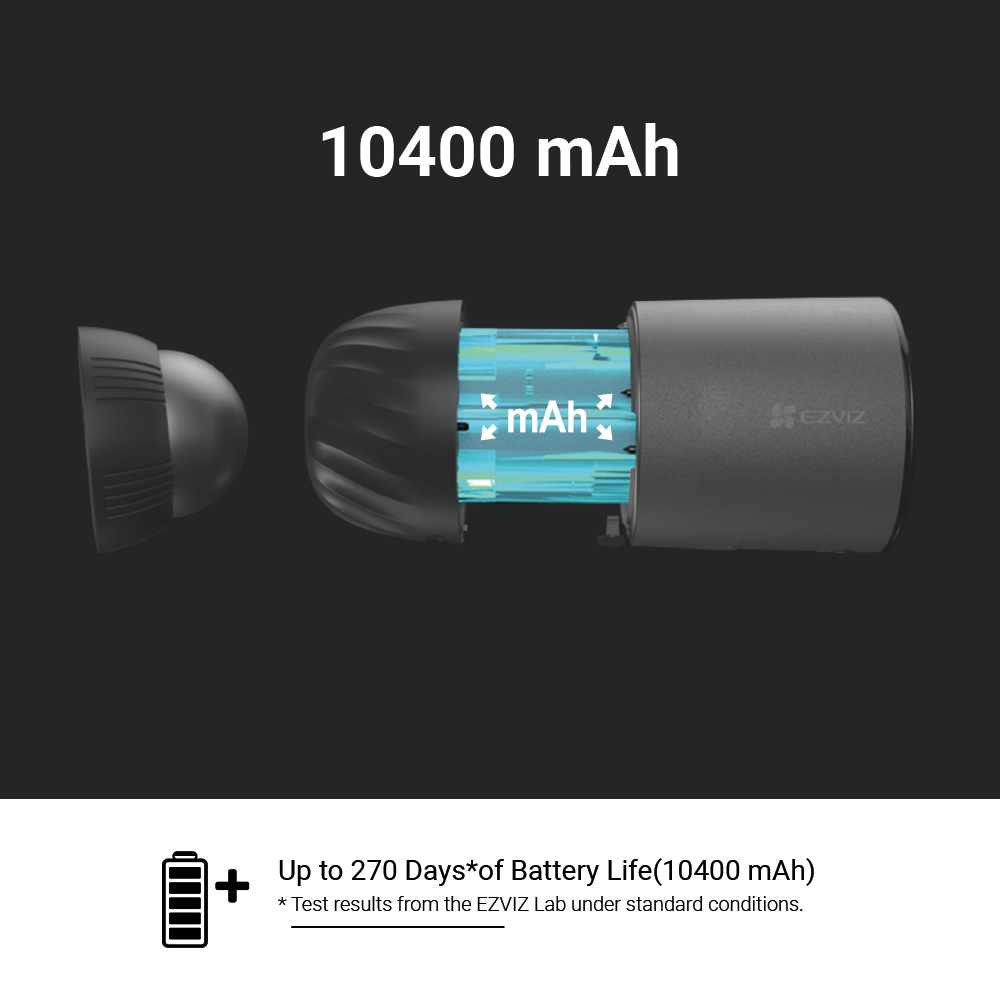

Battery Capacity | 10400 mAh |
Power Consumption | Max. 10W |
Product Dimensions | 149.33 x 62.95 x 62.95 mm |
Packaging Dimensions | 103 x 103 x 186 mm |
Weight |
Net Weight: 348g With Package: 671g |
In the box | |

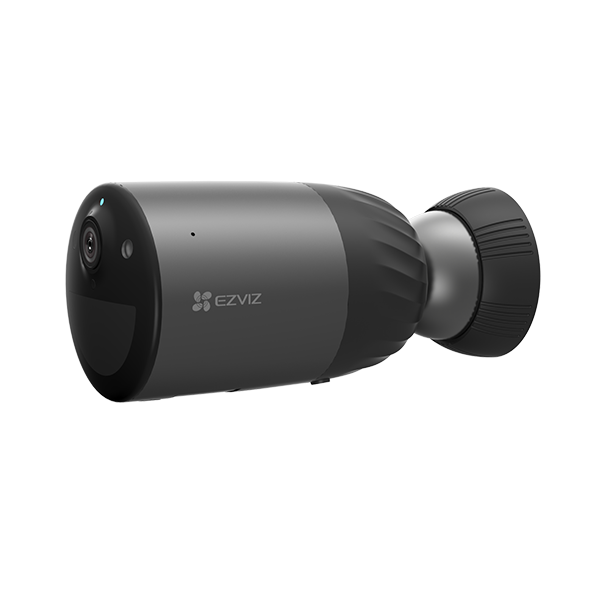

In the box | - EZVIZ BC1c Camera |
- Magnetic Base | |
- Screw Base | |
- USB Cable | |
- Pin | |
- Drill Template | |
- Screw Kit | |
- Regulatory Information | |
- Quick Start Guide |
