Dahua Wireless Alarm Relay

32.00
(39.36 inc VAT)
ARM7011-W2(868)
In stock
+

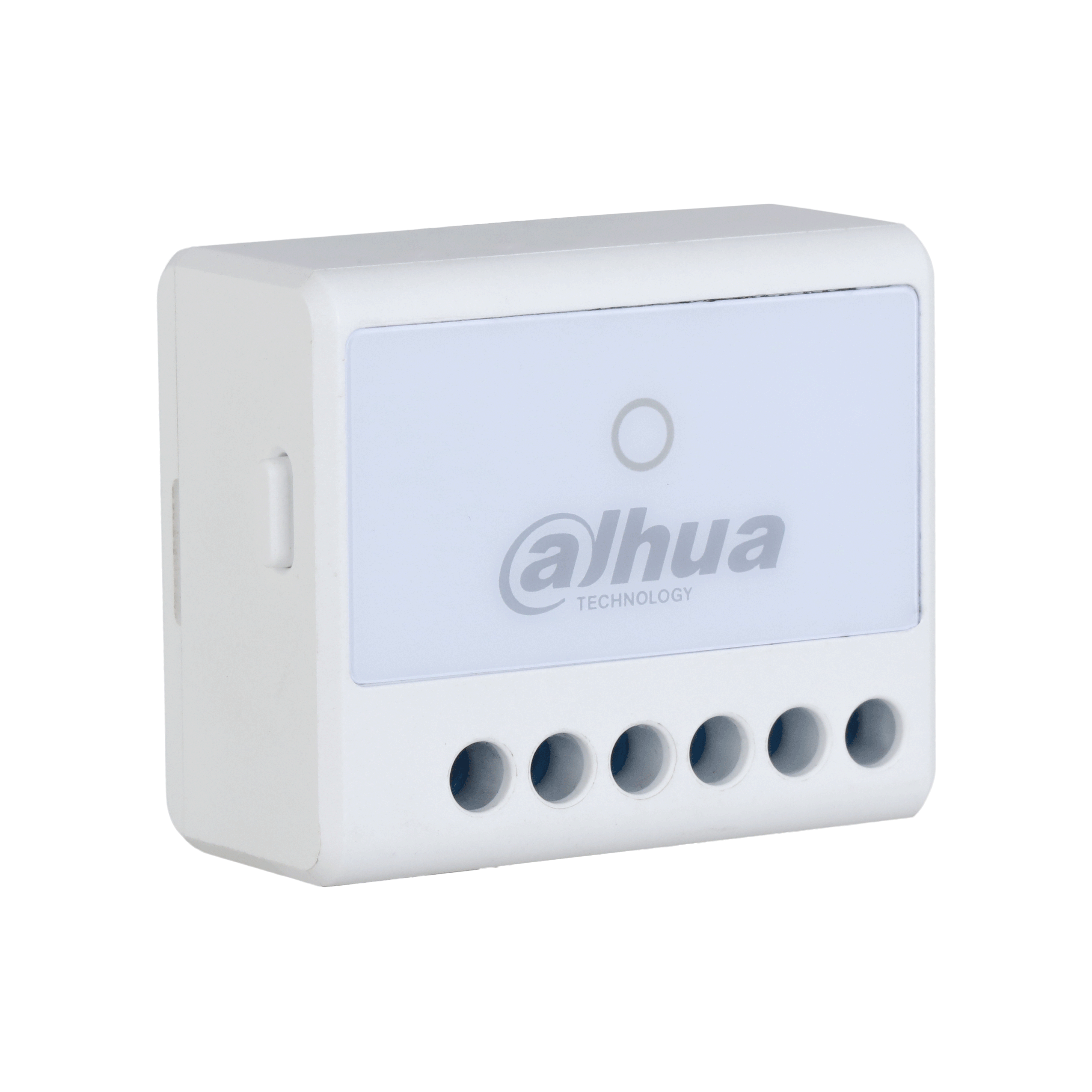

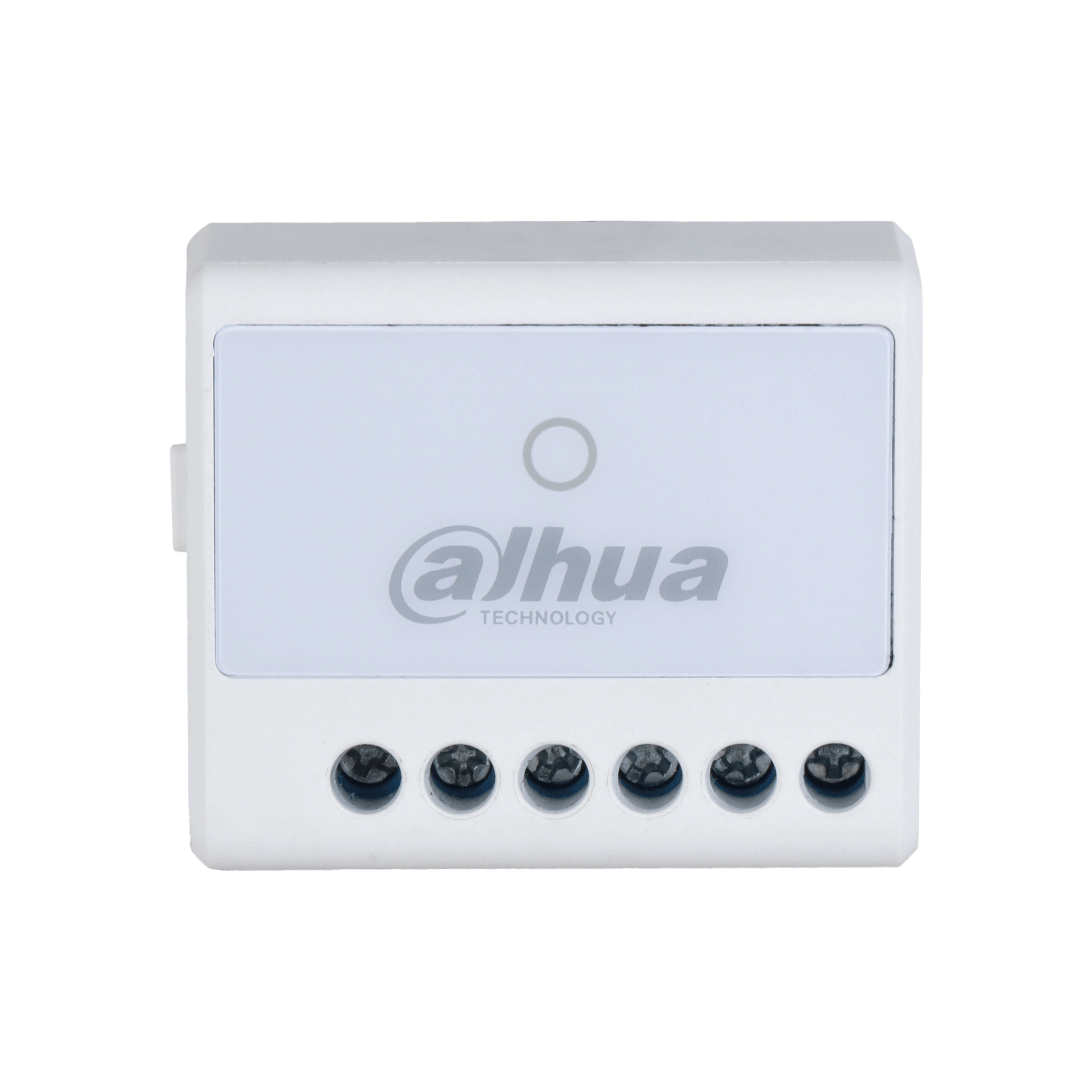

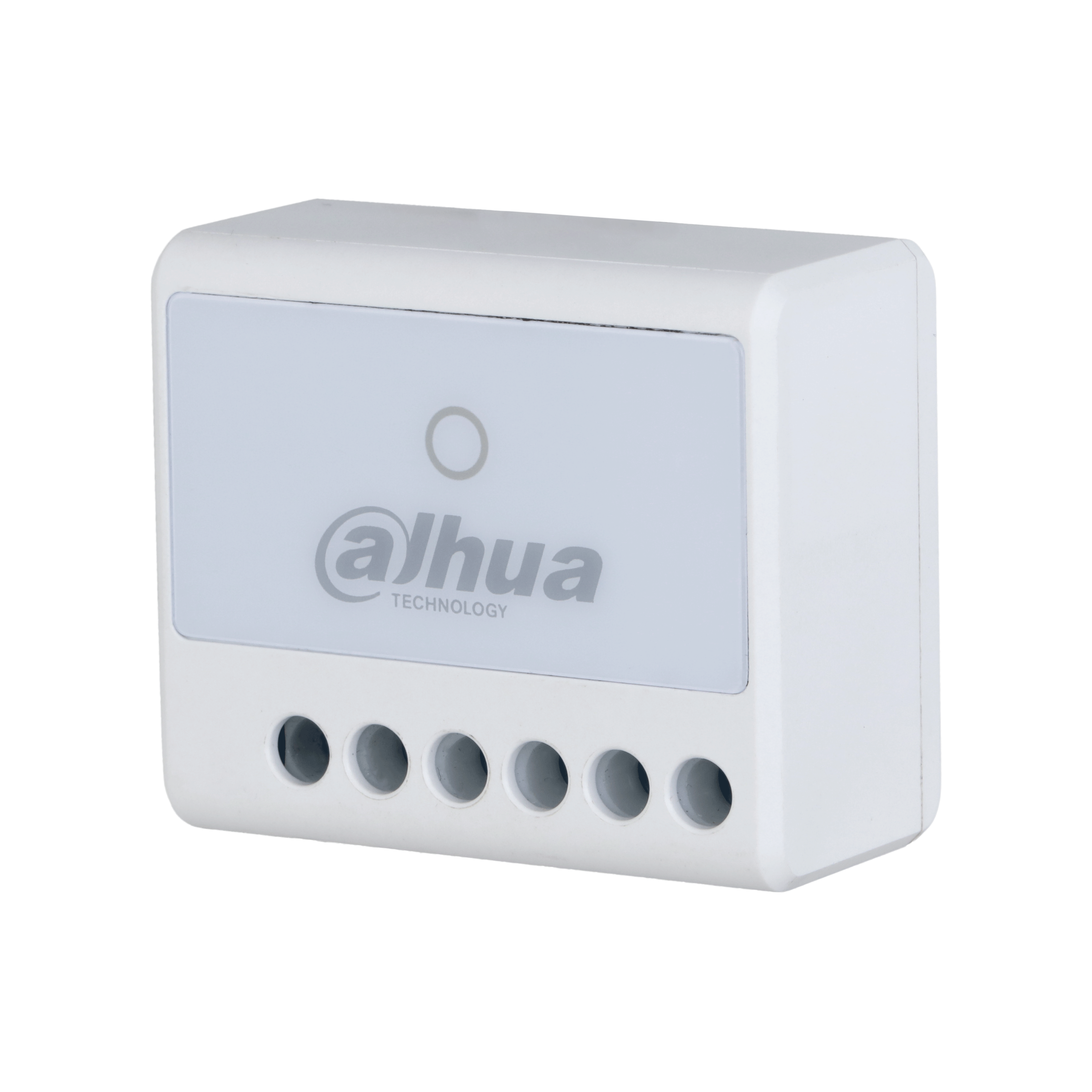

Dahua Wireless Alarm Relay ARM7011-W2(868)

Dahua Wireless Relay

> Frequency hopping and two-way communication technology ensure that communication is stable.

> Supports jamming detection and communication encryption.

> Supports cloud update and automatically restores when cloud update fails.

> Overheating protection.

> Voltage detection.

> 1 channel external tamper input.


Specifications:

Port

Alarm Input

1 for tamper, NO/NC

Relay Output

1, NO/NC (0–36 VDC, Max 5A)

Function

Indicator Light

1 for multiple statuses (pairing, communication)

Button

1

Remote Update

Cloud update

Technical

Test Mode

Yes

Wireless

Carrier Frequency

868.0 MHz–868.6 MHz

Communication Mechanism

Two-way

Communication Distance

1200 m (3937.01 ft) in open areas

Encryption Mode

AES128

Frequency Hopping

Yes

General

Power Supply

7–24 VDC

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F) (indoor)

Operating Humidity

10%–90% (RH)

Storage Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Storage Humidity

10%–90% (RH)

Product Dimensions

39 mm × 33 mm × 19 mm (1.54" × 1.30" × 0.75")

Packaging Dimensions

95 mm × 59.5 mm × 30.5 mm (3.74" × 2.34" × 1.20")

Net Weight

45 g (0.10 lb)

Gross Weight

60 g (0.13 lb)

Installation

Wall mount

Casing Material

PC + ABS

Certifications

CE

Datasheet (ARD912-W2_868__datasheet_20221212.pdf, 344 Kb) [Download]

Wireless Gateway Introduction and Configuration Guide (Wireless_Gateway_Introduction_and_Configuration.pptx, 9,156 Kb) [Download]
