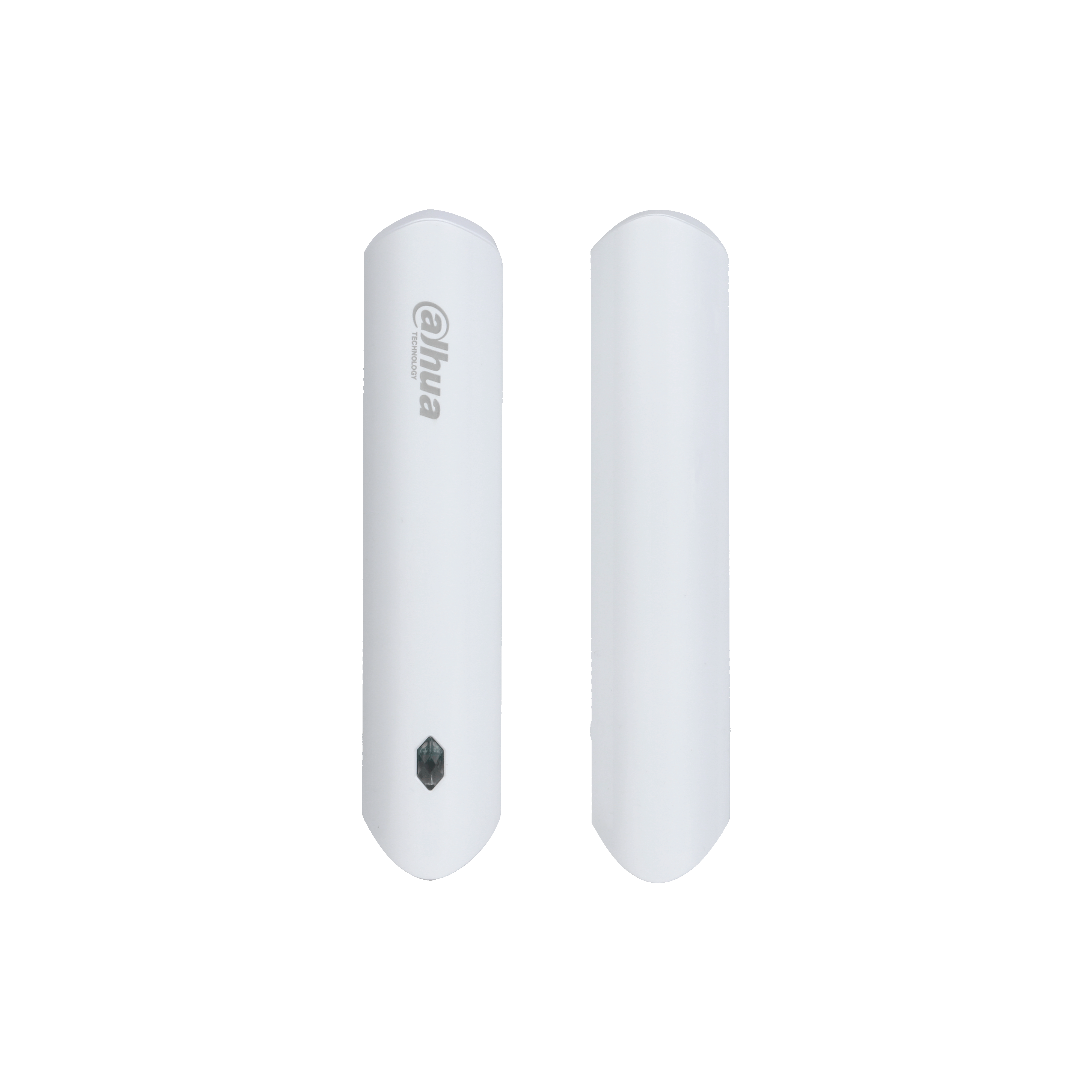

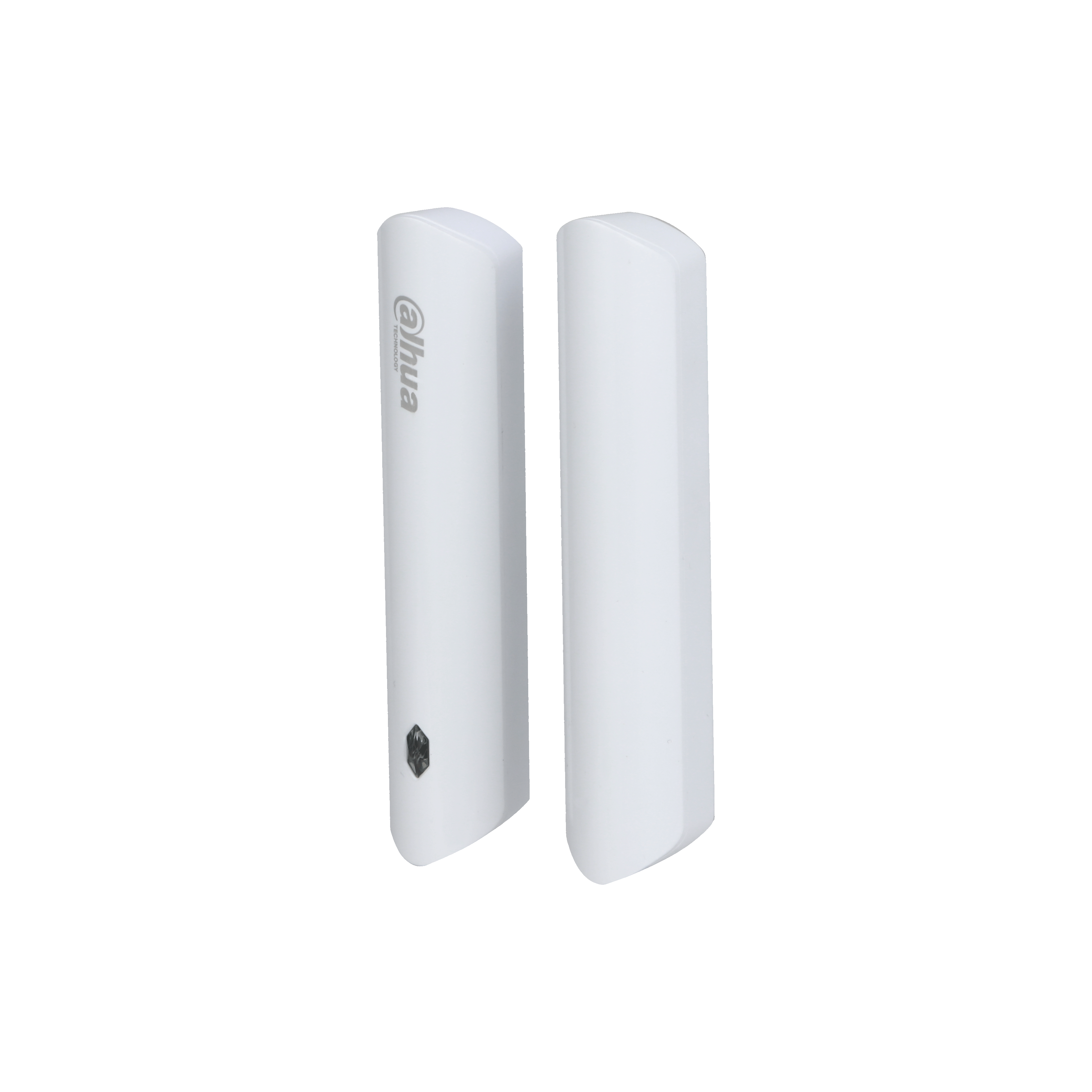

Dahua Wireless Alarm Magnetic Contact

34.00
(41.82 inc VAT)
ARD323-W2(868)
In stock
+

Dahua Wireless Alarm Magnetic Contact  ARD323-W2(868)

> Signal strength detection.

Low battery alarm.

Temperature monitoring.

Frequency hopping function and two-way communication technology ensure communication stability.

Cloud update and automatic recovery from update failure.

Specifications:

Port

Indicator Light

1 × green alarm indicator

Button

1 × power button

Function

Tamper Alarm

Yes

Remote Upgrade

Cloud update

Low Battery Alarm

Yes

Test Mode

Yes

Search

Signal strength detection

Wireless

Carrier Frequency

868.0 MHz–868.6 MHz

Communication Distance

Up to 1,200 m (3,937.01 ft) in an open space

Communication Mechanism

Two-way

Frequency Hopping

Yes

Encryption Mode

AES128

General

Power Supply

CR123A battery

Power Consumption

Max. 125 mW

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F) (indoor)

Operating Humidity

10%–90% (RH)

Product Dimensions

100.2mm × 20.8mm × 20.3mm (3.94”× 0.82” ×0.80”) (L × W × H)

Packaging Dimensions

135.0 mm × 98.5 mm × 27.8mm (5.31" × 3.88" × 1.09") (L × W × H)

Installation

Bracket mount

Net Weight

70 g (0.15 lb)

Gross Weight

115 g (0.25 lb)

Certifications

CE

EN 50131-1:2006+A1:2009+A2:2017+A3:2020

EN 50131-6:2017

EN 50131-5-3:2017

EN 50131-2-6:2008

Security Grade 2

Environmental Class II

Battery Life

4 years (The external input type is NO)

2 years (The external input type is NC or Pulse)

Casing Material

PC + ABS

Temperature

Measuring Range

–15 °C to +65 °C (+5 °F to +149 °F) (indoor)

Measuring Precision

±1 °C (±1.8 °F)

Resolution

1 °C (33.8 °F)

Specification

Sensor

Reed Switch

Scenario

Non-metal doors

Movement Distance

< 40 mm (1.57")

Peripherals

External Zone

1-channel dry contact input

Datasheet (ARD323-W2_868__S0_datasheet_20230912.pdf, 371 Kb) [Download]

Wireless Gateway Introduction and Configuration Guide (Wireless_Gateway_Introduction_and_Configuration.pptx, 9,156 Kb) [Download]
