Dahua Wireless Alarm Input Expander

23.50
(28.91 inc VAT)
ARM310-W2(868)
In stock
+

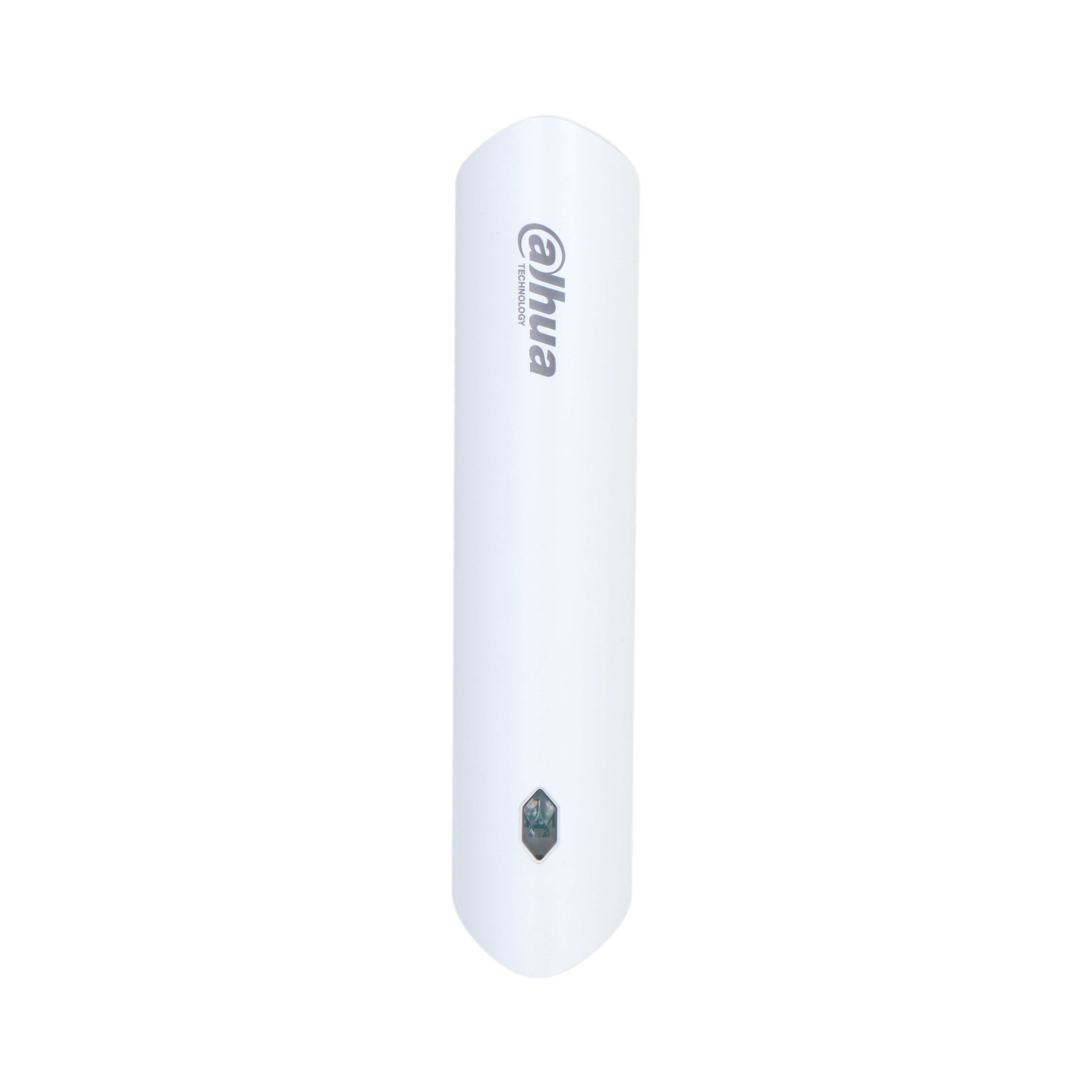

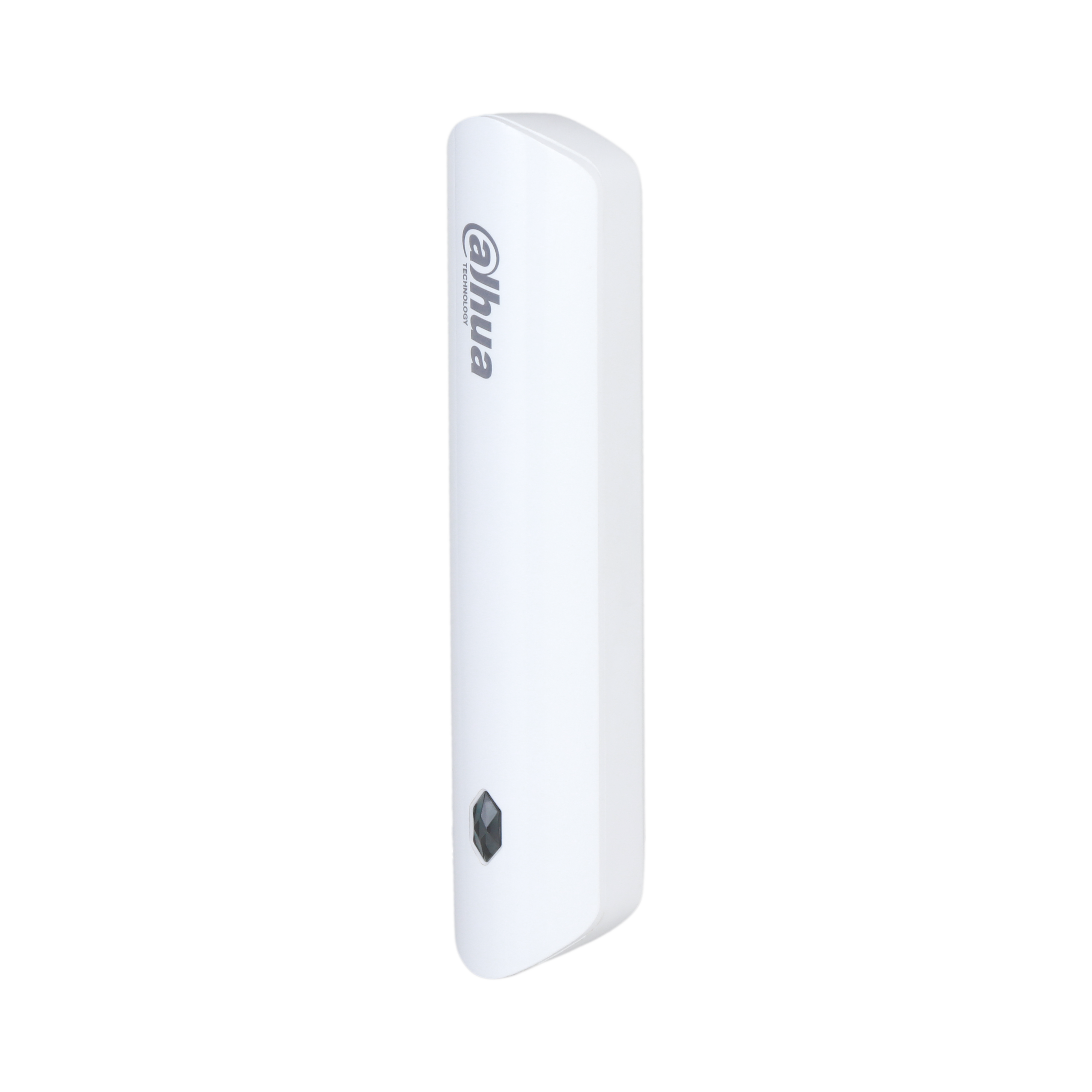

Dahua Wireless Alarm Input Expander ARM310-W2(868)

Wireless input expander

Six types of alarm: intrusion, medical, fire, emergency, gas, and tamper.

NC and NO are available for alarm inputs (NO by default).

Signal strength detection.

Low battery alarm.

Temperature monitoring.

Frequency hopping function and two-way communication technology ensure communication stability.

Cloud update and automatic recovery from update failure.


Specifications:

Input/Output

Alarm Input

1(Normally Closed;Normally Open;Impulse Count)

Function

Indicator Light

1 × green alarm indicator

Button

1 × power switch

Remote Update

Cloud update

Low Battery Detection

Yes

Tamper

Yes

Measuring Range (Temperature)

Indoor: –15 °C to +65 °C (+5 °F to +149 °F)

Measuring Accuracy

±1 °C (±1.8 °F)

Technical

Sensor

Triaxial Accelerometer, Reed Switch

Movement Distance

< 40 mm (1.57")

Shock Detection

High, normal, low

Tilt Detection

Up to 25°

Test Mode

Yes

Scenario

Non-metal doors

Operating Current

12 uA

Alarm Current

2.3 mA

Wireless

Carrier Frequency

868.0 MHz–868.6 MHz

Communication Mechanism

Two-way

Communication Distance

Up to 1,200 m (3937.01 ft) in an open space

Encryption Mode

AES128

Frequency Hopping

Yes

General

Power Supply

CR123A × 1

Battery Life

If triggered twice a day with a battery efficiency of 70%:

3 years (The external input type is NO)

1.5 years (The external input type is NC)

Power Consumption

167 mW

Operating Temperature

Indoor: –10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–90% (RH)

Storage Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Storage Humidity

10%–90% (RH)

Product Dimensions

100.2 mm × 20.8 mm × 20.3 mm (3.94" ×  0.82" × 0.80")

Packaging Dimensions

135.0 mm × 98.5 mm × 27.8 mm (5.32" ×  3.87" × 1.09")

Net Weight

70 g (0.15 lb)

Gross Weight

115 g (0.25 lb)

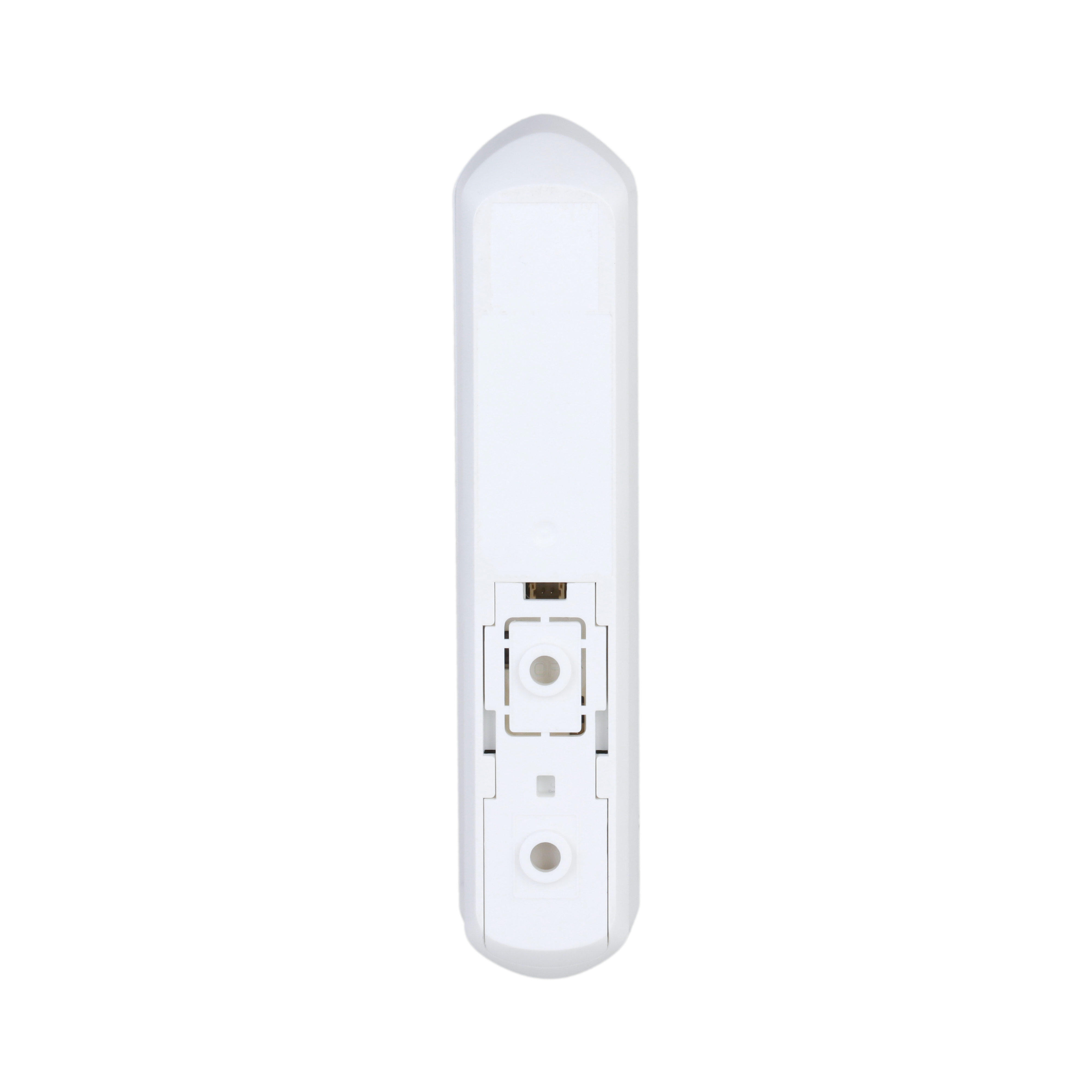

Installation

Bracket mount

Casing Material

PC + ABS

Certifications

CE

Datasheet (ARM310-W2_868__datasheet_20230708.pdf, 385 Kb) [Download]

Wireless Gateway Introduction and Configuration Guide (Wireless_Gateway_Introduction_and_Configuration.pptx, 9,156 Kb) [Download]
