Dahua Wireless Alarm Glass Break Sensor

46.00
(56.58 inc VAT)
ARD512-W2(868)
In stock
+

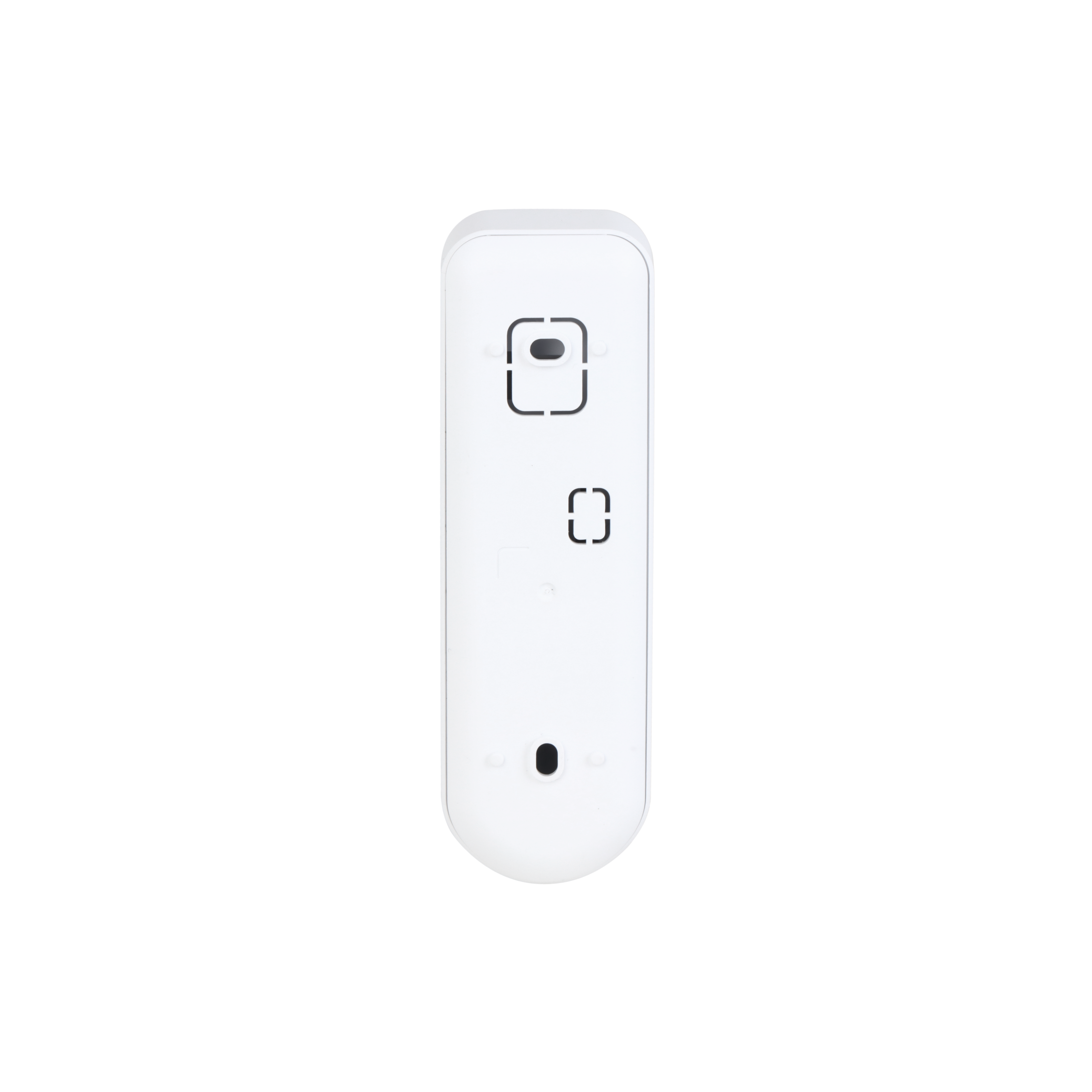

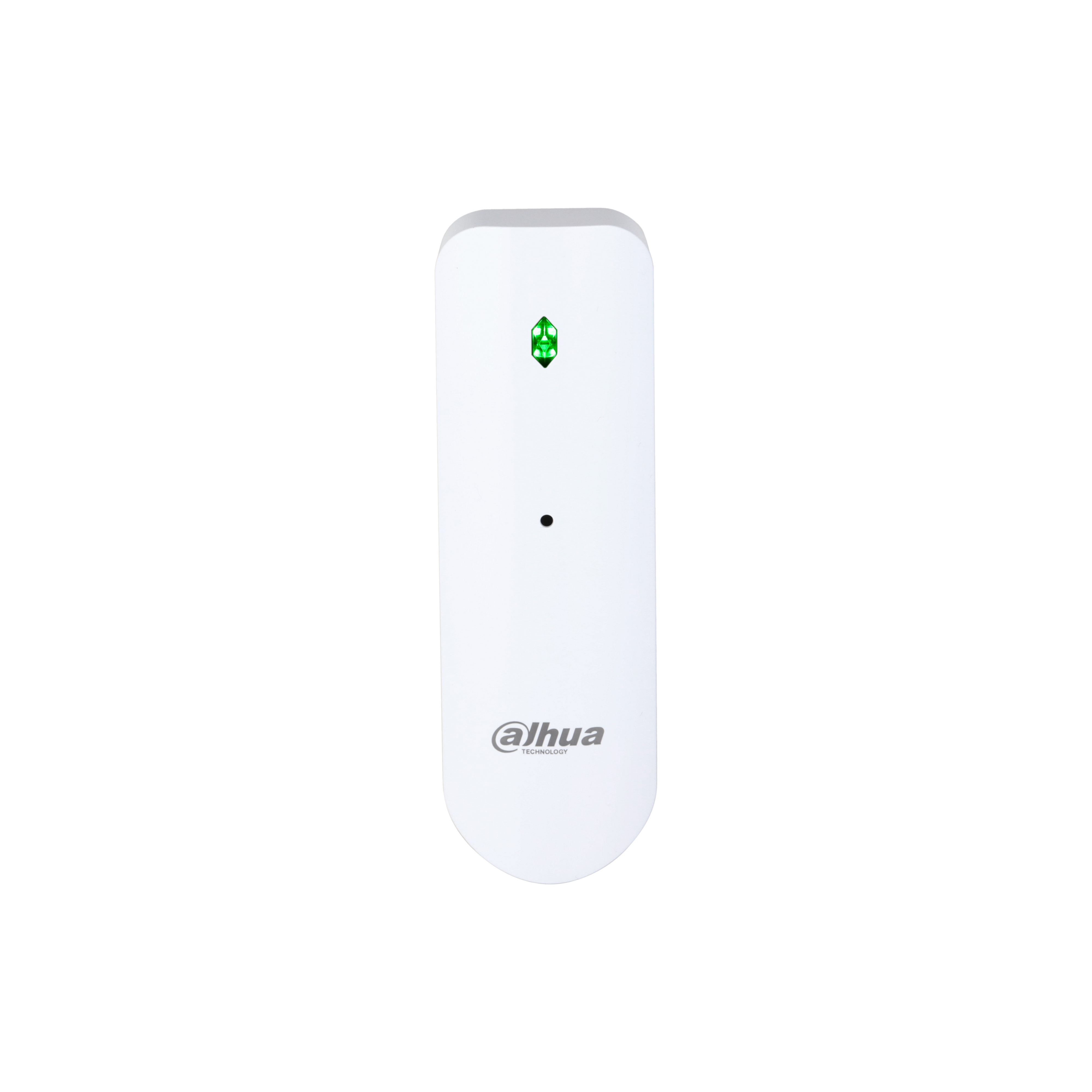

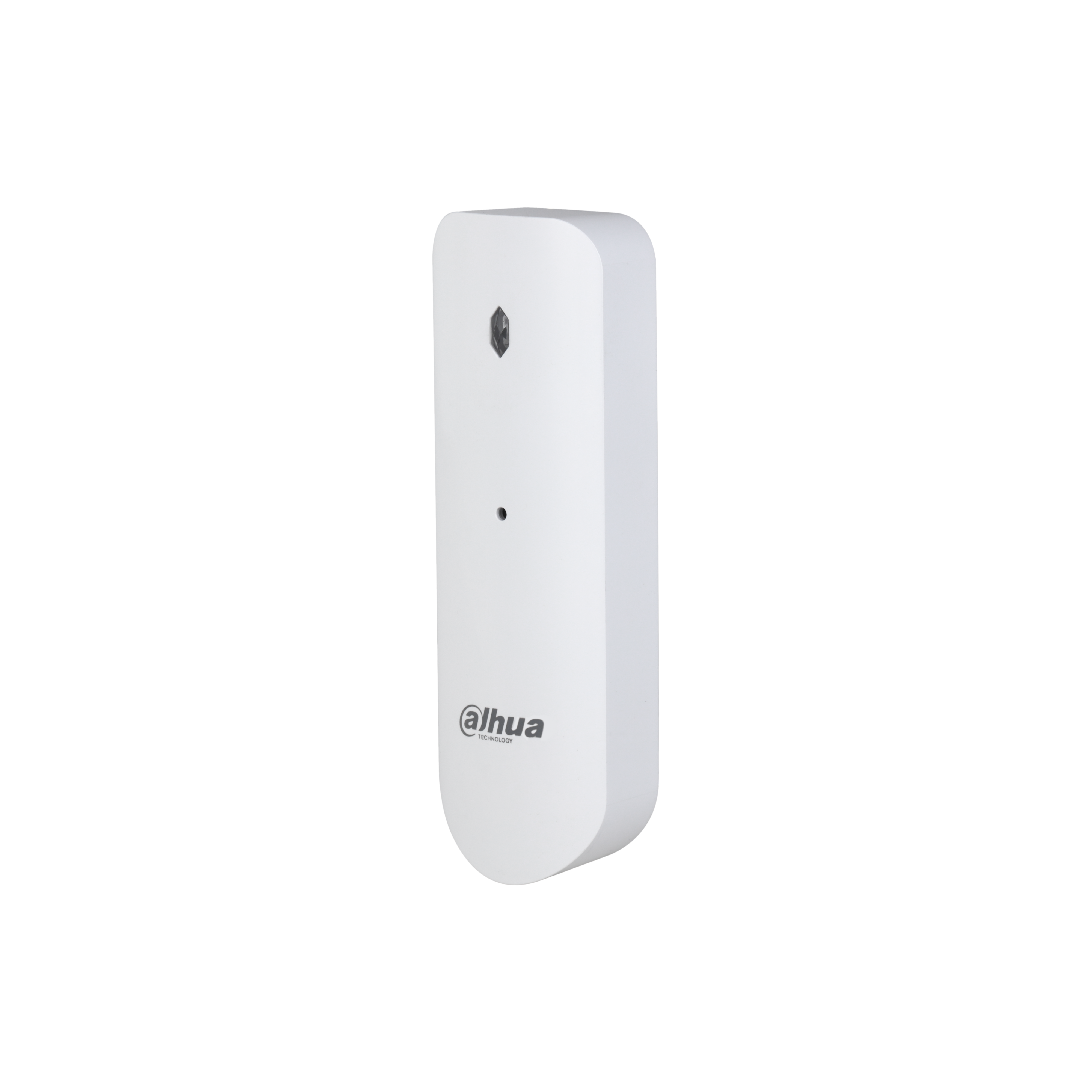

Dahua Wireless Alarm Glass Break Sensor ARD512-W2(868)

Dahua Wireless Glass Break Detector

> Detects when the glass is broken, triggering alarms for different types of glass such as tempered, double-glazed, laminated, wired, plate and float glass.

> Detects high and low frequency sounds at the same time, and uses algorithms to reduce the occurrence of false alarms.

> Two-channel alarm input.

> Cloud update and automatic recovery from update failure.

> The two-way wireless encrypted communication mechanism improves the security and stability of communication.

> With the wireless frequency hopping mechanism, the device auto matically hops to other available frequency bands when the original frequency band is being interfered with by other wireless radios, to ensure communication remains stable.

Specifications:

Port

Alarm Input

2 (NO/NC)

Microphone

Highly-sensitive omnidirectional microphone

Function

Button

1 × power button

Remote Update

Cloud update

Low Battery Detection

Yes

Tamper

Yes

Technical

Detection Range

Max. 9 m (29.53 ft)

Specifications of Glass to be Detected

Glass type: Tempered, double-glazed, laminated, wired, plate and float
Glass thickness: 2.4 mm–6.4 mm (0.09""–0.25"")
Glass size: 0.3 m × 0.3 m to 3 m × 3 m (0.98 ft × 0.98 ft to 9.84 ft × 9.84 ft)

Test Mode

Yes

LED Indicator

1 × green alarm indicator

Scenario

Indoor

Operating Current

45 uA

Alarm Current

50 mA

Wireless

Carrier Frequency

868.0 MHz–868.6 MHz

Communication Mechanism

Two-way

Communication Distance

1,600 m (5,249.34 ft)

Encryption Mode

AES128

Frequency Hopping

Yes

General

Power Supply

1 × CR123A battery

Battery Model

CR123A

Battery Life

3 years (The external input type is NO)
1 year (Both external sensors are enabled, and the input type is NC)

Power Consumption

Max. 150 mW

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F) (indoor)

Operating Humidity

10%–90% (RH)

Product Dimensions

107.8 mm × 34.5 mm × 24.8 mm (4.24" × 1.36" × 0.98")

Net Weight

45 g (0.10 lb)

Gross Weight

130 g (0.29 lb)

Installation

Surface mount

Casing Material

PC and ABS

Appearance Color

White

Certifications

CE

Anti-corrosion Level

Basic Protection

Packaging Dimensions

95 mm × 43 mm × 139 mm (3.74" × 1.69" × 5.47")

Datasheet (ARD512-W2_868__datasheet_20230530.pdf, 441 Kb) [Download]

Wireless Gateway Introduction and Configuration Guide (Wireless_Gateway_Introduction_and_Configuration.pptx, 9,156 Kb) [Download]
