Cyberpower BR1200ELCD-UK Wall Mount UPS 1200VA/720W

List price: €189.00
€149.00
(€183.27 inc VAT) You save: €40.00 (21%)
BR1200ELCD-UK
In stock
+ −

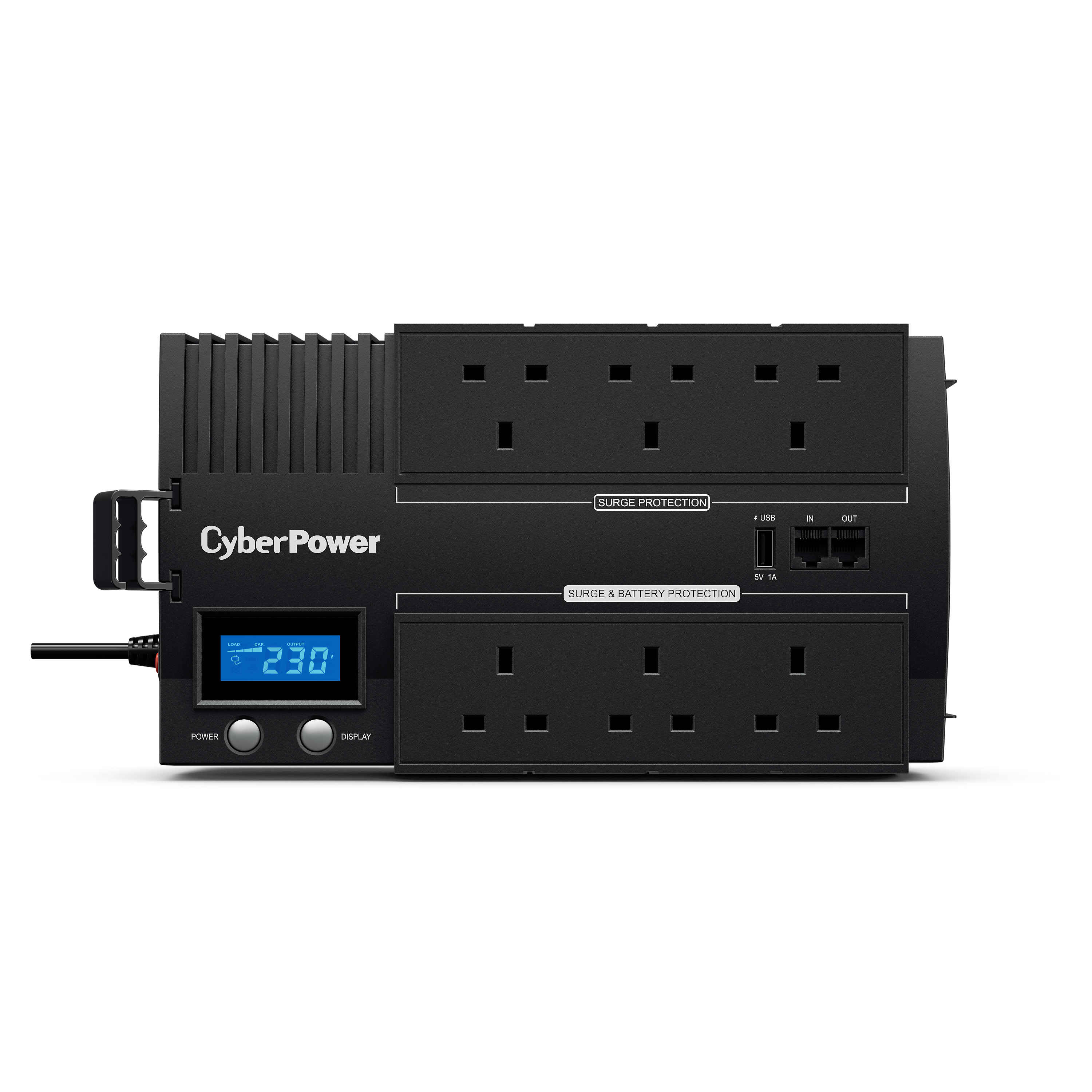

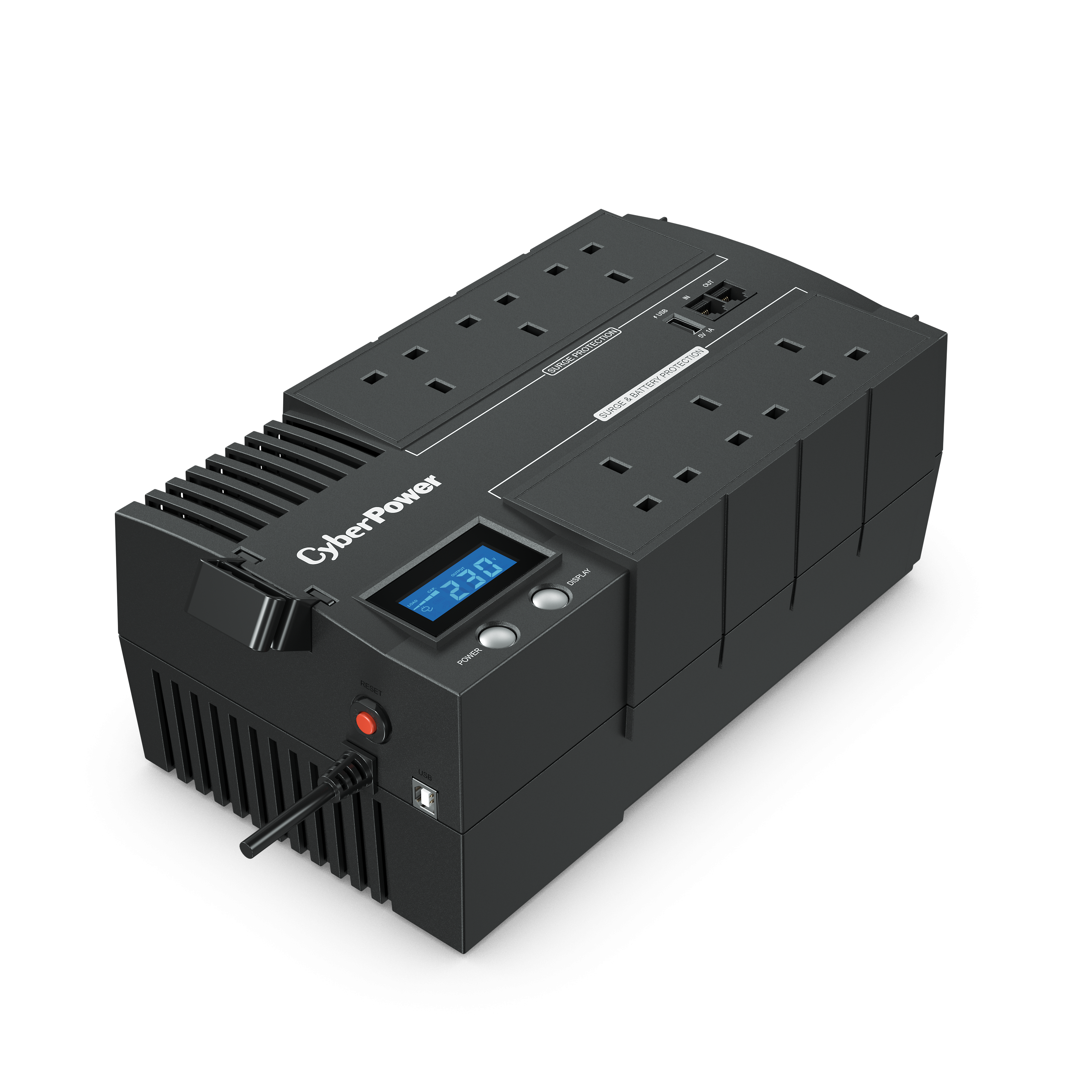

Cyberpower BR700ELCD-UK Wall Mount UPS 700VA/420W

CyberPower BR700ELCD-UK offers home and office users a reliable battery backup and safeguards office PCs, network communication equipment, and other electronic devices from surges, spikes, brownouts and other power incidents. Designed with GreenPower UPS™ Technology to improve UPS operating efficiency and to minimize its energy consumption, users can enjoy significant energy cost savings over conventional UPS systems. The UPS provides Automatic Voltage Regulation (AVR) to maintain a safe voltage for connected equipment. The featured data line protection protects phones, networks, and other communication equipment against surges/spikes and other power irregularities. Users can access precise information of critical power/battery conditions with the LCD status monitor.

Features


Line-interactive UPS Topology
Simulated Sine Wave Output
USB Charging Port(s)
Phone/Fax/Modem/DSL/Network Protection
Wall Mount Installation
Energy Saving Technology
Automatic Voltage Regulation (AVR)
Surge and Spike Protection
LCD Status Display



General

Phase
Single Phase
Form Factor
Desktop
UPS Topology
Line-interactive
Energy Saving Technology
GreenPower UPS™ Bypass Technology

Input

Nominal Input Voltage ( Vac )
230 ± 10%
Input Voltage Range ( Vac )
165 ~ 290
Input Frequency ( Hz )
50 ± 5
60 ± 5
Input Frequency Detection
Auto-sensing
Rated Input Current ( A )
3.18
Input Connector Type
UK 　
Power Cord Length (ft.)
5
Power Cord Length (m.)
1.5

Output

Capacity (VA)
700
Capacity (Watts)
420
On Battery Waveform
Simulated Sine Wave
On Battery Voltage(s) ( Vac )
230 ± 10 %
On Battery Frequency ( Hz )
50 ± 1%
60 ± 1%
Automatic Voltage Regulation (AVR)
Single Boost, Single Buck
Overload Protection
Circuit Breaker
Outlet(s) - Total
6
Outlet Type
UK x 6 　
Outlet(s) - Battery & Surge Protected
3
Outlet(s) - Surge-Only Protected
3
USB Charging Port(s)
USB-A x 1
USB Charging Total Output
5 V/ 1 A
Typical Transfer Time ( ms )
4

Battery

Runtime at Half Load ( min )
9
Runtime at Full Load ( min )
1.5
Runtime at 60W ( min )
47
Runtime at 90W ( min )
28
Typical Recharge Time ( Hours )
8
Start On Battery
Yes
User-replaceable
Yes - Qualified Personnel Only
Battery Type
Sealed Lead-acid

Surge Protection & Filtering

Surge Suppression ( Joules )
125
EMI/RFI Filtration
Yes
Phone/Network Protection RJ11/RJ45 (Combo)
1-in, 1-out

Management & Communications

LCD Panel
Yes
LCD Information Display
Power Status, Battery Status, Load Status, Other Information
LCD Setting & Control
Alarm Setting
LED Indicators
Power On, Line Mode, Battery Mode, Low Battery
HID Compliant USB Port(s)
1
Audible Alarms
Battery Mode, Low Battery, Overload, UPS Fault
Management Cable ( pcs )
USB Cable x1, Phone Line x1
Power Management Software
PowerPanel Personal (Recommended)

Physical

Enclosure Construction
Plastic
Color
Black

Physical Size - UPS Module

Dimensions (WxHxD) (in.)
6.54 x 4.65 x 11.34
Dimensions (WxHxD) (mm.)
166 x 118 x 288
Weight (lbs.)
11.68
Weight (kg.)
5.3

Shipping Dimensions

Dimensions (WxHxD) (in.)
6.22 x 9.06 x 12.80
Dimensions (WxHxD) (mm.)
158 x 230 x 325
Weight (lbs.)
12.99
Weight (kg.)
5.89

Environmental

Operating Temperature (°F)
32 ~ 104
Operating Temperature (°C)
0 ~ 40
Operating Relative Humidity (Non-condensing) ( % )
0 ~ 90
Operating Elevation ( feet/meters )
0-9,843 feet (0-3,000 meters)
Storage Temperature (°F)
-4 ~ 122
Storage Temperature (°C)
-20 ~ 50
Storage Relative Humidity (Non-condensing) ( % )
0 ~ 90
Storage Elevation ( feet/meters )
0-9,843 feet (0-3,000 meters)
Online Thermal Dissipation ( BTU/hr )
71
Audible Noise at 1.5M from Surface of Unit ( dBA )
40

Certifications

Certifications
CE
RoHS
Yes

WARRANTY

Product Warranty Period (Year)
2
Battery Warranty Period (Year)
2

Datasheet (CyberPower_DS_BR700-12000ELCD_UK_en_v2.pdf, 1,849 Kb) [Download]
