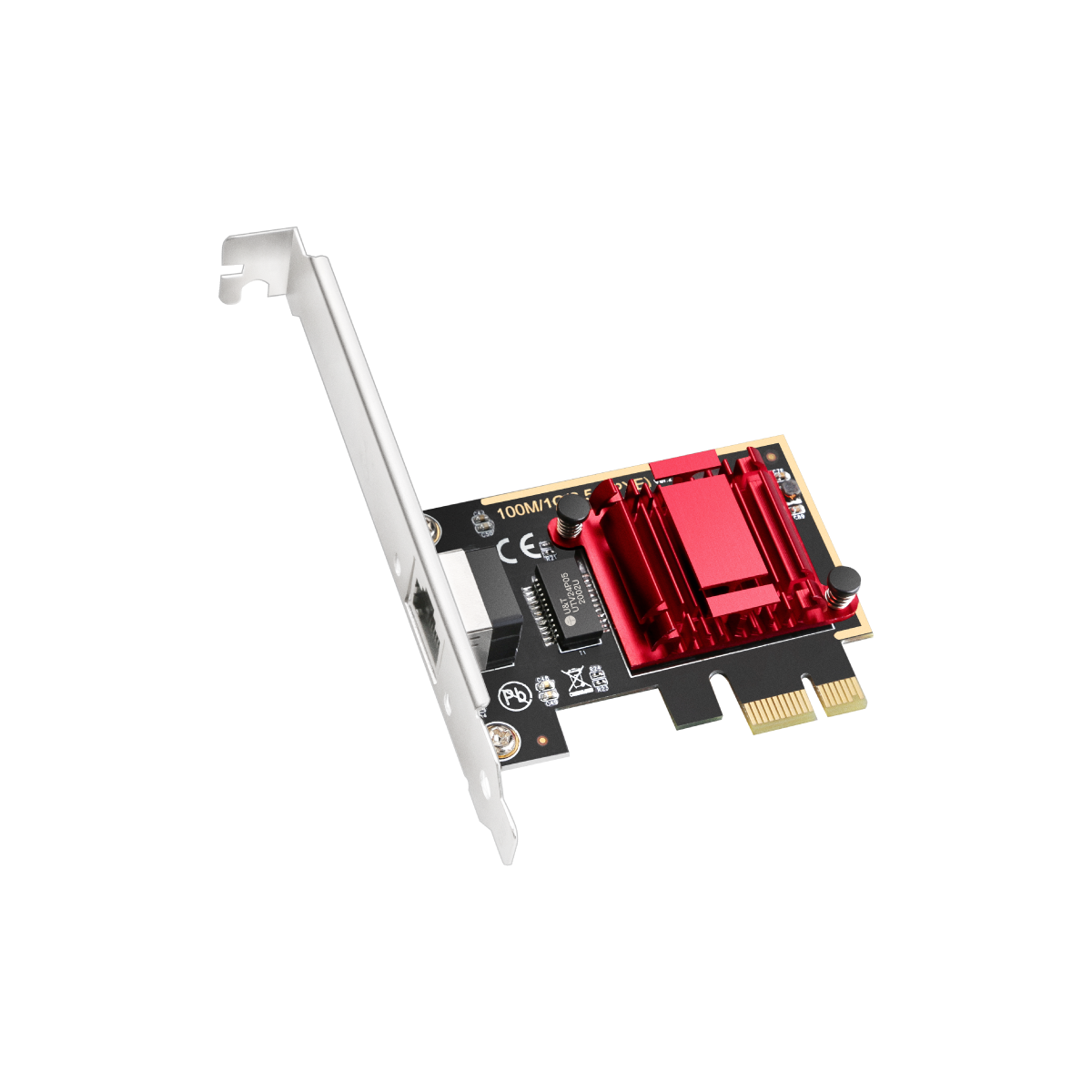

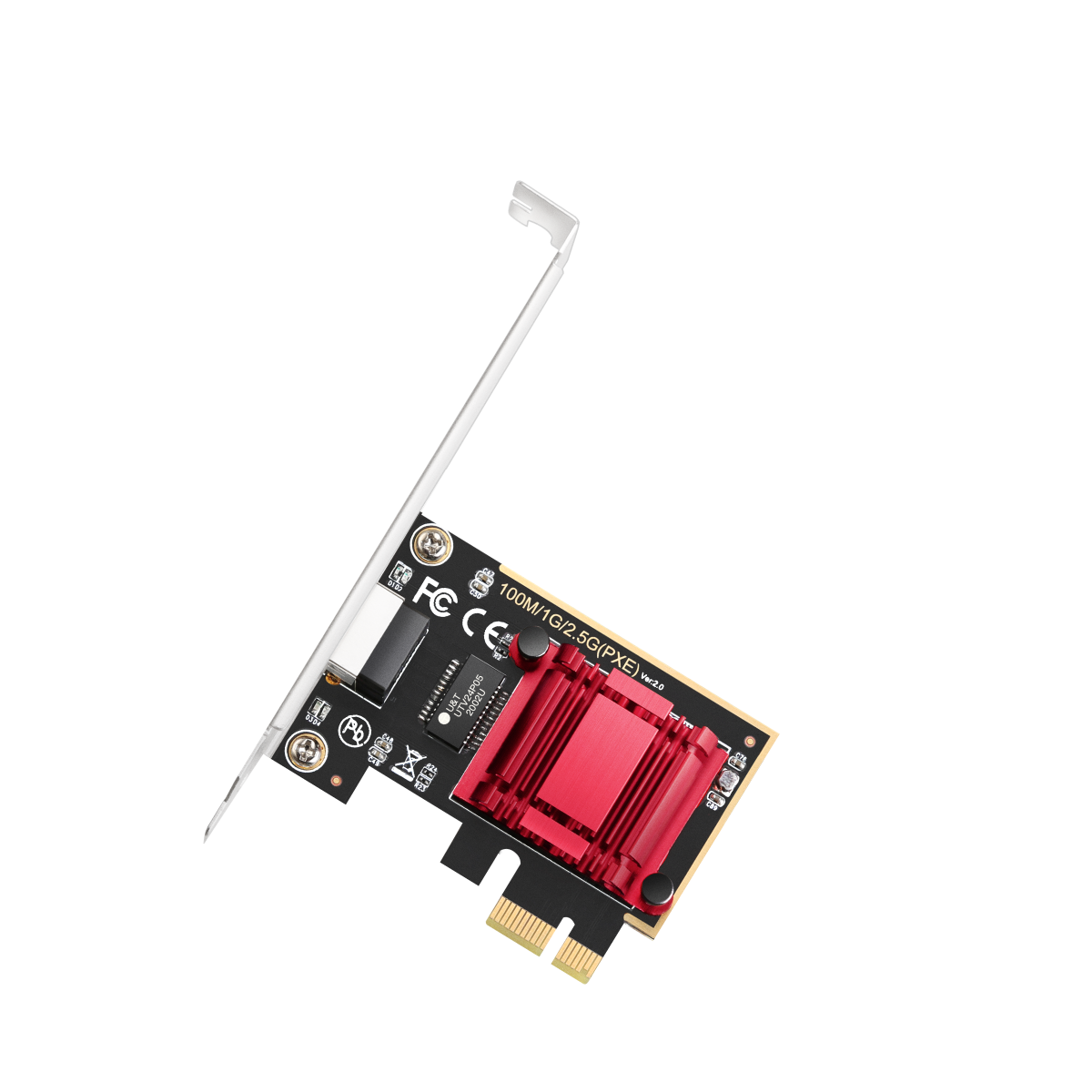

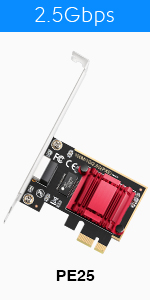

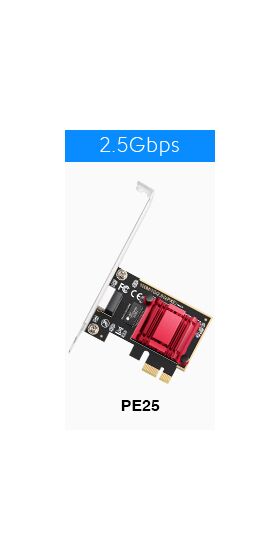

Cudy PE25 2.5 Gbps PCI-E RJ45 Ethernet Adapter
PE25 1.0
A NIC for equipping your PC with 2.5G wired connectivity, featuring WoL function.
10/100/1000/2500 Mbps Ethernet Port
Wake on LAN, Flow Control

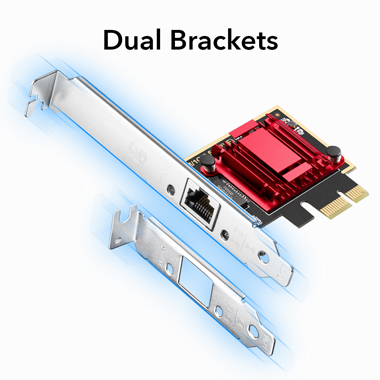

Standard/Low-Profile Bracket
Model Version | PE25 1.0 | |
---|---|---|
CPU | Chipset | RTL8125BG |
Interfaces | 2.5G RJ45 Ports | 1 |
LED | Speed/Link/ACT of Ethernet Port | |
Requirements | Hardware Requirement | Requires a PCI-E 1.1 x1 or higher slot on the motherboard for powering and the Ethernet function. |
Compatible OS |
|
|
Driver Installation | Manual driver installation is required. Driver is available from the Download Center. | |
Reliability | Environment |
|
Certifications | FCC, CE | |
Mechanical | Dimension | 67.3×56×17 mm 2.65×2.2×0.67 inches |
Package Content |
|
|
Ordering Information | Retail Package Weight | 151 g (5.33 oz.) |
Carton Net Weight | 13.2 kg (29.1 lbs) | |
Carton Gross Weight | 15.3 kg (33.73 lbs) |
