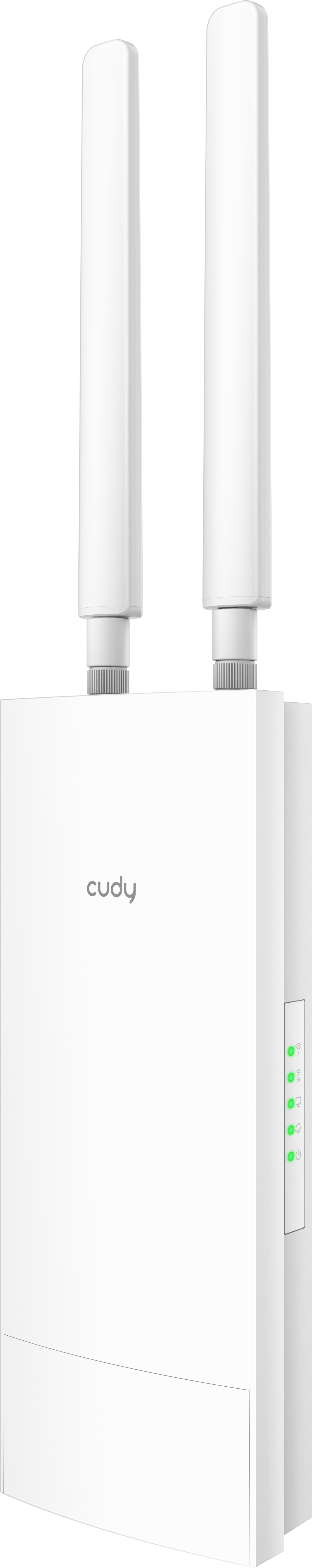

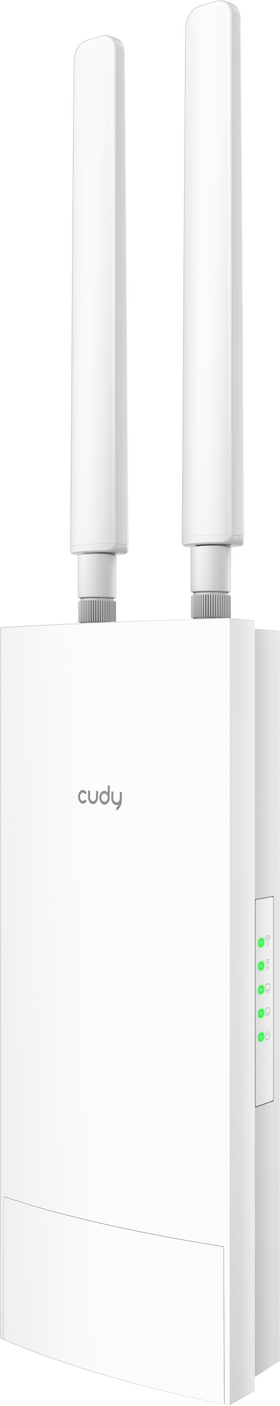

Cudy Outdoor AC1200 Gigabit PoE Wireless Access Point with Mesh (Includes PoE Injector)

List price: 79.00
64.22
(78.99 inc VAT) You save: €14.78 (19%)
AP1300_Outdoor
In stock
+

Cudy Outdoor AC1200 Gigabit PoE Wireless Access Point with Mesh (Includes PoE Injector)

● AC1200 MU-MIMO Dual Band Wi-Fi
● MT7621DAT+MT7613B+MT7603E
● 4-In-1: AP/RE/Router/WISP
● 1× Gigabit WAN/LAN
● WPS Button, Reset Button
● 802.3at/af PoE or Passive PoE (Adapter Included)
● Cudy Mesh
● IP65, -20~60°C (Ext. -40~65 °C), 8/15 KV Contact/Air ESD + 4 KV Surge/Lightning Protection

Specifications



Hardware Features Highlights CPU: 880 MHz Dual-Core Processor
Flash: 16 MB (128 Mbit)
DDR: 128 MB (1 Gbit)

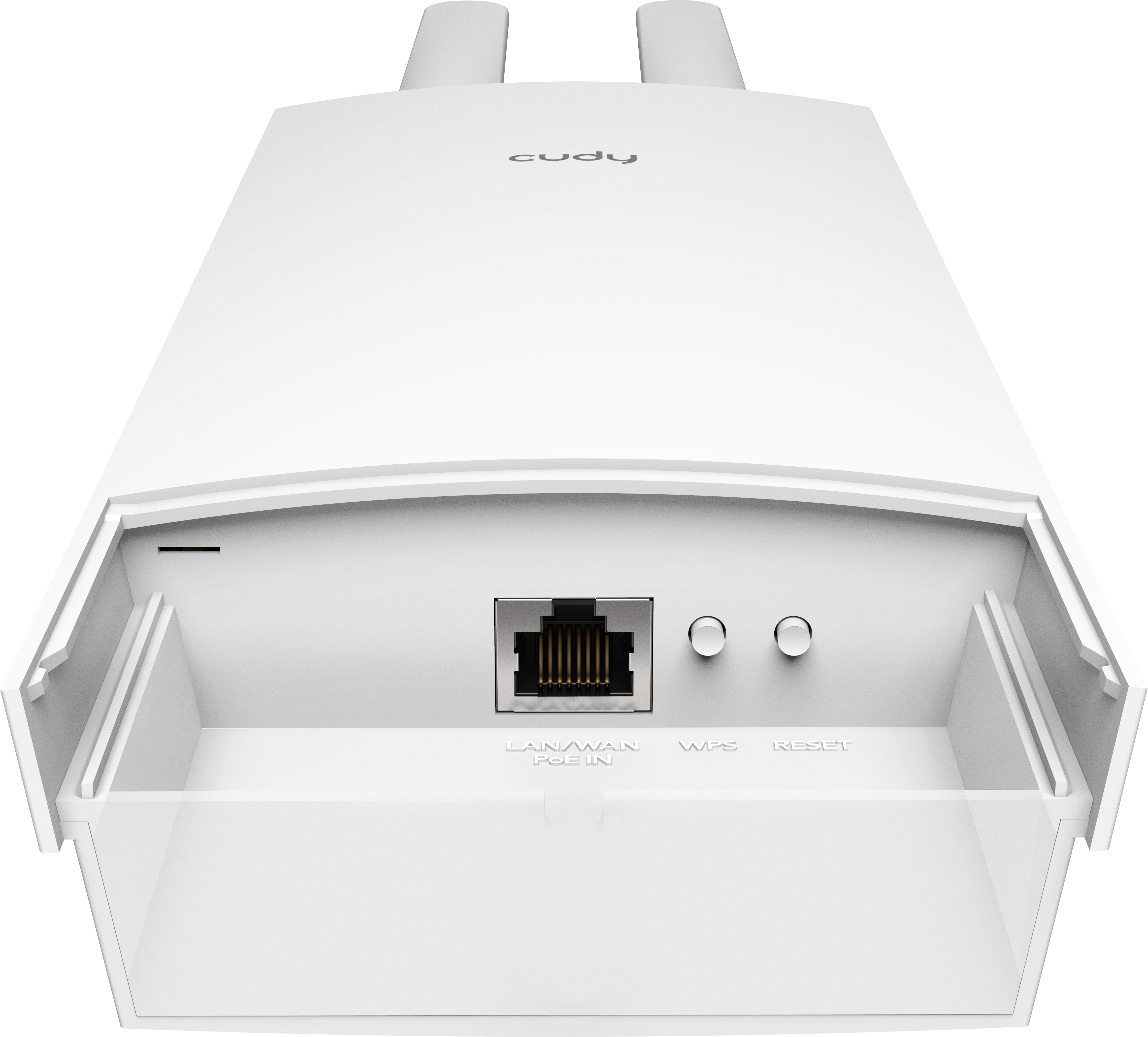

Interface 1× Gigabit Ethernet (RJ-45) Port  (Support IEEE802.3af PoE and Passive PoE)
1× Reset Button
Power Supply 802.3af/at PoE
24-57 V Passive PoE (+4,5pins; -7,8pins)
Dimensions ( W×D×H ) 240×100×53.7mm
Antenna Type

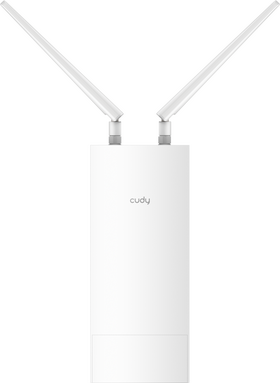

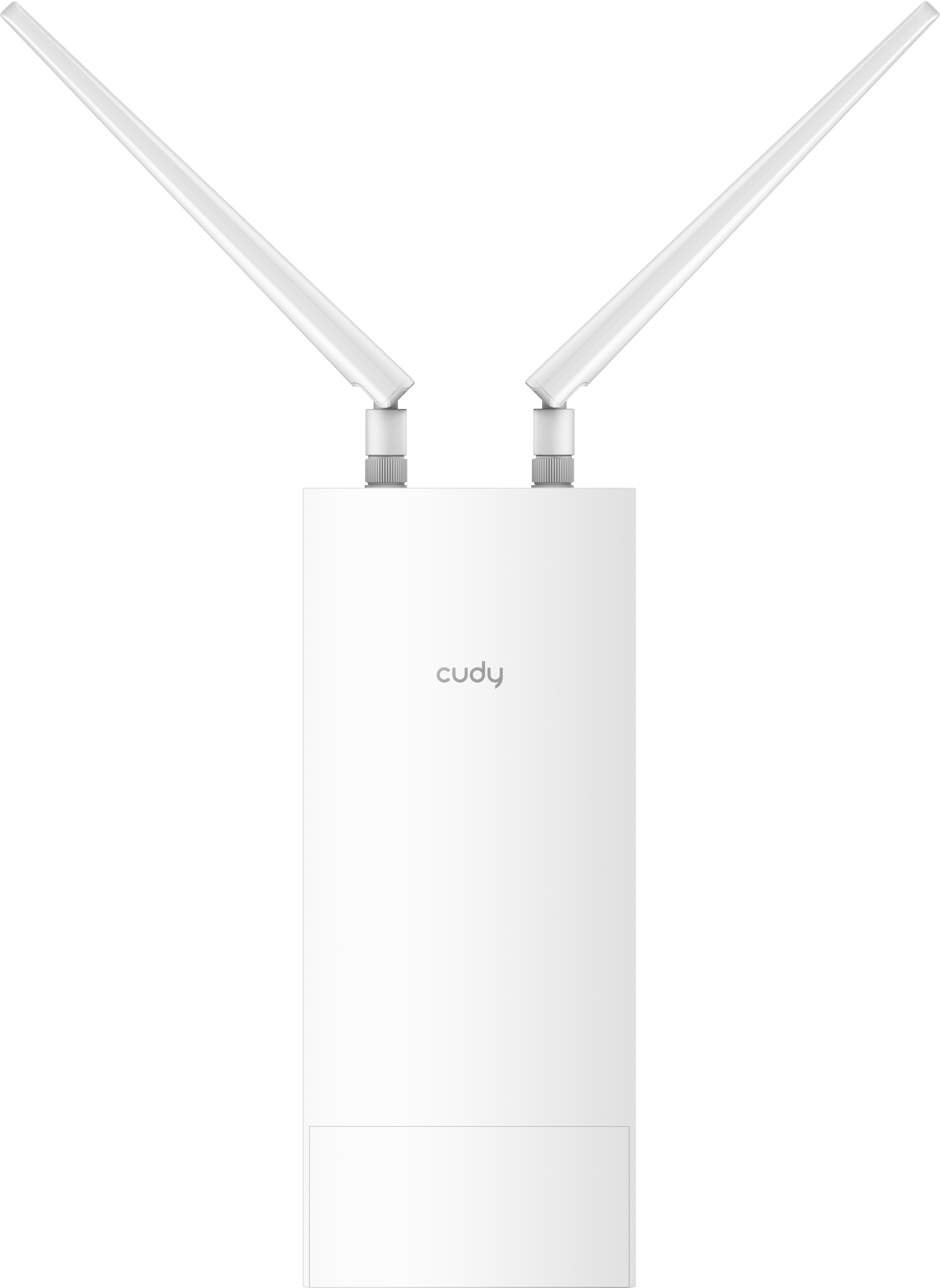

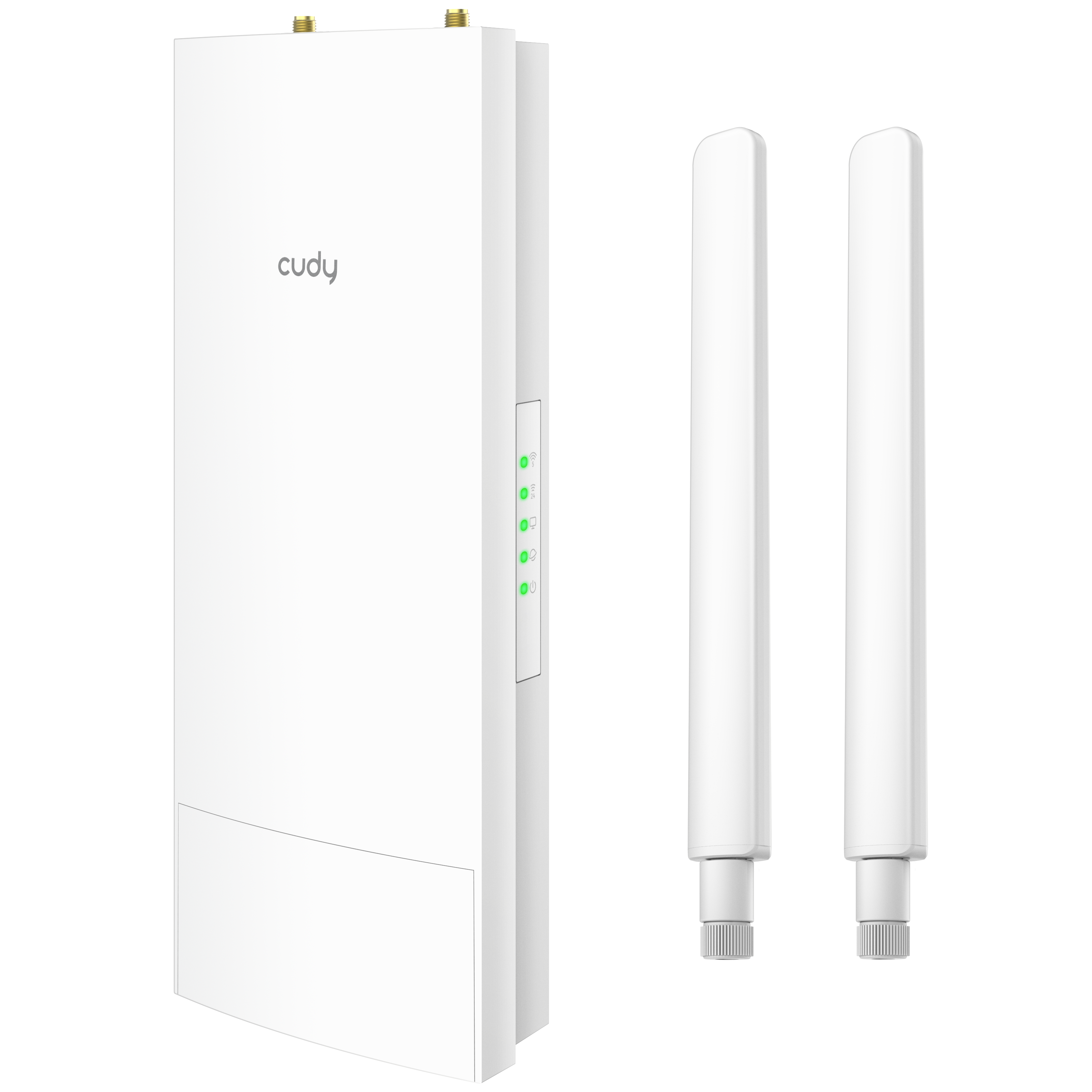

2× Detachable Omni-directional Antennas

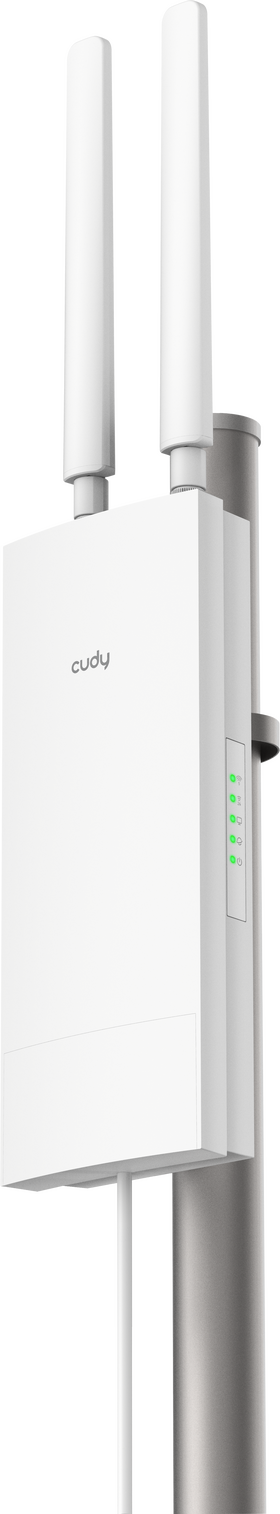

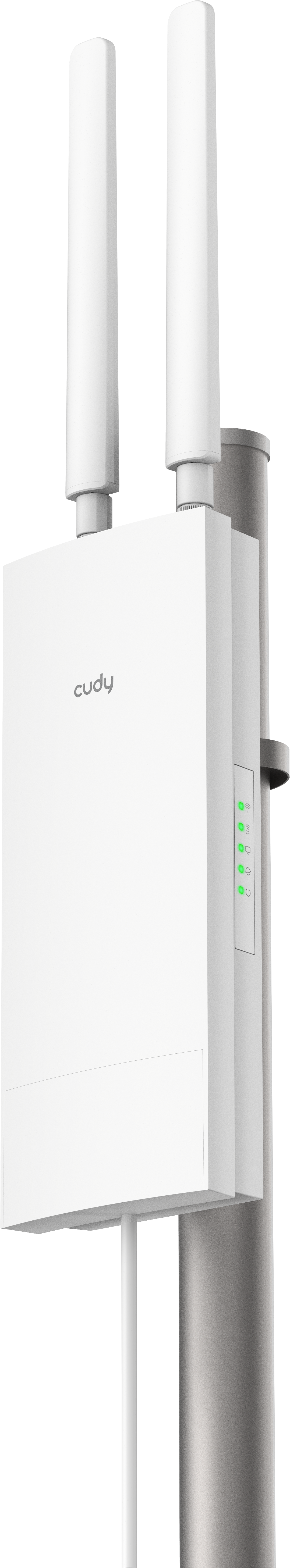

Mounting Pole/Wall Mounting (Kits included)
Wireless Function Wireless Standard:

Wi-Fi 5 (802.11ac/n/g/b/a)

Frequency: 5 GHz, 2.4 GHz
Signal Rate:  5 GHz: Up to 867 Mbps
2.4 GHz: Up to 300 Mbps
Bandwidth 20/40/80 MHz

Wireless Functions

(Features with * require a Cudy AC as the gateway, Cudy AC's ETA is 2024 Q2)

(Features with ** require a Cudy WR1300 or Cudy AC as the gateway)

(Features with △ require a Cudy Mesh router/Mesh unit or Cudy AC as the gateway)

Multiple SSID *
Captive Portal **
Seamless Roaming Mesh△
Self-Organizing Mesh△
Band Steering*
Auto Channel Optimization*
Enable/Disable Wireless Radio
Transmit Power Control
QoS (WMM)
MU-MIMO
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Encryption WPA-PSK
WPA2-PSK
WPA-PSK/WPA2-PSK
Security Access Control
Mac Filtering
Wireless Isolation Clients
Weather-Proof Dust/Water-Proof IP65 (Protection against any dust and low-pressure water from any directions)
Lightning Protection

4 KV Lightning/Surge protection at the Ethernet port


ESD 8 KV Contact / 15 KV Air ESD protection
Working Temperatures

-20/60°C

Extend -40/65°C (Booted up in advance. Performance may drop slightly.)


Operating Mode Access Point
Wi-Fi Router
Range Extender
WISP
Mesh

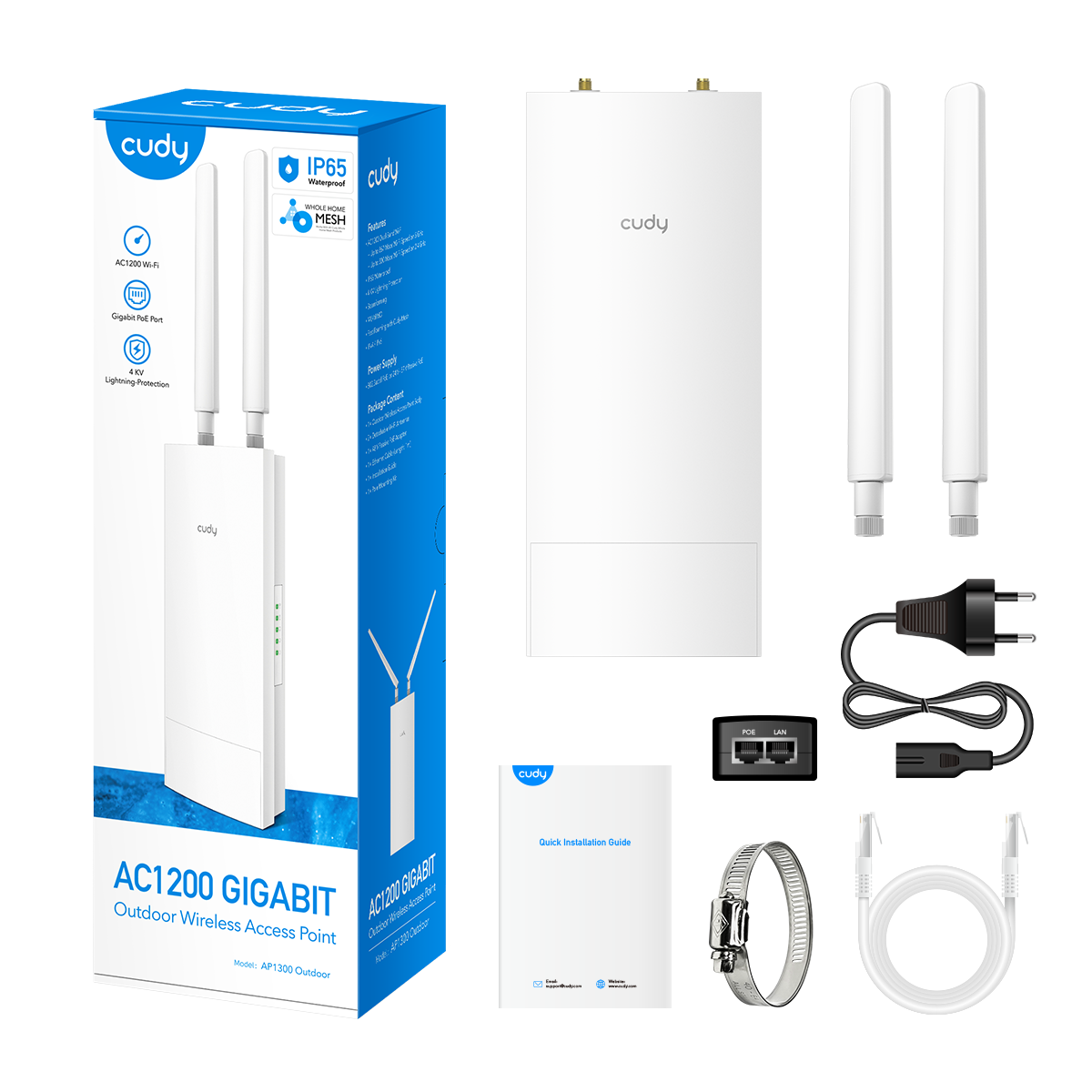

Package Content Outdoor Wireless Access Point
2× Detahcable Wi-Fi Antennas
48 V / 0.3 A Passive PoE Adapter
Mounting Kits
Installation Guide
Environment Operating Temperatures: -20~60 °C (-4~140°F) ext. -40~65 °C (-40~149°F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
System Requirements

Operating system that supports network/Wi-Fi connectivity, such as Windows, Android, macOS, iOS, or Linux
