Save 15%

Cudy Dual 4K 10 Gbps USB-C Dock

List price: €144.00
€121.94
(€149.99 inc VAT) You save: €22.06 (15%)
CS700
In stock
+ −

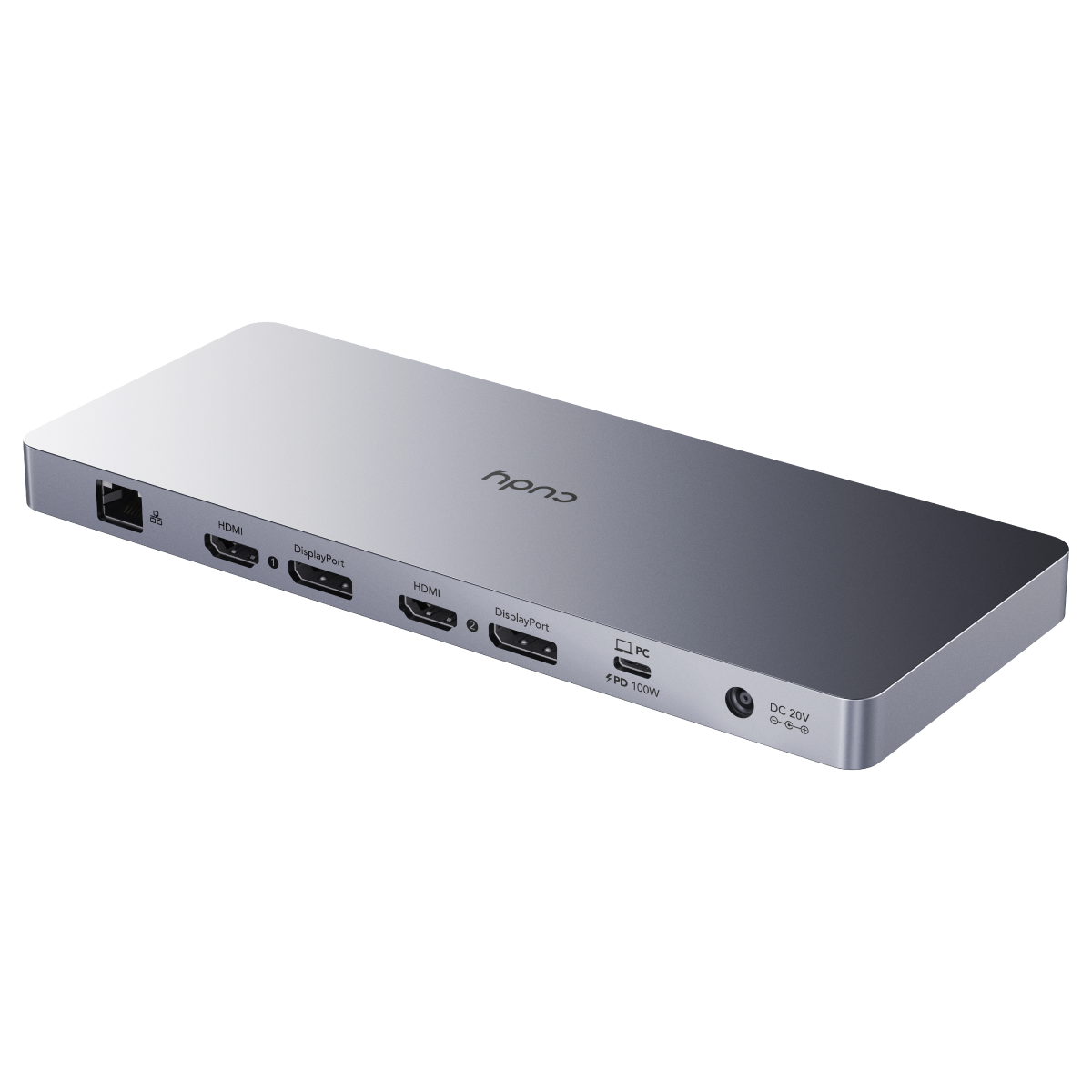

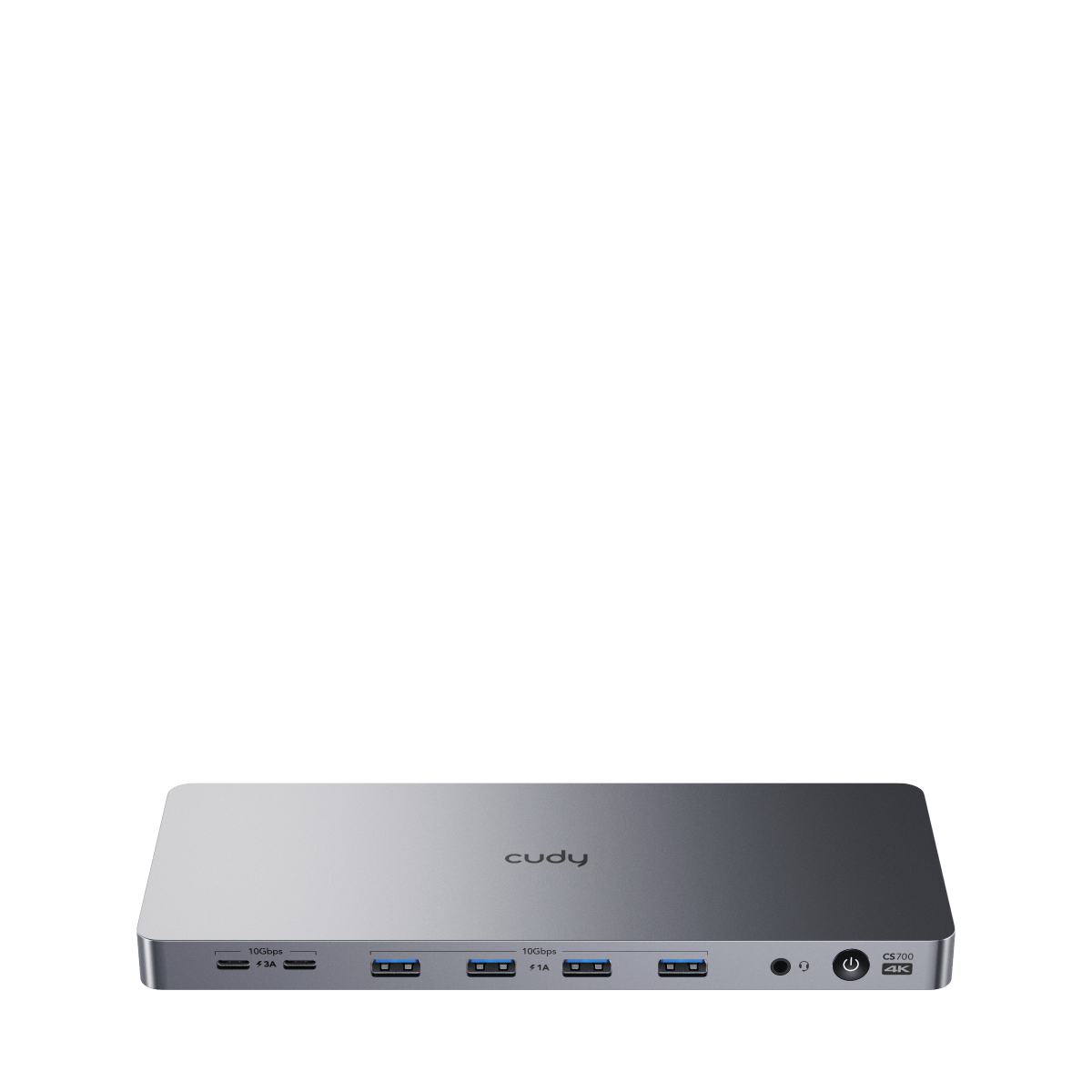

Cudy Dual 4K 10 Gbps USB-C Dock

USB-C docking station that extends USB-C to two 4K video outputs in the mirror or extend mode, 150W adapter included. Unlocks Macbook Air's one screen extension limitations.



  • 2× HDMI 2.0, 2× DP 1.2a, Dual 4K
  • 1× 10 Gbps Upstream PD USB-C
  • 2× 10 Gbps USB-C 3.2 Gen 2 (14W Each)
  • 4× 10 Gbps USB-A 3.2 Gen2 (5W Each)
  • 1× 3.5mm Audio Combo Jack
  • 1× Gigabit Ethernet RJ45 Port
  • 100W Upstream PD (150W Adapter Incl.)
  • DisplayLink DL-6950-N Chipset
  • Aluminum CNC Machining Casing

Works with Windows/macOS/Linux/Android



Model Version CS700 1.0
CPU Chipset DL-6950-N
  CPU Details DisplayLink

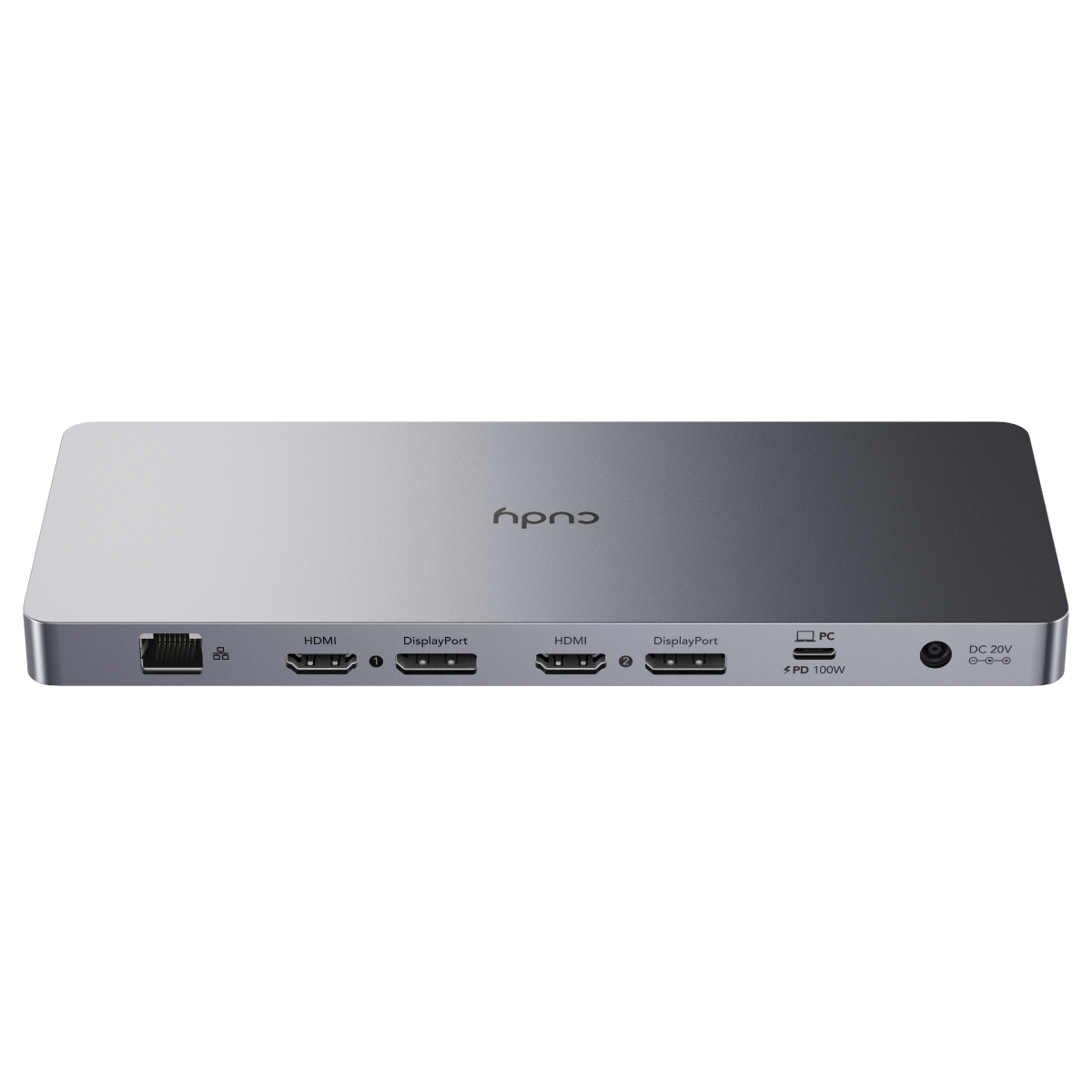

Interfaces Upstream Port 1× USB-C 3.2 Gen 2 Port (10 Gbps, Max 100W Charging)
  Video Output
  • 2× DisplayPort 1.2a
  • 2× HDMI 2.0

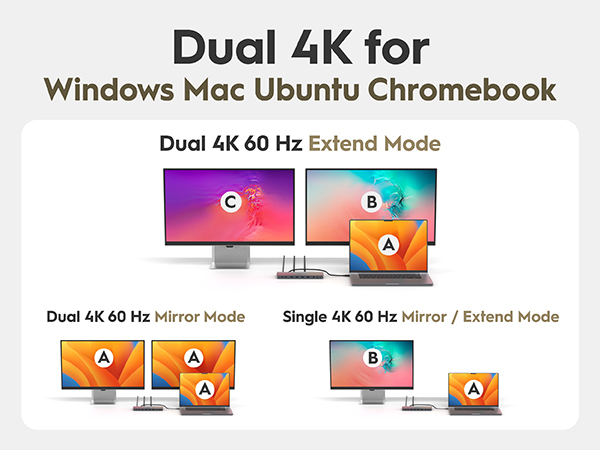

  Video Output Resolutions
  • Max two outputs simultaneously
  • 1× 5K (5120×2880) 60 Hz or
    2× 4K (4096×2160) 60 Hz
  • 5K resolution requires connecting two DisplayPort cables to a compatible 5K monitor
  Video Output Modes Extend, Mirror
Android phone supports mirror mode only

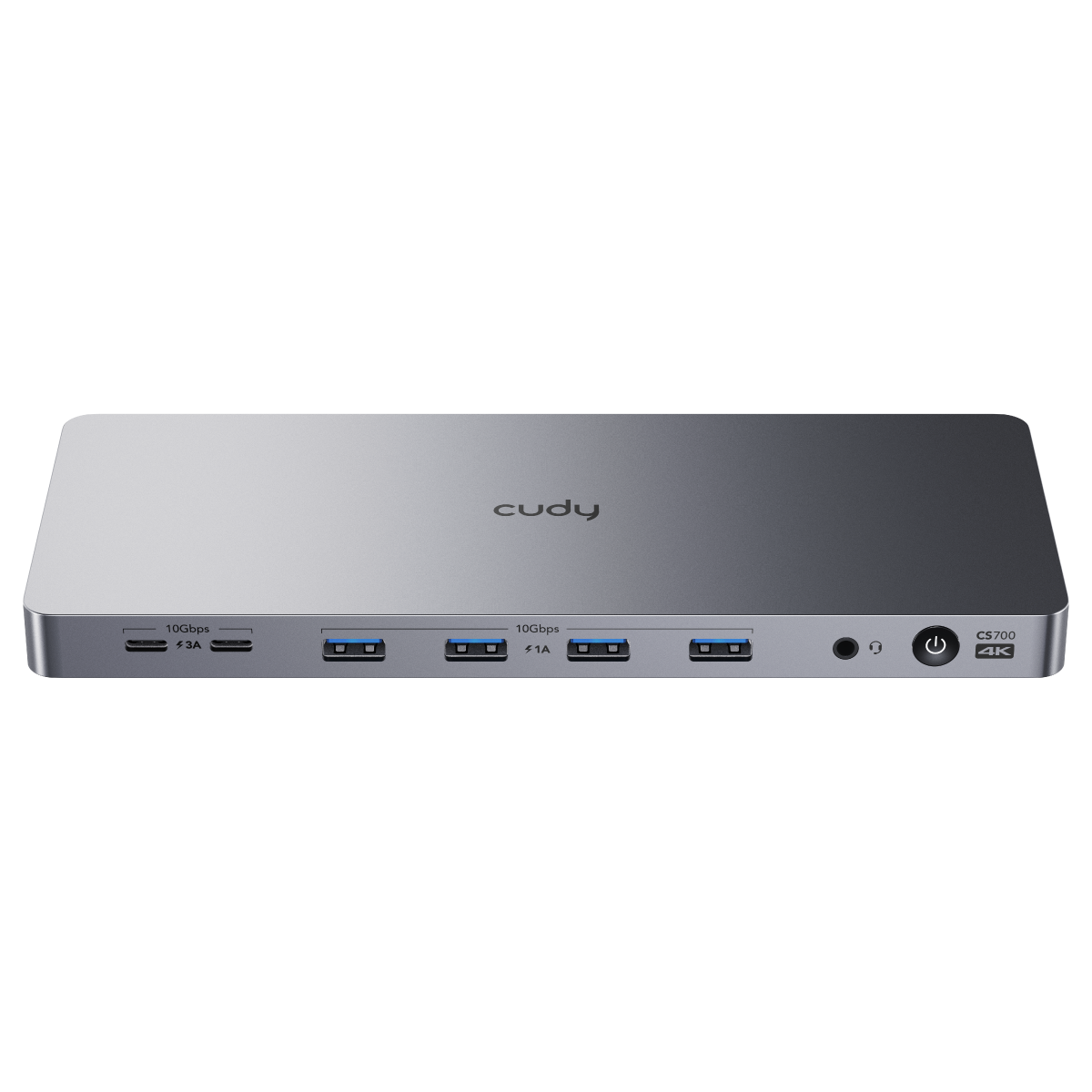

  USB Ports
  • 2× USB-C 3.2 Gen 2 Ports (10 Gbps | Max 14W Charging Each)
  • 4× USB-A 3.2 Gen 2 Ports (10 Gbps | Max 5W Charging Each)
  Network 1× Gigabit RJ45 Port
  Audio and Mic 1× 3.5 mm Combo Jack
  Power Input DC Jack
  Physical Buttons Power On/Off Button
  LED Power
Power Power Methods DC
  DC 20V 7.5A
  Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 20V 7.5A DC
  Max Power Consumption (W) 150W
  Idle Power Consumption (W) 2W
Physical Color Silver Gray Color, Matte Finish

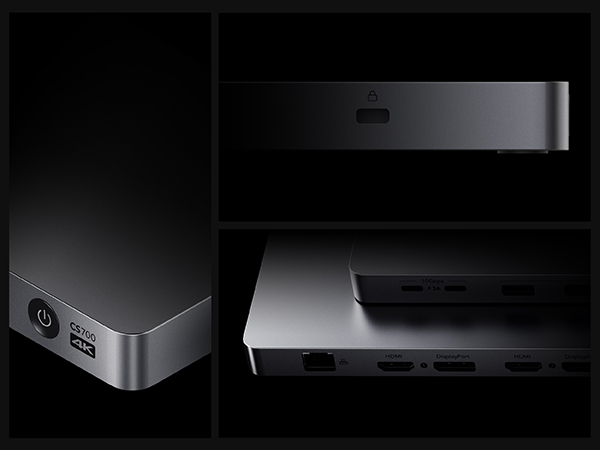

  Casing
  • Aluminum CNC Machining
  • Al6061 T5 Base Material
  • Sandblasting and Anodization
  Security 1× Kensington Security Slot
Requirements Hardware Requirement Requires a USB-C 3.2 Gen 2 / USB4 / Thunderbolt 3/4 port on the host device
  Compatible OS
  • Windows 7 or later
  • macOS 10.14 or later
  • Ubuntu LTS 18.04 or later
  • ChromeOS build RS1 or later
  • Android 5 or higher (Max 1× 1080P. Ethernet Disabled)
  Driver Installation Auto driver installation for Windows 10/11 and ChromeOS R51+.
Manual driver installation is required for macOS, Windows 7/8/8.1,
and Ubuntu. DisplayLink Presenter app is required on Android.
Reliability Environment
  • Operating Temperature: -20~60 °C (-10~140 °F)
  • Storage Temperature: -40~70 °C (-40~158 °F)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing
Mechanical Product Weight 340 g (11.99 oz.)
  Dimension 210×85×15.6 mm
8.27×3.35×0.61 inches

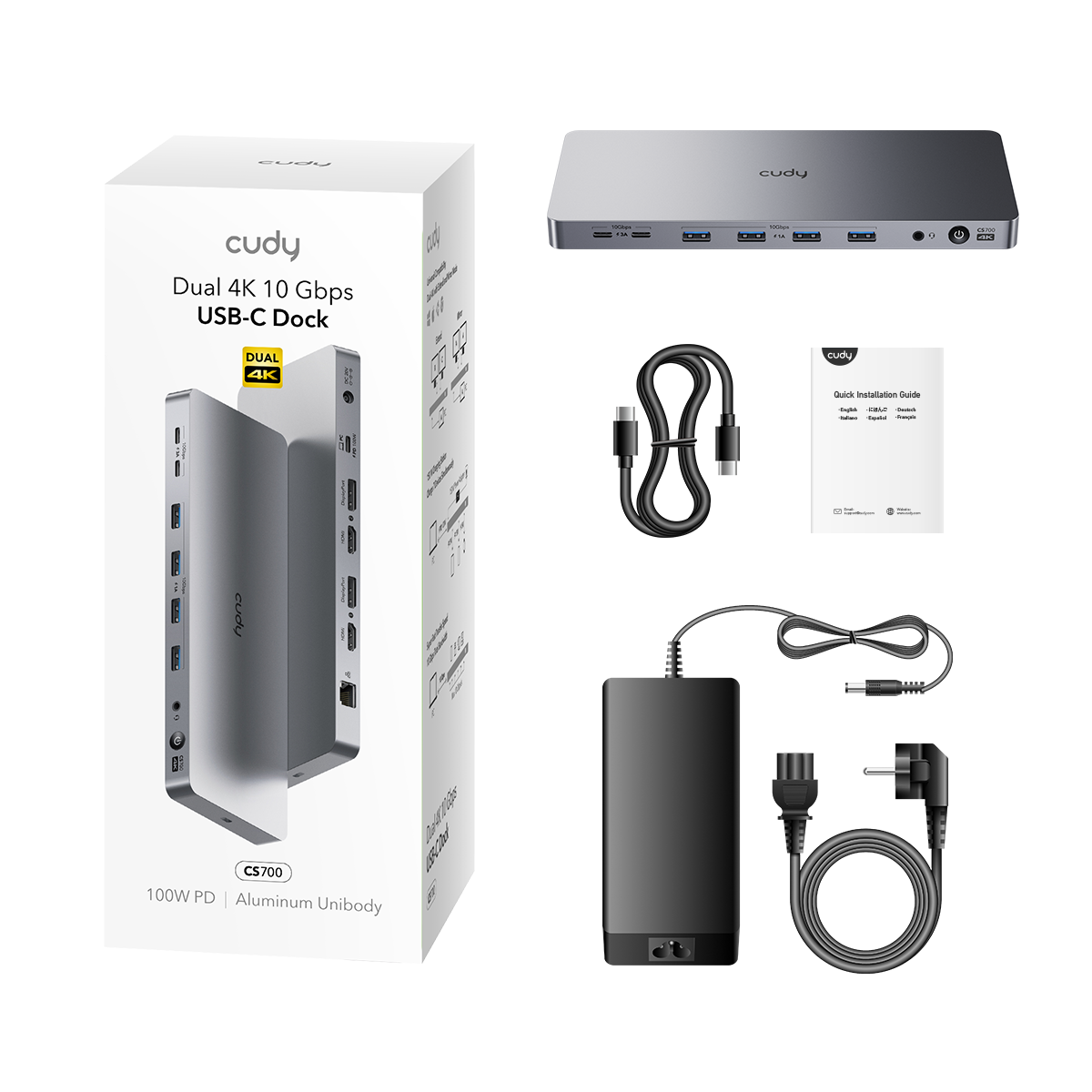

Package Content
  • CS700
  • Power Adapter
  • Installation Guide
Ordering Information Retail Package Weight EU / US: 1100 g (38.8 oz.)
  Retail Package Dimension 226×95.5×98.5 mm
8.9×3.76×3.88 inches
  Units per Carton 10
  Carton Net Weight EU / US: 11.1 kg (24.47 lbs)
  Carton Gross Weight EU / US: 11.6 kg (25.57 lbs)
  Carton Dimension 49.5×23.8×21.5 cm
19.49×9.37×8.46 inches
