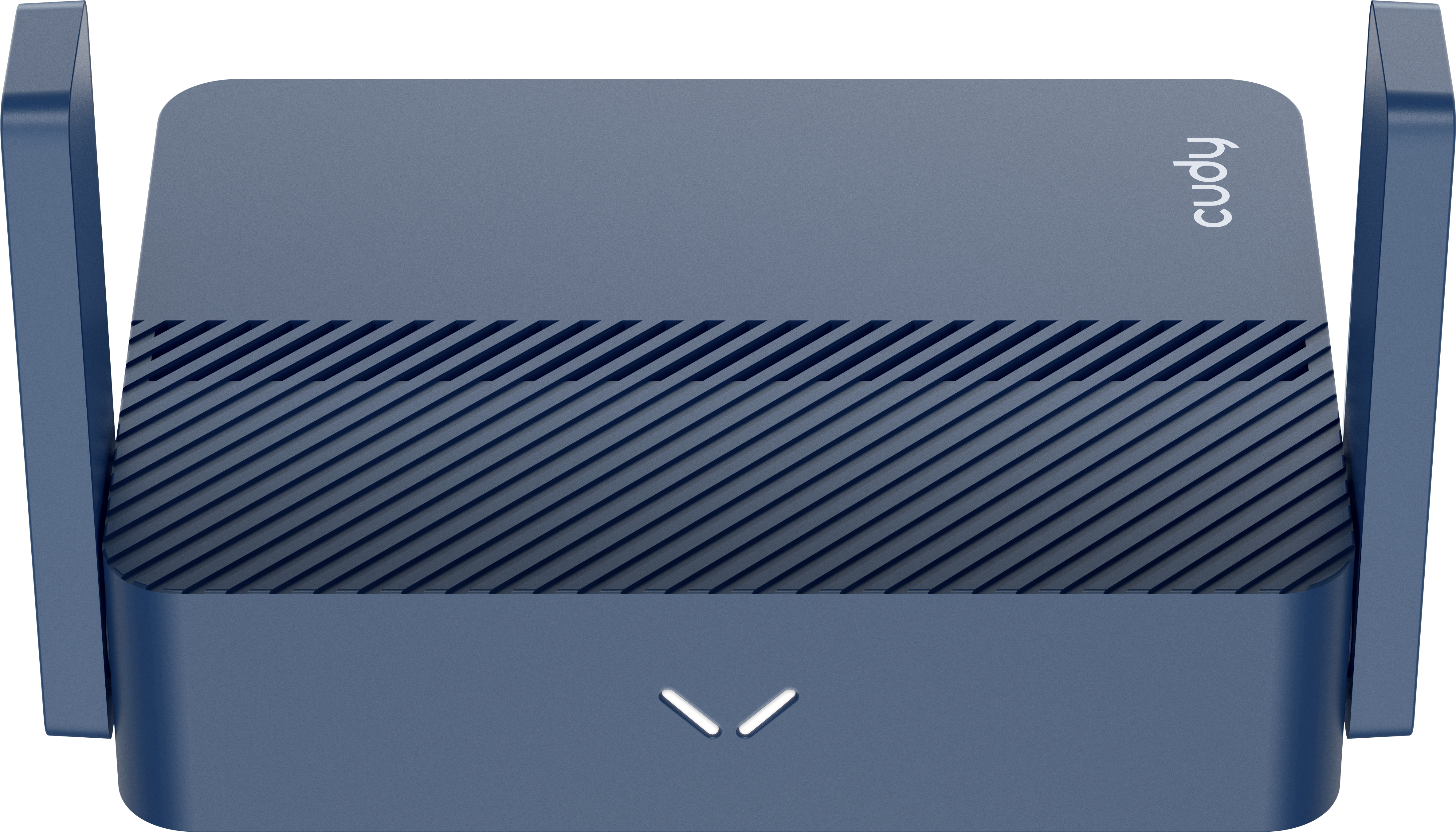

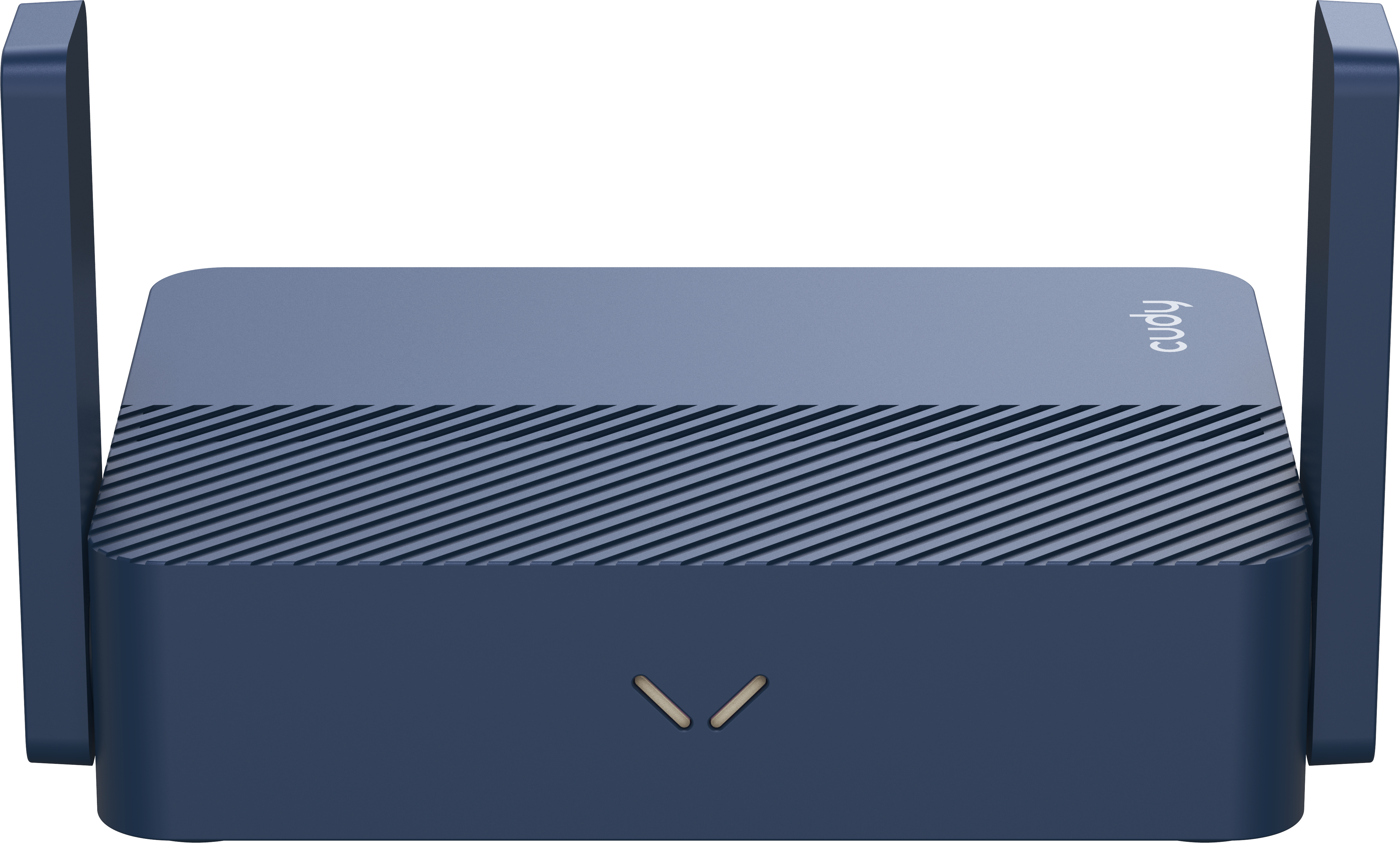

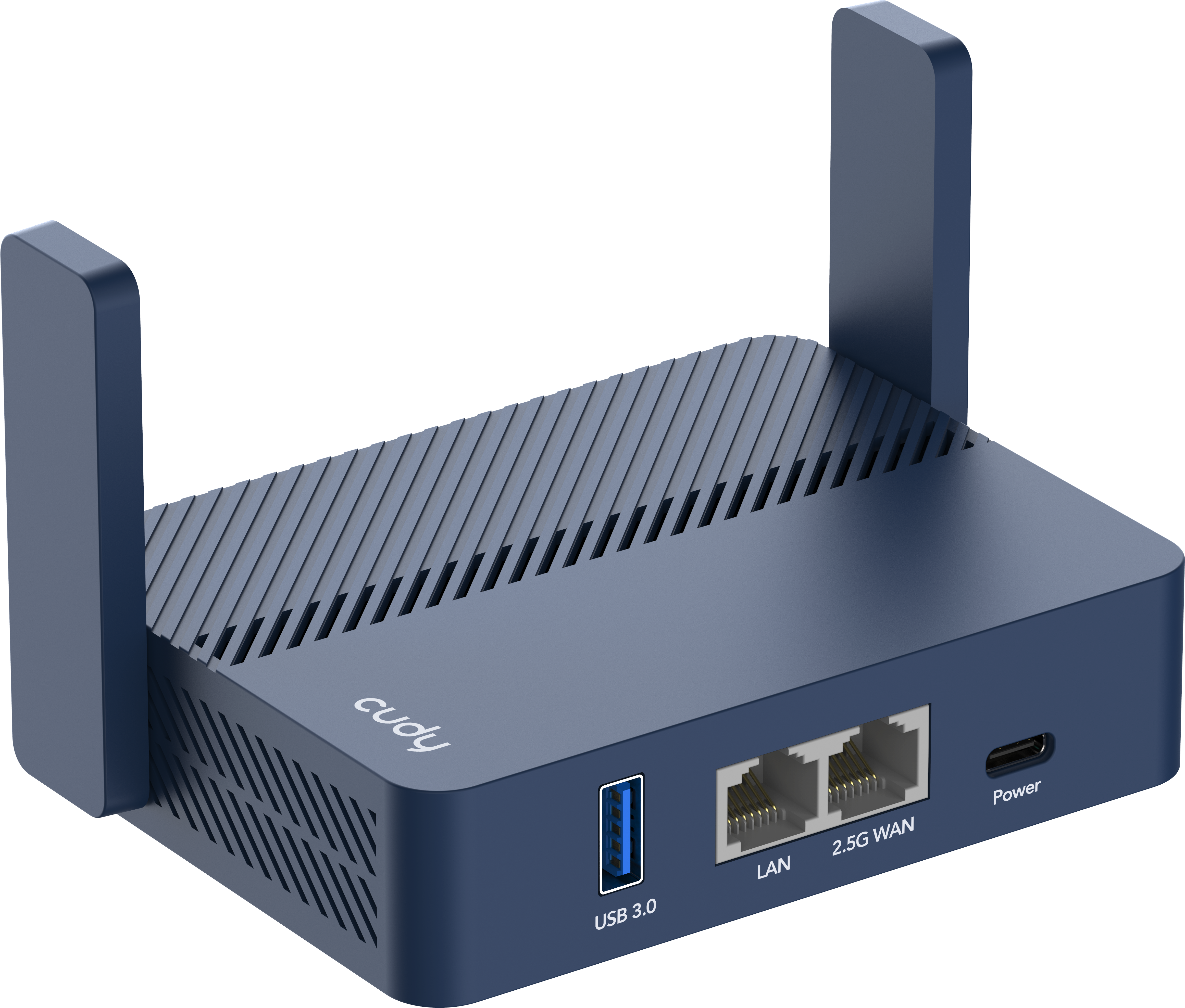

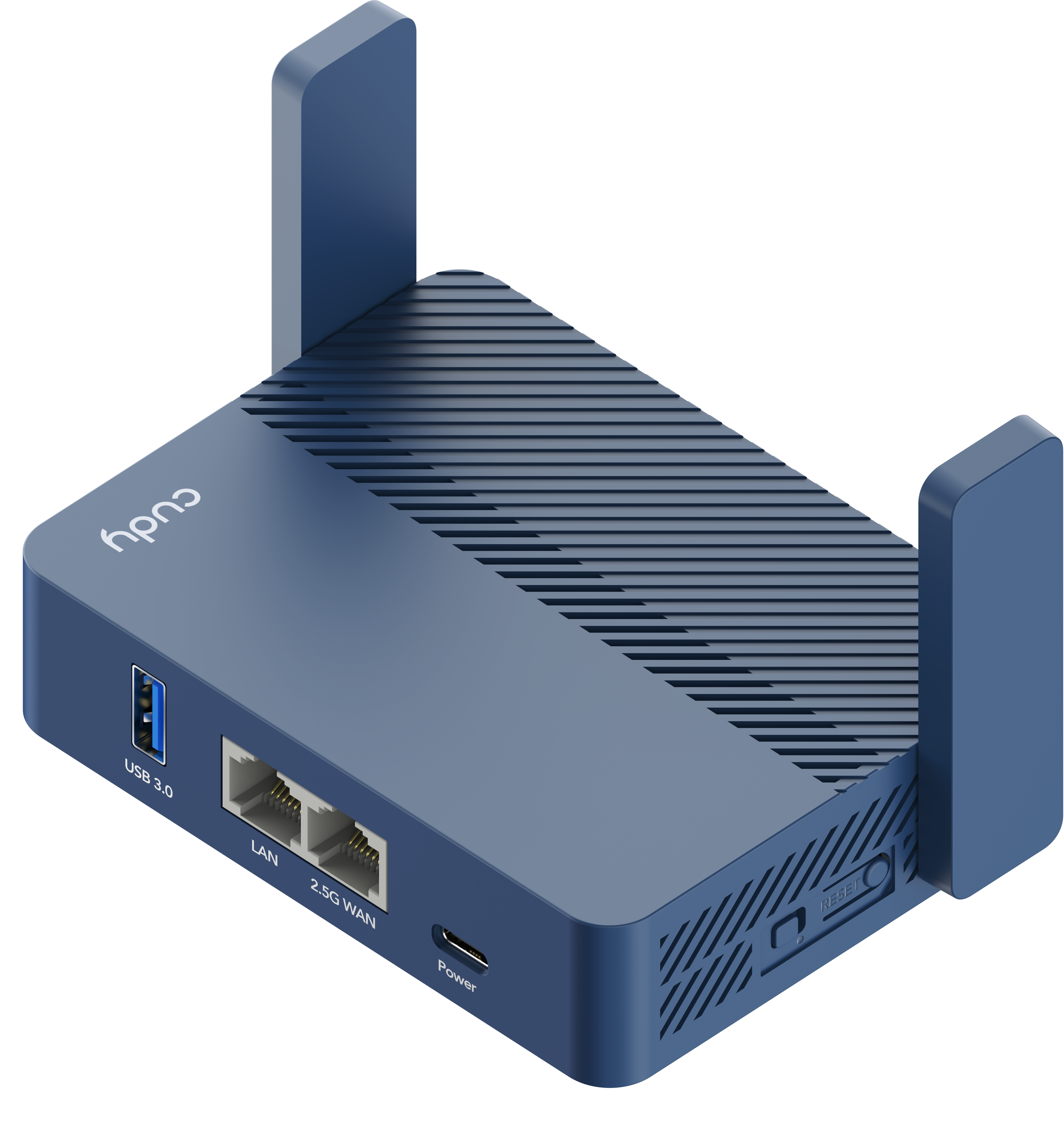

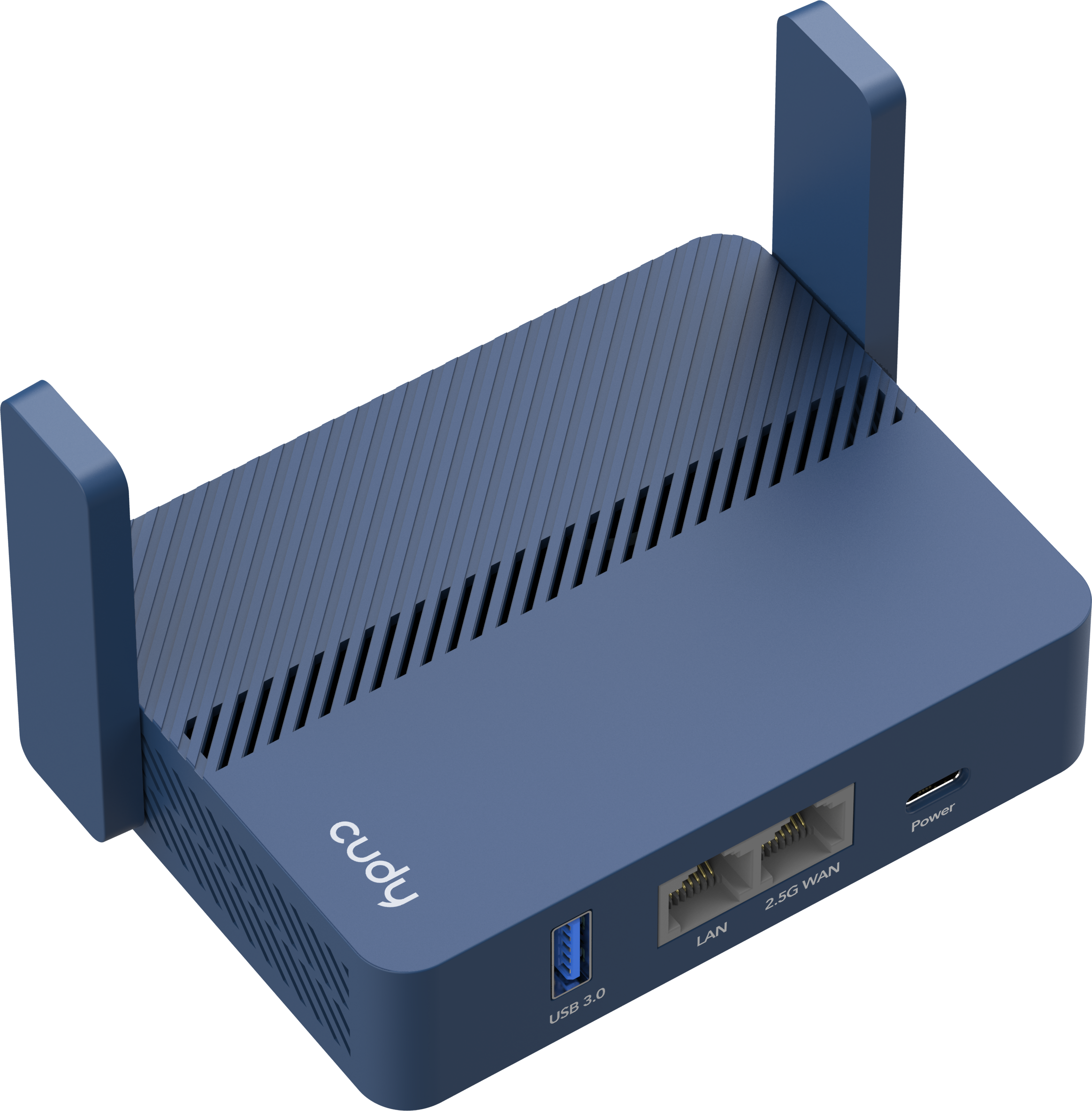

Cudy AX3000 WiFi 6 VPN 2.5GB Travel Router
Features
● Super-Fast AX3000 Wi-Fi 6

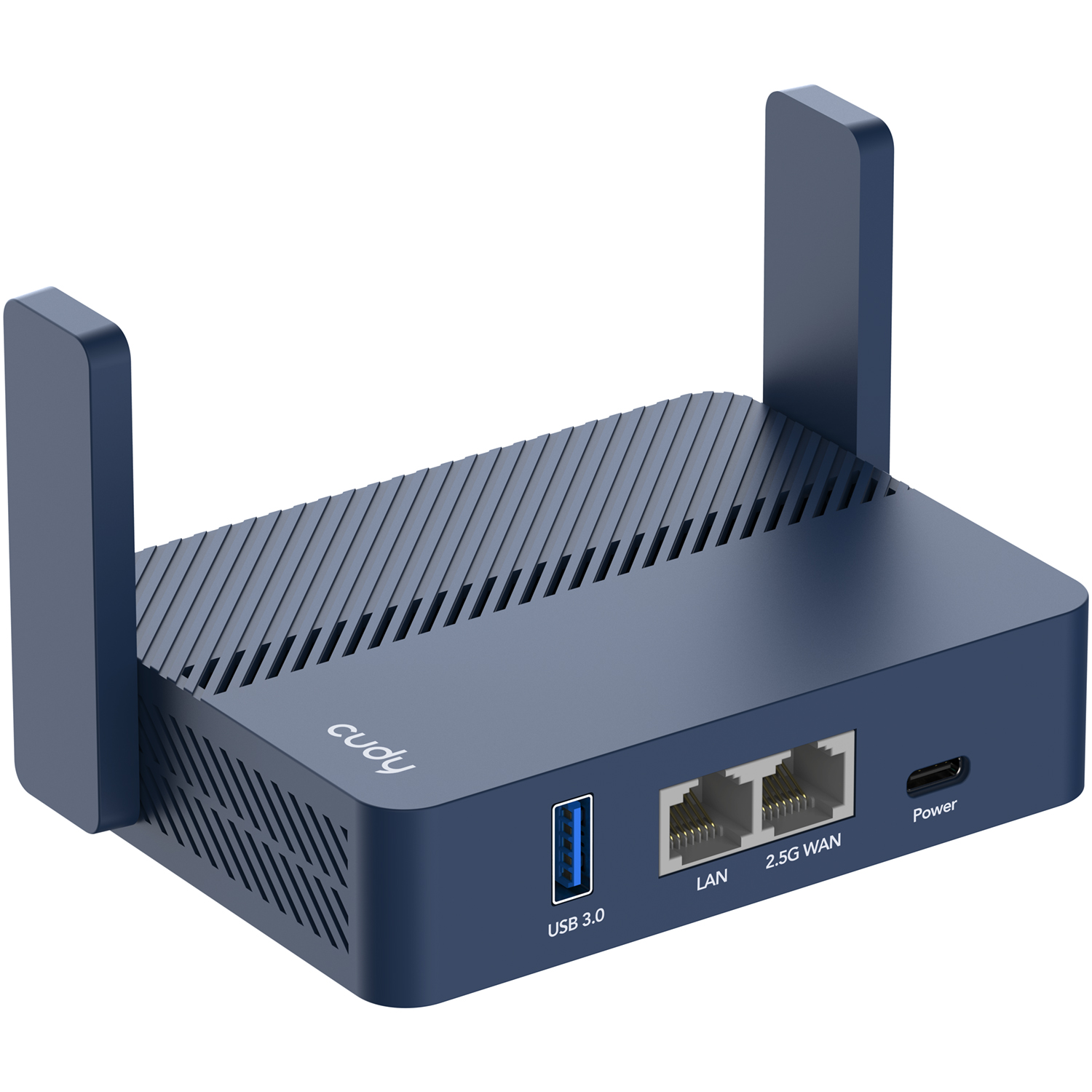

● 2.5G Ethernet Port and one Gigabit Ethernet Port
● VPN ZeroTier/WireGuard/OpenVPN/IPSec/L2TP/PPTP
● DNS over TLS with Cloudflare/Google/Quad9
● File Sharing with a USB-A 3.0 Port
● Router/AP/RE/WISP/Client/Mesh Multi-Mode
● PD Powering with USB-C Power Jack
● Configurable Switch, Reset Button
Key Specification
| Model | TR3000 | |
| Hardware | Processor | 1.3 GHz Dual-Core CPU |
| Flash | 128 MB (1 Gbit) NAND | |
| DDR | 512 MB (4 Gbit) DDR3 | |
| Antenna | 2× Fixed Wi-Fi Antennas | |
| Interfaces | 1× 2.5 Gbps WAN Port | |
| 1× Gigabit LAN Port | ||
| Buttons | Configurable Switch, Reset Button | |
| Power Supply |
5V / 3A (Compatible with PD Powering) |
|
| Dimensions (W×D×H) |
118×80×27.5 mm 4.65×3.15×1.08 inches |
|
| Weight | 160 g (5.64 oz.) | |
| Wireless | Wireless Standards | IEEE 802.11ax/ac/n/a 5 GHz |
| IEEE 802.11ax/n/g/b 2.4 GHz | ||
| Frequency | 5 GHz, 2.4 GHz | |
| Signal Rate | 2402 Mbps (5 GHz), 574 Mbps (2.4 GHz) | |
| Compatible with 802.11a/b/g/n/ac/ax Wi-Fi standards | ||
| Transmit Power | CE: <20 dBm (2.4 GHz), <23 dBm (5.15 GHz~5.25 GHz) | |
| FCC: <30 dBm (2.4 GHz & 5.15 GHz~5.825 GHz) | ||
| Wireless Function | MU-MIMO | |
| Wireless Security | WPA-PSK, WPA2-PSK, WPA3-SAE, WPA-PSK/WPA2-PSK, WPA2-PSK/WPA | |
|
Software (Explore in the Emulator) |
WAN Type | Dynamic IP/Static IP/PPPoE |
| Management | Parental Control (Domain/IP/MAC Filter) | |
| Device Management Panel | ||
| Guest Network | ||
| DHCP | Server, DHCP Client List, Address Reservation | |
| Dynamic DNS | Compatible with 15 more DDNS providers | |
| Guest Network | 2.4 GHz Guest Network × 1 | |
| 5 GHz Guest Network × 1 | ||
| NAT | Port Forwarding, Port Triggering, UPnP, DMZ | |
| VPN | Protocols: Zerotier/Wireguard/OpenVPN/IPSec/L2TP/PPTP | |
|
Performance: 224 Mbps Uplink / 230 Mbps Downlink (Wireguard Client) 90 Mbps Uplink / 160 Mbps Downlink (Wireguard Server) 90 Mbps Uplink / 120 Mbps Downlink (OpenVPN Client) 180 Mbps Uplink / 160 Mbps Downlink (OpenVPN Server) |
||
| DNS over TLS | Cloudflare, Google, Quad9 | |
| Firewall | SPI, DoS, Ping | |
| Configurable Switch Functions | VPN On/Off, LED On/Off | |
| Fast Roaming | Cudy Mesh | |
| IP Protocols | IPv4 / IPv6 | |
| Others | Package Content | Travel Router |
| USB-C Power Adapter | ||
| RJ45 Ethernet Cable | ||
| Quick Installation Guide | ||
| Environmental Requirements | Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
|
| System Requirements |
Windows, macOS, Android, iOS, or other OS with networking capability Firefox, Chrome, Safari, Edge, or other up-to-date web browsers Cable/DSL/ONT modem/Internet Walloutlet/Wi-Fi or other internet source |
|
