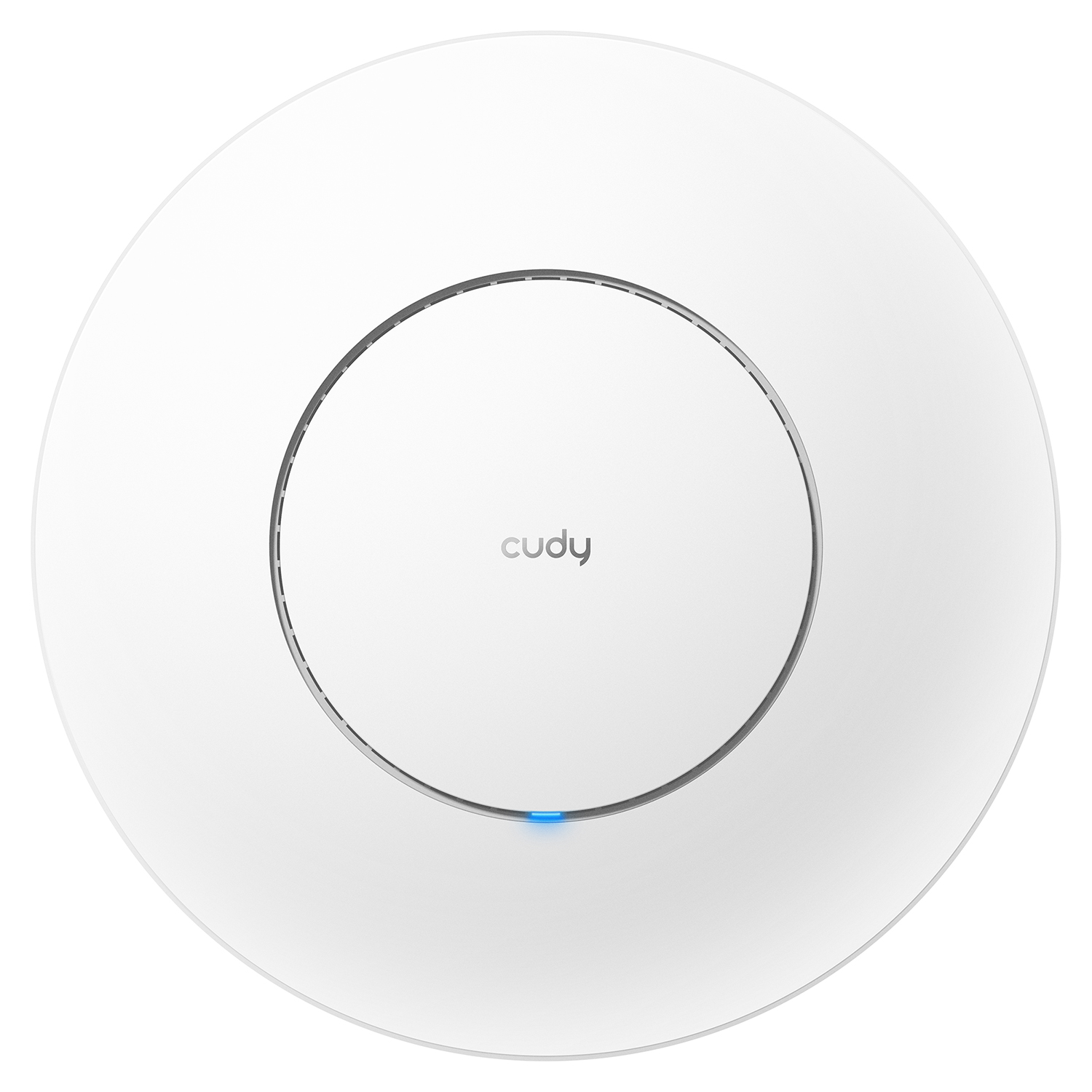

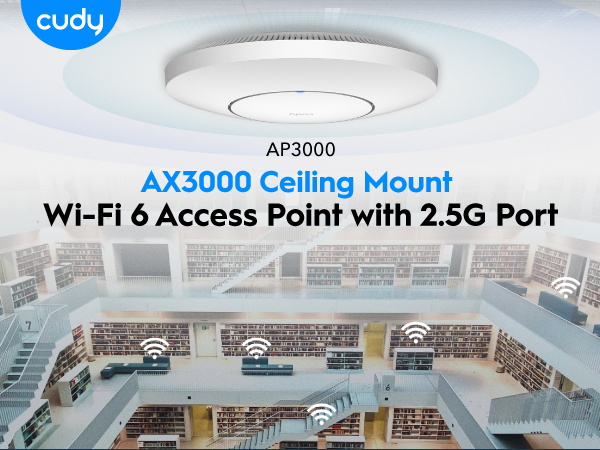

Cudy AX3000 WiFi 6 PoE Wireless Access Point with 2.5GB Port
● Premium AX3000 Wi-Fi 6 Access Point

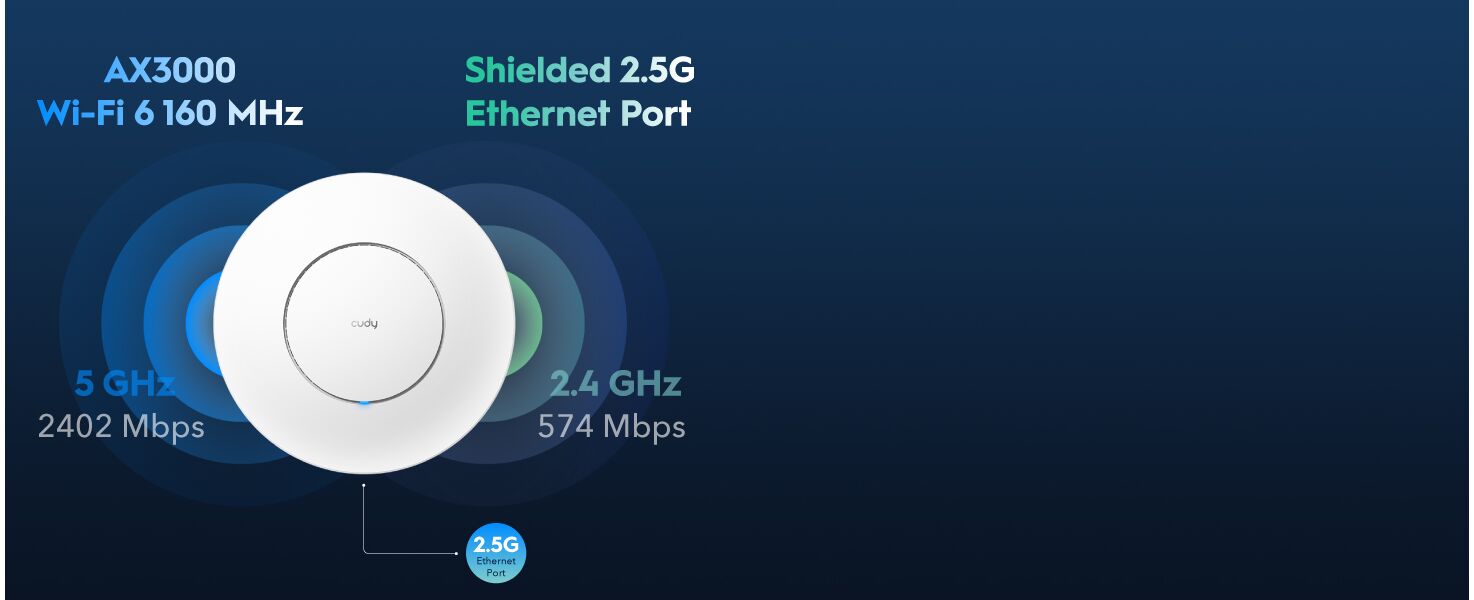

● Shielded 2.5G Port for Multi-Gig Throughput
● Maximum 512 Clients with 512 MB RAM
● Five Antennas for Broader Wi-Fi Coverage
● 802.3at/af PoE, Passive PoE, or DC Powering
● Mesh with Cudy Mesh Router / AC
● Config Radius Server for AAA Feature
Specifications
| Hardware Features | Highlights | CPU: 1.3 GHz Dual-Core ARM CPU |
| Flash: 256 MB NAND (2 Gbit) | ||
| DDR: 512 MB DDR4 (4 Gbit) | ||

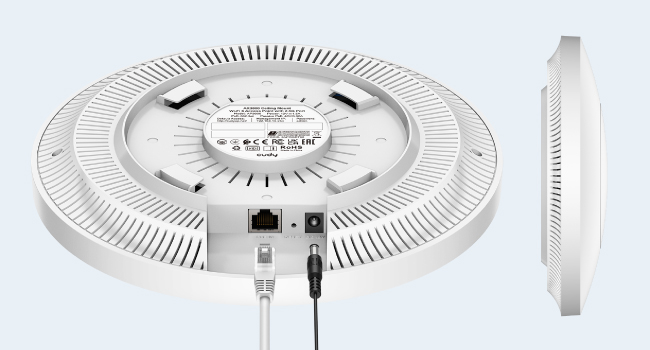

| Interface | 1× 2.5 Gbps Ethernet Port (PoE In) | |
| 1× Reset Button | ||
| 1× DC Jack | ||

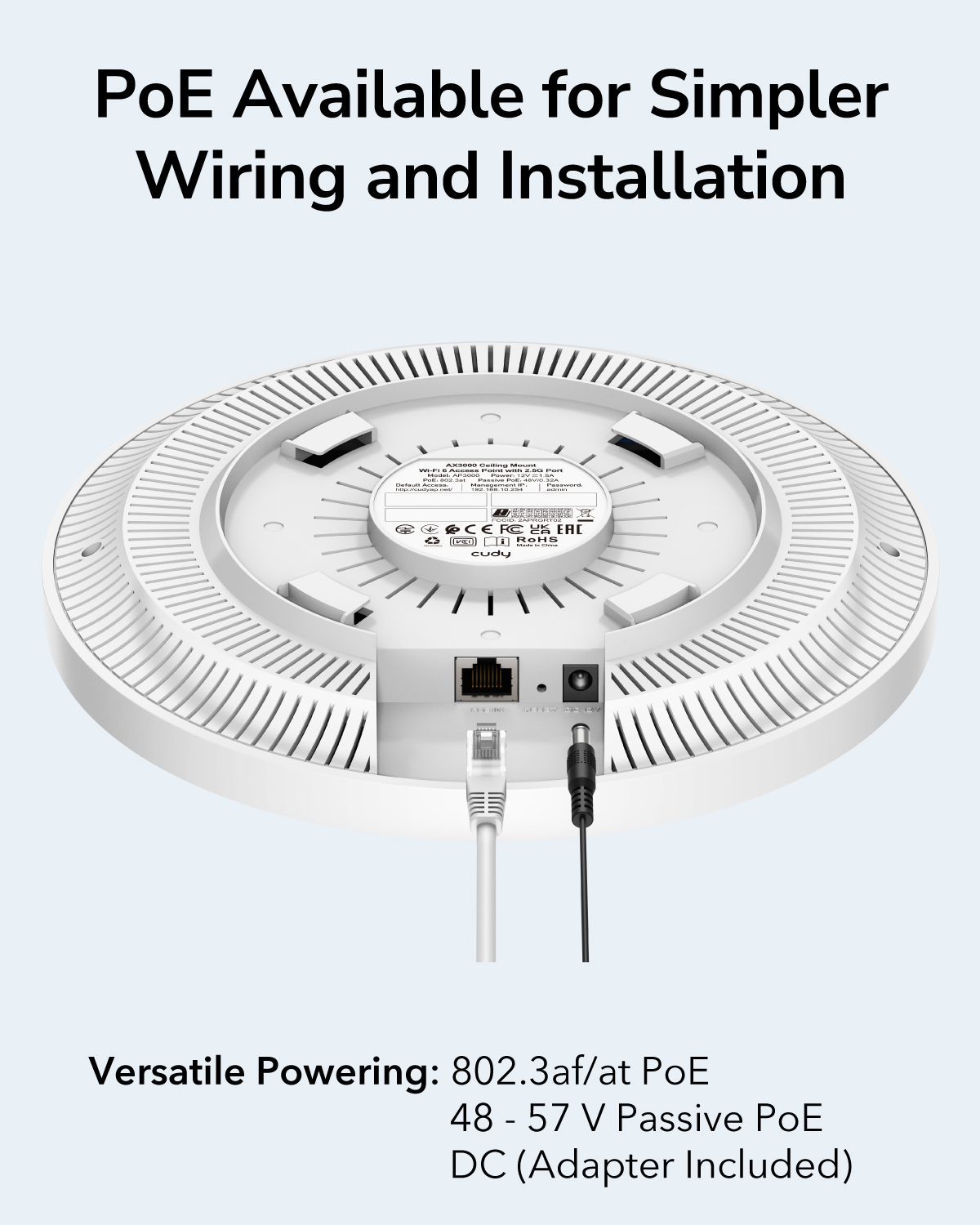

| Power Supply | 802.3af/at PoE | |
| 48-57 V Passive PoE (+4,5pins; -7,8pins) | ||
|
12 V ⎓ 1.5 A DC |
||
| Power Consumption |
PoE Idle: 5.7 W 12 V DC Idle: 6.1 W |
|
|
PoE Max: 12 W 12 V DC Max: 11 W 48 V DC Max: 12 W |
||
| Dimensions (Dia.×H ) | Φ231.9×57.1 mm (Φ9.13×2.25 inches) | |
| Antenna Type |
4× Internal Omni-directional Antennas |
|

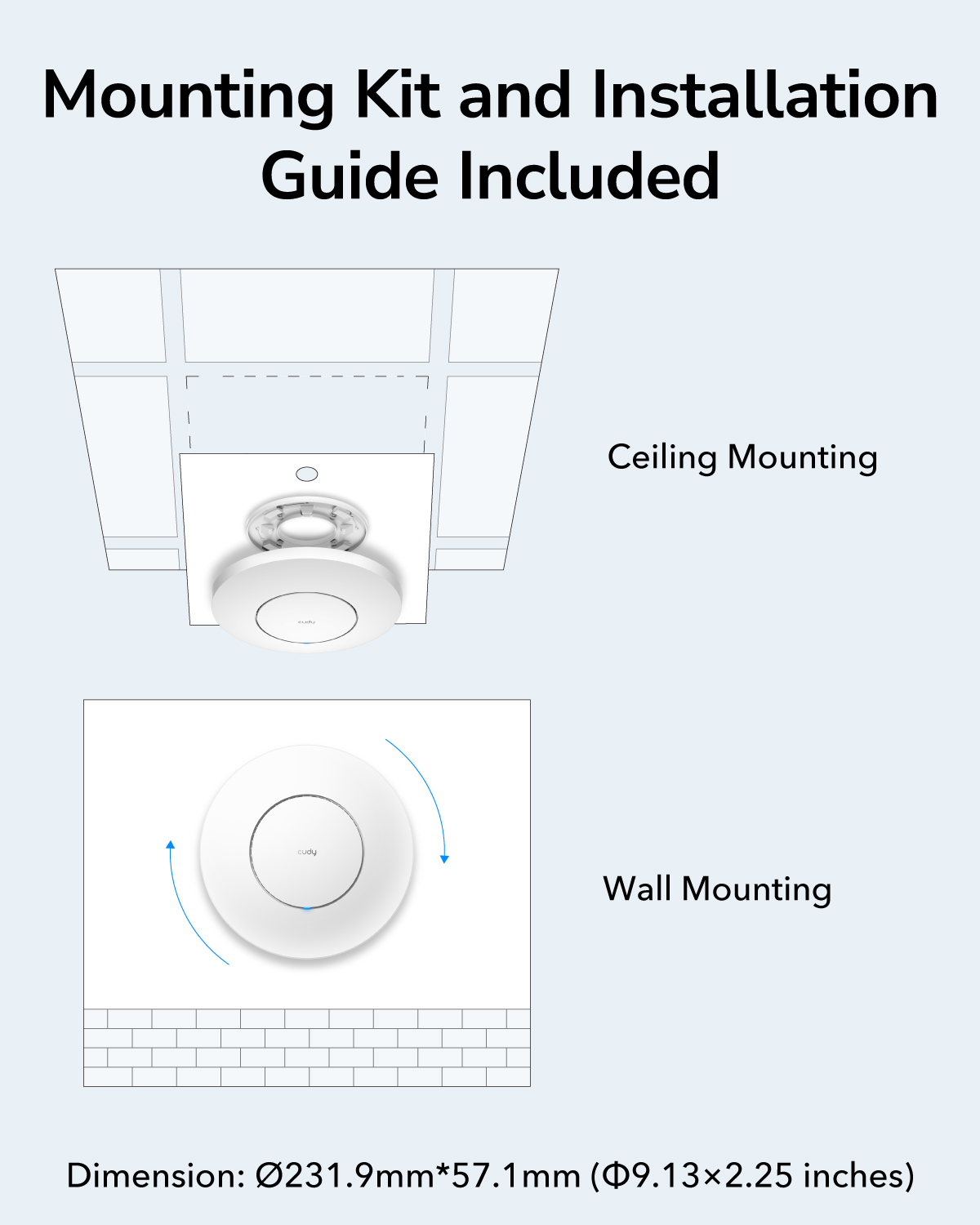

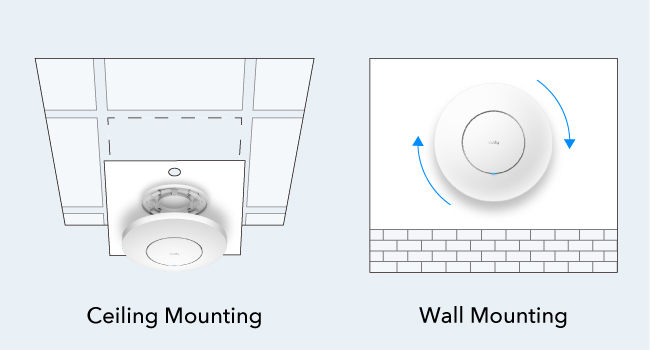

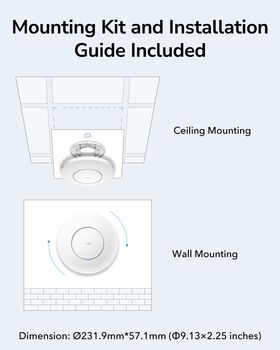

| Mounting | Ceiling/Wall Mounting (Kit included) | |
| Wireless Function | Wireless Standards |
Wi-Fi 6 (802.11ax/ac/n/g/b/a) |
| Frequency | 2.4 GHz and 5 GHz | |
| Signal Rate | 5 GHz: Up to 2402 Mbps | |
| 2.4 GHz: Up to 571 Mbps | ||
| Channel Width | 20/40/80/160 MHz | |
|
Wireless Functions (Features with * require a Cudy AC as the gateway, Cudy AC's ETA is 2024 Q2) (Features with ** require a Cudy WR1300 or Cudy AC as the gateway) (Features with △ require a Cudy Mesh router/Mesh unit or Cudy AC as the gateway) |
||
| Captive Portal ** | ||

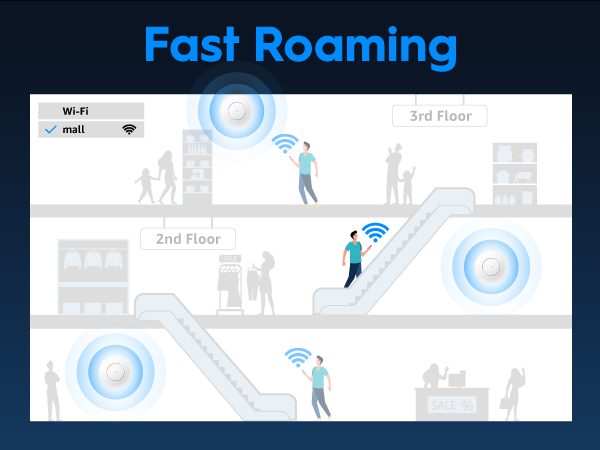

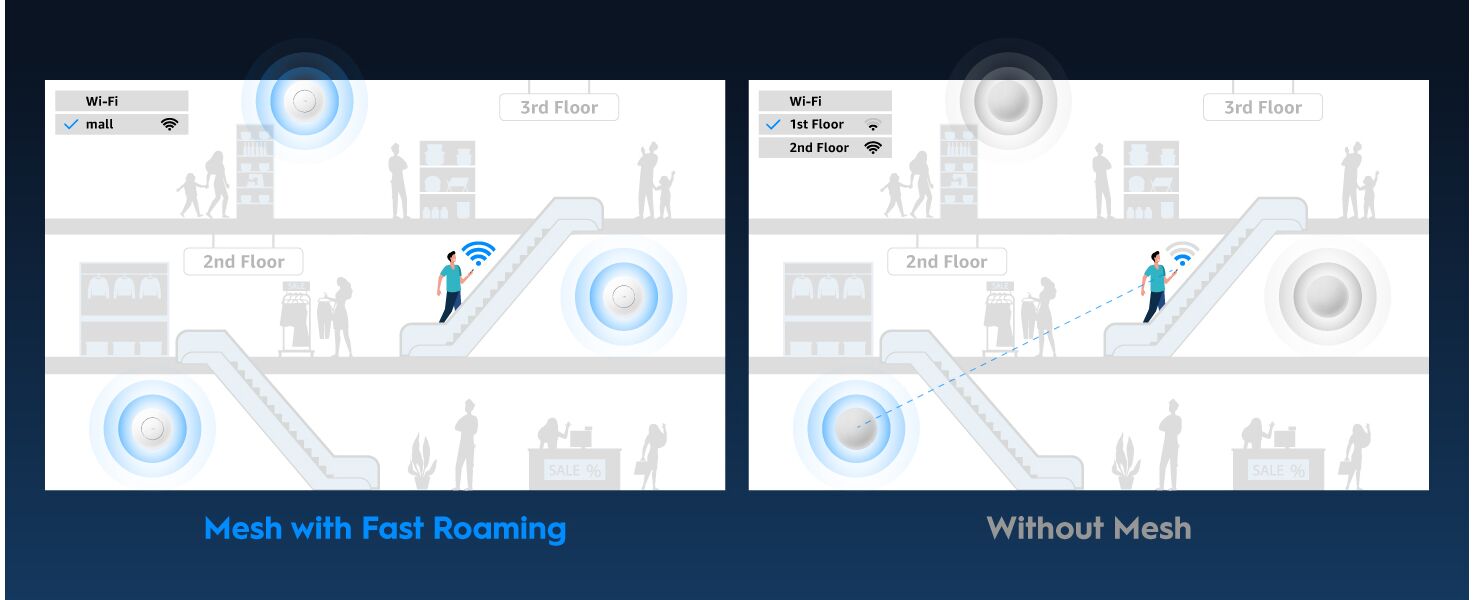

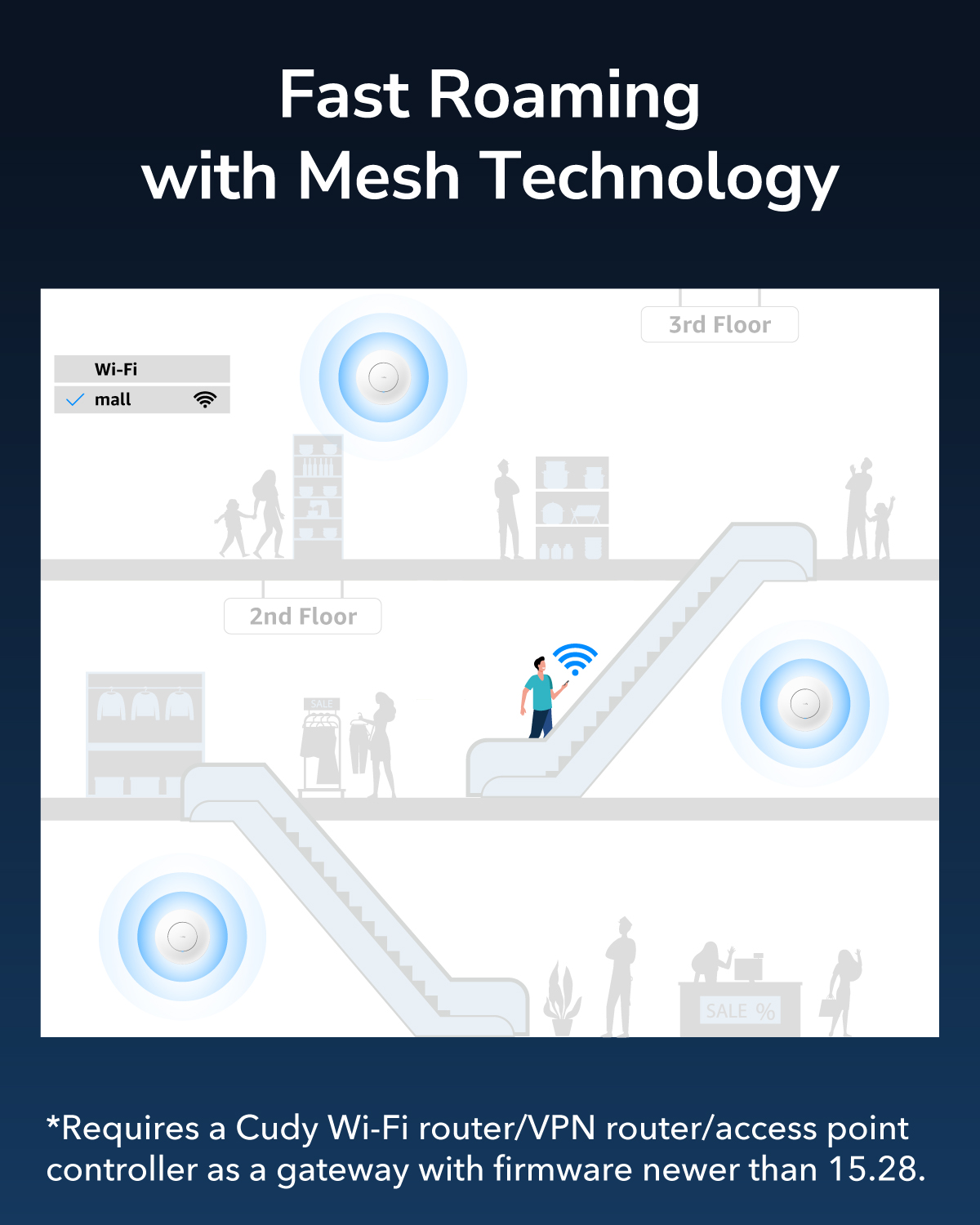

| Seamless Roaming Mesh△ | ||
| Self-Organizing Mesh△ | ||
| Band Steering* | ||
| Auto Channel Optimization* | ||
| Enable/Disable Wireless Radio | ||
| Transmit Power Control | ||
| QoS (WMM) | ||
| MU-MIMO | ||
| Beamforming | ||
| Rate Limit | ||
| Reboot Schedule | ||
| Wireless Schedule | ||
| Wireless Encryption | WPA-PSK, WPA2-PSK, WPA3-SAE, WPA-PSK/WPA2-PSK, WPA2-PSK/WPA3-SAE | |
|
Security (Features with * require a Cudy AC as the gateway, Cudy AC is coming soon in late 2023) |
IP/MAC Filtering | |
| AP Isolation* | ||

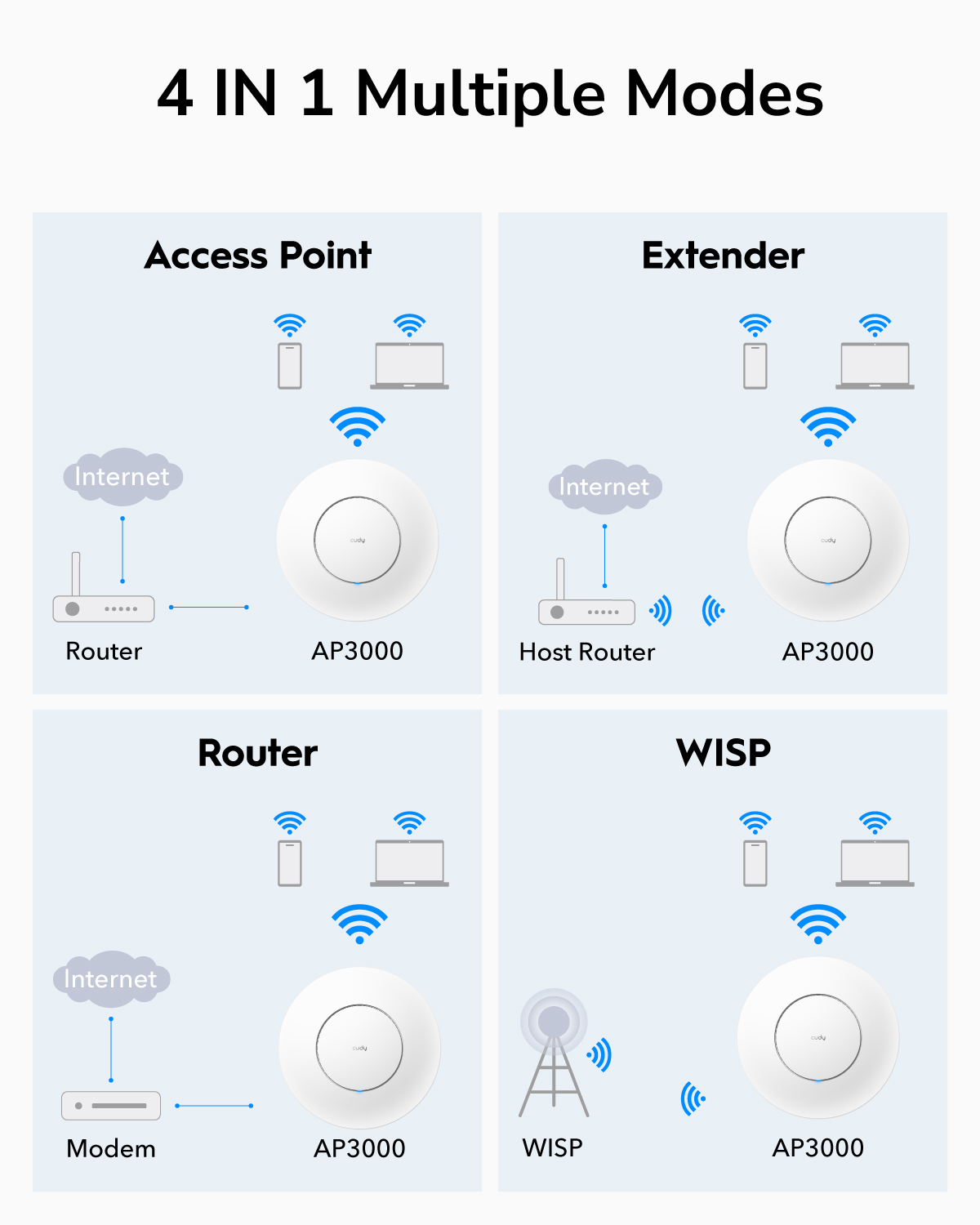

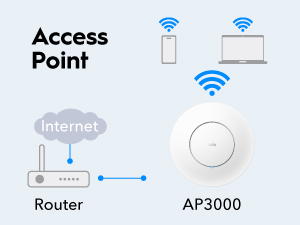

| Operating Modes | Wireless Access Point Mode | |

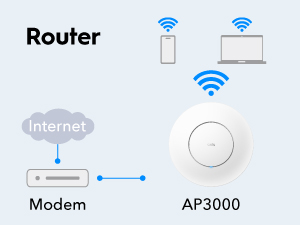

| Wireless Router Mode | ||

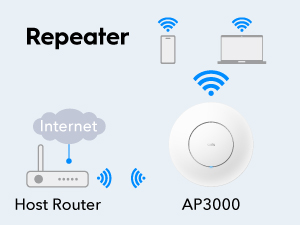

| Wireless Extender Mode | ||

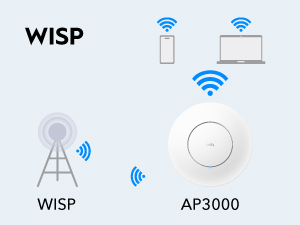

| WISP Mode | ||
| Package Content | Access Point | |
| DC Adapter | ||
| Mounting Kit | ||
| Installation Guide | ||
| Environments | Operating Temperature: 0~40 °C (32~104 °F) | |
| Storage Temperature: -40~70 °C (-40~158 °F) | ||
| Operating Humidity: 10~90% RH non-condensing | ||
| Storage Humidity: 5~90% RH non-condensing | ||
| System Requirements | Windows, MAC OS, NetWare, UNIX, or Linux | |
| Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other web browser | ||
| A fiber/cable/DSL Modem, or other devices providing wired internet | ||
| Subscription with an internet service provider for internet access | ||
| A power socket for AC power supply, or PoE power supply | ||
|
Advanced business AP features require a Cudy AC as the gateway, Cudy AC is coming soon in late 2023. Mesh features require a Cudy Mesh unit/Mesh router or AC as the gateway with firmware newer than 15.28. |
||
