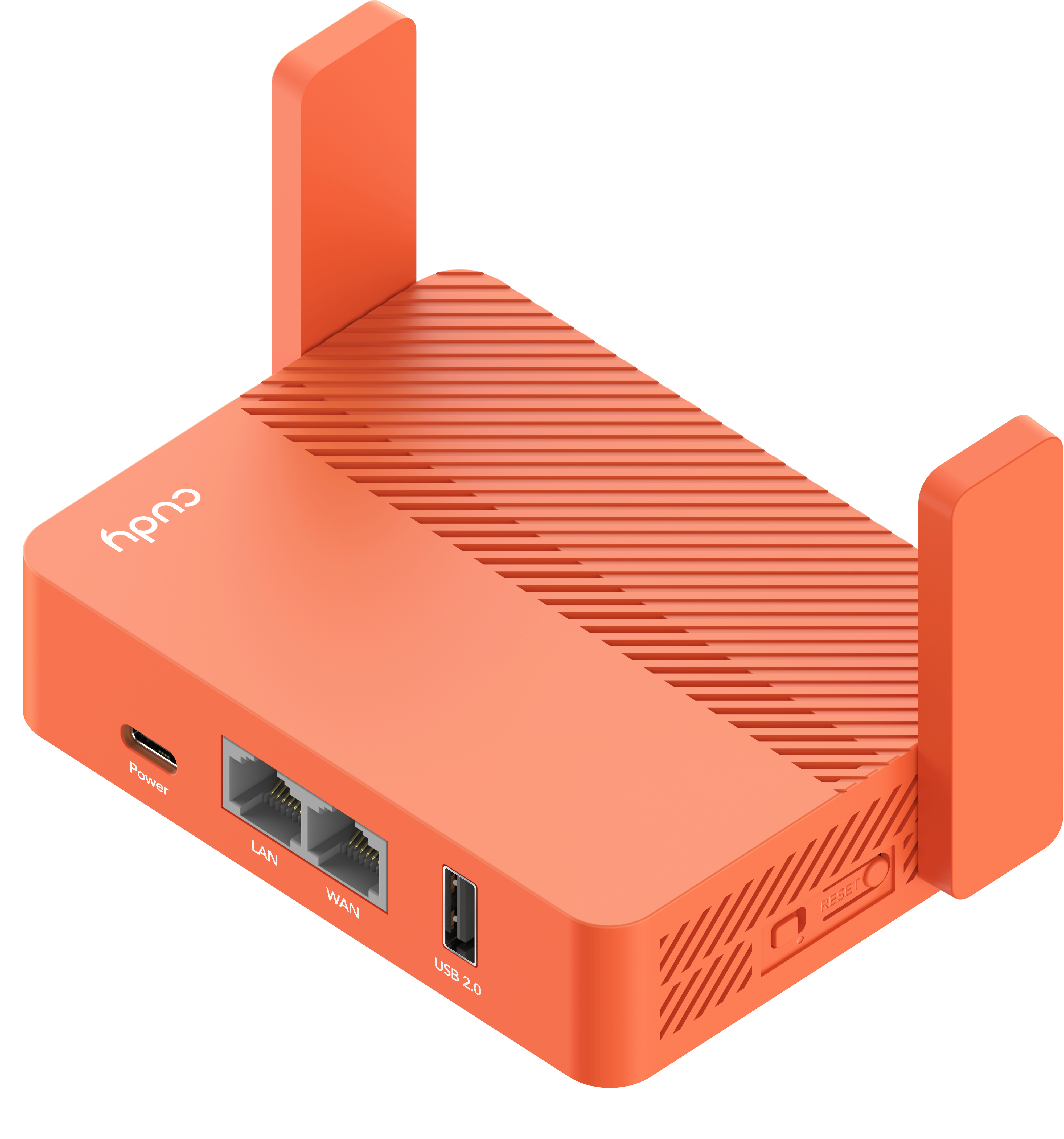

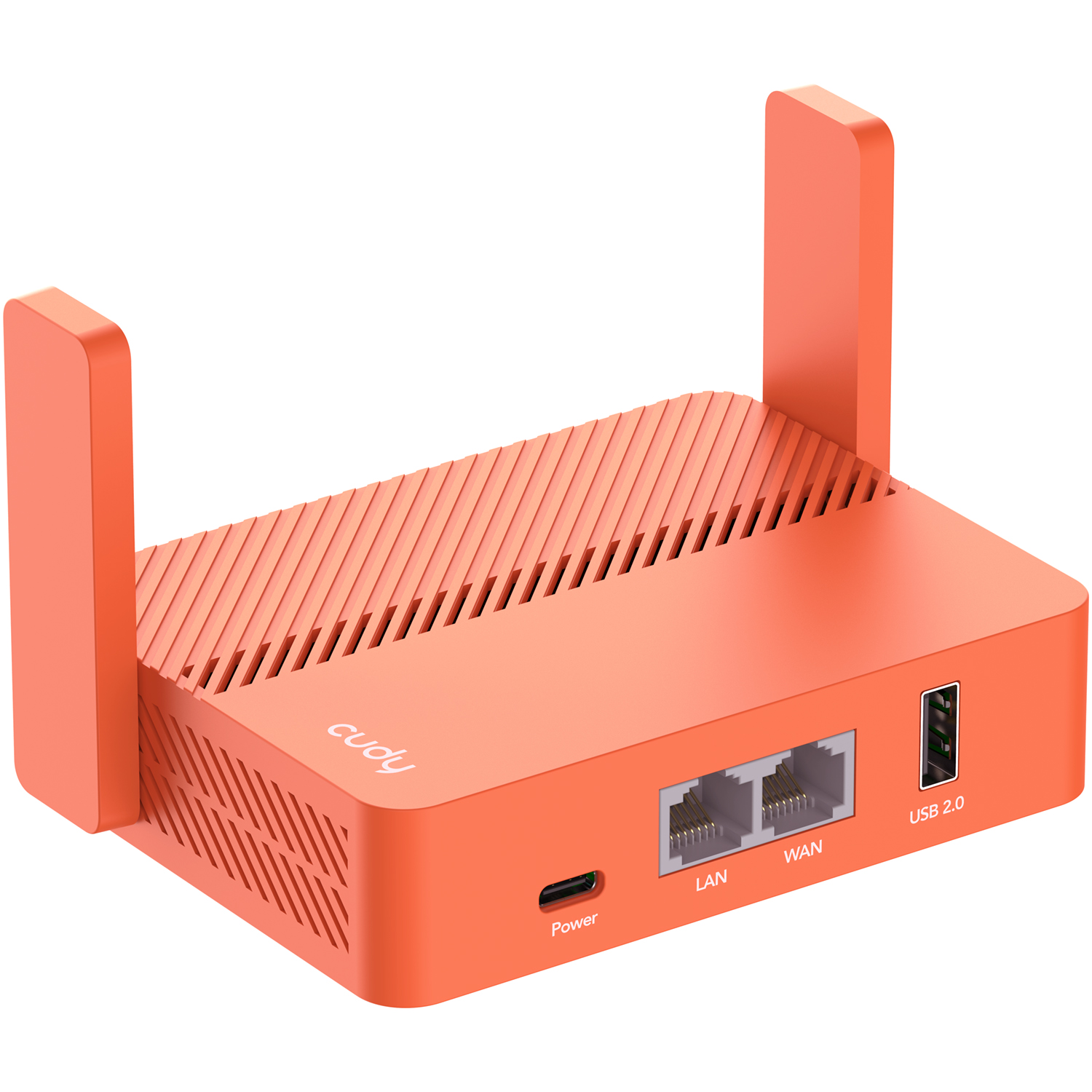

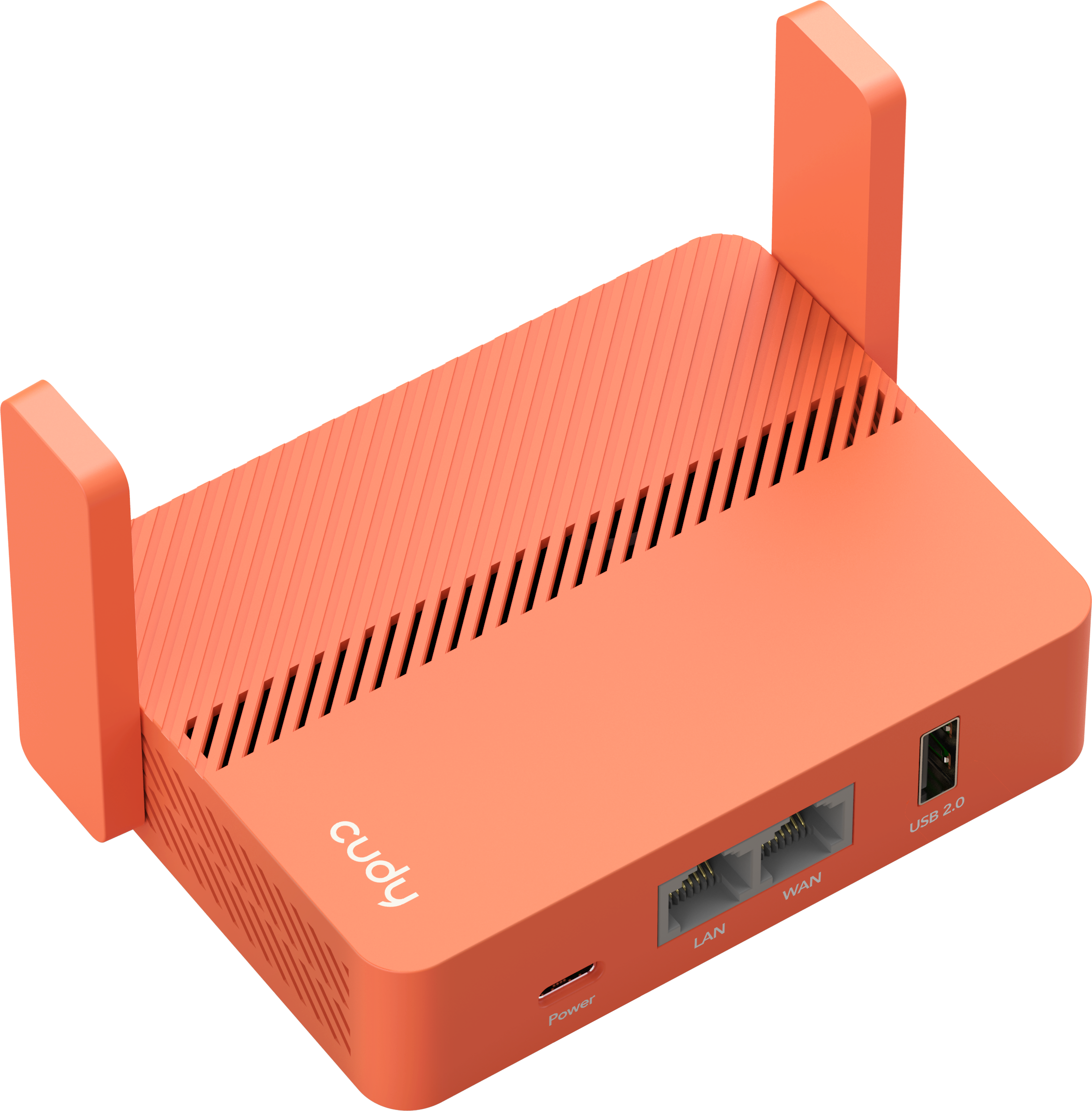

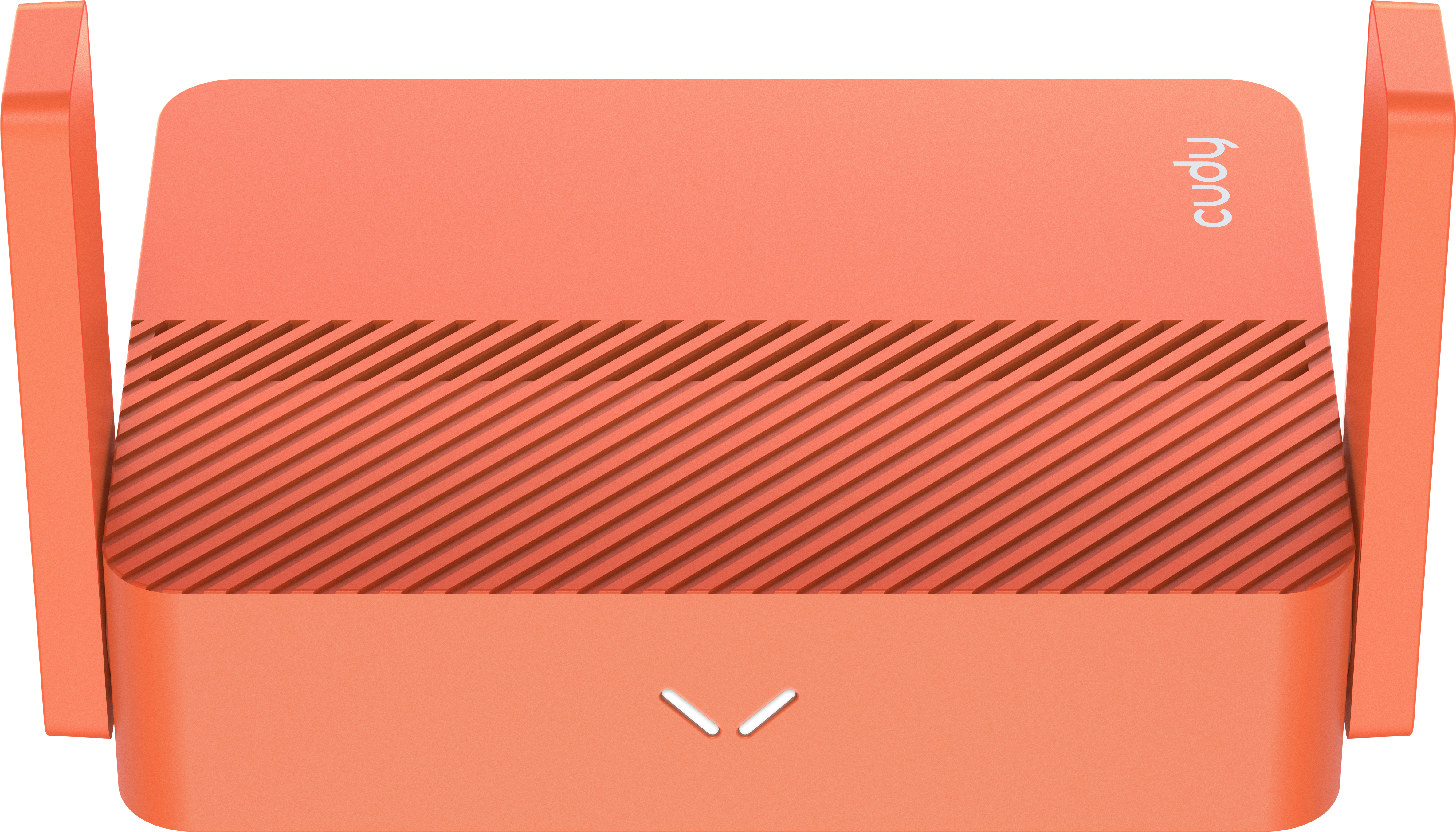

Cudy AC1200 WiFi VPN Travel Router
Features

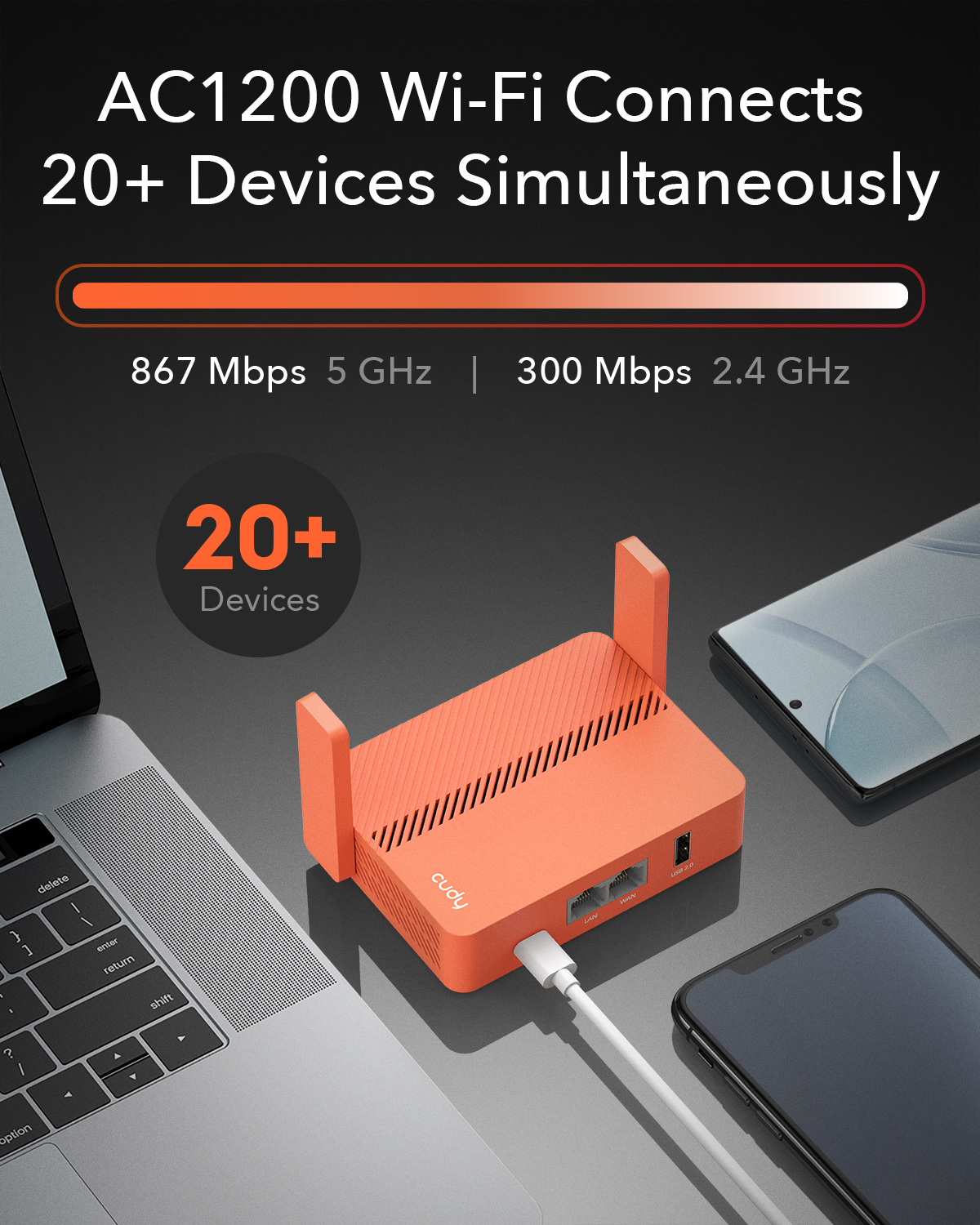

● Speedy AC1200 Wi-Fi
● 10/100 Mbps Ethernet Ports
● VPN ZeroTier/Wireguard/OpenVPN/IPSec/L2TP/PPTP

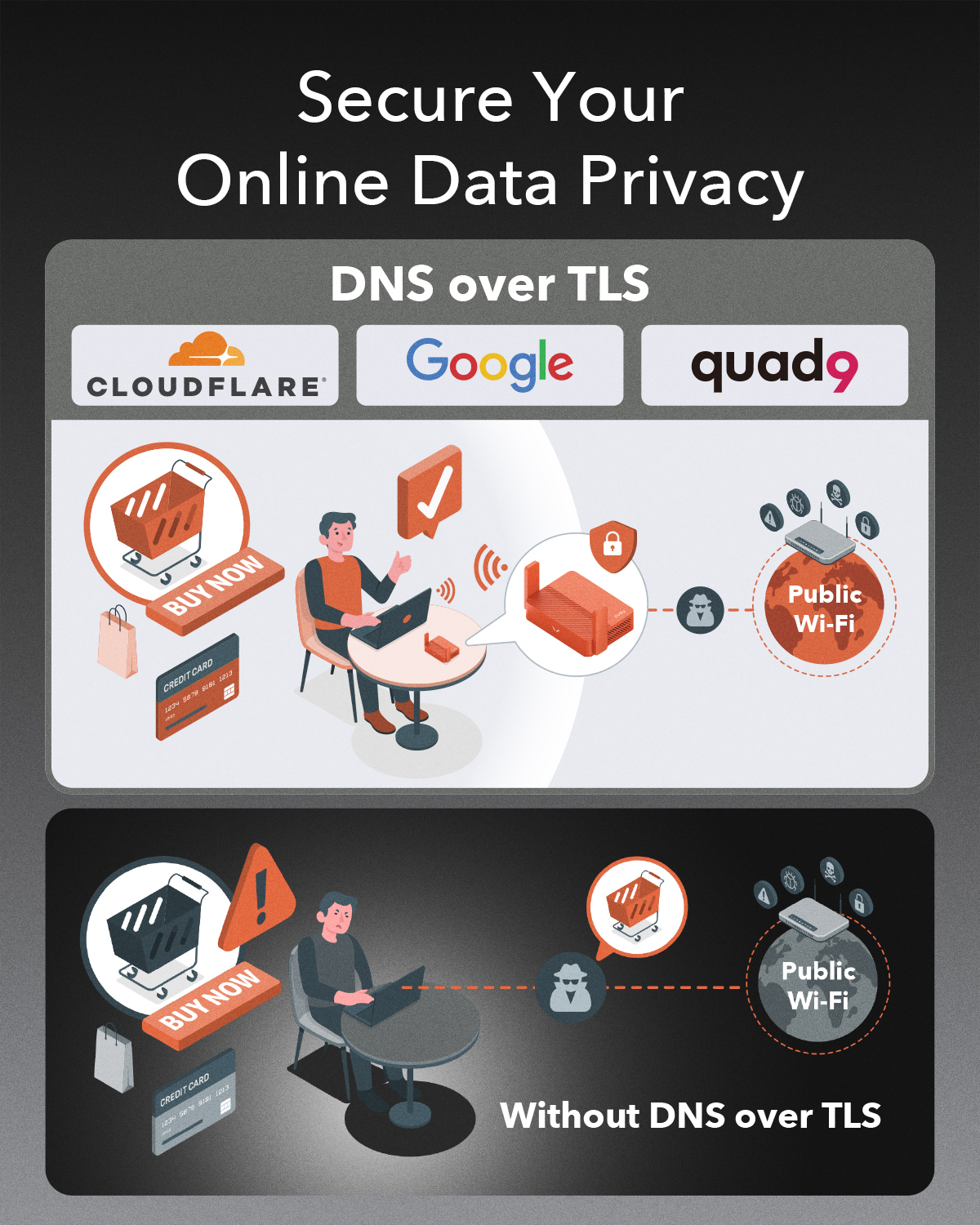

● DNS over TLS with Cloudflare/Google/Quad9

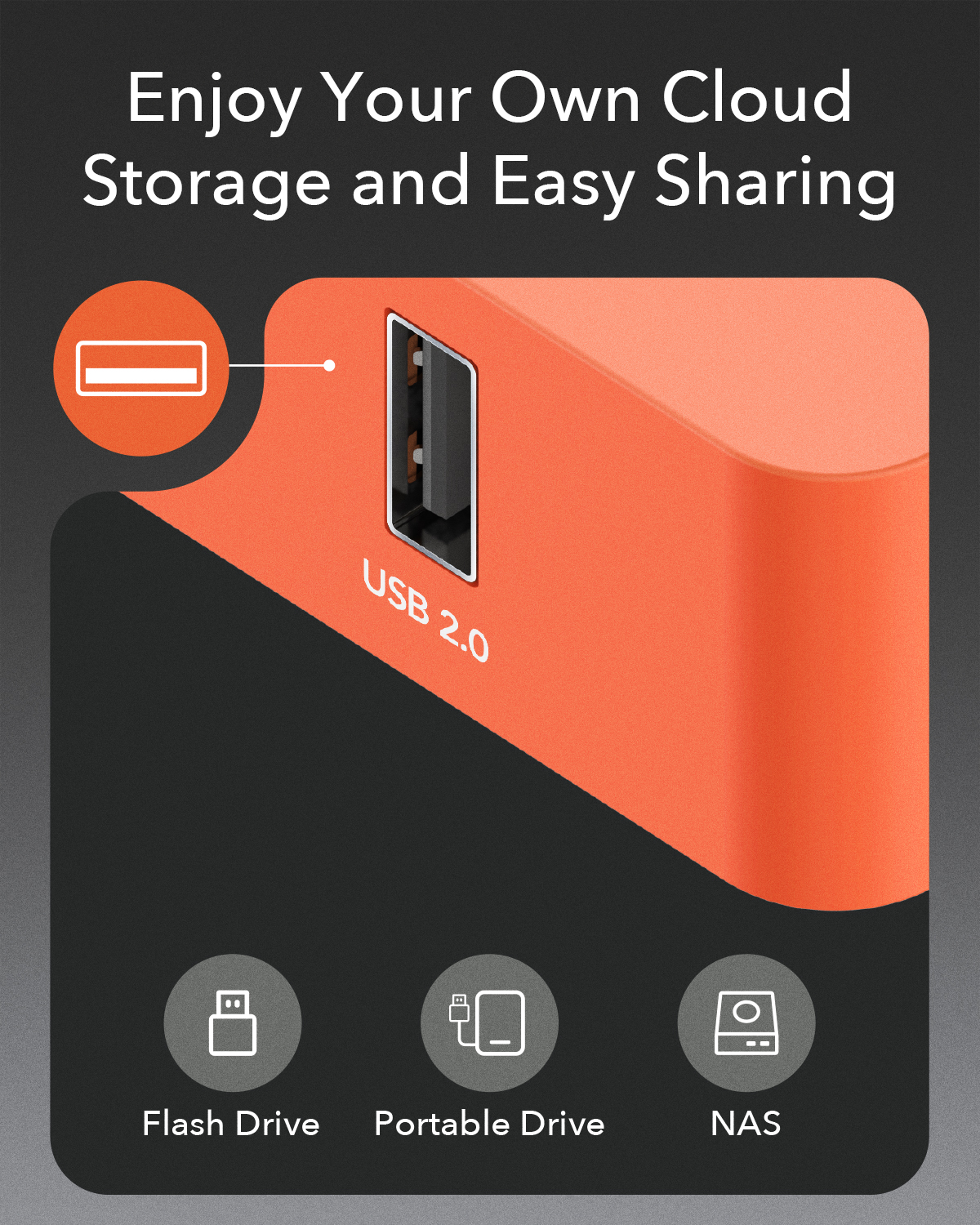

● File Sharing with a USB-A 2.0 Port
● Router/AP/RE/WISP/Client/Mesh Multi-Mode

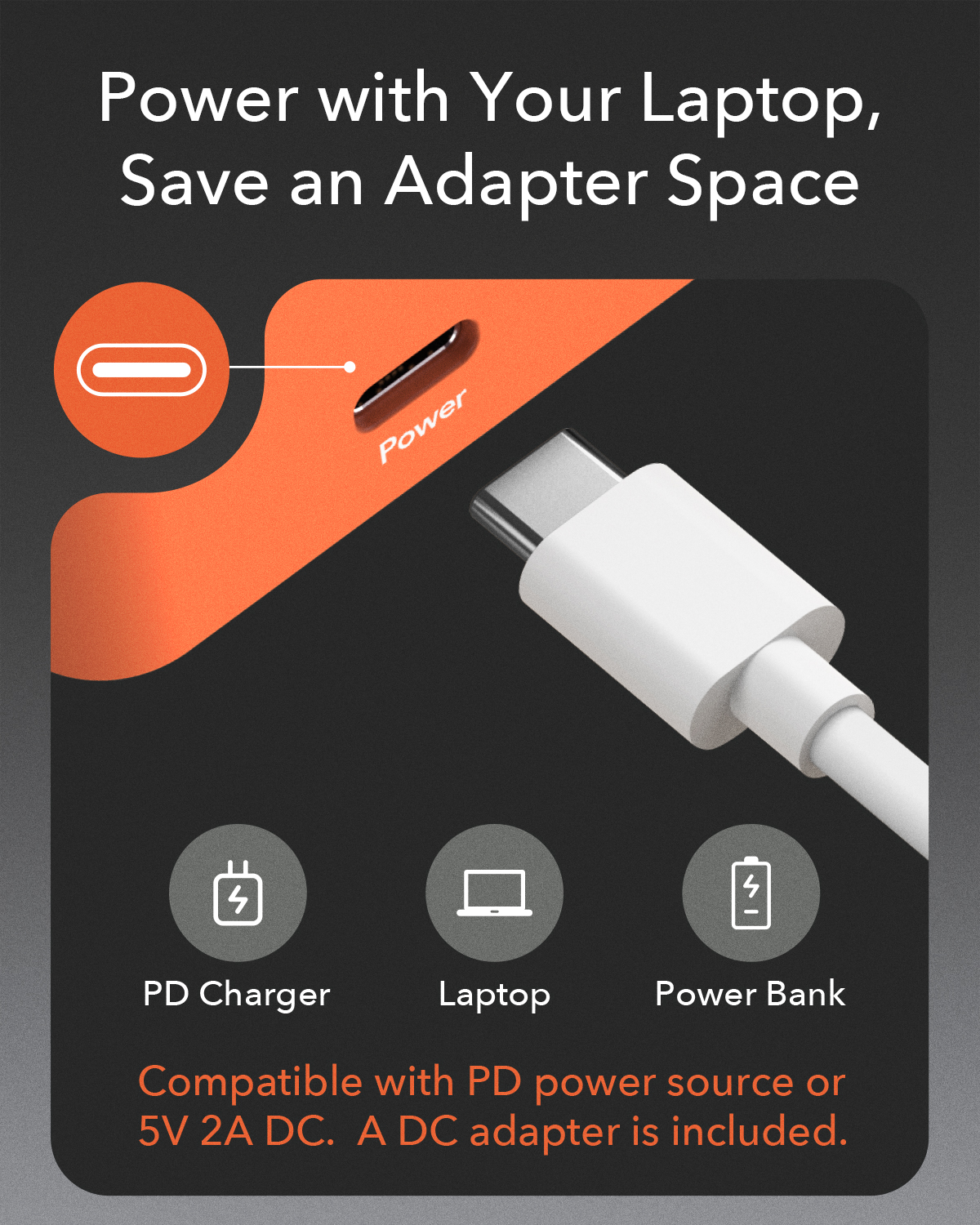

● PD Powering with USB-C Power Jack
● Configurable Switch, Reset Button
Key Specification
| Model | TR1200 | |
| Hardware | Processor | 580 MHz CPU |
| Flash | 16 MB (128 Mbit) NOR | |
| DDR | 128 MB (1 Gbit) DDR3 | |
| Antenna | 2× Fixed Wi-Fi Antennas | |
| Interfaces | 1× 100/10 Mbps WAN Port | |
| 1× 100/10 Mbps LAN Port | ||
| Buttons | Configurable Switch, Reset Button | |
| Power Supply |
5V / 2A (Compatible with PD Powering) |
|
| Dimensions (W×D×H) |
118×80×27.5 mm 4.65×3.15×1.08 inches |
|
| Weight | 99.9g (3.52oz.) | |
| Wireless | Wireless Standards | IEEE 802.11ac/n/a 5 GHz |
| IEEE 802.11n/b/g 2.4 GHz | ||
| Frequency | 5 GHz, 2.4 GHz | |
| Signal Rate | 867 Mbps (5 GHz), 300 Mbps (2.4 GHz) | |
| Compatible with 802.11a/b/g/n/ac Wi-Fi standards | ||
| Transmit Power | CE: <20dBm (2.4 GHz), <23dBm (5.15 GHz~5.25 GHz) | |
| FCC: <30dBm (2.4 GHz & 5.15 GHz~5.825 GHz) | ||
| Wireless Function | MU-MIMO | |
| Wireless Security | WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK | |
|
Software (Explore in the Emulator) |
WAN Type | Dynamic IP/Static IP/PPPoE |
| Management | Parental Control (Domain/IP/MAC Filter) | |
| Device Management Panel | ||
| Guest Network | ||
| DHCP | Server, DHCP Client List, Address Reservation | |
| Dynamic DNS | Compatible with 15 more DDNS providers | |
| Guest Network | 2.4 GHz Guest Network × 1 | |
| 5 GHz Guest Network × 1 | ||
| NAT | Port Forwarding, Port Triggering, UPnP, DMZ | |
| VPN | Protocols: Zerotier/Wireguard/OpenVPN/IPSec/L2TP/PPTP | |
|
Performance: 49 Mbps Uplink / 43 Mbps Downlink (Wireguard Client) 44 Mbps Uplink / 48 Mbps Downlink (Wireguard Server) 54 Mbps Uplink / 55 Mbps Downlink (L2TP Client) 75 Mbps Uplink / 70 Mbps Downlink (L2TP Server) |
||
| DNS over TLS | Cloudflare, Google, Quad9 | |
| Firewall | SPI, DoS, Ping | |
| Configurable Switch Functions | VPN On/Off, LED On/Off | |
| Fast Roaming | Cudy Mesh | |
| IP Protocols | IPv4 / IPv6 | |
| Others | Package Content | Travel Router |
| USB-C Power Adapter | ||
| RJ45 Ethernet Cable | ||
| Quick Installation Guide | ||
|
Environmental Requirements |
Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
|
| System Requirements |
Windows, macOS, Android, iOS, or other OS with networking capability Firefox, Chrome, Safari, Edge, or other up-to-date web browsers Cable/DSL/ONT modem/Internet Walloutlet/Known Wi-Fi or other internet source |
|
