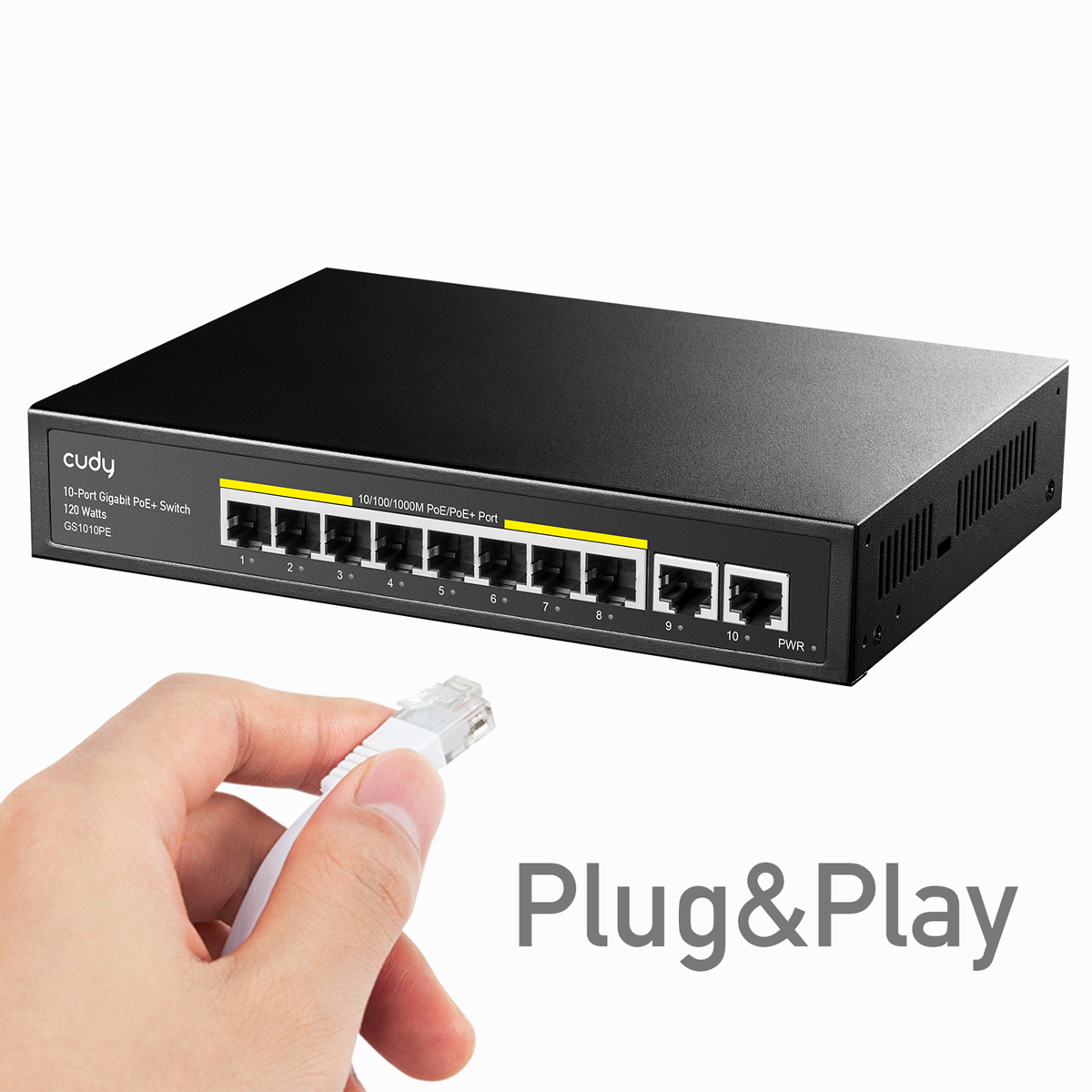

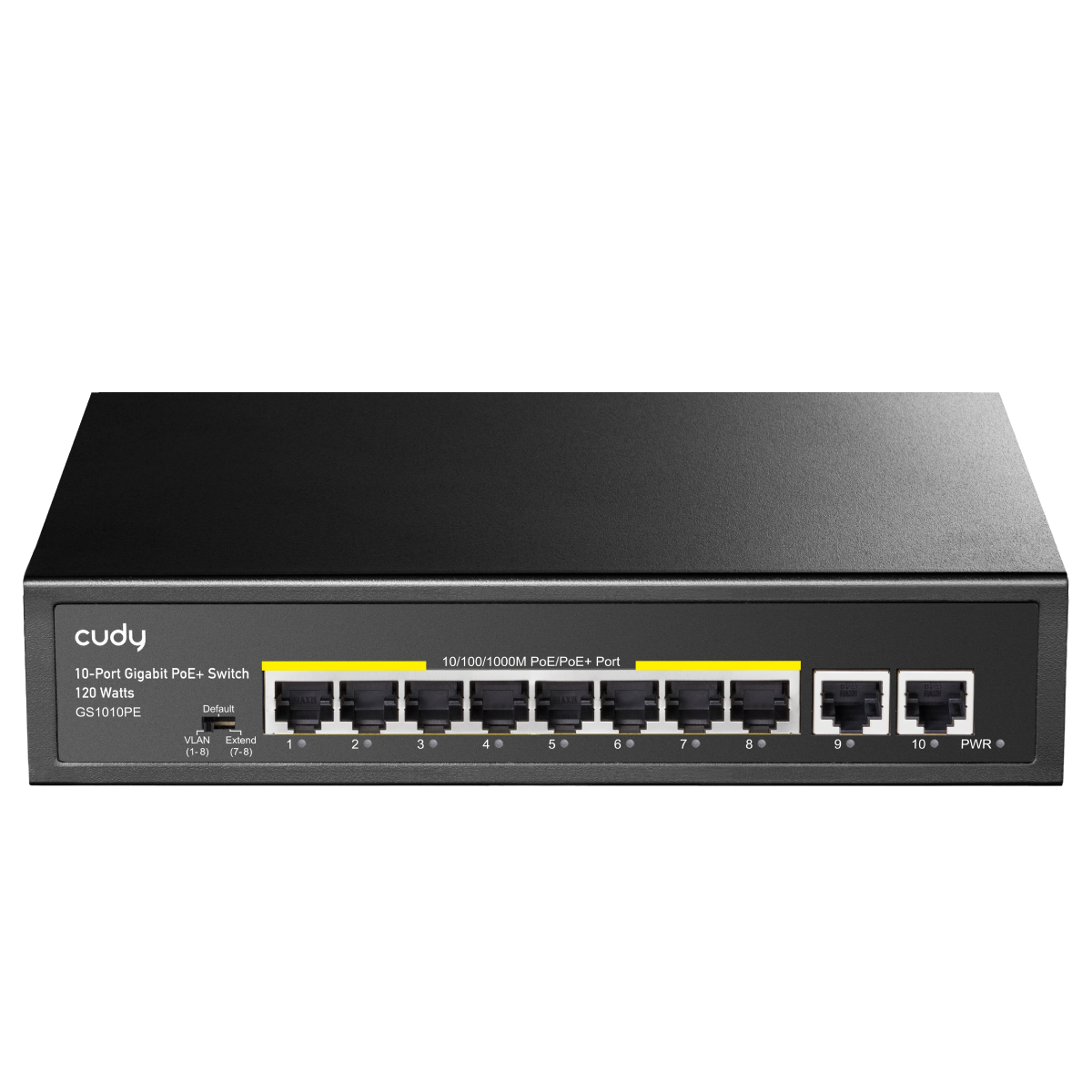

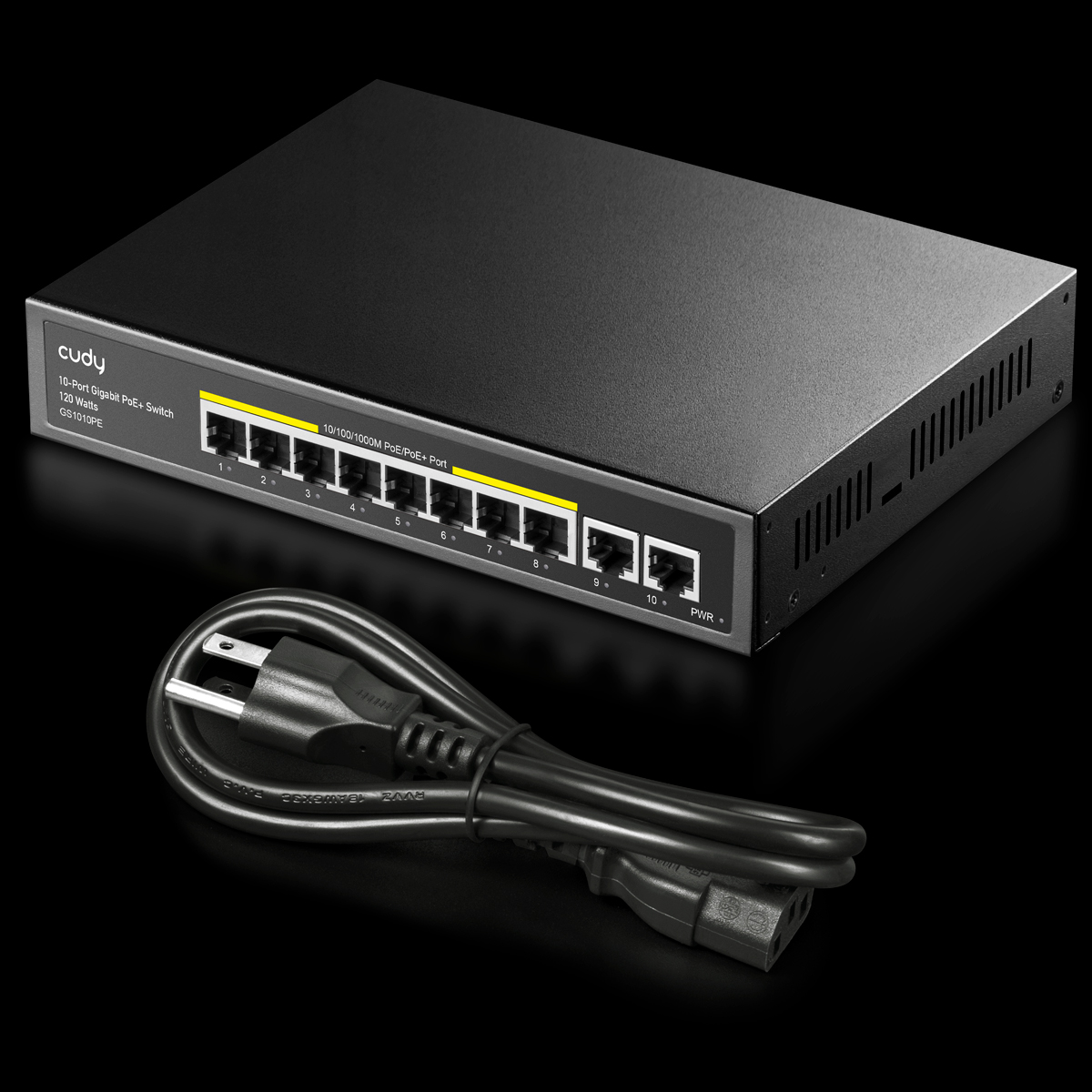

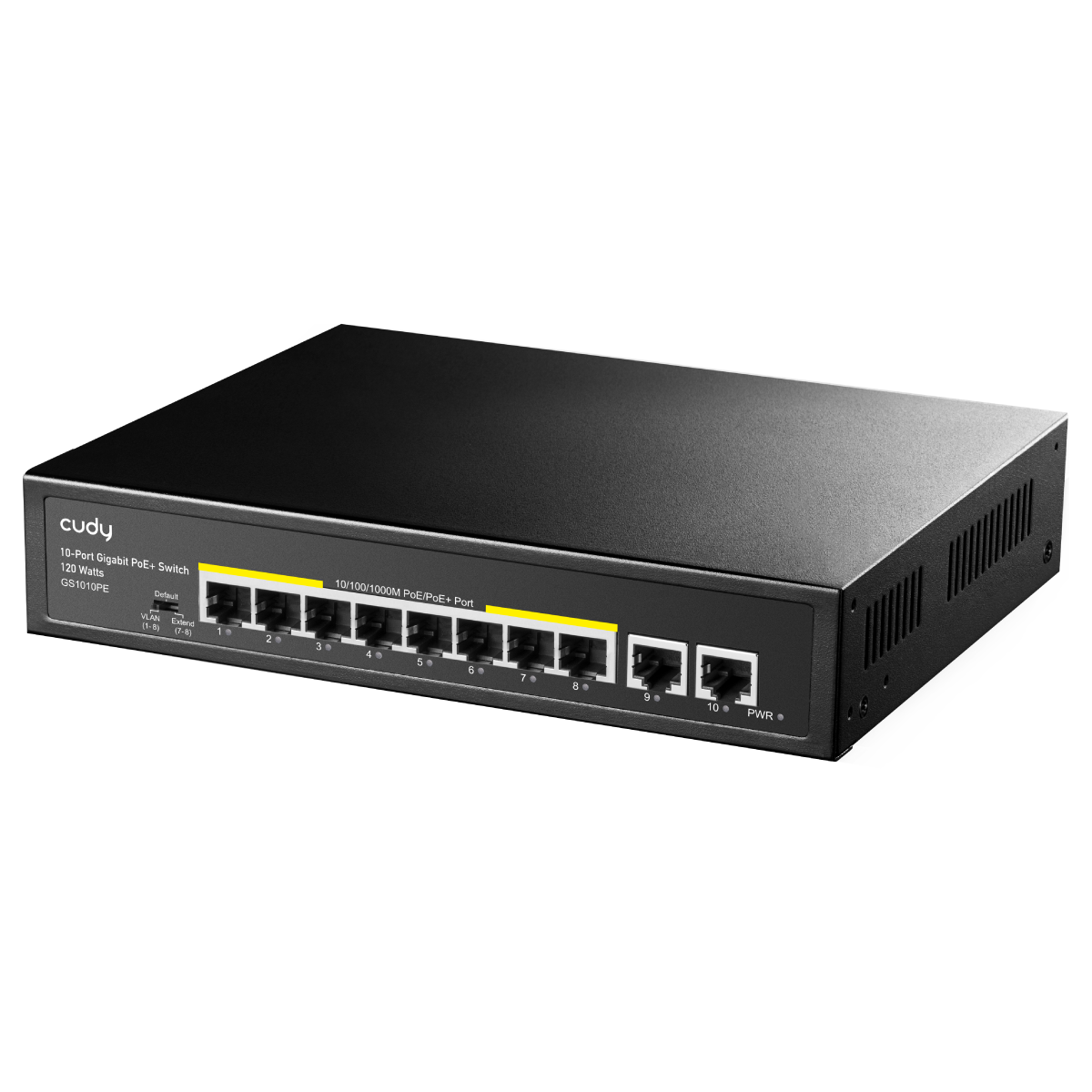

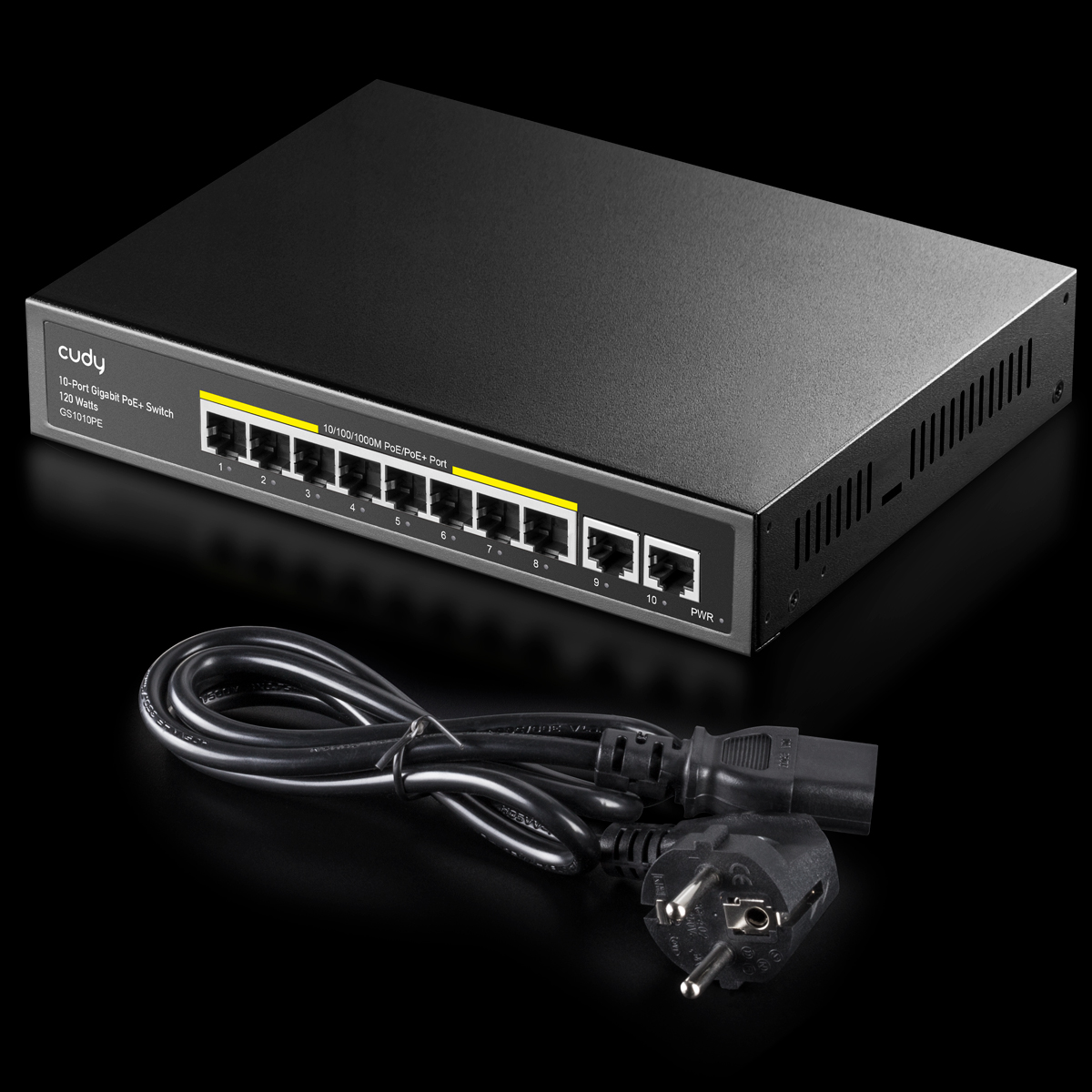

Cudy 8 Port Gigabit PoE Switch + 2 Uplink 120W

List price: 79.00
60.97
(74.99 inc VAT) You save: €18.03 (23%)
GS1010PE
Out-of-stock

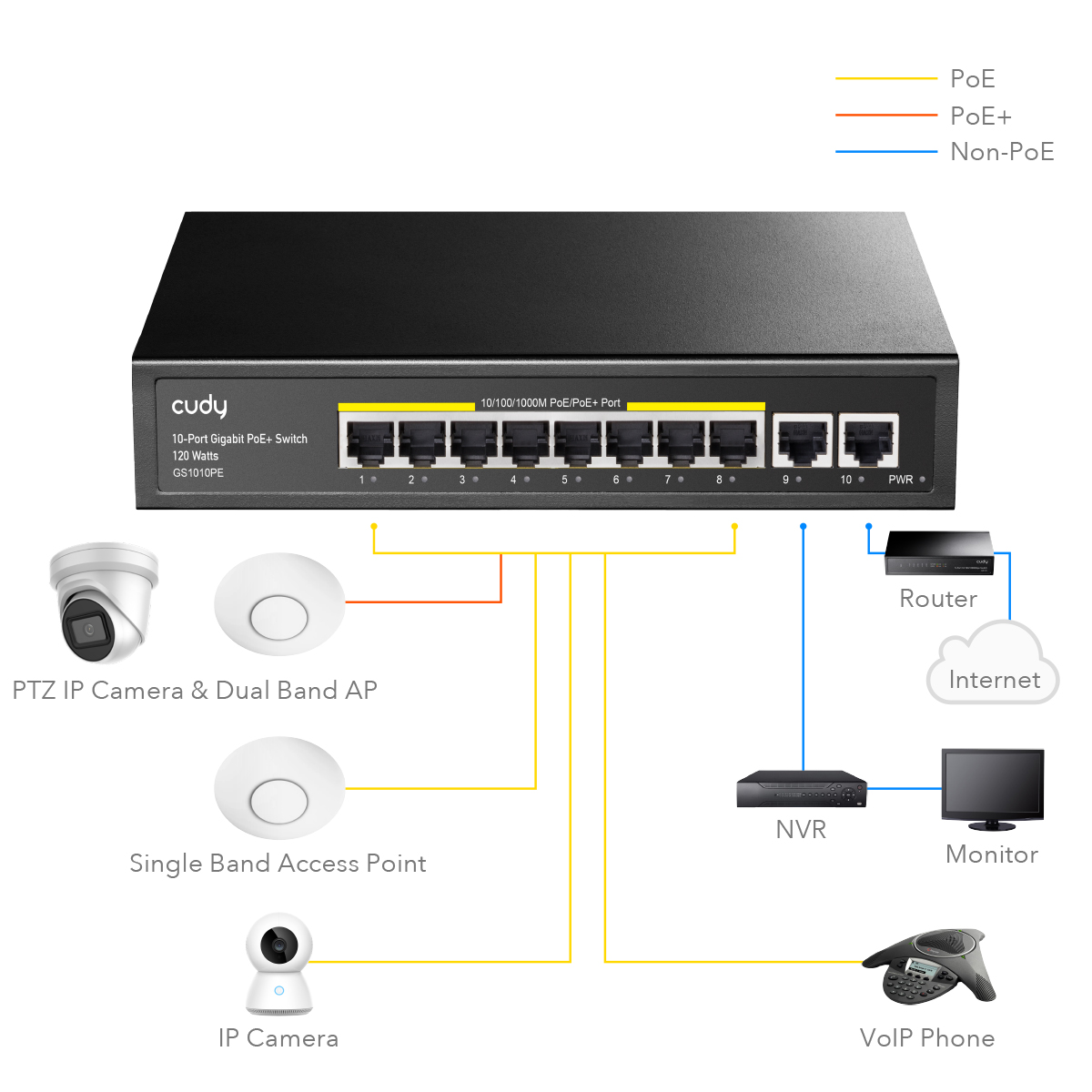

Cudy 8 Port Gigabit PoE Switch + 2 Uplink 120W

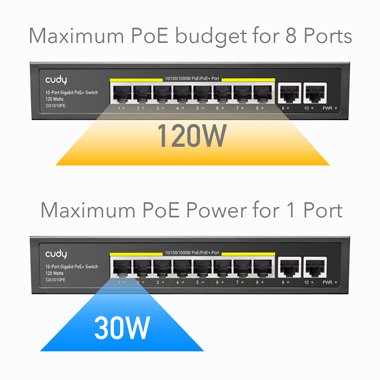

● 120 watts total PoE budget
● Up to 30 watts PoE per port
● 8 x 10/100/1000Mbps PoE+ ports
● 2 x 10/100/1000Mbps uplink ports

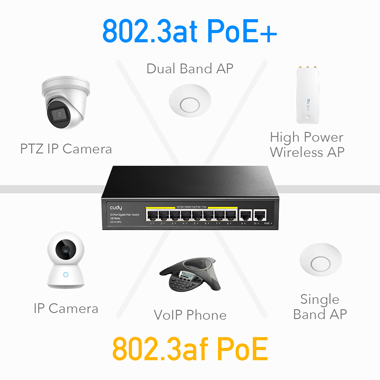

● Comply with IEEE802.3af/at standards
● IEEE 802.3x Flow control

Specifications:

Model   GS1010PE
Network Protocol IEEE802.3 / IEEE802.3u
IEEE802.3x / IEEE802.3af/at
PoE standard IEEE802.3af/at
POE port output DC 48-55V
PoE port 1-8

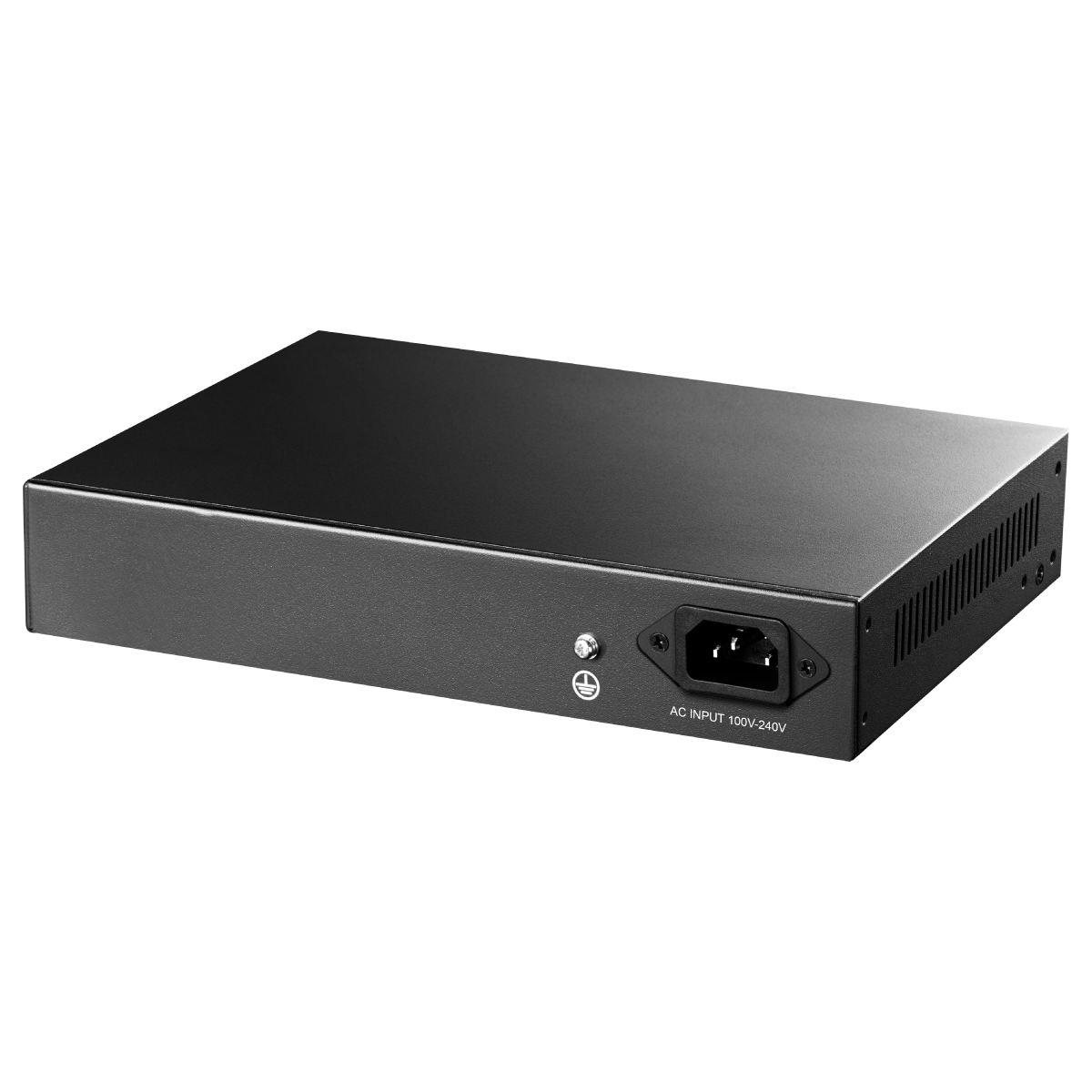

AC Input Voltage AC100~240V
Power supply 120W
Power Pin Power over spare pairs 1/2(+) , 3/6 (-)
PoE output-port Max 30W
MAC Address 2K MAC address table
Packet buffer 2M bit
Transfer Mode Store-and-forward
Bandwidth 20Gbps
Fan Fanless
Device Dimension 222mm*163mm*40mm
Operating Temperature -20°C ~ 50 °C
Storage Temperature  -40 °C ~ 80 °C
Operating Humidity 10% ~ 90% non-condensing
Storage Humidity 5% ~ 90% non-condensing

Datasheet (GS1010PE_PoE_Switch.pdf, 792 Kb) [Download]
