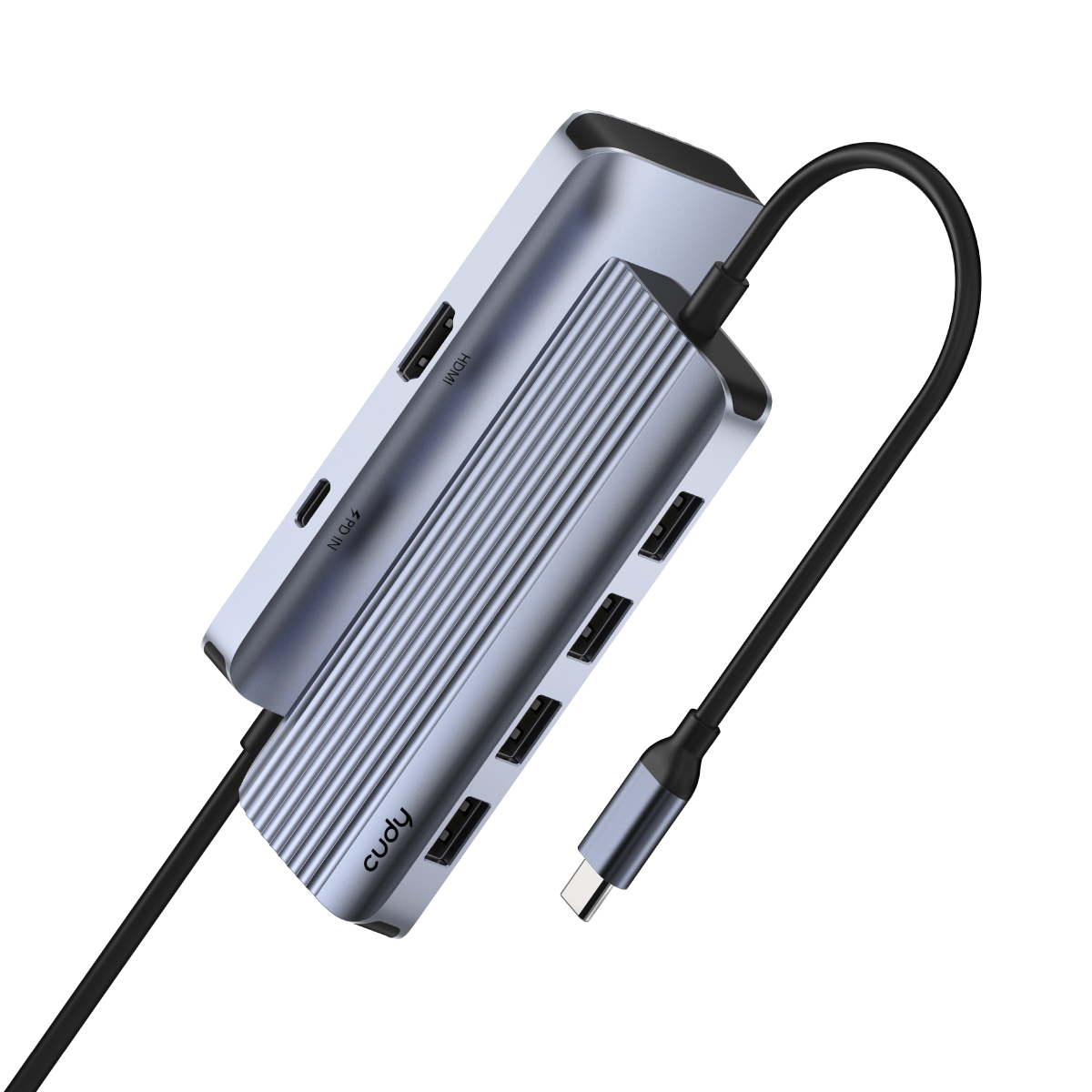

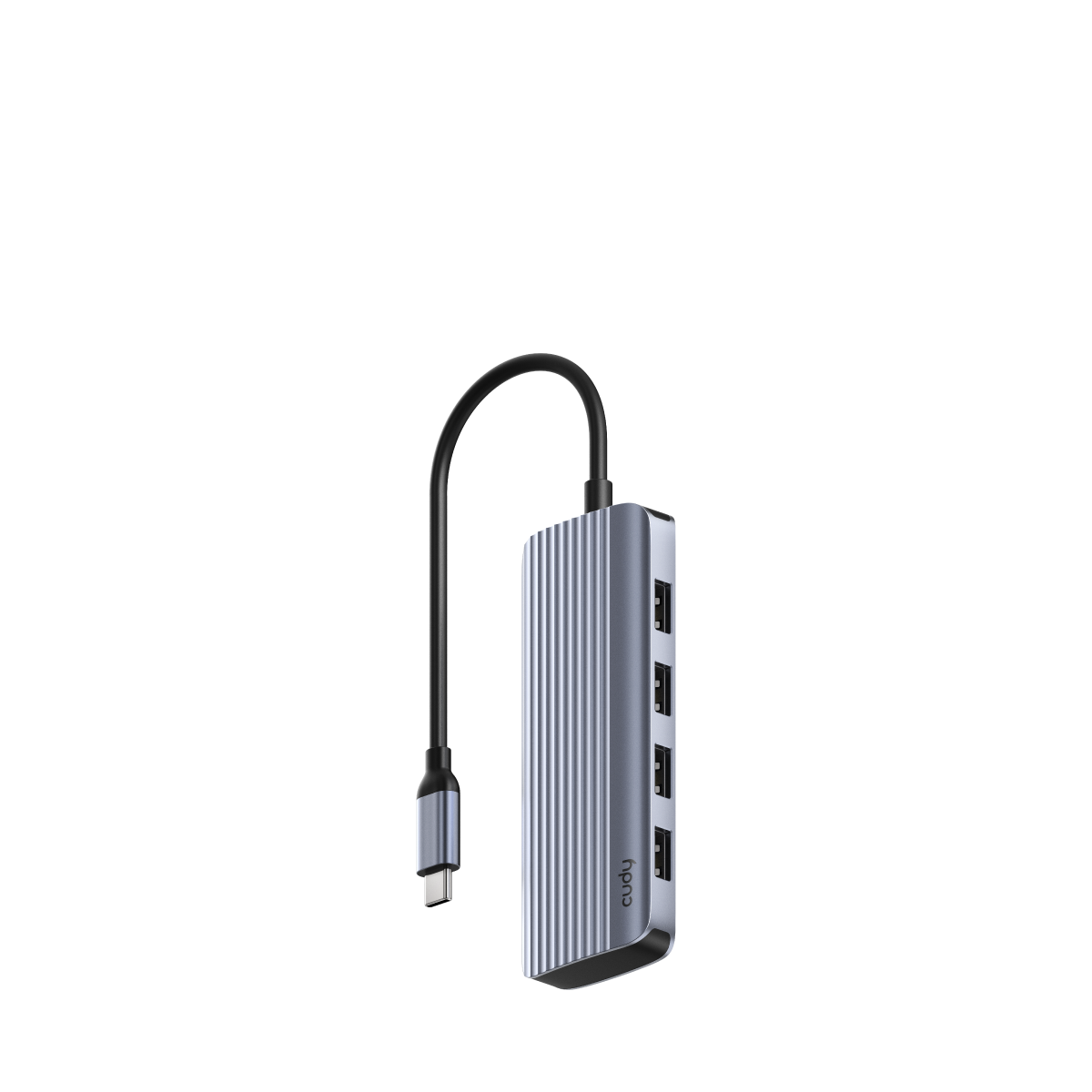

6-In-1 HDMI 4K USB-C Hub
UH500 1.0

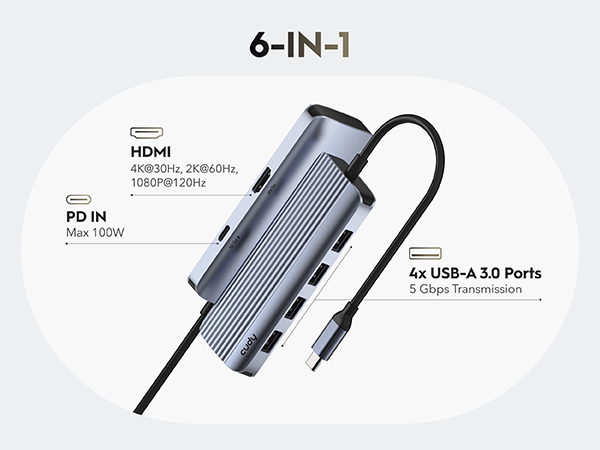

Plug-and-Play USB-C dongle for extending one USB-C to HDMI and four USB-A ports, ideal for business people, lecturers, and school students.

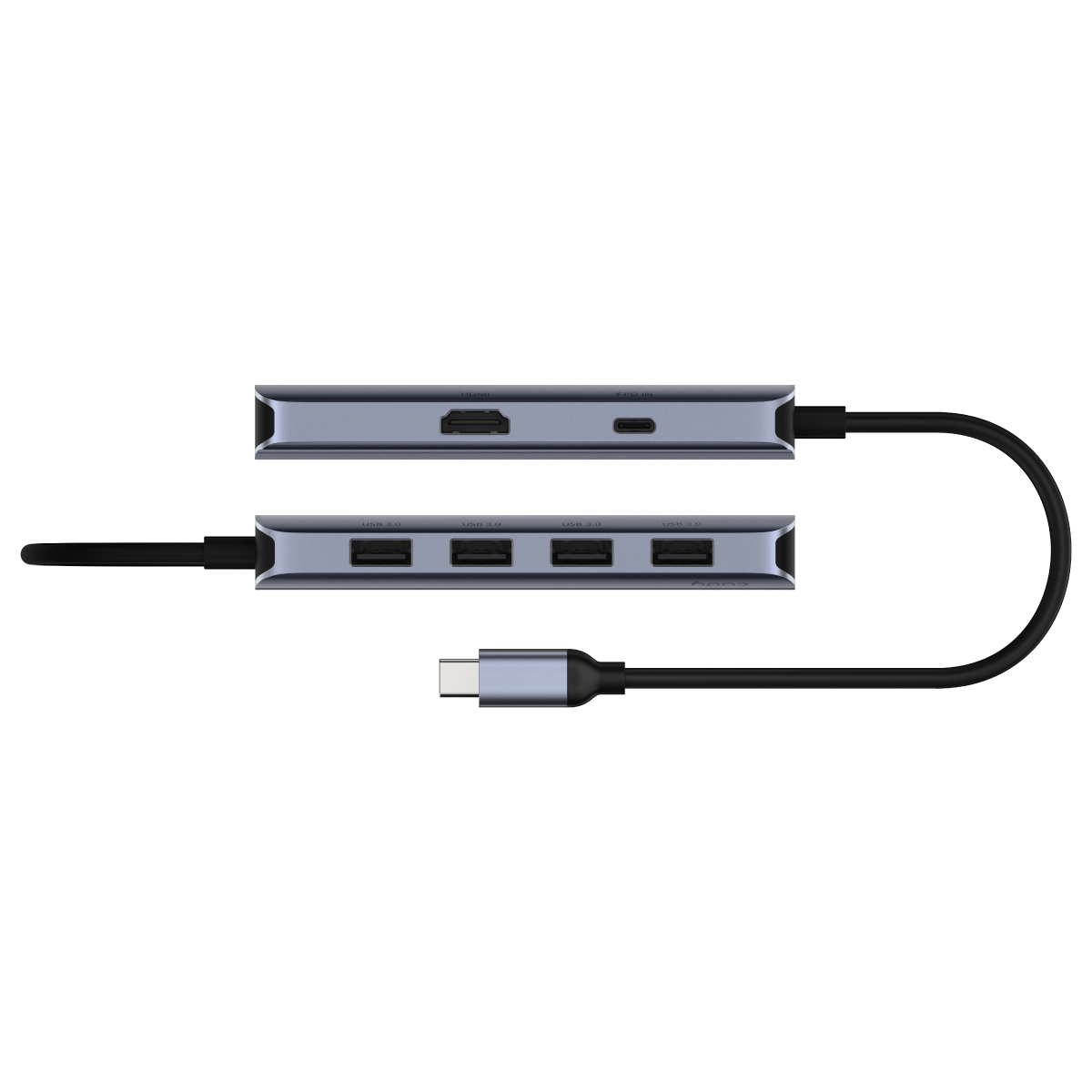

- 1× HDMI 1.4, 4K 30 Hz, 2K 60 Hz
- 1× 5 Gbps Upstream PD USB-C Male

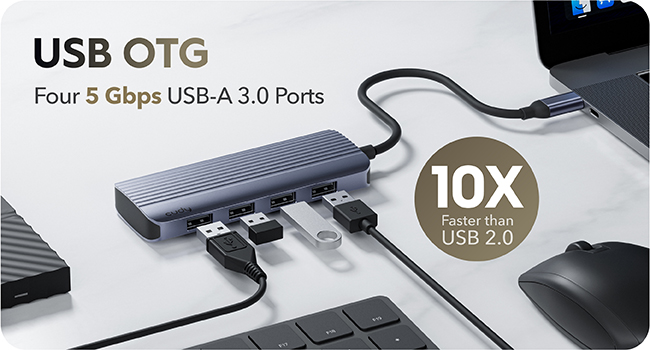

- 4× 5 Gbps USB-A 3.2 Gen 1
- 1× USB-C Receiving 100W PD
- 48 g (1.69 oz.)
- 113.1×44.2×15.7 mm (4.45×1.74×0.62'')

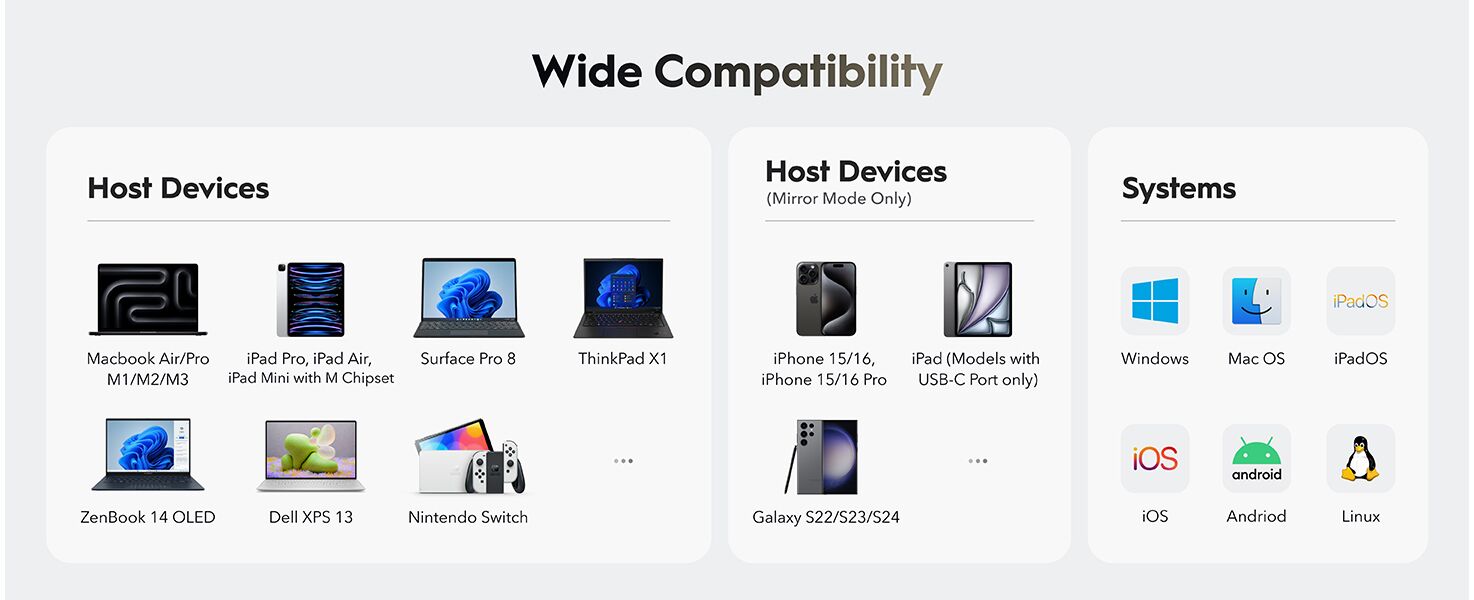

PC/Mac/iPad/iPhone/Android/Nintendo
Model Version | UH500 1.0 | |
---|---|---|
Interfaces | Upstream Port | 1× USB-C 3.2 Gen 1 Port (5 Gbps) |
Video Output | 1× HDMI 1.4 | |
Video Output Resolutions |
|
|

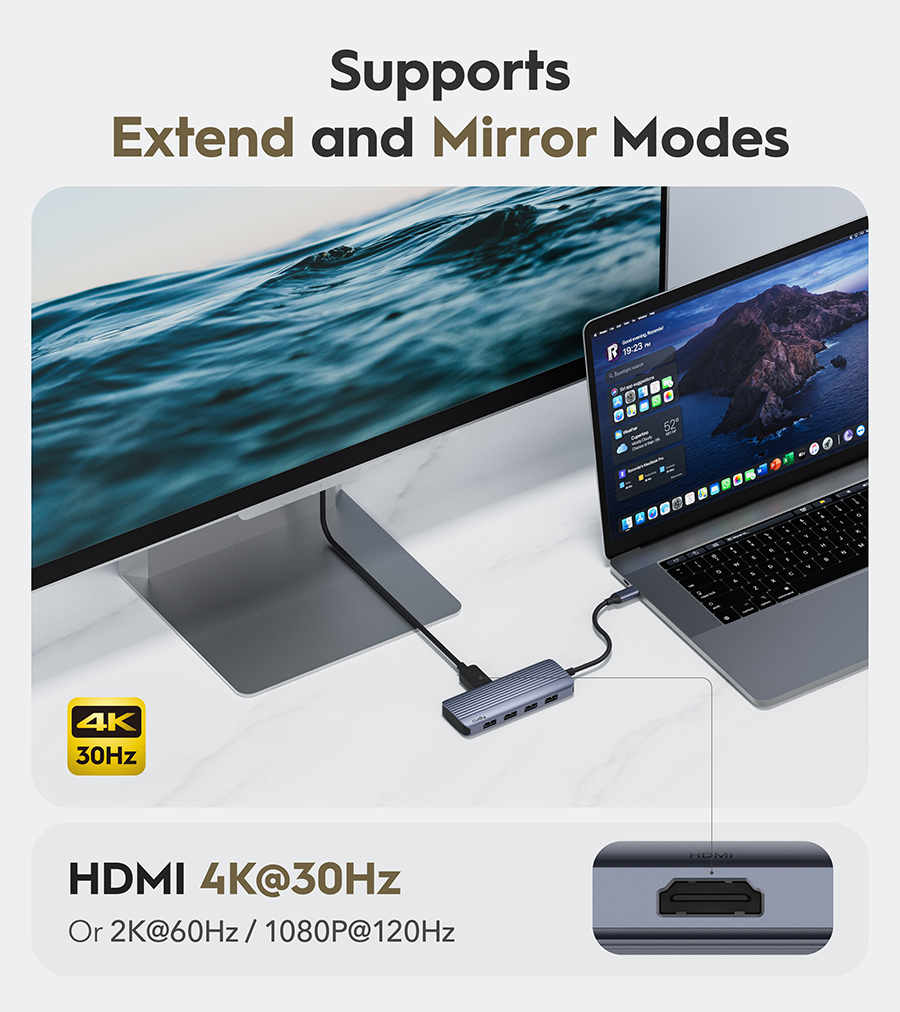

Video Output Modes | Extend, Mirror Android phone supports mirror mode only |
|
USB Ports | 4× USB-A 3.2 Gen 1 Ports (5 Gbps) | |
Power Input | USB-C Port | |
Power | Power Methods | DC / PD |
DC | 5~20V 0~5A | |

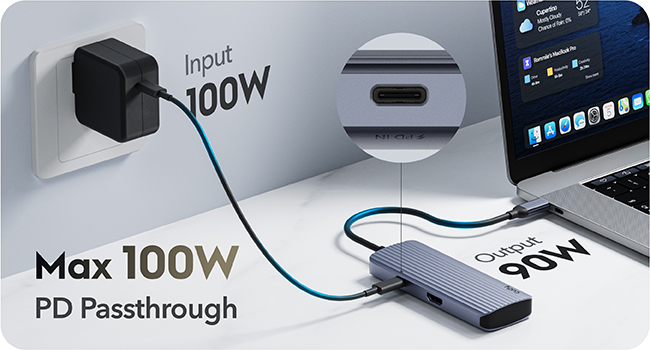

Max Power Consumption (W) | 100W if powered by a PD Adapter 10W if powered by the host client's USB Power |
|
Idle Power Consumption (W) | 0.4W | |
Physical | Color | Silver Gray Color |
Casing |
|
|
Requirements | Hardware Requirement | Requires a USB-C 3.2 Gen 1 / USB4 / Thunderbolt 3/4 port on the host device |
Compatible OS |
|
|
Driver Installation | Driver Free | |
Reliability | Environment |
|
Mechanical | Product Weight | 48 g (1.69 oz.) |

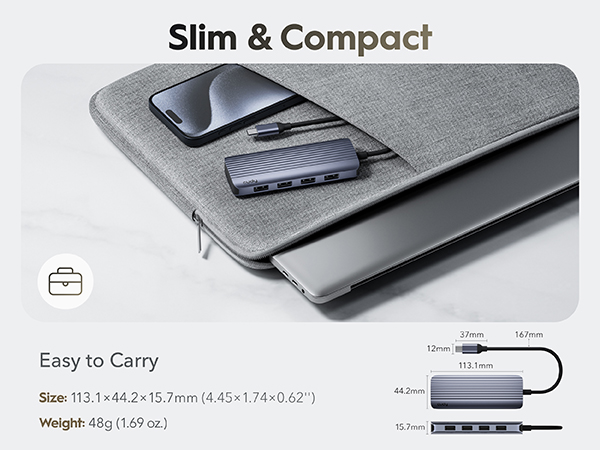

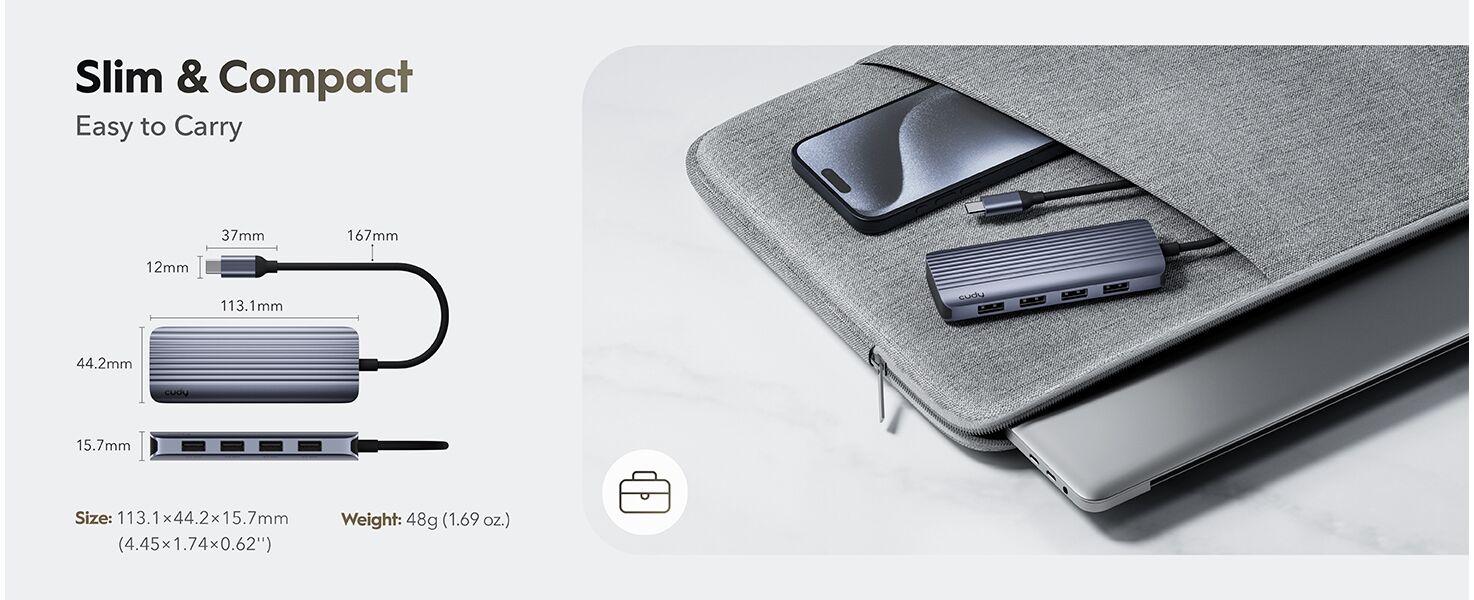

Dimension | Main Part : 113.1×44.2×15.7 mm 4.45×1.74×0.62 inches Cable: 167mm 6.57 inches |
|

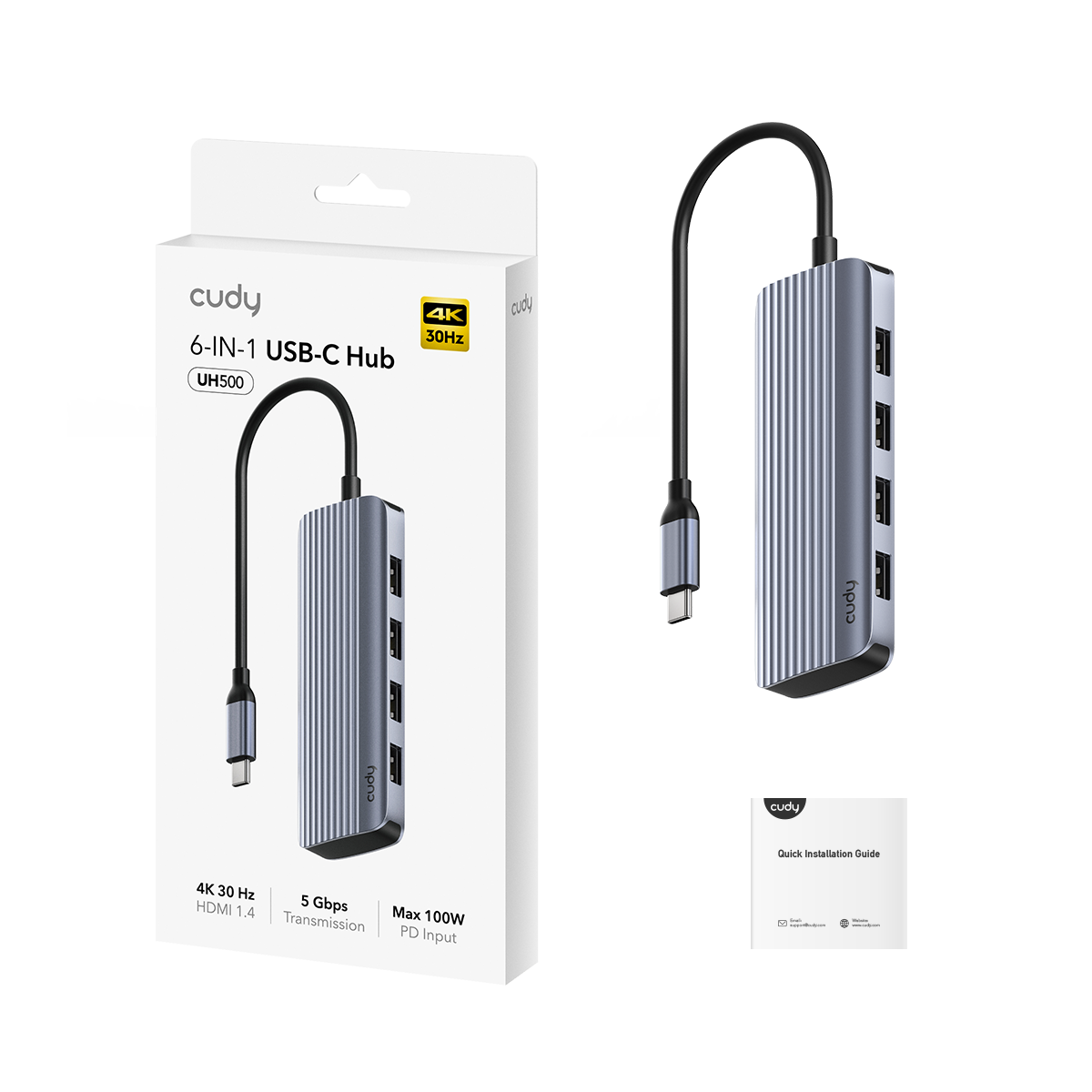

Ordering Information | Retail Package Weight | 116 g (4.09 oz.) |
Carton Net Weight | 11.6 kg (25.57 lbs) | |
Carton Gross Weight | 12.7 kg (28 lbs) |
