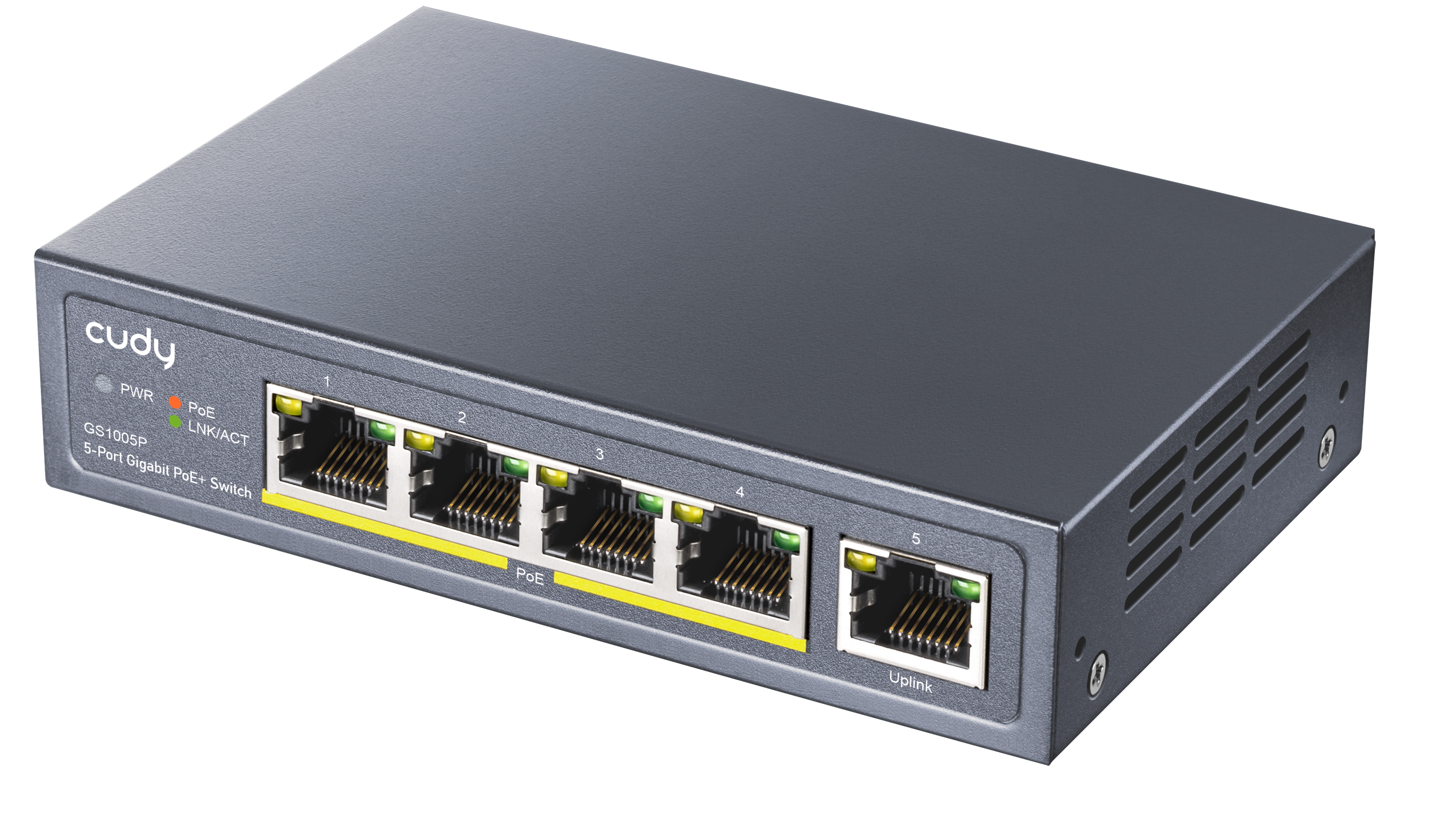

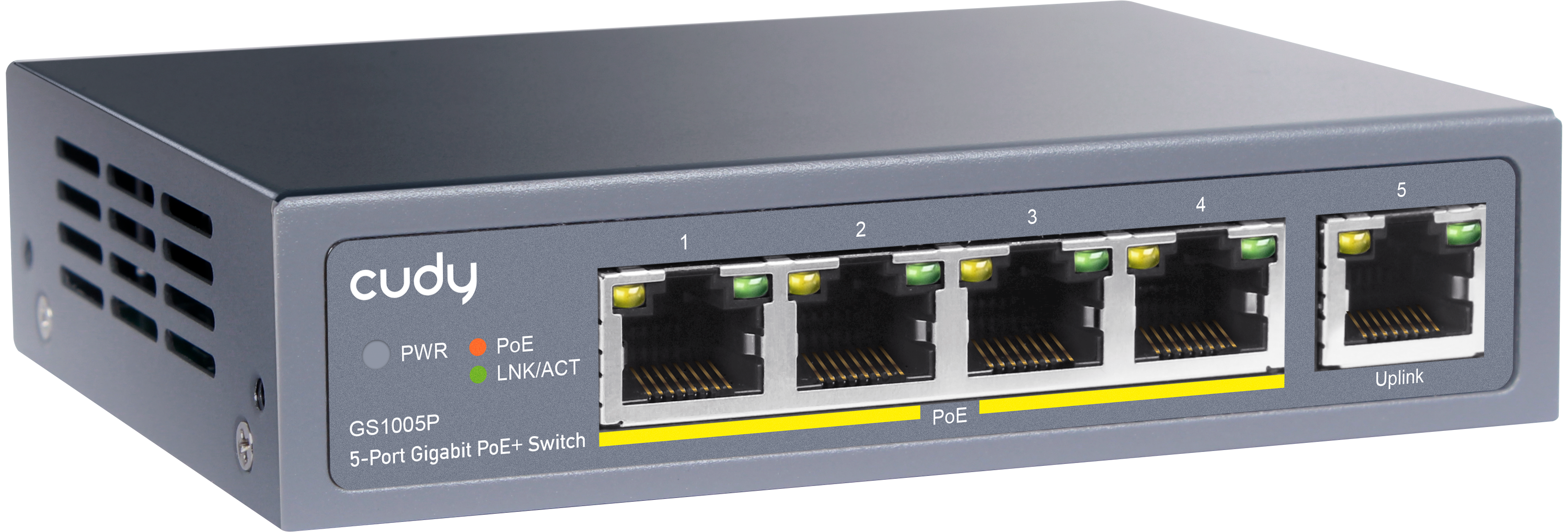

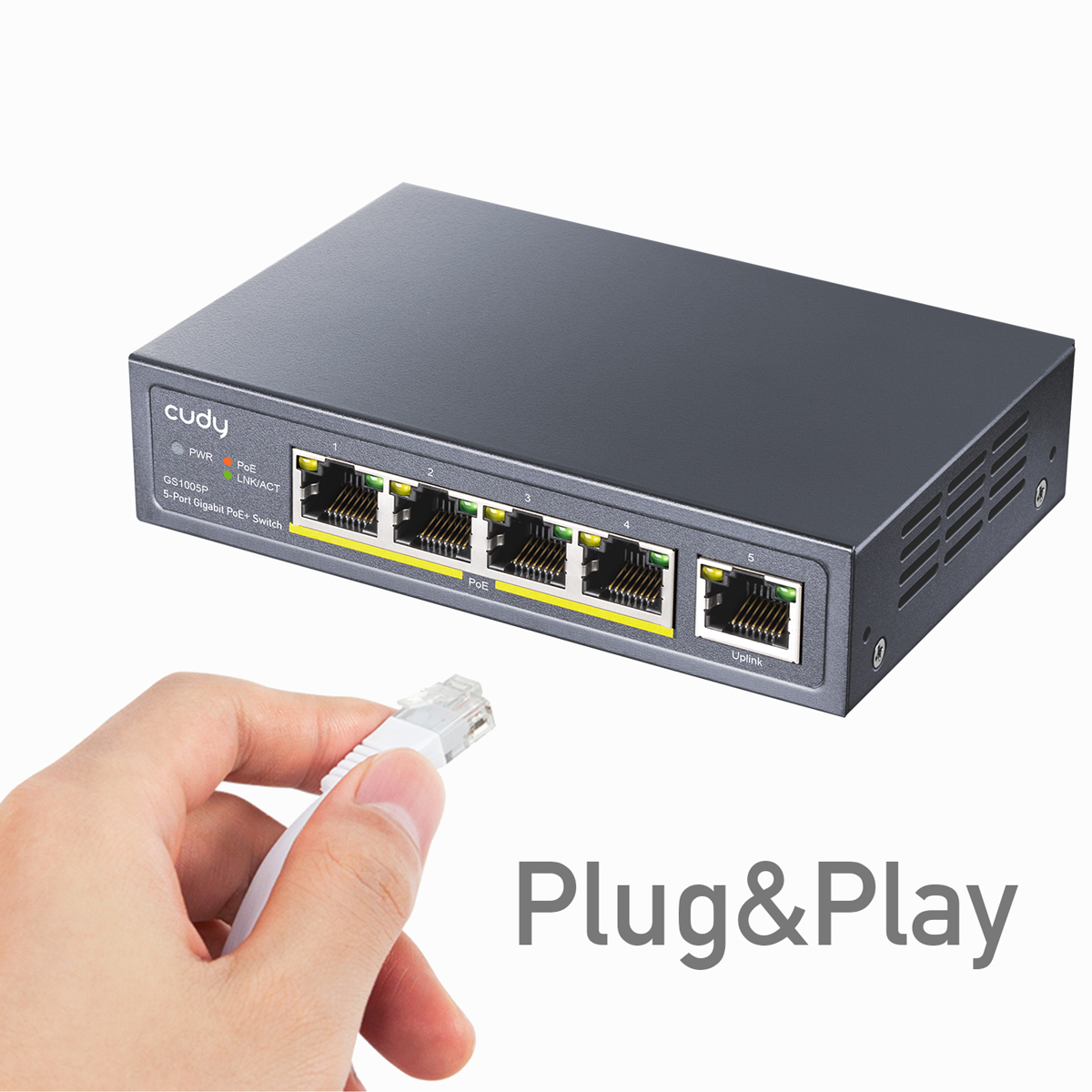

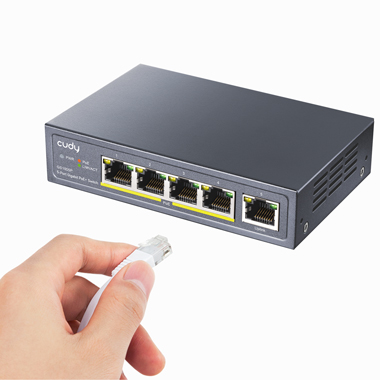

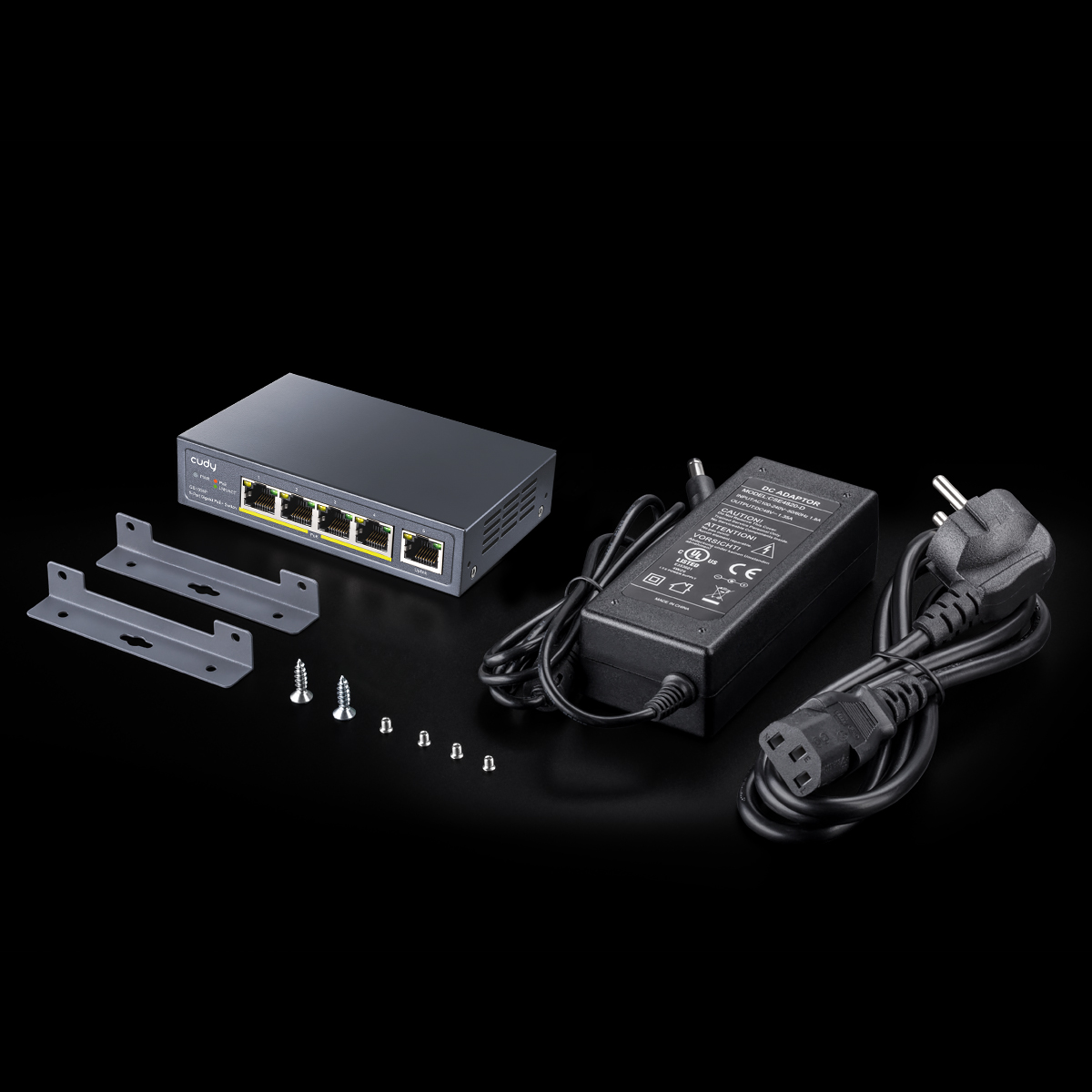

Cudy 5 Port Gigabit PoE Switch 60W
● Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab,IEEE802.3af, IEEE802.3at
● Provides 5 x 10/100/1000Base-TX ports

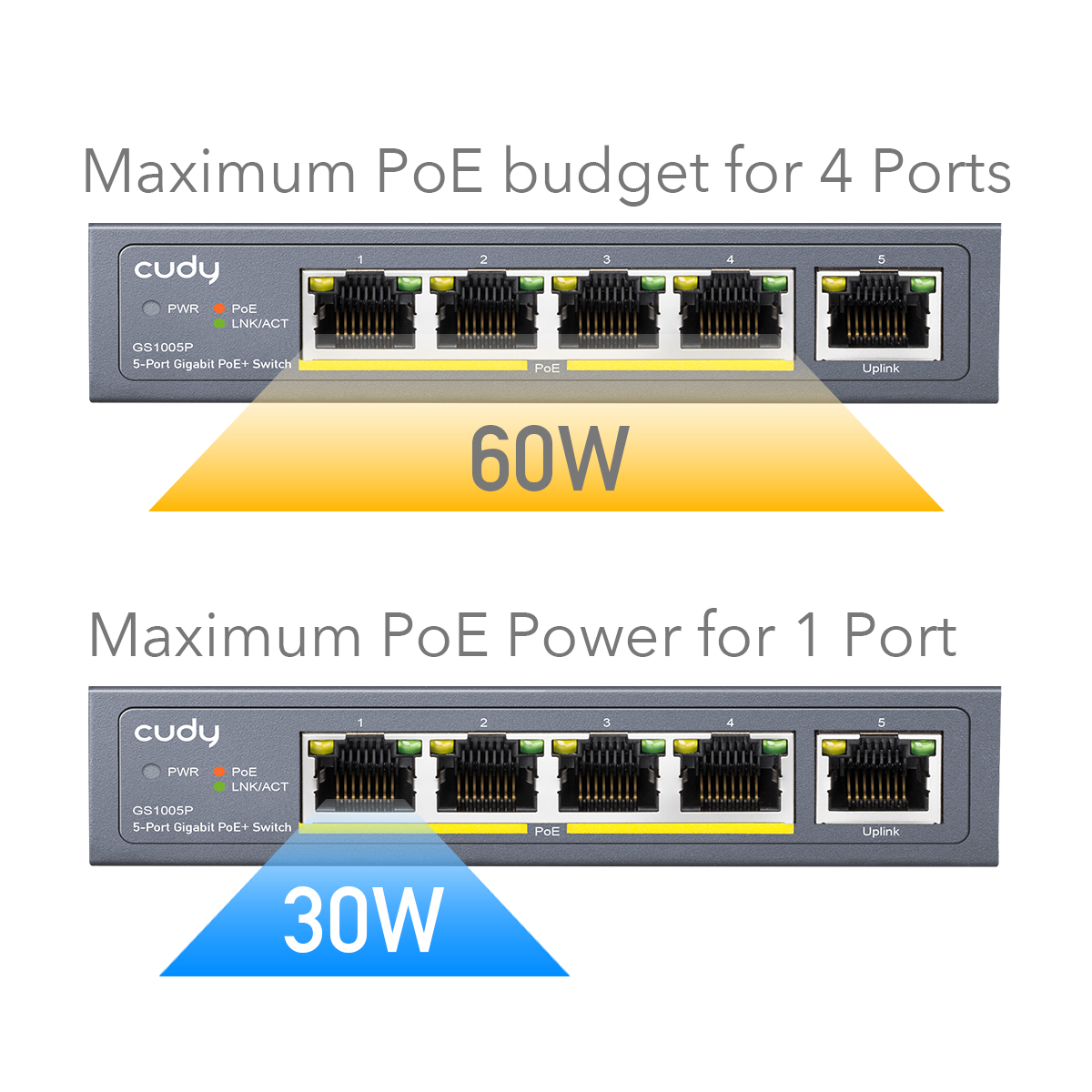

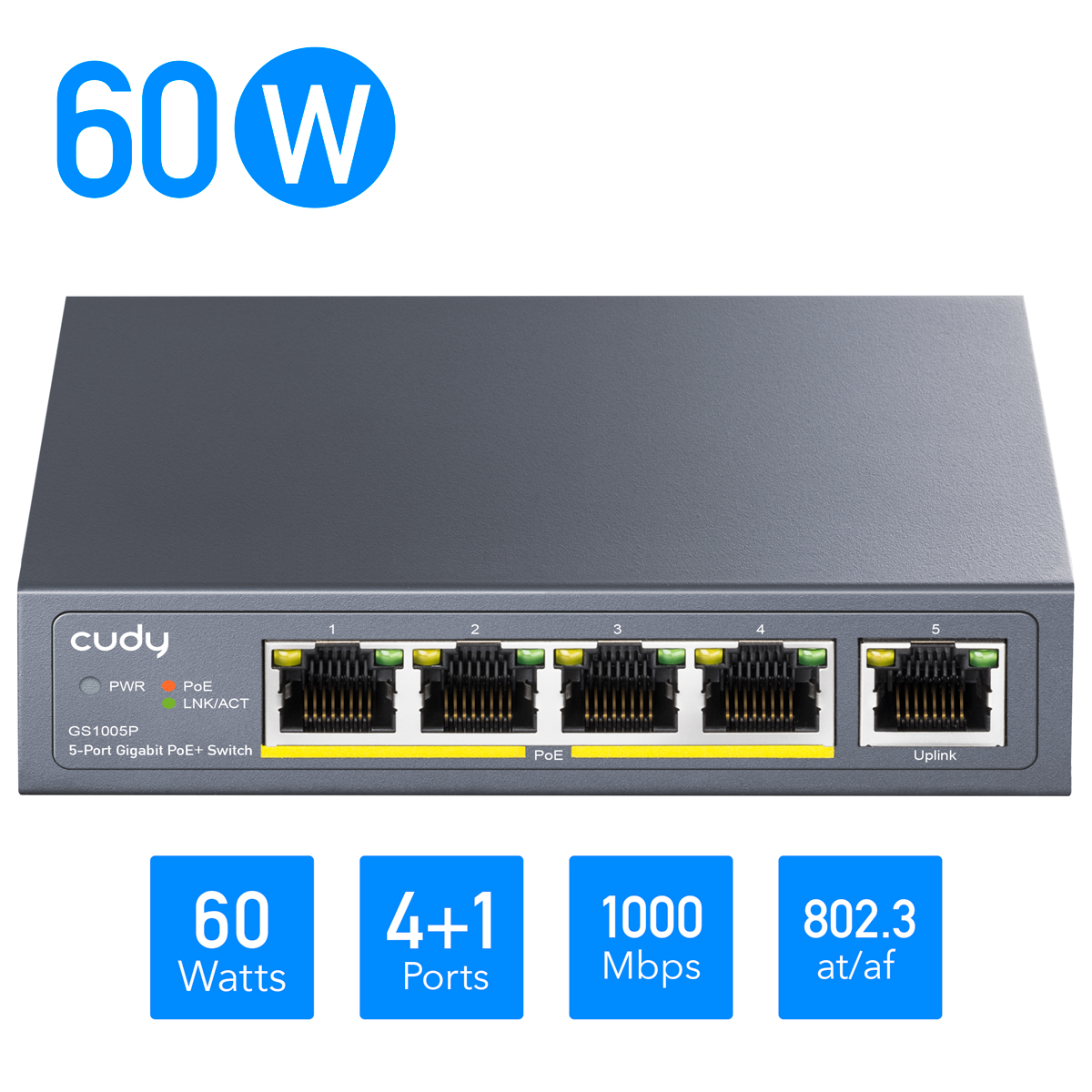

● 60W PoE power budget
● High back-plane bandwidth 10Gbps
● IEEE802.3x Flow control
● EMI standards complies with FCC, CE class B
Specifications:
Item | Description | |||

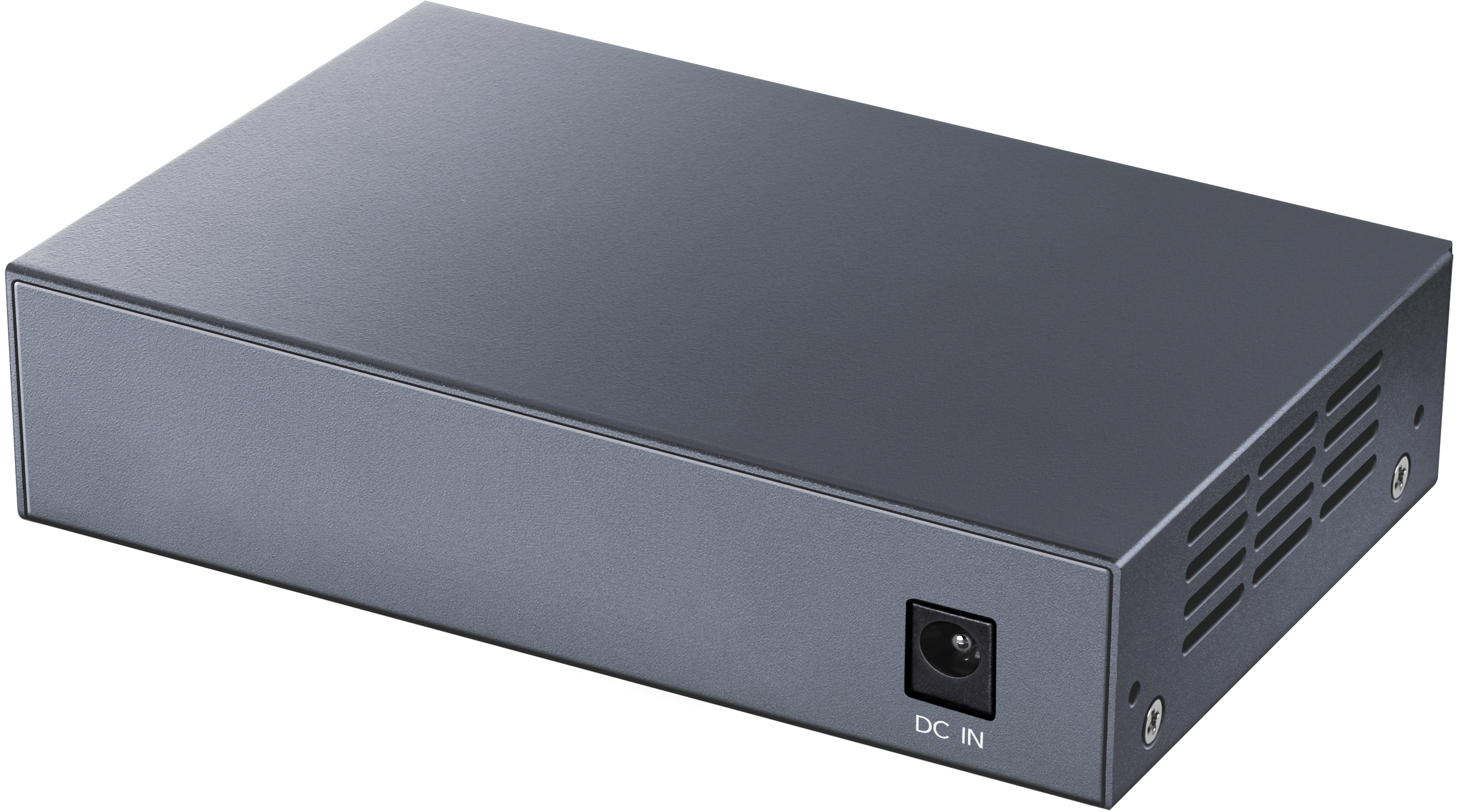

Power | Power supply | External Power Adaptor | ||
Voltage Range | DC48~57V | |||
Switch Consumption | <5W | |||
Ethernet | Speed | 1~5 Port : 10/100/1000Mbps | ||
Uplink: 10/100/1000Mbps | ||||
Transmission Distanc | 100Meter (328ft) | |||
Network Switch | Ethernet Standard | IEEE 802.3/802.3u/802.3ab/802.3af/at | ||
Switching capacity | 10G | |||
Transfer Rate | 14,880pps for 10Mbps | |||
148,800pps for 100Mbps | ||||
1,488,000pps for 1000Mbps | ||||
MAC Address | 2K MAC address table | |||

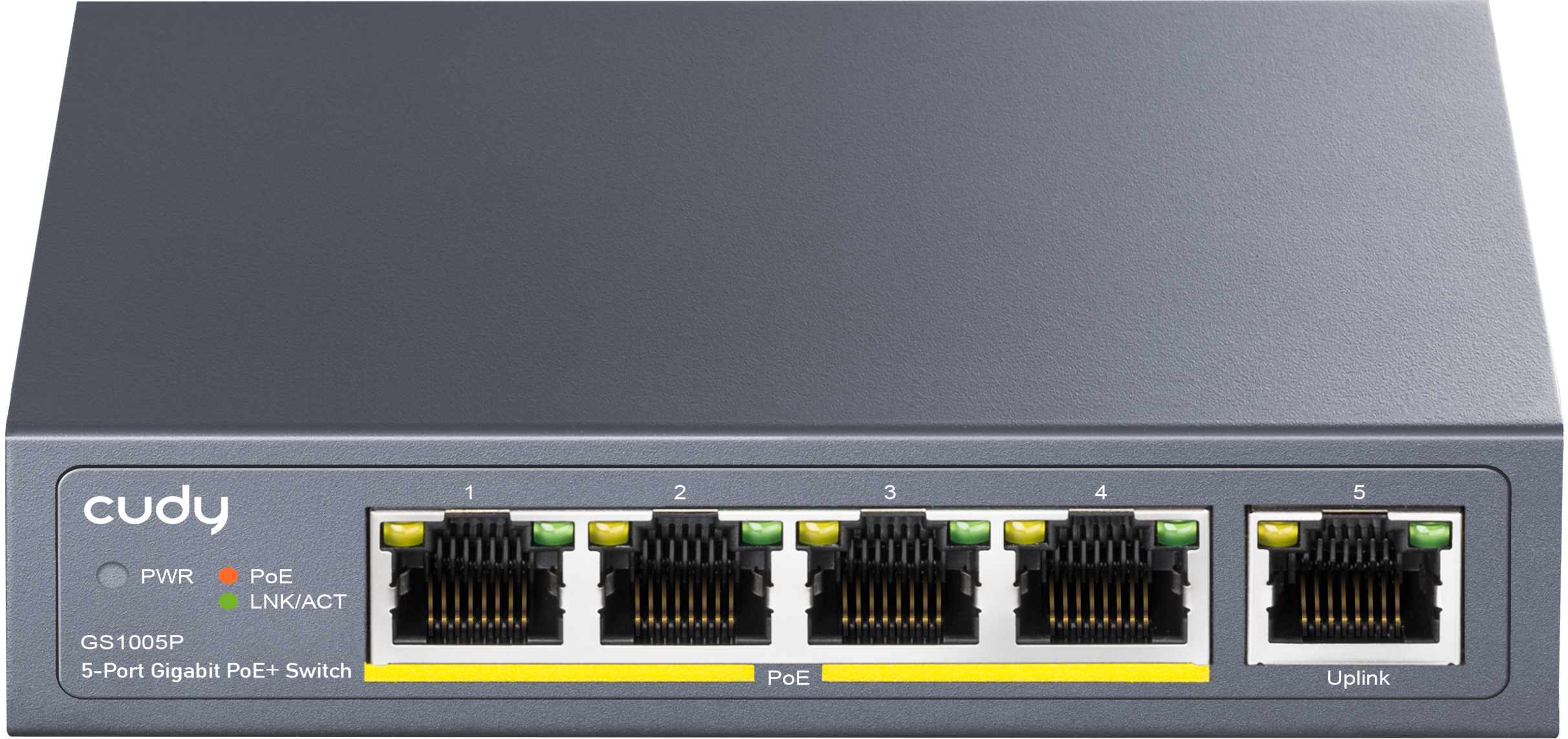

LINK/ACT | On | Green | The port is connecting | |
Blinks | - | The port is receiving or transmitting data | ||
Off | - | The port is not linked successfully with the device | ||
POE | On | Orange | PD is connected | |
OFF | - | No PD is connected or power forwarding fails | ||
Capacity | 60W | |||
PoE pin assignmnet | V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6) | |||
Environment | Working Temperature | 0~40℃ | ||
Storage Temperature | -40~70℃ | |||
Humidity Non condesing | 0~90% | |||
Mechanical | Dimension | 119 x 85 x 28mm | ||
Color | Gray |
