Save 7%

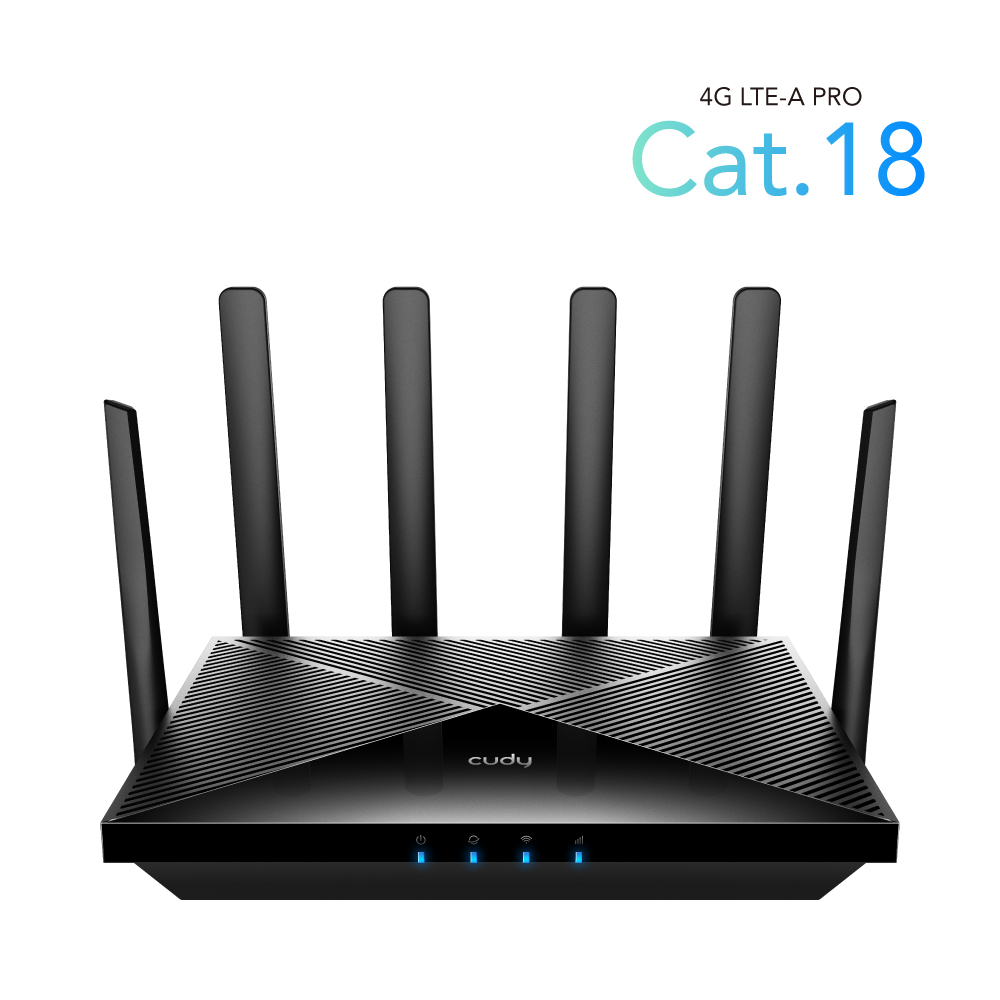

Cudy 4G LTE PRO Cat18 1800mbps WiFi 6 Router with Mesh / Dual Sim / WAN Failover

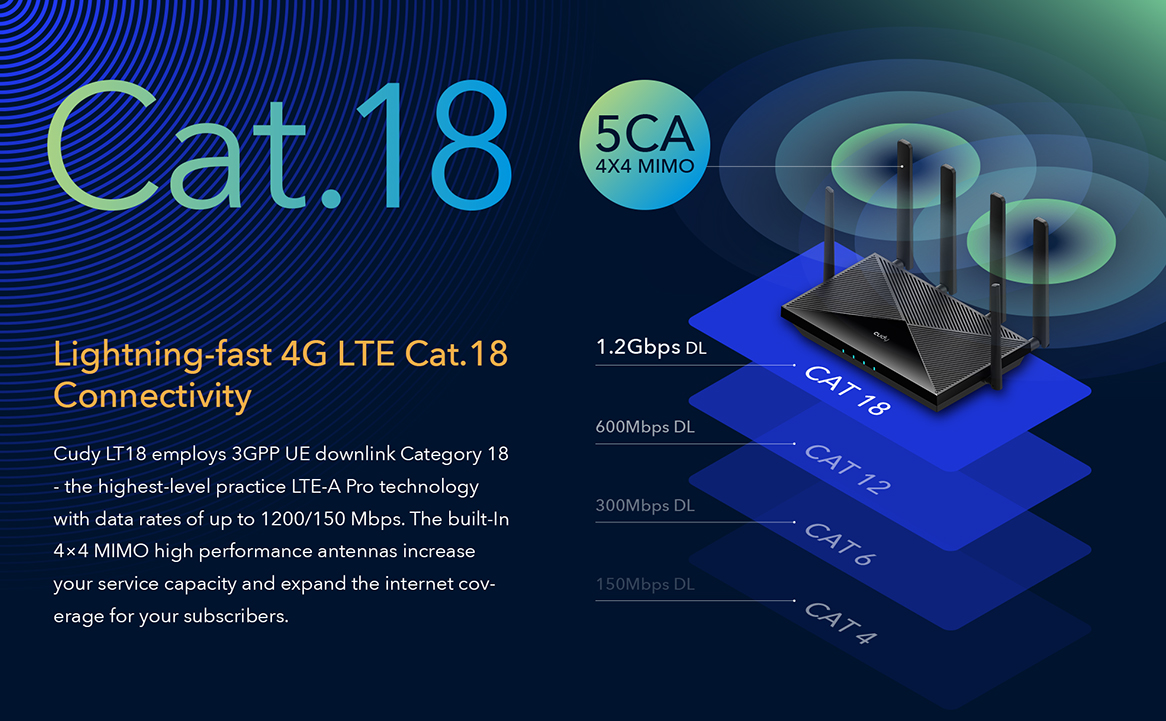

● 4G LTE-Advanced Cat.18, Max 1.2 Gbps Download
● Faster 4G with 4×4 MIMO and DL 5CA Technologies
● Super-Fast AX1800 Wi-Fi 6
● Dual SIM Failover
● WAN Failover
● 4× Gigabit Ports
● 4× Detachable Cellular Antennas
● 2× Fixed WiFi Antennas
● Faster 4G with 4×4 MIMO and DL 5CA Technologies
● Super-Fast AX1800 Wi-Fi 6
● Dual SIM Failover
● WAN Failover
● 4× Gigabit Ports
● 4× Detachable Cellular Antennas
● 2× Fixed WiFi Antennas
Specifications
| Model | AX1800 Wi-Fi 6 4G Cat18 Router | |||
| Data Speed | Wi-Fi | 2.4GHz (802.11ax/n/g/b, MIMO 574Mbps) | ||
| 5GHz (802.11ax/ac/an/a, MIMO 1201Mbps) | ||||
| LTE | LTE FDD: Max 1.2Gbps (DL)/150Mbps (UL) | |||
| LTE TDD: Max 545Mbps (DL)/90.6Mbps (UL) | ||||
| DC-HSPA+ | 42Mbps (DL)/11.5 Mbps (UL) | |||
| WCDMA | WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL) | |||
| Hardware | DRAM: 256MB (2Gbit) DDR3 | |||
| Flash: 16MB (128Mbit) | ||||

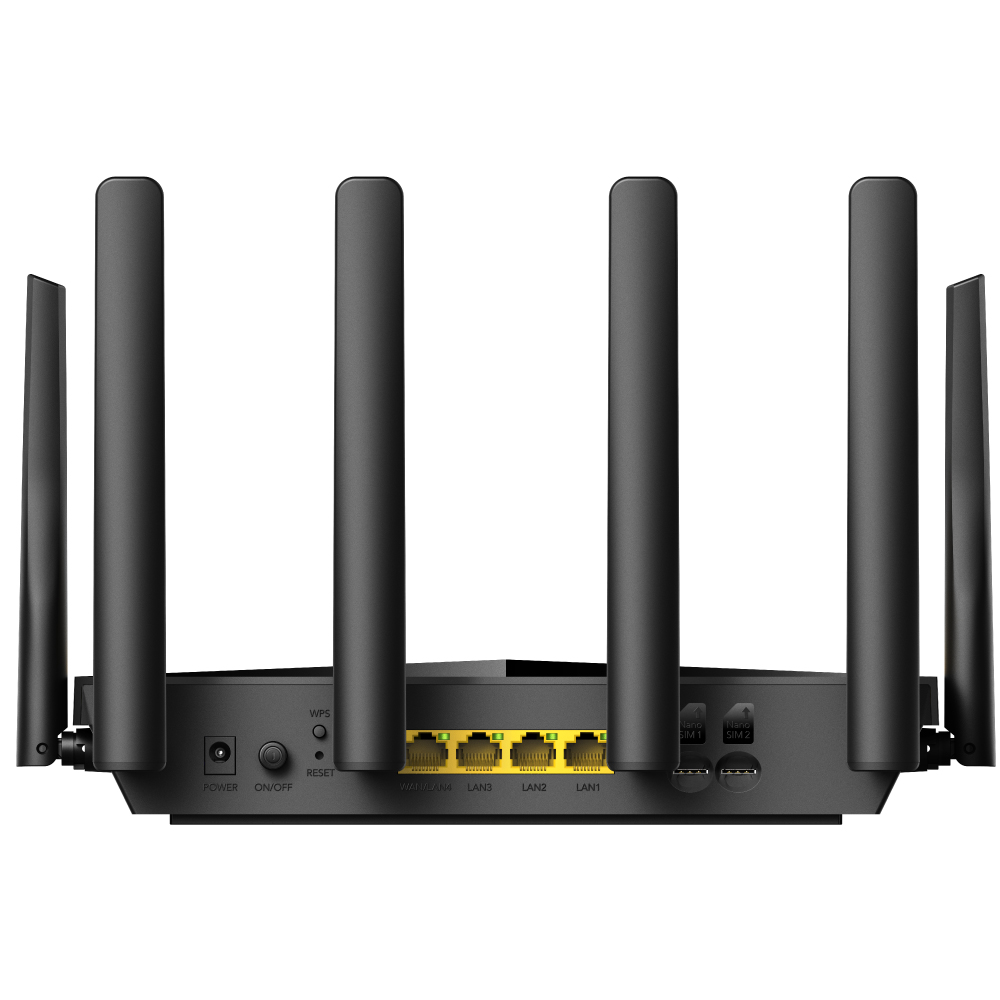

| 4 x GbE RJ45: 1 GbE WAN/LAN + 3 GbE LAN | ||||
| 2 x SIM Slots (Nano) | ||||
| 1 x WPS Button | ||||
| 1 x Reset Button | ||||
|
2 x Fixed WiFi Antennas |
||||
| 4 x Detachable Cellular Antennas | ||||
| LED indicators (Power, WiFi, Internet, Signal) | ||||
| Software | DHCP: Server, Client List, Address Reservation | |||
| NAT: Port Forwarding, Port Triggering, UPnP, DMZ | ||||
| Firewall: Mac Filter, IP Filter, Domain Filter | ||||
| DDNS: Compatible with 15 more DDNS providers | ||||
| VPN: PPTP/L2TP/OpenVPN/WireGuard/IPsec/Zerotier | ||||
| DNS over TLS: Cloudflare/Google | ||||
| Schedule: Schedule Reboot /Wi-Fi Schedule | ||||
| Internet Protocol version 4 or 6 (IPv4/IPv6) | ||||
| Quality of Service (QoS) | ||||
| TTL configuration(Extend/Spoof) | ||||
| Band Selection | ||||
| Mobile Frequency Band |
Europe/Middle East/Africa/Asia Pacific/Brazil EU version(EG18-EA Inside) |
LTE-FDD:B1/B3/B5/B7/B8/B20/B28 | ||
| LTE-TDD: B38/B40/B41 | ||||
| WCDMA: B1/B3/B5/B8 | ||||
|
North America US version(EG18-NA Inside) |
LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71 | |||
| LTE-TDD: B41 | ||||
| WCDMA: B2/B4/B5 | ||||
| Physical | Product Dimension: 253x152.5x48.2mm (LxWxH) | |||
| Package Dimension: 415x265x90mm (LxWxH) | ||||
| Power | AC Power Adapter: Input: 90~260V Output: 12V, 1.5A | |||
| DC input (12V-1.5A) Barrel Plug | ||||
| SMS | Send Message | |||
| Receive Message | ||||
| Environmental | Operation Temperature: 0° C to +45° C | |||
| Storage Temperature: -40° C to +70° C | ||||
| Relative Humidity: 5% to 95% Non-Cond | ||||

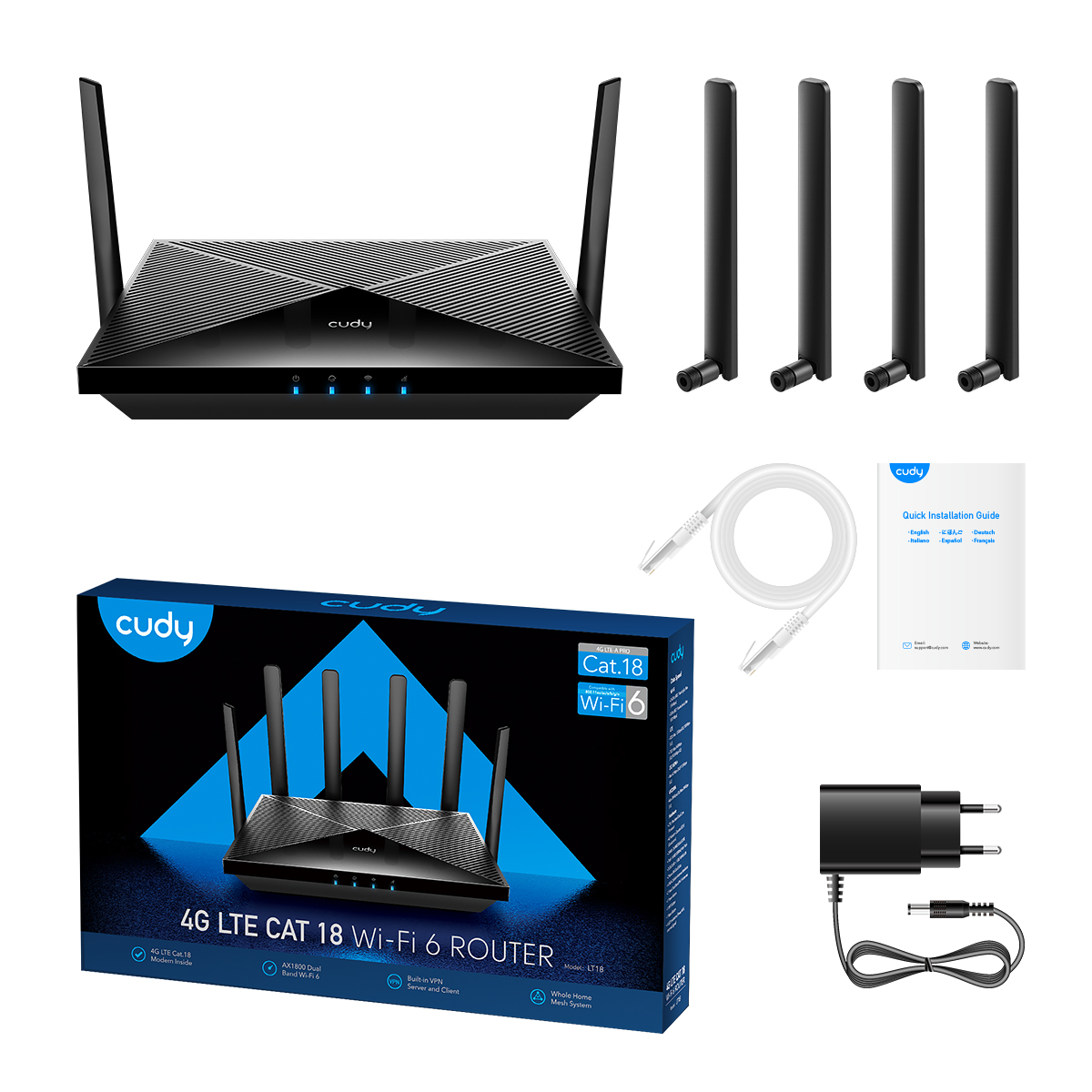

| Package Contents | 4G LTE WiFi Router | |||
| Power Adapter | ||||
| RJ45 Ethernet Cable | ||||
| Quick Installation Guide | ||||
| System Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Subscription with an internet service provider (for internet access) | |||
