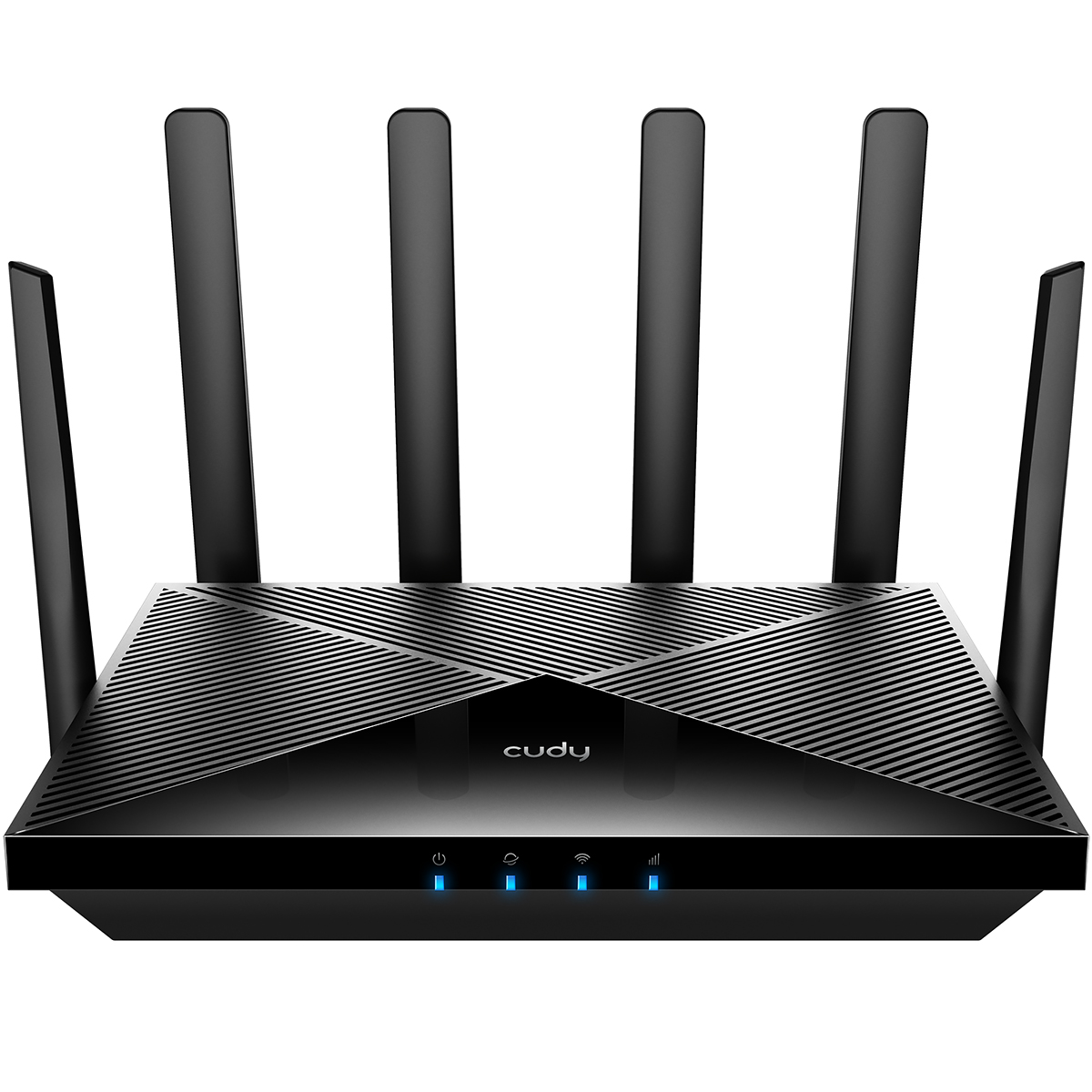

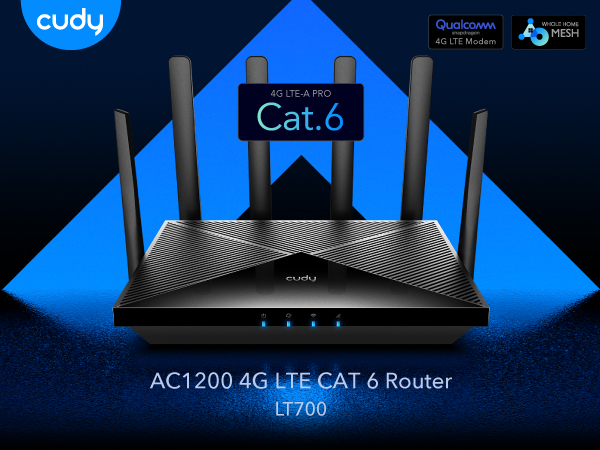

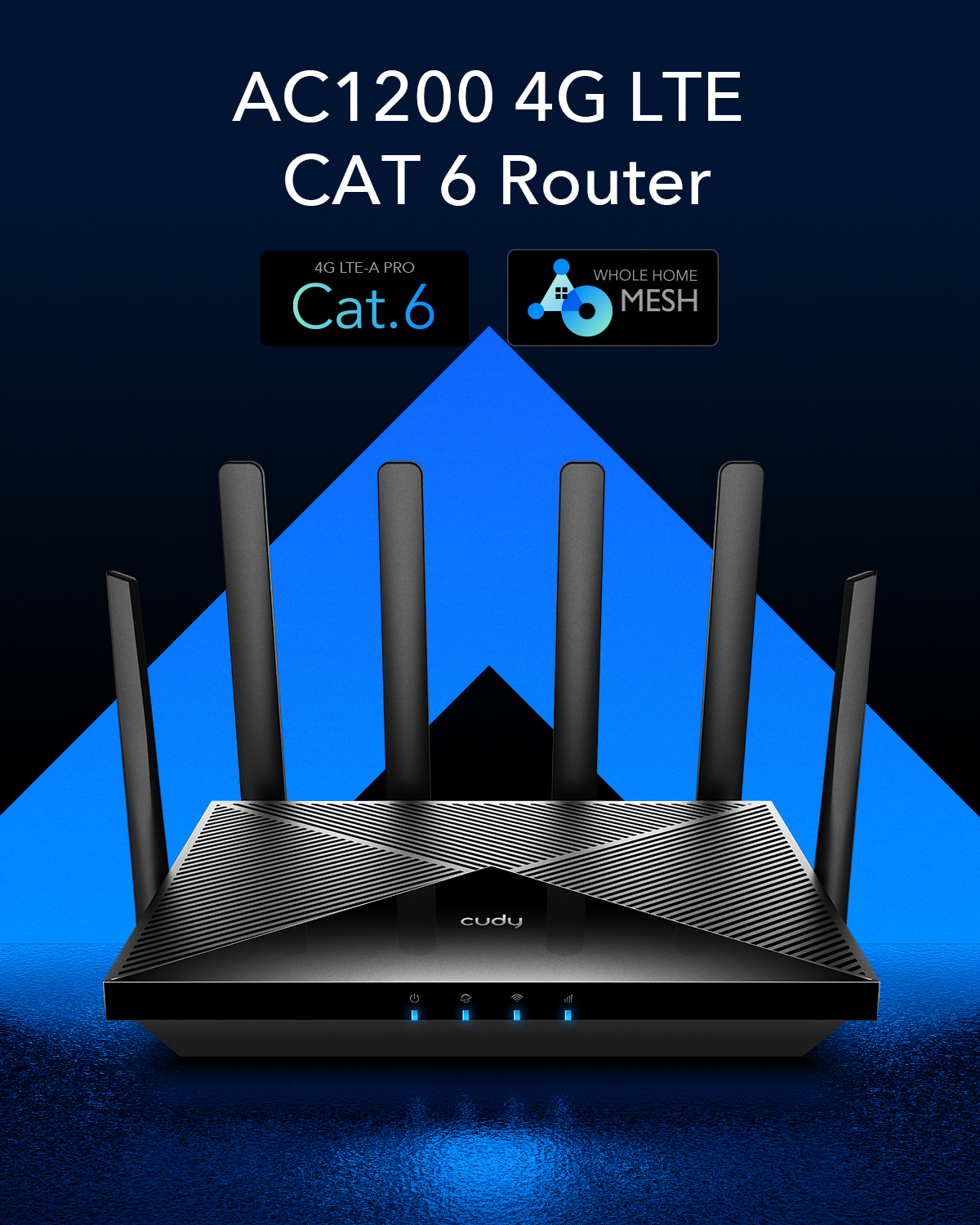

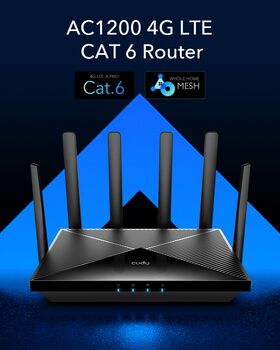

Cudy 4G LTE Cat6 1200mbps WiFi Router with Mesh / Dual Sim / WAN Failover

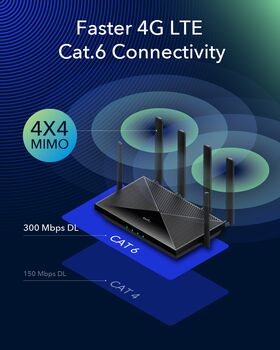

● 4G LTE-Advanced Cat. 6, Max 300 Gbps Download

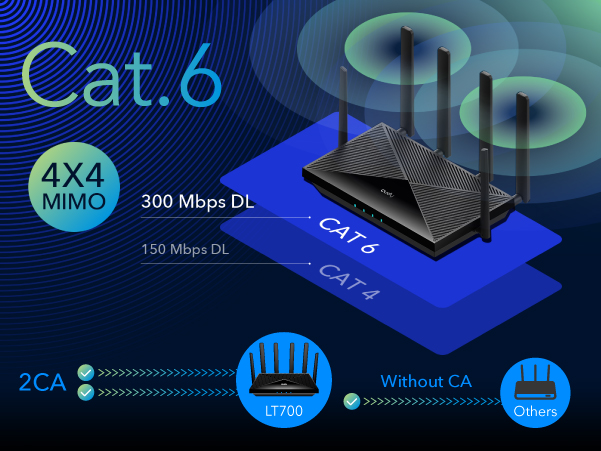

● Faster 4G with DL 2CA Technologies
● Speedy AC1200 Dual-Band Wi-Fi

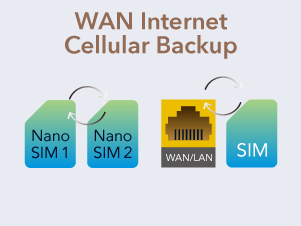

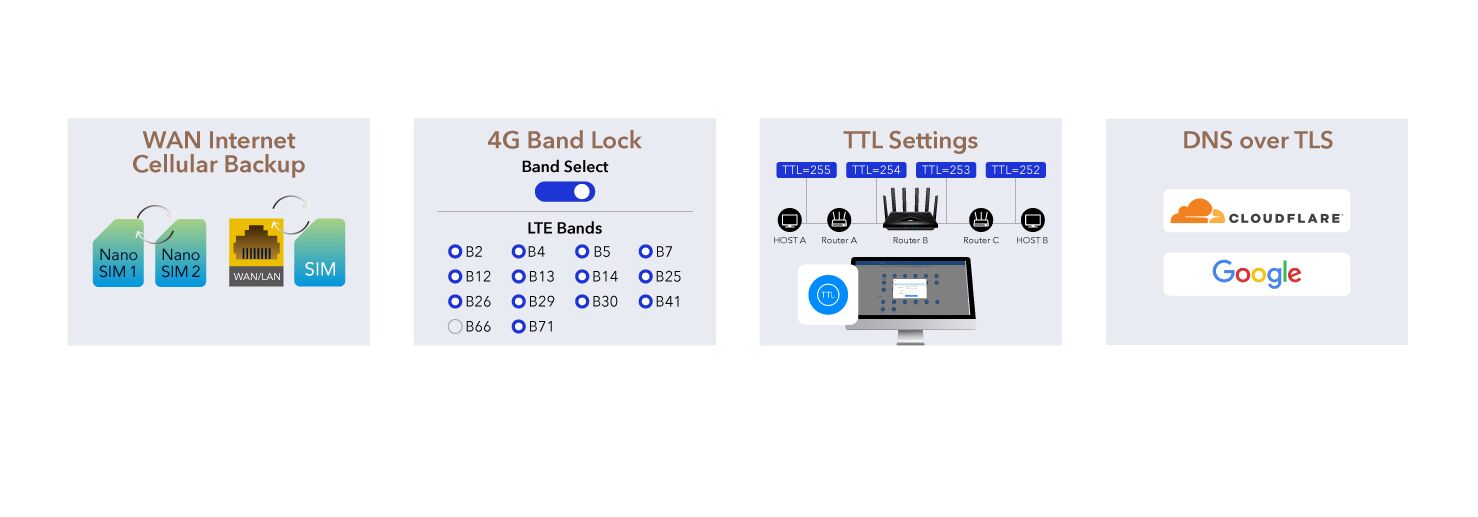

● Dual SIM Failover

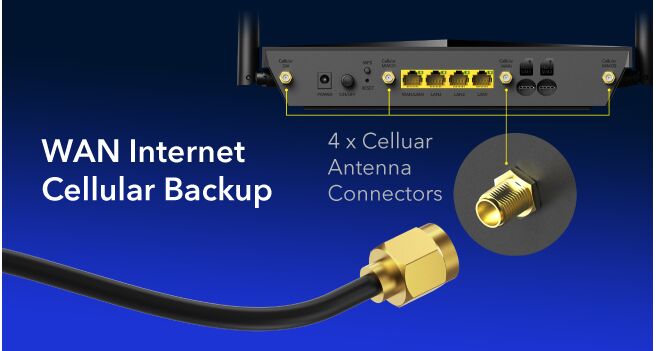

● WAN Failover
● 4× Gigabit Ports
● 4× Detachable Cellular Antennas
● 2× Fixed WiFi Antennas
● Faster 4G with DL 2CA Technologies
● Speedy AC1200 Dual-Band Wi-Fi
● Dual SIM Failover
● WAN Failover
● 4× Gigabit Ports
● 4× Detachable Cellular Antennas
● 2× Fixed WiFi Antennas
Specifications
| Model | 4G LTE CAT 6 Wi-Fi Router | |||
| Data Speed | Wi-Fi | 2.4GHz (802.11n/g/b, MIMO 300Mbps) | ||
| 5GHz (802.11ac/an/a, MIMO 867Mbps) | ||||
| LTE | LTE FDD: Max 300 Mbps (DL)/50Mbps (UL) | |||
| LTE TDD: Max 226 Mbps (DL)/28Mbps (UL) | ||||
| 3.9G (EU version) | DC-HSDPA: Max 42 Mbps (DL)/ HSUPA: Max 5.76 Mbps (UL) | |||
| WCDMA (EU version) | WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL) | |||
| Hardware | CPU: Mediatek Dual Core 880MHz | |||
| DRAM: 128 MB DDR3 (1 Gbit) | ||||
| Flash: 16 MB NOR (128 Mbit) | ||||
| 4 x GbE RJ45: 1 GbE WAN/LAN + 3 GbE LAN | ||||

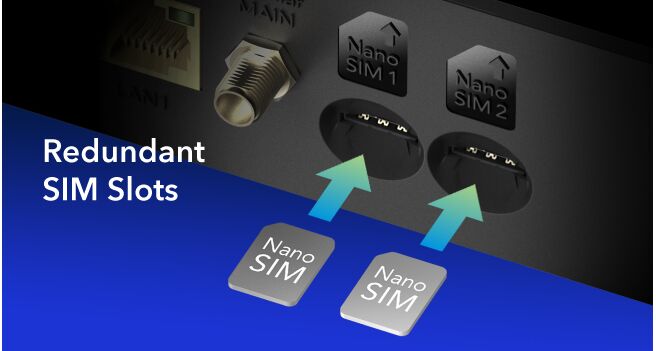

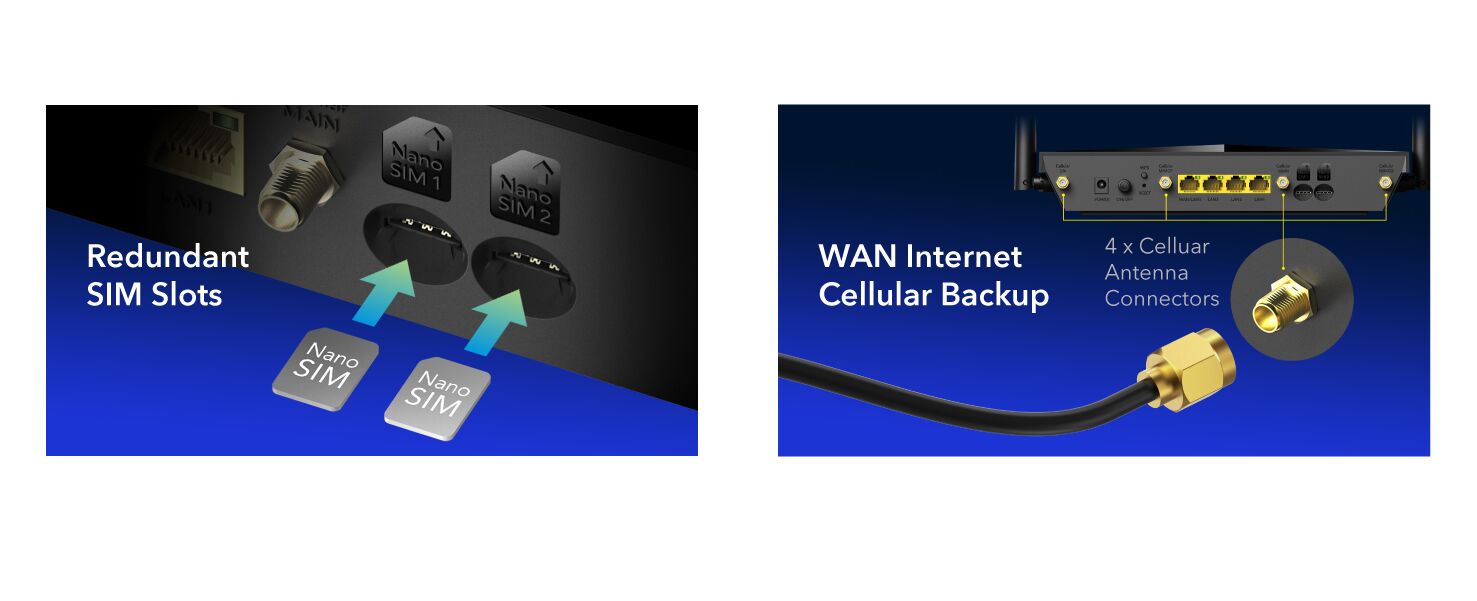

| 2 x SIM Slots (Nano) | ||||
| 1 x WPS Btton | ||||
| 1 x Reset Button | ||||
|
2 x Fixed WiFi Antennas |
||||

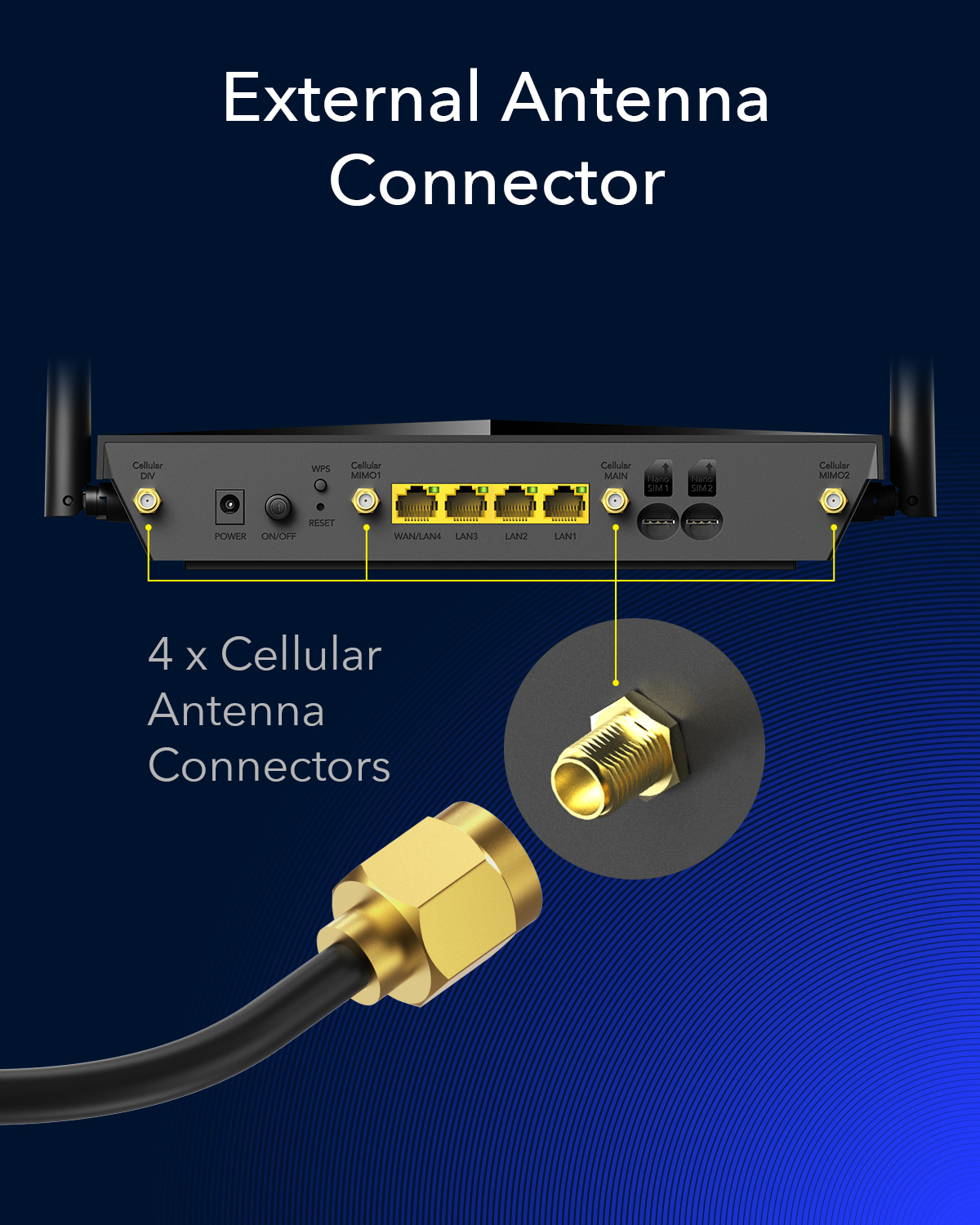

| 4 x Detachable Cellular Antennas | ||||
| LED indicators (Power,WiFi,Internet,Signal) | ||||
| Software | DHCP:Server, Client List, Address Reservation | |||
| NAT:Port Forwarding, Port Triggering, UPnP, DMZ | ||||
| Firewall:Mac Filter, IP Filter, Domain Filter | ||||
| DDNS:Compatible with 20 more DDNS providers | ||||
| VPN Client:PPTP/L2TP/OpenVPN/WireGuard | ||||
| DNS over TLS: Cloudflare/NextDNS/Google | ||||
| Schedule: Schedule Reboot /Wi-Fi Schedule | ||||
| Internet Protocol version 4 or 6 (IPv4/IPv6) | ||||
| Quality of Service (QoS) | ||||

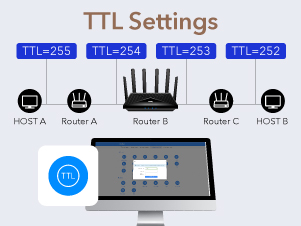

| TTL configuration(Extend/Spoof) | ||||

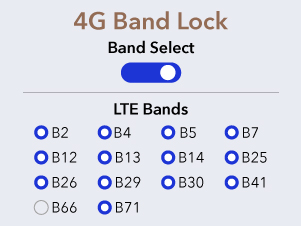

| Band Selection | ||||
| Cellular Band |
EU Version |
Module: EG060K-EA (Qualcomm) | ||
| LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 | ||||
| LTE-TDD: B38/B40/B41/B42/B43 | ||||
| WCDMA: B1/B3/B5/B8 | ||||
|
US Version |
Module: EG060K-NA (Qualcomm) | |||
| LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71 | ||||
| LTE-TDD: B41/B48 | ||||
| Physical | Product Dimension: 253x152.5x48.2mm (LxWxH) | |||
| Package Dimension: 415x265x90mm (LxWxH) | ||||
| Power | AC Power Adapter: Input: 90~260V Output: 12V, 1.5A | |||
| DC input (12V-1.5A) Barrel Plug | ||||
| SMS | Send Message | |||
| Receive Message | ||||
| USSD | ||||
| Environmental | Operation Temperature: 0° C to +45° C | |||
| Storage Temperature: -40° C to +70° C | ||||
| Relative Humidity: 5% to 95% Non-Cond | ||||
| Package Contents | 4G LTE WiFi Router | |||
| Power Adapter | ||||
| RJ45 Ethernet Cable | ||||
| Quick Installation Guide | ||||
| System Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,NetWare, UNIX or Linux, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Subscription with an internet service provider (for internet access) | |||
