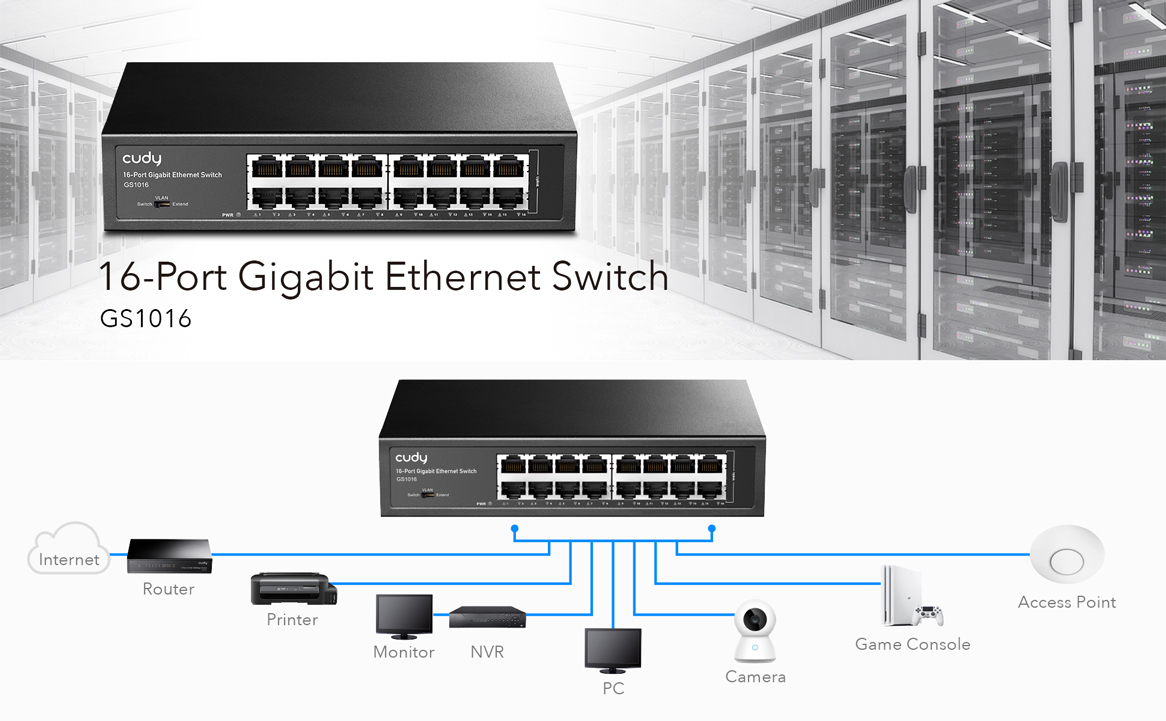

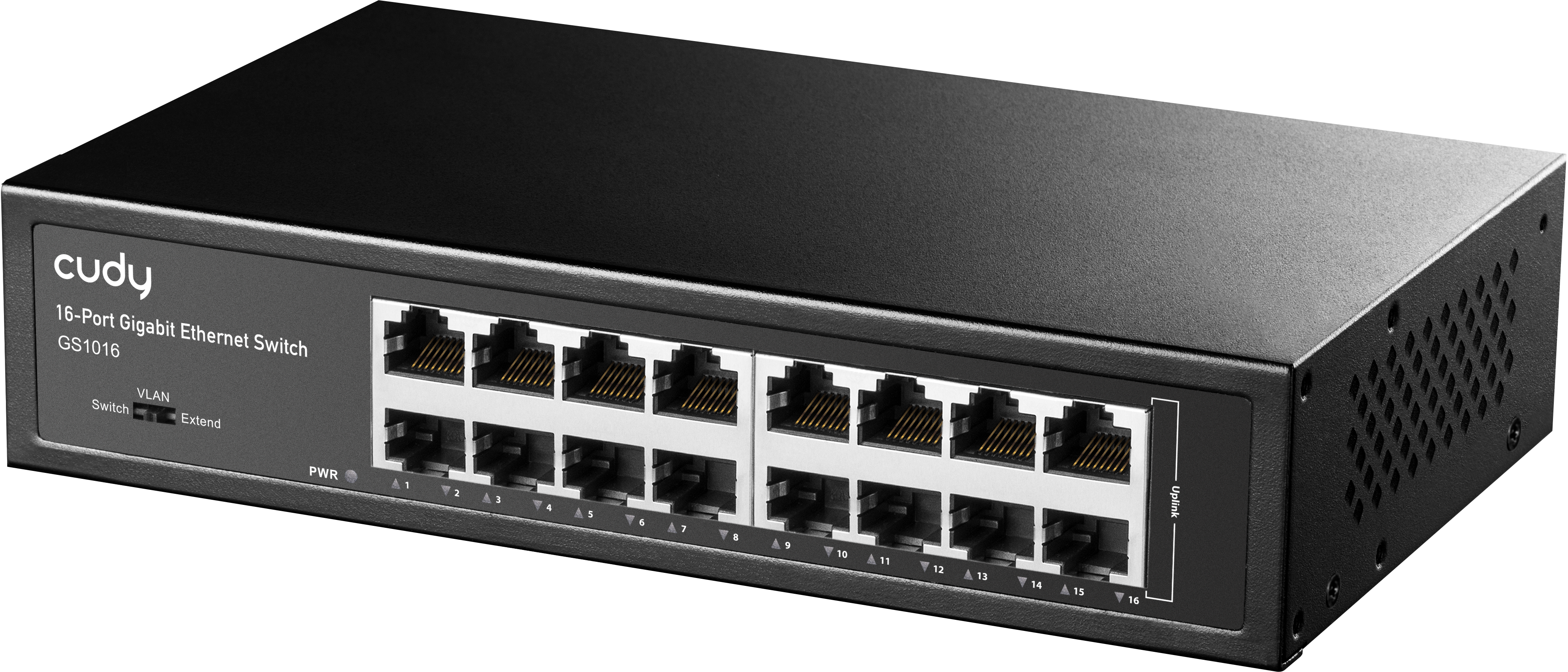

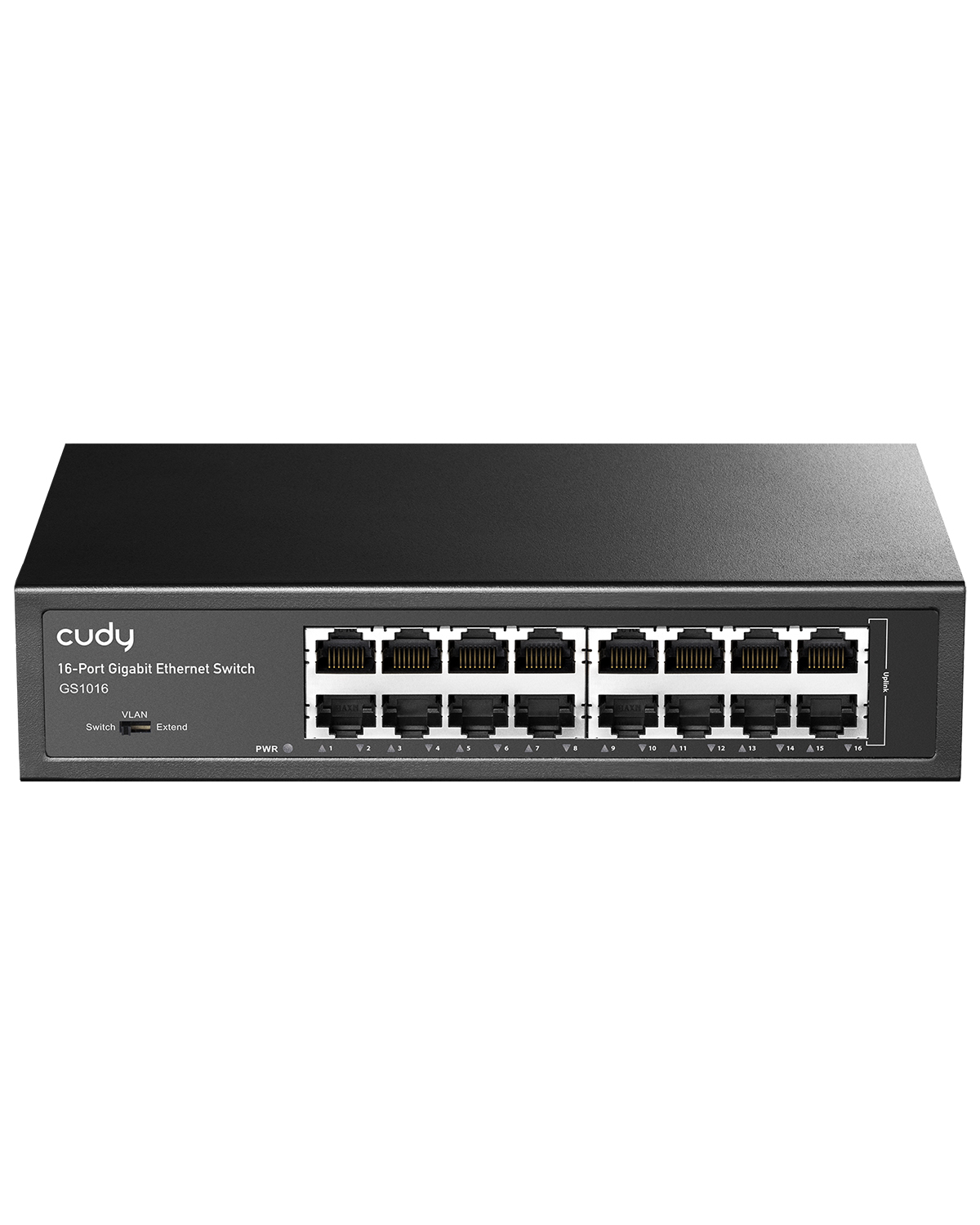

Cudy 16 Port Gigabit Network Switch
● Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
● 16 10/100/1000Mbps Auto Negotiation, Auto MDI/MDIX ports provide smart switching abilities
● Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
● Store-and-Forward switching method
● Supports 8K MAC address auto-learning and auto-aging
Specification
| Product Name | 16-Port Gigabit Ethernet Switch | ||
| Product Model | GS1016 | ||

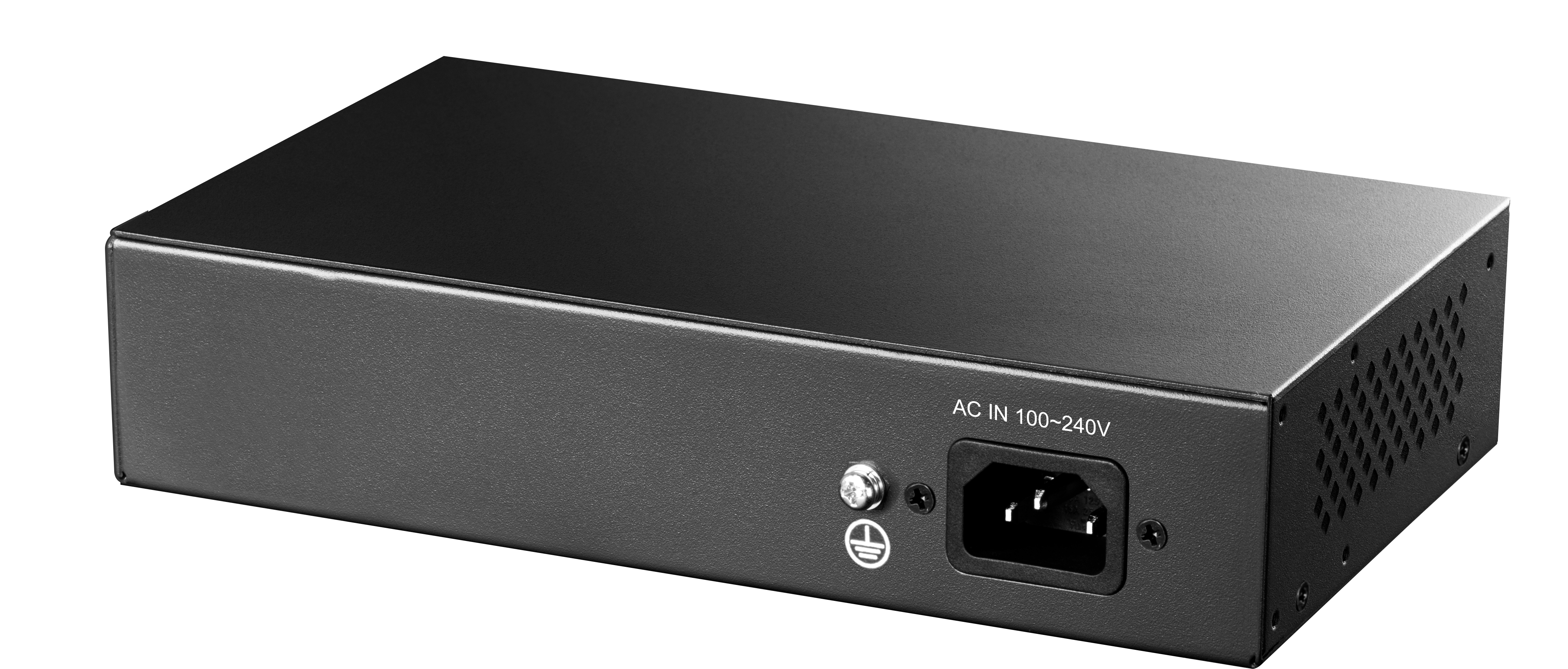

| Power Supply | Built-in power supply | ||
| Voltage Range | Ac100~ 240V | ||
| Consumption | <15W | ||
| Speed | 1-16 Port: 10/100/1000Mbps | ||
| Transmission Distance | 100Meter (328ft) | ||
| Ethernet Standard | IEEE 802.3/802.3u / 802.3ab | ||
| Switching capacity | 32G | ||
| MACAddress | 8K MAC address table | ||
| Dimension L* W * H | 200 x 118 x 44mm | ||
| VLAN (1-14Ports) | Port Isolation | Downlink designated ports are isolated from each other, only transmit data with the uplink port. | |
| Default | Standard Switch | All ports communicate freely | |
| Extend (1-14Ports) | Link Extension | The specified port speed drops to 10Mbps, max transmission distance is 250 meters. | |
| LINK/ACT | On | Green | The port is connecting |
| Blinks | / | The port is receiving or transmitting data | |
| Off | / | The port is not linked successfully with the device | |
| Transfer Rate | 14,880 pps for 10Mbps | ||
| 148,800 pps for 100Mbps | |||
| 148,8000 pps for 100Mbps | |||
| Environment | Operating Temperature: 0℃ ~ 40℃ | ||
| Storage Temperature: -40℃ ~70℃ | |||
| Operating Humidity: 10%~85% non-condensing | |||
| Storage humidity: 5%~85% non-condensing | |||
