Save 63%

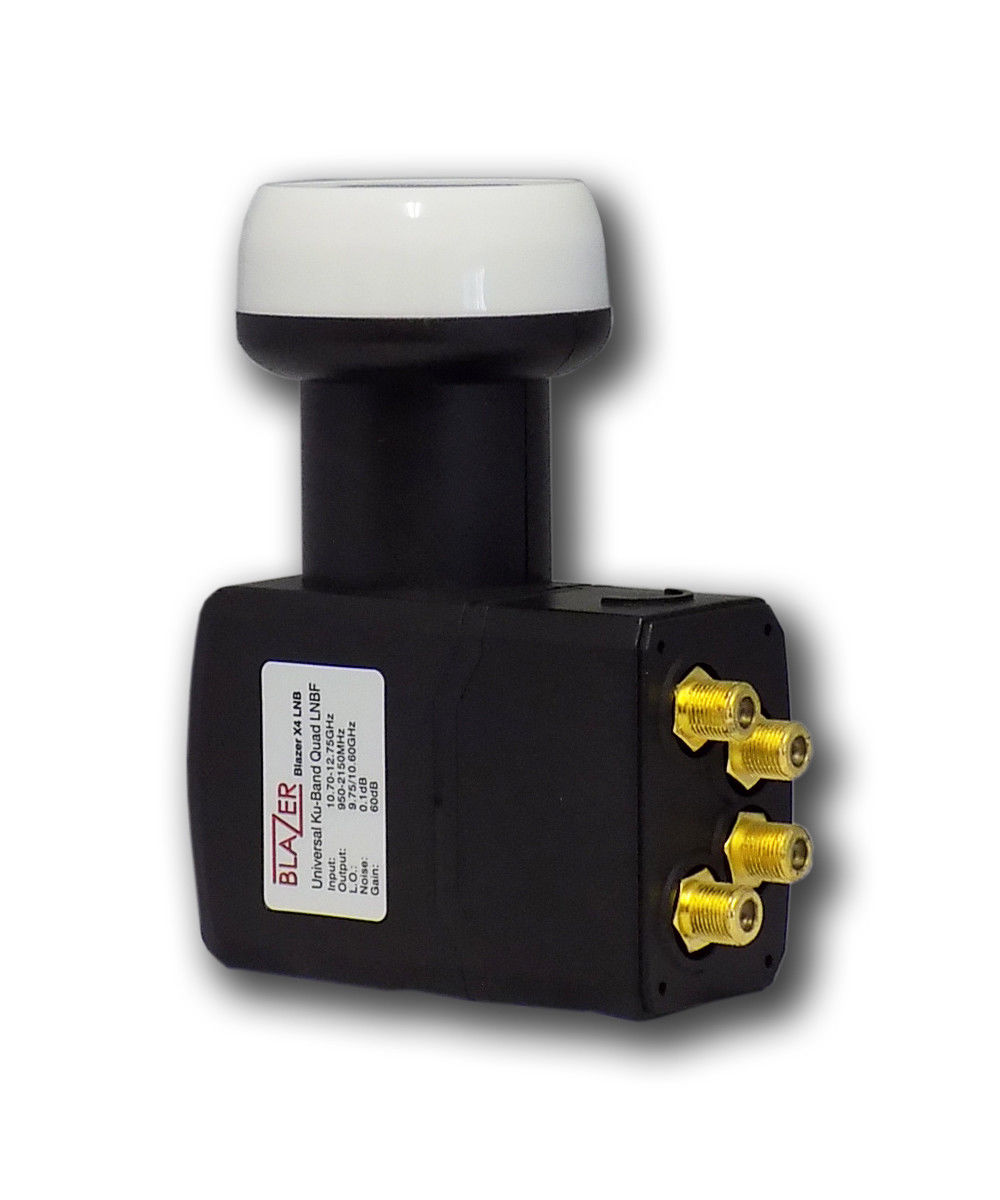

Blazer X4 Quad LNB 0.1dB, HD, 3D, 4K Support

List price: 35.00
13.01
(16.00 inc VAT) You save: €21.99 (63%)
Blazer-X4
In stock
+

Blazer Quad LNB 0.1dB, HD, 3D, 4K Support

Latest model Blazer Quad LNB for universal satellite dishes. Now supporting 4K and 3D.

  • Brand: Blazer
  • Model: X4
  • Colour: Black
  • Outputs: 4
  • Neck Diameter: 40mm
  • Noise Figure: 0.1dB

Item

Specification

Input Frequency Range

Low Band:10.70~11.70GHz
High Band:11.70~12.75GHz

Output Frequency Range

Low Band:950~1950MHz
High Band:1100~2150MHz

Noise Figure

0.1dB

Conversion Gain

60dB(Typ.)

Gain Flatness

±0.5dB/26MHz

Cross POL. Isolation

25dB(Typ.)

L.O. Frequency

Low Band:9.75GHz
High Band:10.60GHz

L.O. Frequency Stability

±1.0MHz(Max.)@+25℃
±2.0MHz(Max.)@-30℃~+70℃

Operating Temperature

-30℃~+70℃

Item

Specification

L.O. Phase Noise

-50dBc/Hz@1KHz
-75dBc/Hz@10KHz
-95dBc/Hz@100KHz

Image Rejection

40dB(Min.)

Output VSWR

2.0:1(Max.)

Output Power

0dBm (Min.)(at 1dB gain compression)

Connector Type

75Ω Female Connector

DC Current Consumption

160mA (Typ.)

Low/High Band Switching

Low Band: 0 Hz
High Band:22KHz±4KHz

POL. Switching Voltage

10.5~14.0 V @VP
16.0~20.0 V @HP
