Antiference 12-Way Distribution Amplifier with Bypass (5G Ready)

Antiference 12-Way Distribution Amplifier with Bypass (LTE)
List price: 69.00
59.95
(73.74 inc VAT) You save: €9.05 (13%)
DA2120D/48
In stock
+

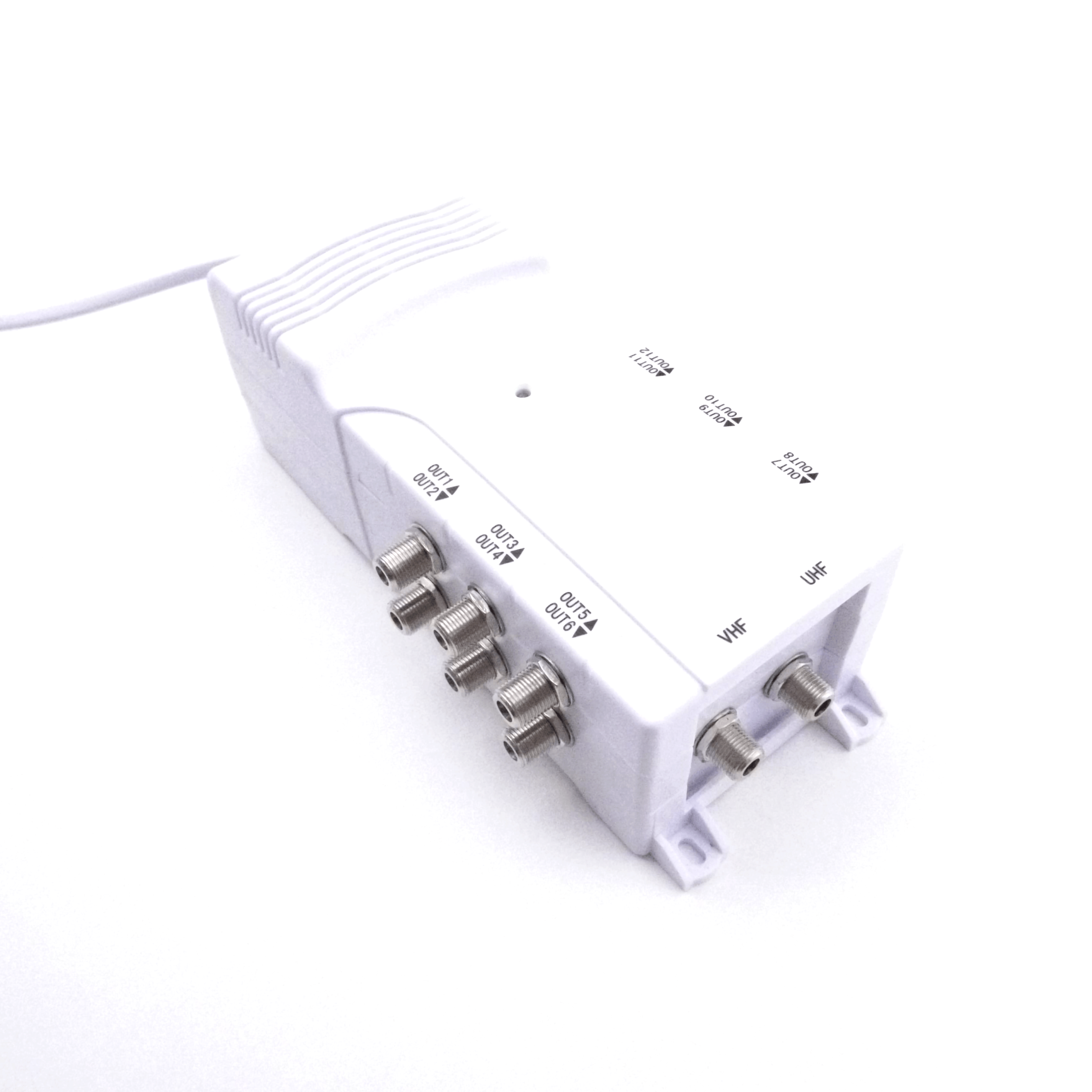

Antiference 'F' 12-Way Distribution Amplifier, VHF/UHF 8dB

This 2 in 12 out Antiference 12 Way distribution amplifier is mains powered allowing it to be used on bigger systems with longer cable runs, it is fully screened, has an LED power indicator and uses the 'F' type cable connections.  It can be used for normal VHF/UHF signal distribution as well as for distributing a Sky digibox around your home.  It also has "IR Pass" meaning it can be used with any type of TV Link or Magic Eye giving full control of a Sky Digibox from 12 extra locations.

TECHNICAL SPECIFICATION
A2120D
No. of Inputs 2
No. of Outputs 12
Frequency Range MHz
45-230
470-862
Gain 8dB±2
Noise Max <3.5dB
Max. Output* 78dBμV
Isolation Between Outputs >20dB
Return Path Frequency 5-30MHz
Impedance
Mains Power (Red LED)
