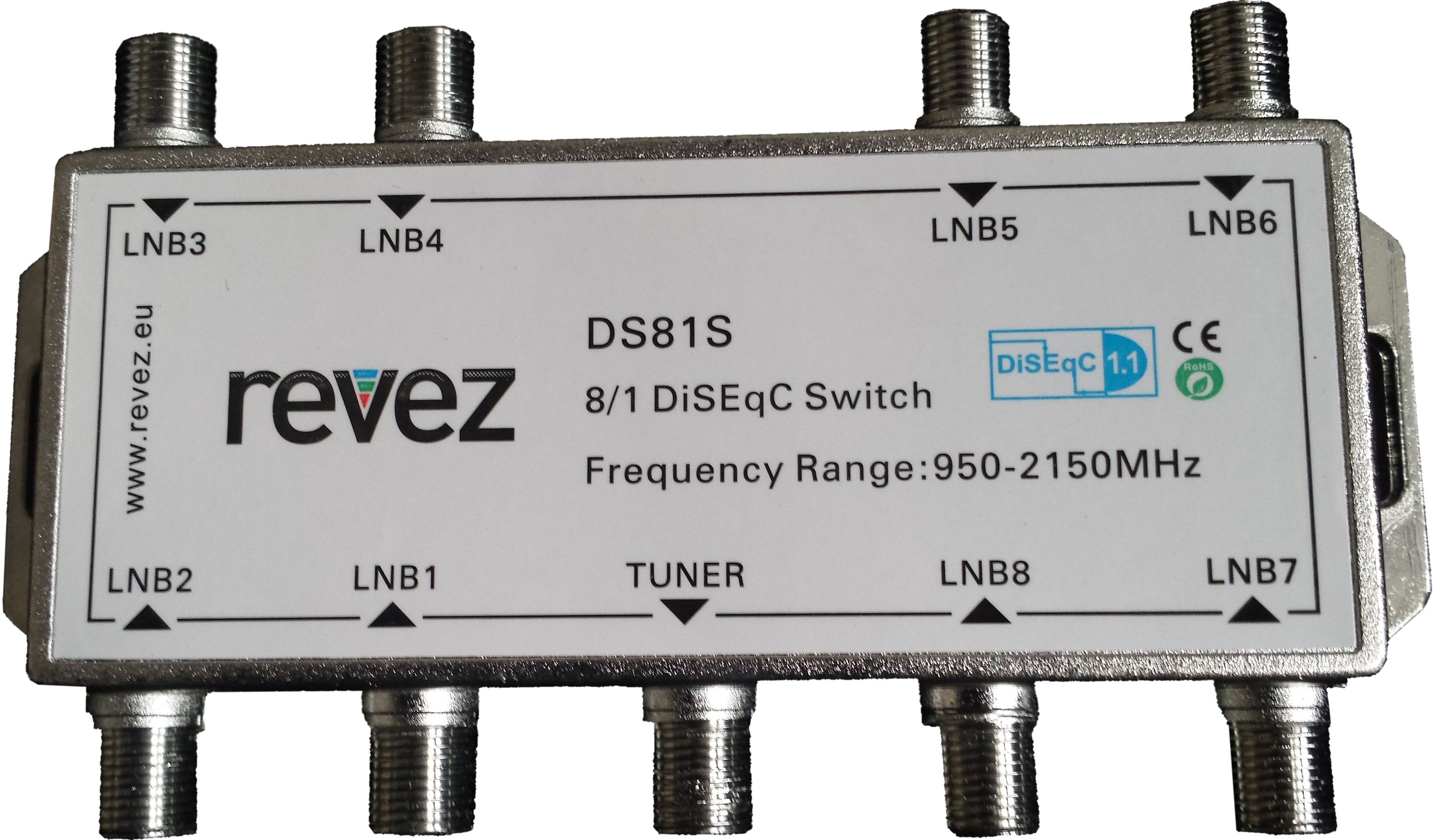

DESCRIPTION & SPEC of REVEZ 8 way DiseqC Switch (8x1)
The REVEZ 8x1 Diseqc Switch allows a Satellite Receiver to automatically Switch between 8 LNBs on one satellite dish, perfect for Multi satellite dishes such as the Wavefrontier T90 or the Maximum Multi Satellite Dish.
Technical Data :
- For switching of 8 Single LNBs
- Input: 8
- Output : 1
- Connection type: F-type
- Manufacturer: REVEZ
- Colour: Grey
- Insertion Loss 5dB
- Isolation 20dB
- Return Loss 8dB
- Normal Working Voltage 12-20V
- DC Power Consumption 10mA
- DC Max Power Passing 500mA
- Impedance (all ports) 75Ω
