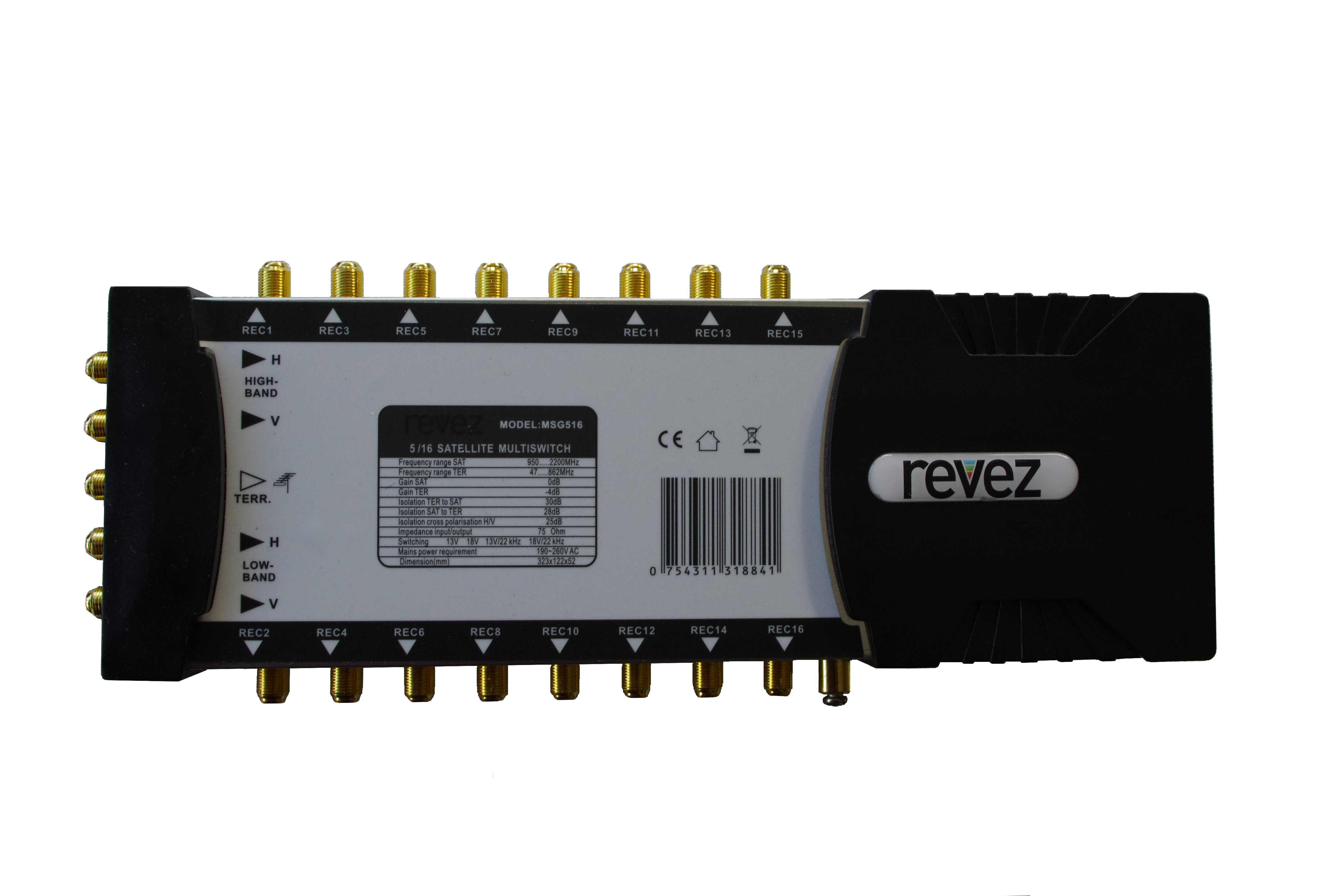

DESCRIPTION of 5 x 24 Satellite & Terrestrial Multiswitch
- Revez Gold Premium Series Multiswitch
- Inputs: 5
- Horizontal High (22 KHz)
- Horizontal low
- Vertical High (22 KHz)
- Vertical Low
- Terrestrial
- Outputs: 24 satellite feeds
Frequencies:
- Terrestrial: 47 - 862 MHz
- Satellite: 950 - 2300 MHz
- Colour: Silver/Black
- Manufacturer: Revez
- Model: MSG524
- Connector type: F-type Connectors (Gold Plated)
Note: Always used with Quattro LNB
Used extensively in
- Hotels
- Apartment blocks
- Retirement villages
HOW the 5 x 24 Satellite & Terrestrial MultiSwitch Works
Quattro Vs Traditional LNB
- Traditional LNB which simply feeds a Satellite receiver from each output
- Quattro LNB splits the satellite signal into
- Vertical (High & Low)
- Horizontal (High & Low)
- This allows the signal to to feed to an infinite amount of Satellite points
How a Quattro LNB and Multiswitch work
- Used in conjunction with a Quattro LNB (normally mounted on an 80cm dish) whose 4 outputs are broken into
- Vertical (High & Low)
- Horizontal (High & Low)
- Multiswitch inputs:
- Satellite: 4 from satellite quattro LNB satellite
- Terresttial: a single feed covering full VHF / UHF Spectrum
- Multiswitch range:
- Outputs: 8, 12, 16, 24 or 32 outputs to Satellite receivers
- At the TV Point:
- Use a Faceplate to split the signal into Satellite and terrestrial
