20 Way Coaxial Cable Mapper

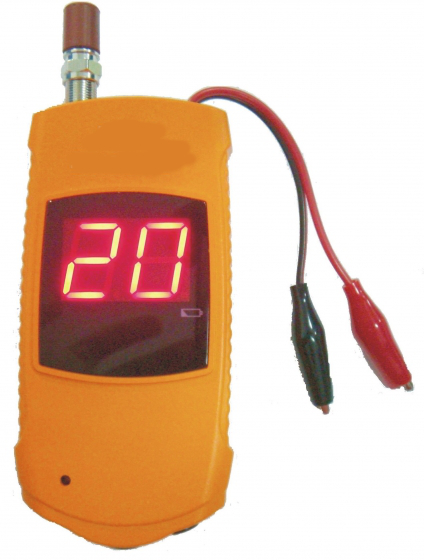

The CM20 is designed to quickly map up to 20 speaker, coax, or security/alarm cables at a time.
The LED displays the unique number of the remote identifier attached to the other end of the cable run. If it detects a short, the LED displays “SH”. When voltage is detected,"lightning
bolts” appear. To conserve battery life, unit powers down automatically if the connection
is not removed in approximately 2.5 minutes.
- Brand: Revez
- Model: CM20
- Made In Taiwan
Features:
♦ Map up to 20 audio, coax, or security/alarm cable runs at a time
♦ High intensity LED display readable in any lighting environment
♦ Auto-On and Auto-Off
♦ Low Battery Indicator
♦ Voltage Detection and Warning
♦ A short circuit is detected, “SH” is displayed
♦ Alligator Clip and F-connector contacts
♦ Maximum cable length for testing: 4000 Ft (Approx 1,200m)
♦ Maximum DC cable resistance: 100 Ohms
♦ Battery: 3 x 3V CR2302 Batteries

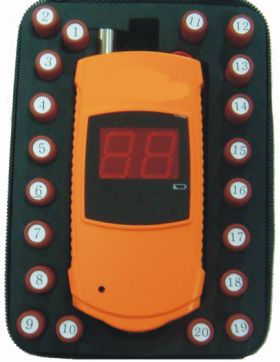

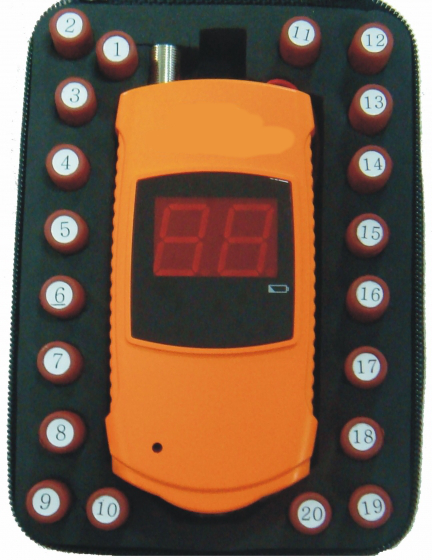

- Includes
- 20 serial-number terminators
- Coax to Alligator Clip adapter
- Nylon Case
Note: Do not connect to live AC circuits. This could cause an extreme hazard and damage the CM20.
