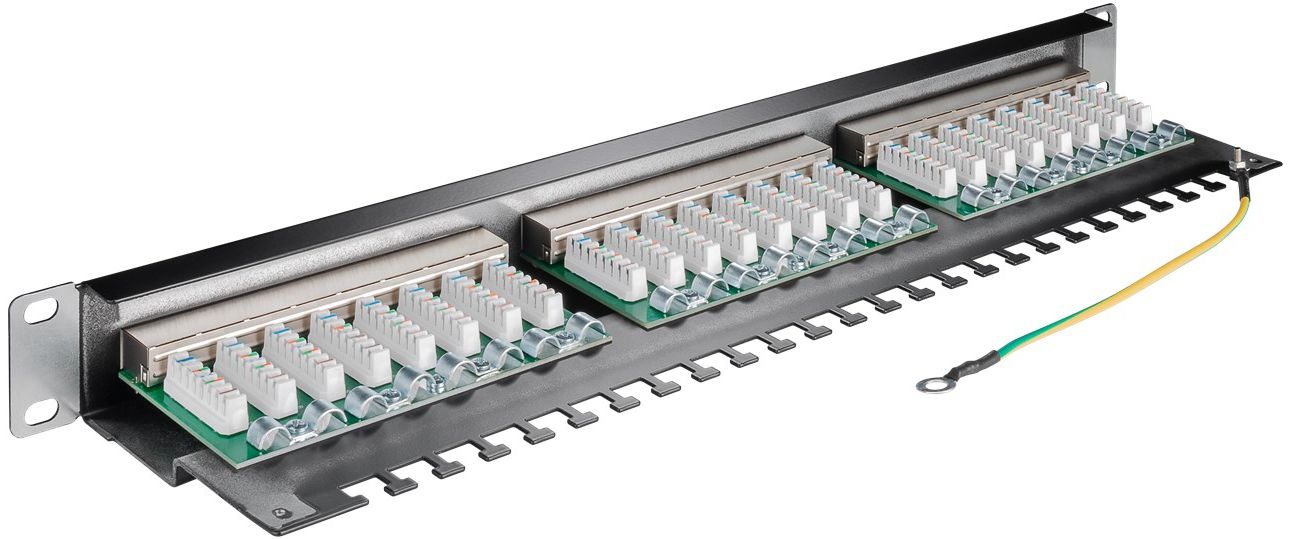

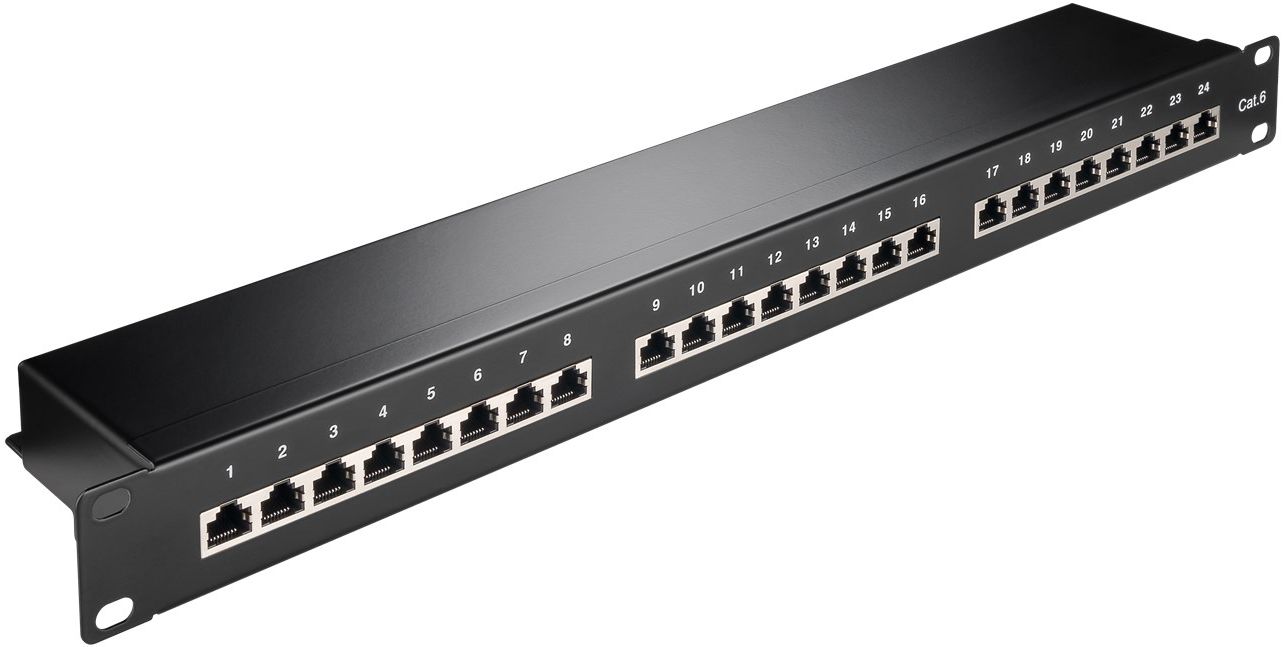

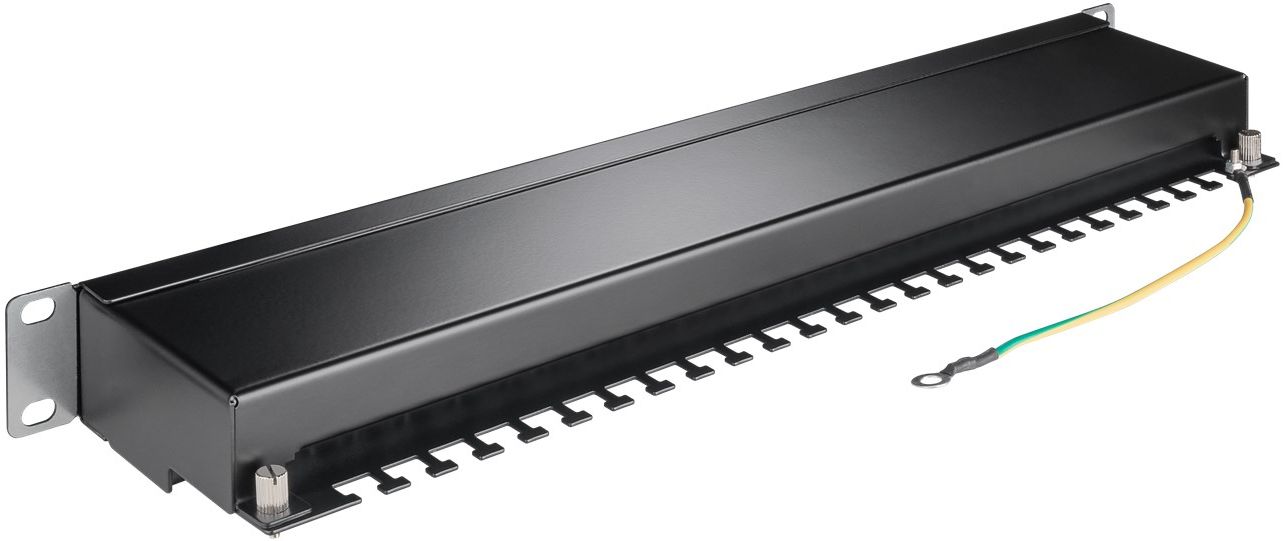

19-inch Patch Panel 24 Port STP Shielded

List price: 46.00
45.00
(55.35 inc VAT) You save: €1.00 (2%)
1USTP24
In stock
+
CAT 6 19 inch (48.3 cm) Patch Panel, 24 Port

STP shielded
  • patch field (1 U) for assembly in 48.3 cm (19") panel boxes
  • internal connection technology for LSA insulation displacement terminals
  • colour coding in accordance with TIA 568 A/B
  • for cable diameters of up to 0.64 mm (22–26 AWG), solid/stranded
Technical specifications
Connections
Connection, shielding
yes
Connection, type
24 RJ45 male (8P8C)
Device connections
Output, type
RJ45 female (8P8C)
Number of outputs
24 ports
Cable
Shielding class
STP
Specification
CAT 6
Signal transmission
max. bandwidth
250 MHz
General
Packaging type
Bulk
Color
black
Markings
WEEE, CE
Width
483 mm
Height
44 mm
depth
401 mm
