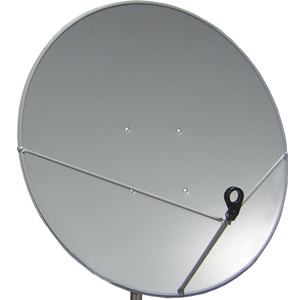

High quality 185cm Solid Satellite Dish
External dimensions (mm) ... 1890x1720
dimensions of the active mirror (mm) ... 1880x1700
The gain of 10.95 GHz (dB) ... 43.90
Gain 11.75 GHz (dB) ... 44.50
Gain 12.50 GHz (dB) ... 45.00
Gain 12.75 GHz (dB) 45.20 ...
The diameters of the clamp converter (mm): 23, 40, 50, 60, 70
Weight of complete canopy (kg):
Az \ El ... 28.10
... 38.00 With Polarmount
Az \ El illumination angle ... 25 °
angle of elevation ... -5 °: 78 °
Max. Mast diameter (mm) ... 100
Azimuth on the mast.
Steel components are galvanized fasteners.
mirrors are made of aluminum sheet with a thickness of 1.95 mm and powder coated.
Collection Only, No delivery available
